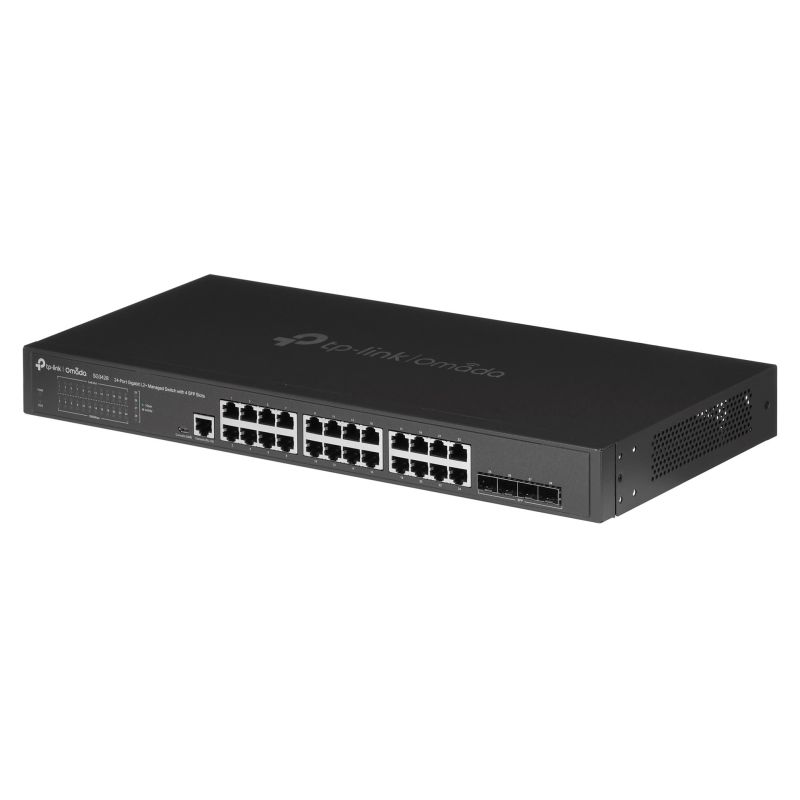

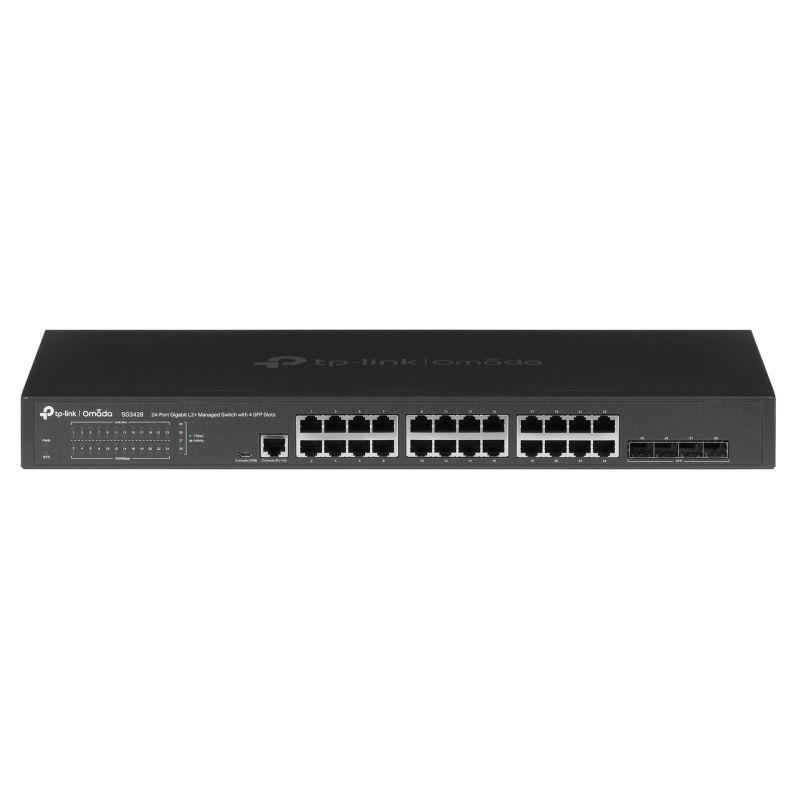

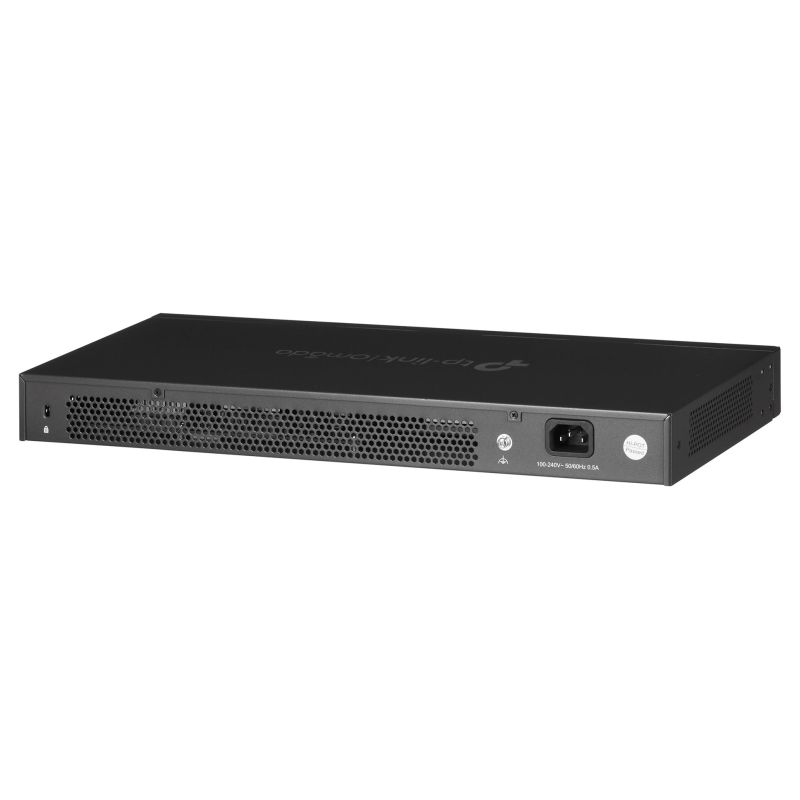

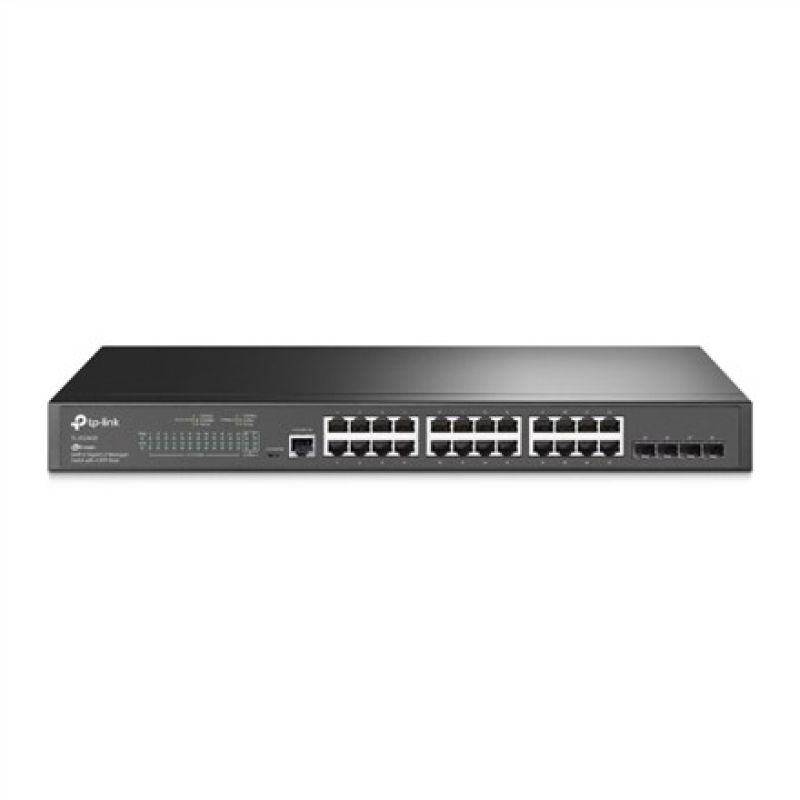

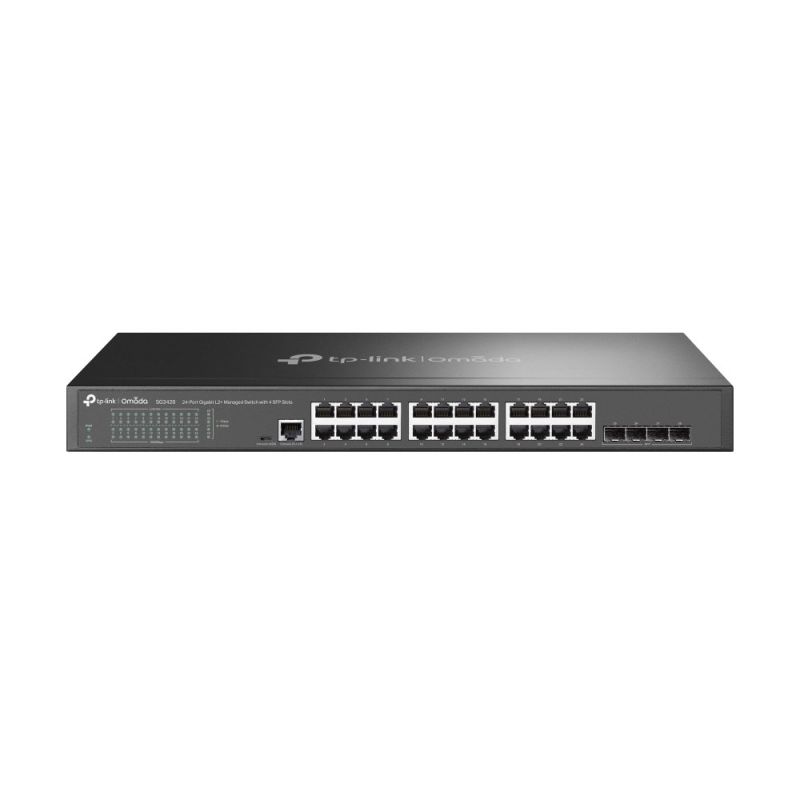

Switch TP-LINK TL-SG3428
Switch TP-LINK TL-SG3428
Switch TP-LINK TL-SG3428
PRICE:
306,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 2 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Design
- Layout: 1U

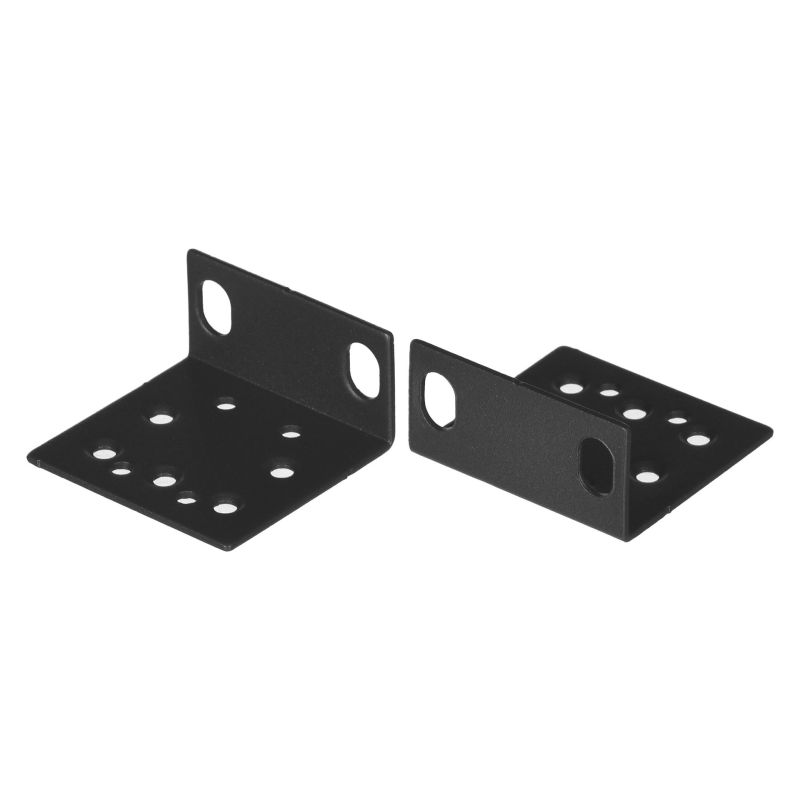

- Rack mounting options: Yes
- Product color: Black

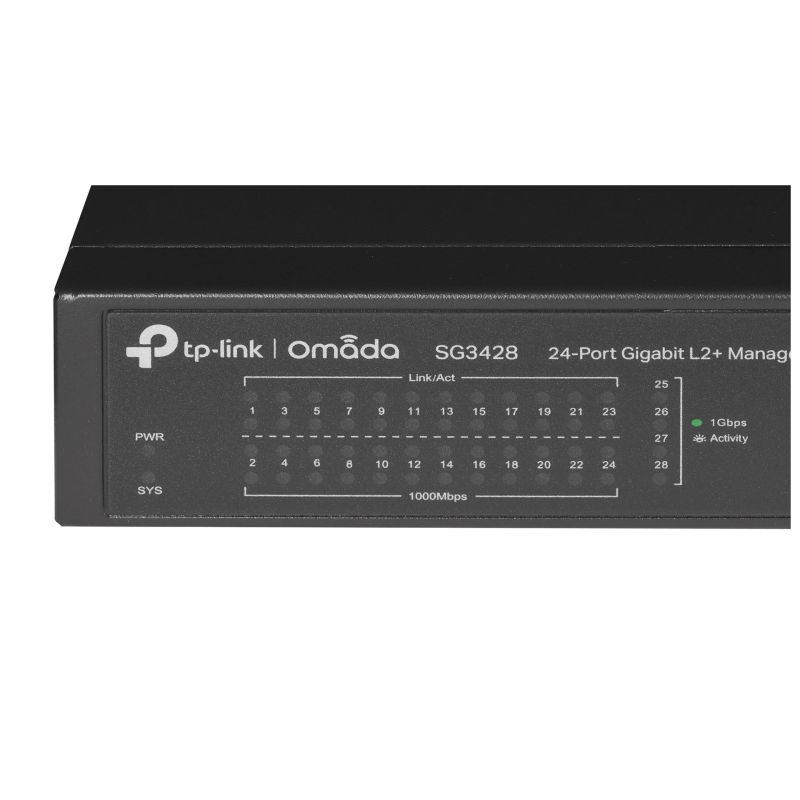

- LEDs: Yes
- Power
- AC input voltage: 100 - 240 V
- AC input frequency: 50/60 Hz
- Power consumption (max): 20.6 W
- Power source: AC
- Power Supply Included: No
- Weight and dimensions
- Product width: 440 mm
- Product height: 44 mm
- Product depth: 180 mm
- Security
- IGMP snooping: Yes
- Authentication: MAC-based authentication, Port-based authentication
- IP-MAC-Port Binding: Yes
- MAC address filtering: Yes
- Supports SSH/SSL: Yes
- Static Port Protection: Yes
- DHCP functions
- DHCP client
- DHCP snooping
- DHCPv6 snooping
- DHCPv6 client
- DHCP relay
- DHCP server
- Authentication type: AAA, RADIUS, TACACS+
- Access Control List (ACL): Yes
- BPDU Filtering/Protection: Yes
- Loop protection: Yes
- Management features
- Configuring Location Settings (CLI): Yes
- Switch Layer: L2/L3
- Cloud-managed: Yes
- ARP Inspection: Yes
- System Event Report: Yes
- Quality of Service (QoS) Support: Yes
- Switch type: Managed
- MIB Support: Yes
- Website management: Yes
- Working conditions
- Permissible relative humidity: 5 - 90%
- Temperature range (operation): 0 - 45 °C
- Heat emission: 70.3 BTU/h
- Temperature range (storage): -40 - 70 °C
- Relative humidity range: 10 - 90%
- Network
- Virtual LAN Features
- Voice VLAN
- Tagged VLAN
- Private VLAN
- Protocol-based VLAN
- Traffic Growth Control: Yes
- IP forwarding: Yes
- Port Mirroring: Yes
- Head-of-line (HOL) blocking: Yes
- Frequency Limit: Yes
- Communication standards
- IEEE 802.3i
- IEEE 802.3u
- IEEE 802.3z
- IEEE 802.3ab
- Spanning Tree Protocol: Yes
- Number of VLANs: 4000
- Connection Aggregator: Yes
- Rule-Based Routing: Yes
- IPv6 routes: 48
- 10G Support: No
- Flow Control Support: Yes
- Data transfer speed via Ethernet LAN: 10,100,1000 Mbit/s
- IPv4 routes: 48
- VLAN support: Yes
- Virtual LAN Features
- Packaging data

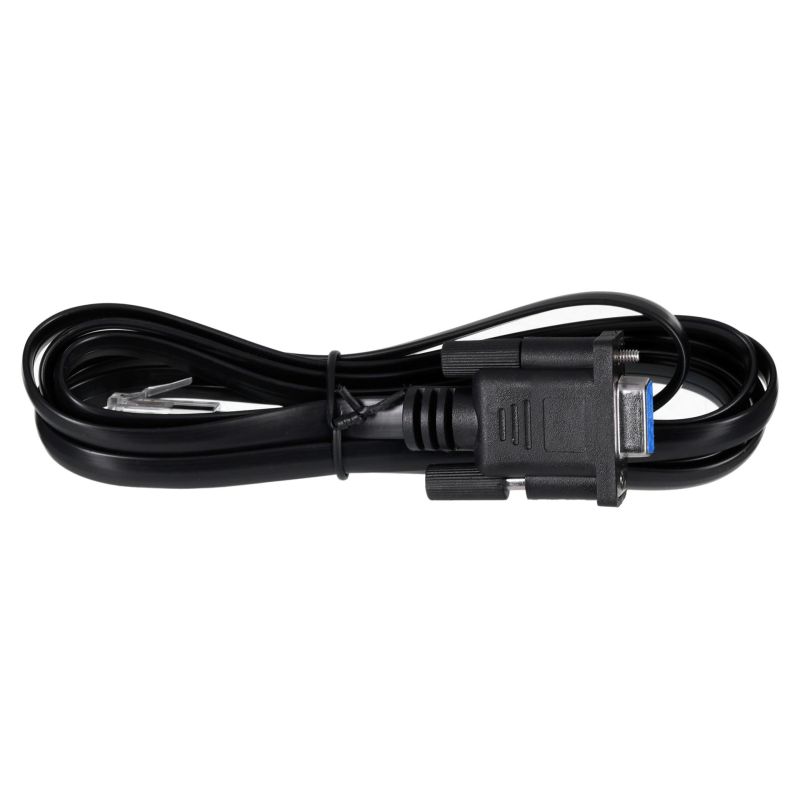

- Cables: LAN (RJ-45)
- Quick Start Guide: Yes
- Protocols
- IPv4 and IPv6 features
- IPv6 ping
- IPv6 tracert
- IPv4/IPv6 access-control list (ACL)
- IPv6 Telnet
- Management protocols: SNMPv1/v2c/v3, SNTP
- GARP VLAN Registration Protocol (GVRP): Yes
- IPv4 and IPv6 features
- Ports and interfaces

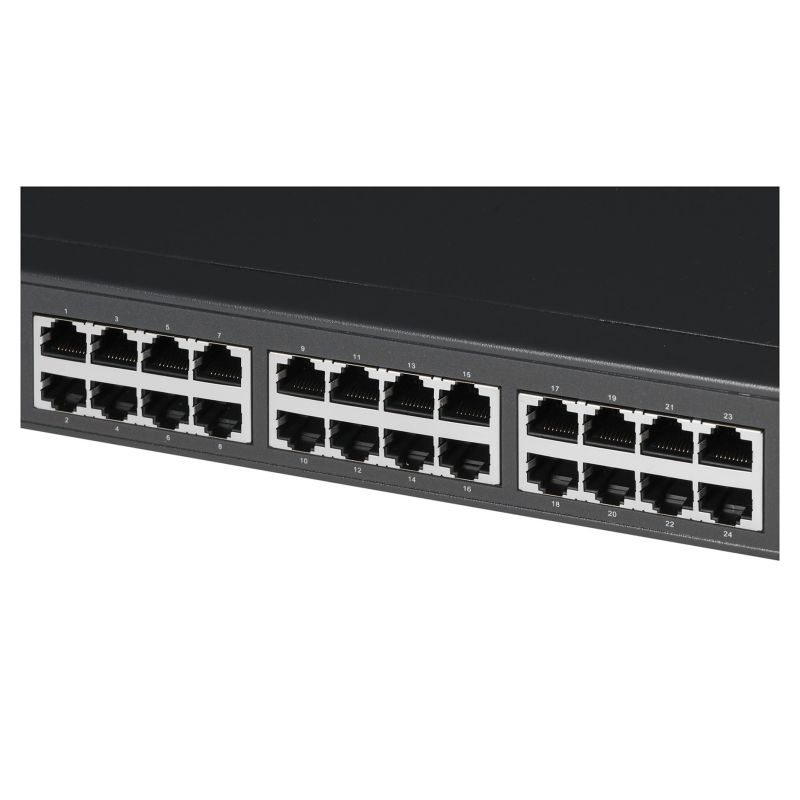

- Basic RJ-45 Switching Number of Ethernet Ports: 24
- Basic Ethernet switching RJ-45 ports type: Gigabit Ethernet (10/100/1000)

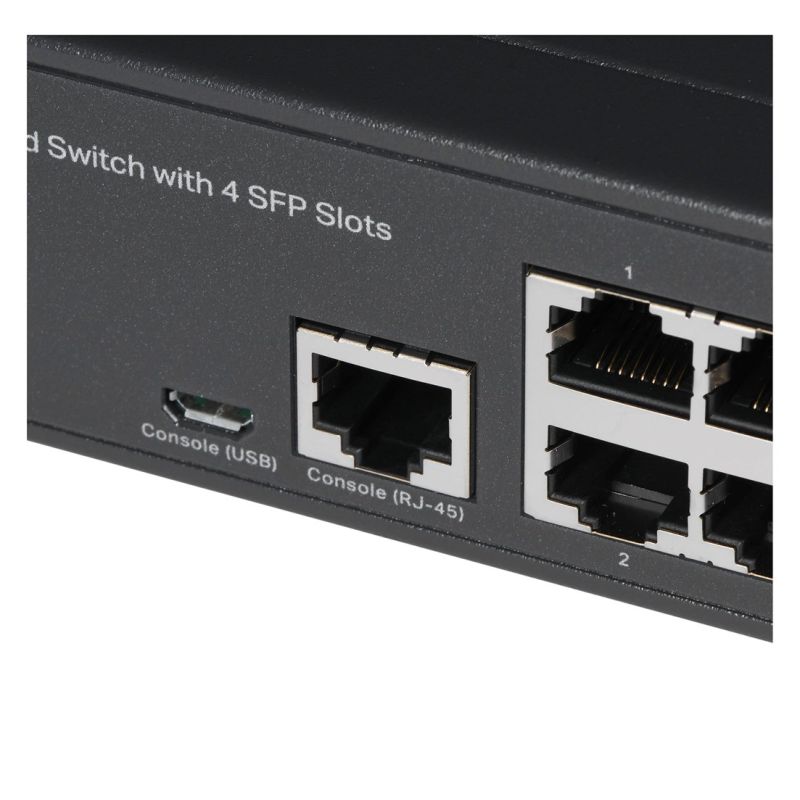

- Console port: RJ-45/micro-USB
- Number of Gigabit Ethernet ports: 24
- Number of SFP Module slots: 4
- Data transfer
- Jumbo Frames Expansion: 9000
- Packet buffer memory: 12 MB
- Jumbo Frame Compatible: Yes
- Store-and-forward: Yes
- Forwarding speed: 41.66 Mpps
- Address table size: 16000 entries
- Number of static routes: 48
- Static Route: Yes
- Routing/switching capacity: 56 Gbit/s
- Power over Ethernet (PoE)
- PoE Support: No
- Multicast functions
- Multicast Listener Discovery (MLD) snooping: Y
- Multicast Support: Yes
- Safety warning
- Warnings
- Ensure the device is adequately ventilated during operation.
- Do not open the casing or attempt to repair it yourself.
- This product is not suitable for disposal in regular trash. Please dispose of used electronic equipment at a recycling center in accordance with local regulations.
- Warnings
| Name | Details |
|---|---|
| Producer | TP-LINK |
