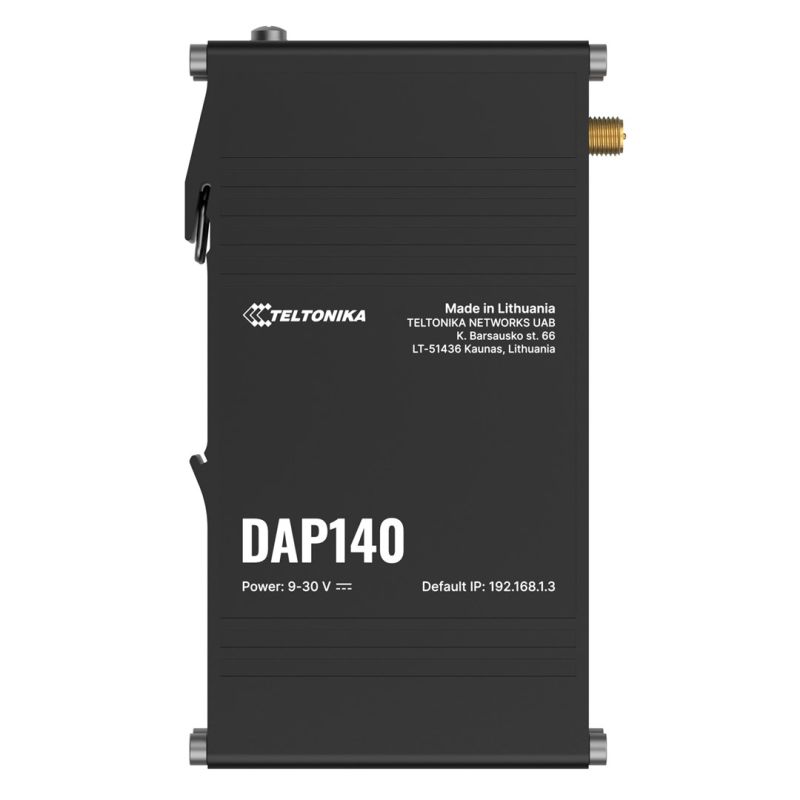

Teltonika DAP140 Industrial Access Point
Teltonika DAP140 Industrial Access Point
Sign up and unlock up to 10% off!
- Characteristics
- Cabling technology: 10/100Base-T(X)
- Fast roaming: Yes
- Maximum data transfer rate (2.4 GHz): 300 Mbit/s
- 6GHz: No
- 5GHz: No
- 2.4GHz: Yes
- Maximum data transfer speed: 300 Mbit/s
- Data transfer speed via Ethernet LAN
- 10 Mbps
- 100 Mbps
- 1000 Mbps
- Communication standards
- IEEE 802.11e
- IEEE 802.11g
- IEEE 802.11r
- IEEE 802.11s
- IEEE 802.3
- IEEE 802.11k
- IEEE 802.3az
- IEEE 802.11v
- IEEE 802.3u
- IEEE 802.11b
- IEEE 802.11n
- Wireless connection: Yes
- Design
- Housing material: Aluminum
- IP protection class: IP30
- Purpose: Shelf, Wall
- Reset button: Yes
- LEDs: Power
- Product color: Black
- Power
- Supported Power over Ethernet (PoE) type: Passive PoE
- PoE Support: Yes
- Weight and dimensions
- Product width: 113.1 mm
- Product height: 25 mm
- Product depth: 68.6 mm
- Product weight: 150 g
- Security
- MAC address filtering: Yes
- Encryption/Security
- WPA2-EAP
- WPA-EAP
- WPA3-EAP
- WPA3-SAE
- WPA2-PSK
- THOSE
- WPA-PSK
- Management features
- Command Line Interface (CLI): Yes
- Website management: Yes
- Working conditions
- Relative humidity range: 10 - 90%
- Permissible relative humidity: -50 - 75%
- Temperature range (storage): 10 - 90 °C
- Temperature range (operation): -40 - 75 °C
- Efficiency
- Internal memory capacity: 16 MB
- Installed operating system: RutOS
- Flash memory size: 128 MB
- Built-in processor: Yes
- Processor clock speed: 580 MHz
- Package contents
- Number of pieces: 1
- Protocols
- Universal Plug and Play (UPnP): Yes
- IPv4 and IPv6 features: Dual stack IPv4/IPv6
- DHCP server: Yes
- DHCP Client: Yes
- Ports and interfaces

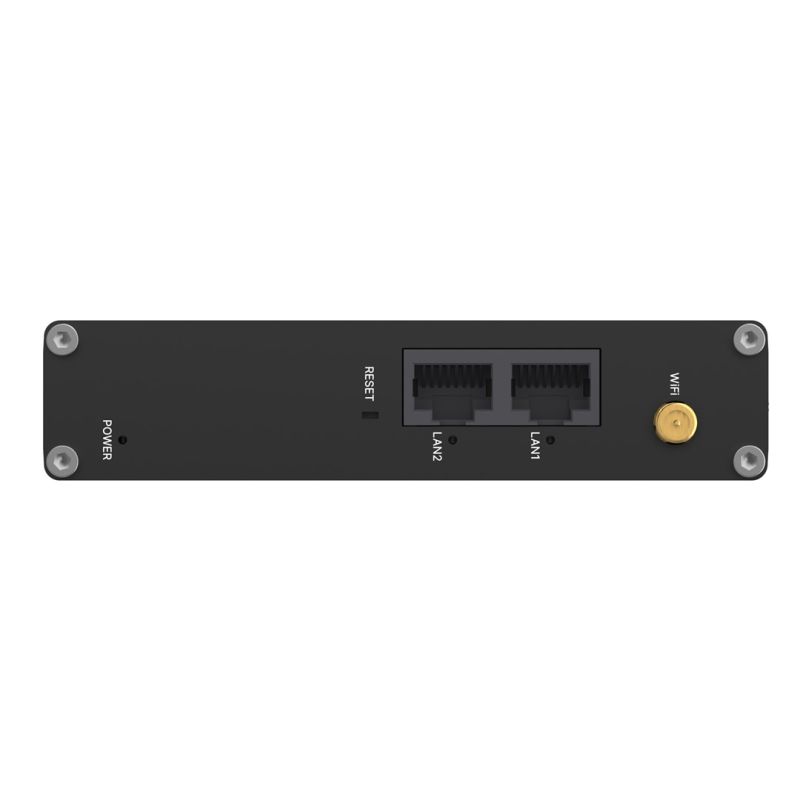

- Number of Ethernet LAN ports (RJ-45): 2
- WAN port: Ethernet (RJ-45)
- RS232 connector: No
- Antenna
- Antenna type: External
- Antenna plug type: RP-SMA
| Name | Details |
|---|---|
| Producer | Teltonika |
