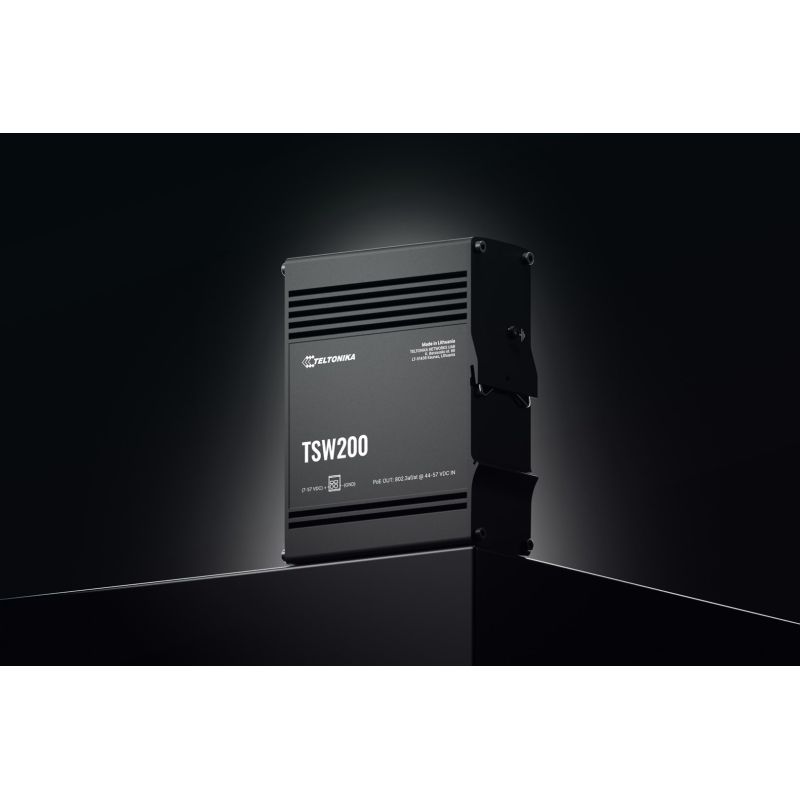

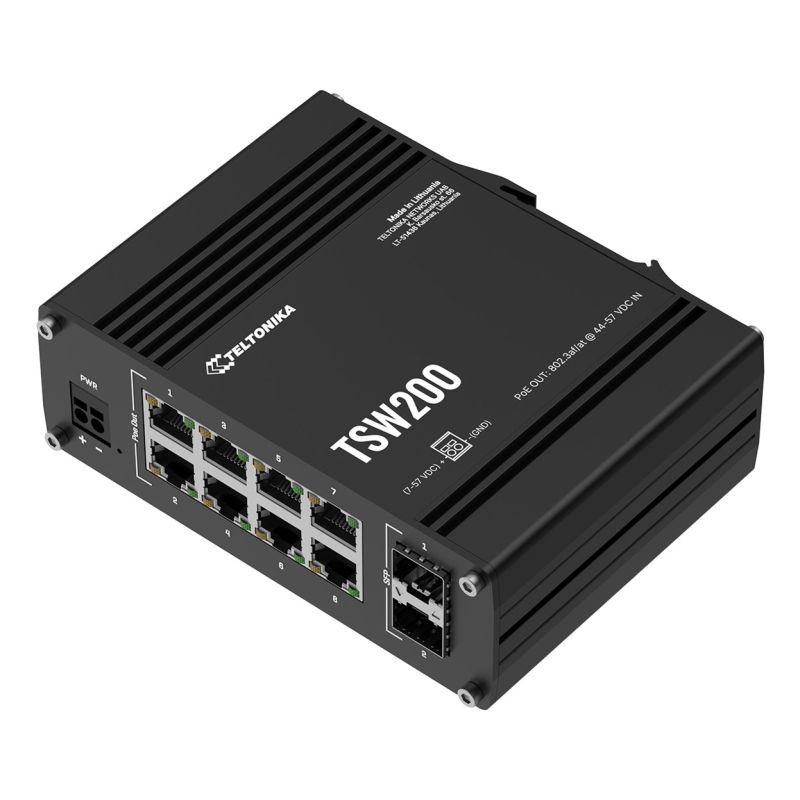

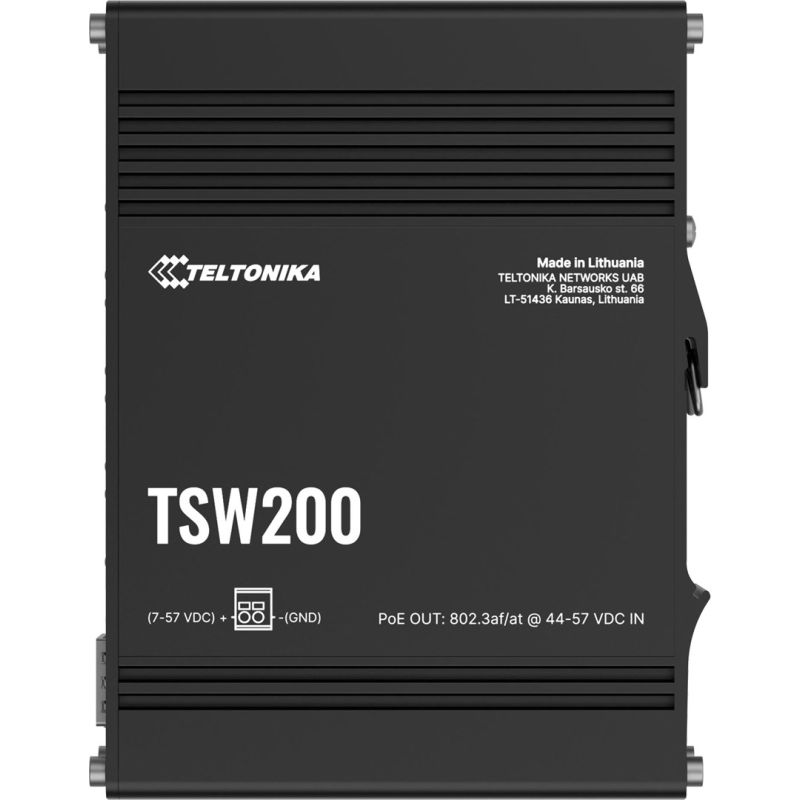

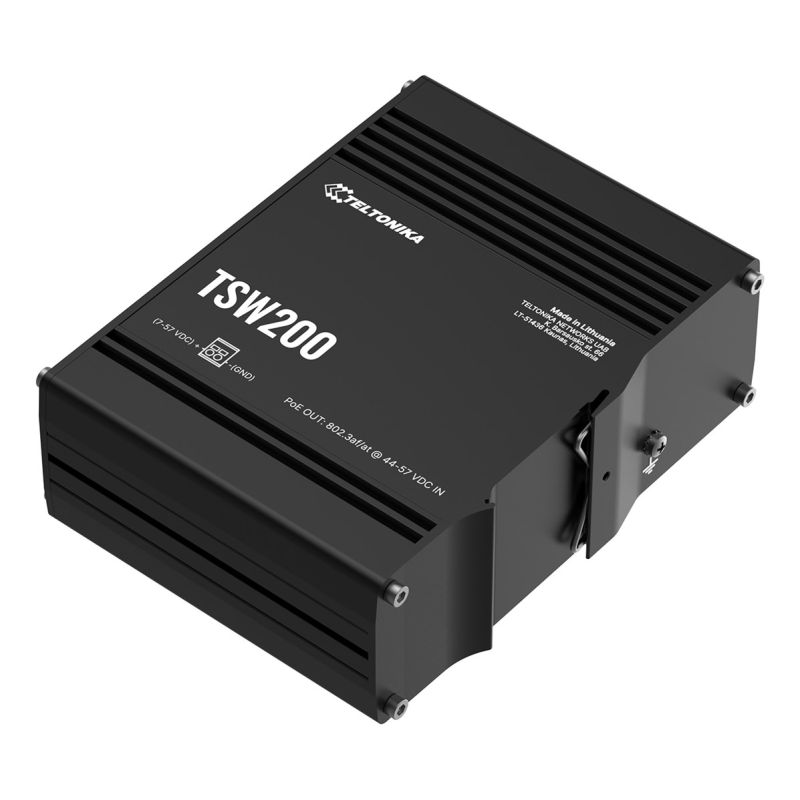

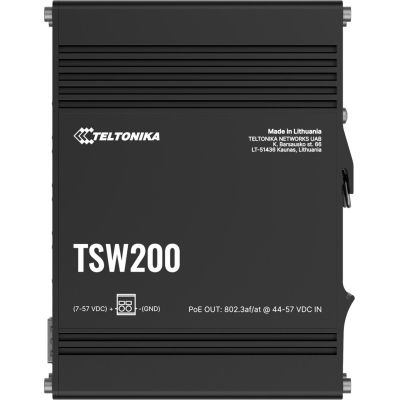

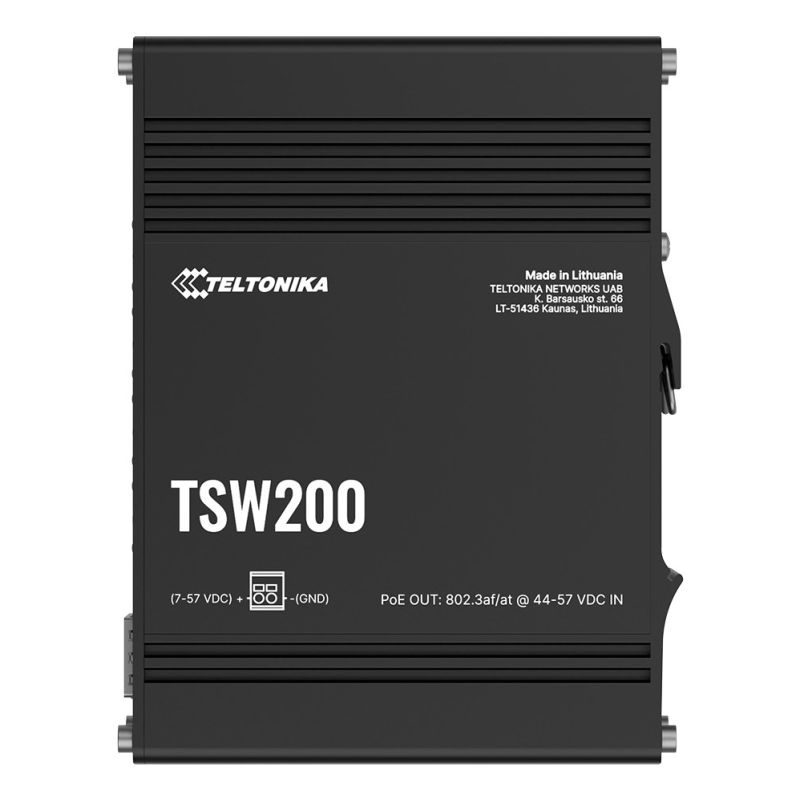

Teltonika TSW200 Network Switch
Teltonika TSW200 Network Switch
Teltonika TSW200 Network Switch
PRICE:
162,99
€
IN A WAREHOUSE
5 pcs
We'll ship this product in 7 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Design
- Housing material: Aluminum
- LEDs: Yes
- Product color: Black
- IP protection class: IP30

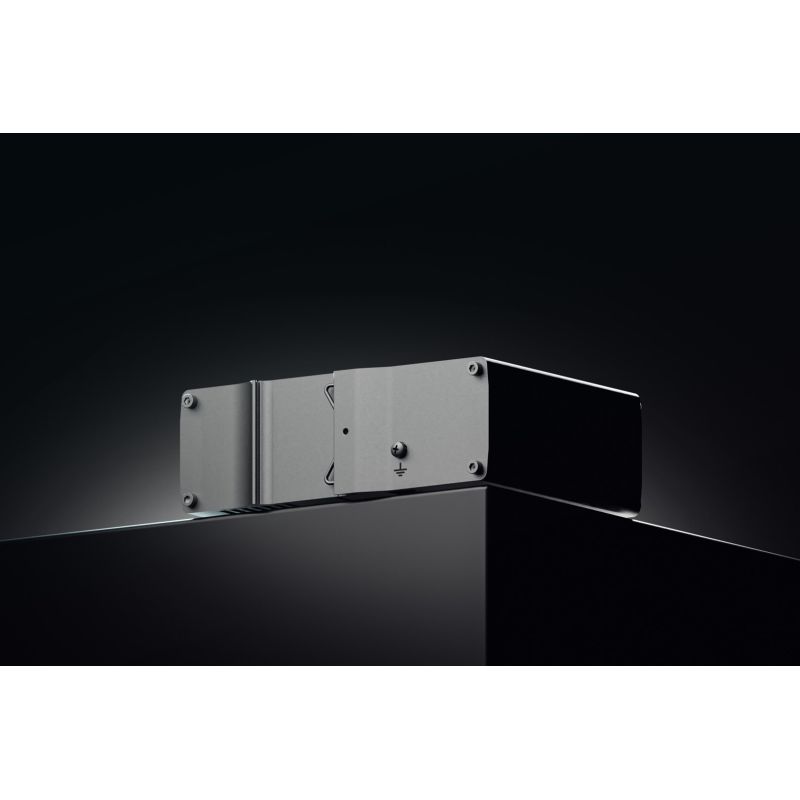

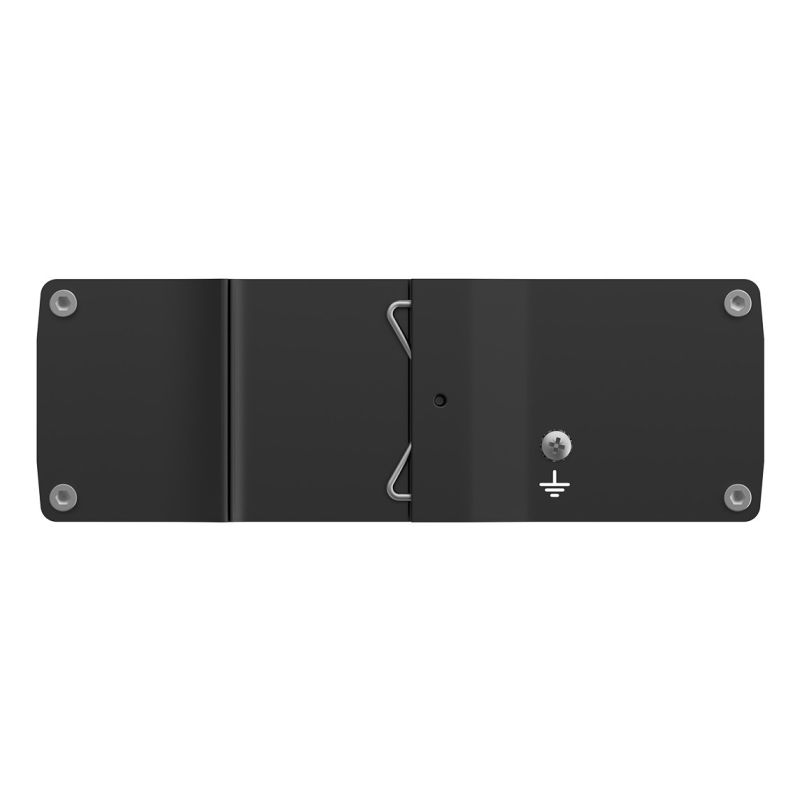

- DIN rail mounting: Yes
- Wall mountable: Yes
- Power
- DC input voltage: 7 - 57 V
- Power Supply Included: No
- Power source: DC
- Power consumption (max): 5.5 W
- Weight and dimensions
- Product weight: 517 g
- Product height: 44.2 mm
- Product depth: 95.1 mm
- Product width: 132 mm
- Management features
- Switch Type: Unmanaged
- Working conditions
- Relative humidity range: 5 - 95%
- Temperature range (operation): -40 - 75 °C
- Network
- 10G Support: No
- Auto MDI/MDI-X: Yes
- Communication standards
- IEEE 802.3u
- IEEE 802.3af
- IEEE 802.3x
- IEEE 802.3i
- IEEE 802.3ab
- IEEE 802.3az
- IEEE 802.3at
- Packaging data
- Packaging type: Box
- Package contents
- Quick Start Guide: Yes
- Certificates
- Certificates of conformity
- Industry Canada (IC)
- Federal Communications Commission (FCC)
- CB
- UKCA
- CE
- Certificates of conformity

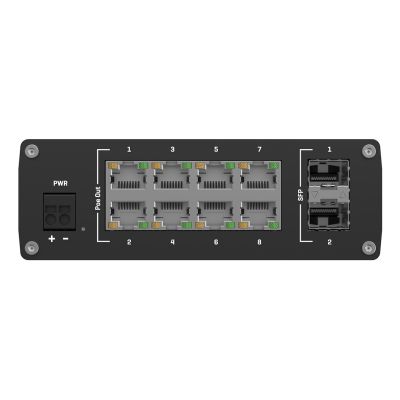

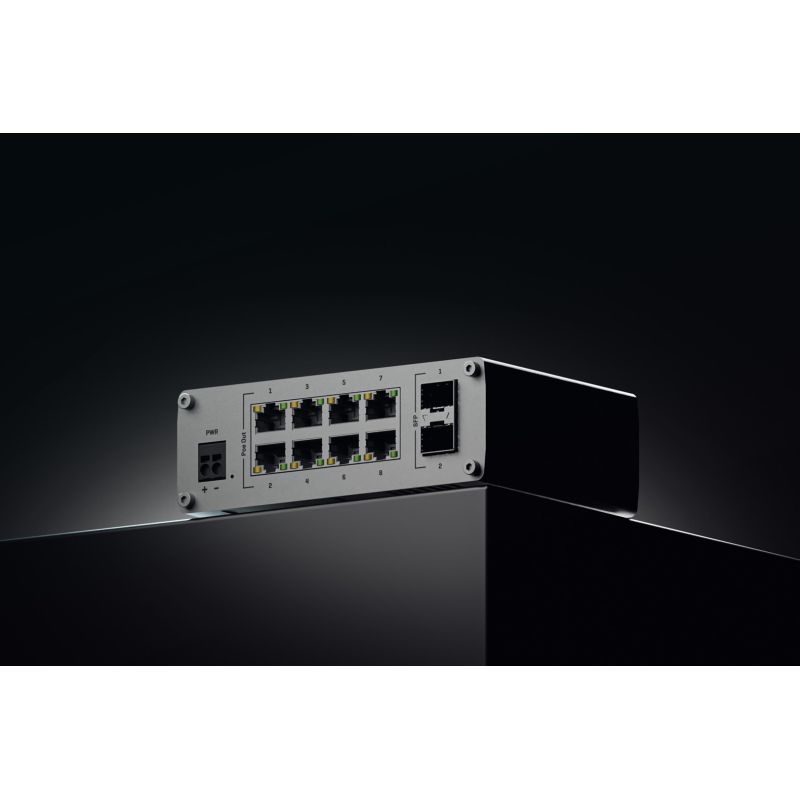

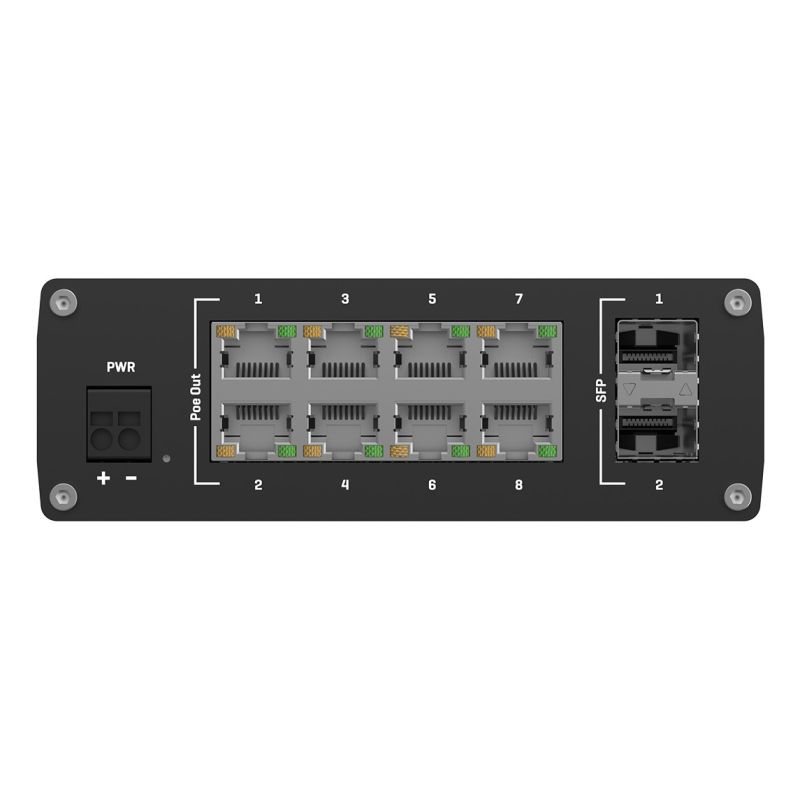

- Ports and interfaces
- Basic Ethernet switching RJ-45 ports type: Gigabit Ethernet (10/100/1000)
- Power connector: DC-in jack
- Number of SFP Module slots: 2
- Basic RJ-45 Switching Number of Ethernet Ports: 8
- Data transfer
- Jumbo Frame Compatible: Yes
- Packet buffer memory: 0.128 MB
- Address table size: 2000 entries
- Jumbo Frames Expansion: 9216
- Routing/switching capacity: 20 Gbit/s
- Power over Ethernet (PoE)
- Power over Ethernet Plus (PoE +) ports: 8
- PoE Support: Yes
- Power over Ethernet (PoE) type supported
- PoE+
- Active PoE
- Power over Ethernet (PoE) power per port: 30 W
- Power over Ethernet (PoE) modes
- Alternative A
- Alternative B
- Total Power over Ethernet (PoE) budget: 240 W
| Name | Details |
|---|---|
| Department | Electronics |
| Category | Networking & Communication, Computers and accessories |
| Product Type | Network switches |
| Producer | Teltonika |
