Thermaltake PS-SPD-0850MNFABE-3 Power Supply Module 850W 24-pin ATX ATX Black
Thermaltake PS-SPD-0850MNFABE-3 Power Supply Module 850W 24-pin ATX ATX Black
Thermaltake PS-SPD-0850MNFABE-3 Power Supply Module 850W 24-pin ATX ATX Black
PRICE:
108,99
€
IN A WAREHOUSE
3 pcs
We'll ship this product in 9 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Design
- Built-in switch: Yes
- Fan Location: Top
- Number of fans: 1 fan
- Cooling type: Active
- Product color: Black
- Fan bowl diameter: 12 cm
- Backlight: No
- Power
- Input current: 15 A
- AC input frequency: 50/60 Hz
- PFC (Power Factor Correction) Type: Active
- Maximum output current (+12V): 70.85A
- Maximum output current (-12V): 0.3A
- Total power (+5V): 110 W
- Total power (+5 Vsb): 15 W
- Total power: 850 W
- Maximum output current (+5 Vsb): 3 A
- Total power (-12V): 3.6 W
- Total power (+12V): 850 W
- Power protection features
- Low voltage protection
- Short circuit
- Overheating protection
- Overvoltage protection
- Overcurrent
- Overload protection
- Hold time: 17 ms
- AC input voltage: 100 - 240 V
- Maximum output current (+5V): 18A
- Maximum output current (+3.3V): 18 A
- Total power (+3.3V): 110 W
- Weight and dimensions
- Product depth: 140 mm
- Product width: 150 mm
- Product height: 86 mm
- Working conditions
- Temperature range (operation): 5 - 45 °C
- Temperature range (storage): -40 - 55 °C
- Relative humidity range: 20 - 85%
- Permissible relative humidity: 10 - 95%
- Efficiency
- Intended use: PC
- 80 PLUS Certificate: 80 PLUS Bronze
- ATX version: 3.0
- Power supply type (PSU): ATX
- MTBF (Mean Time Between Failures): 100000 h

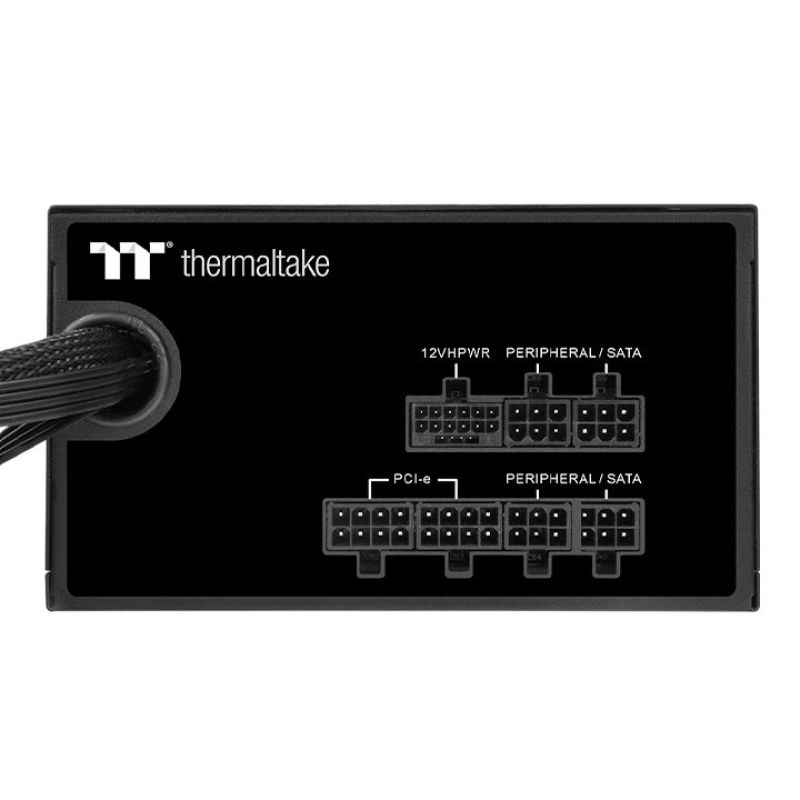

- Ports and interfaces
- SATA power cable length
- 150
- 500
- PCI Express power connectors (6+2 pin): 4
- Cabling Type: Semi-Modular
- Motherboard power connector: 24-pin ATX
- Peripheral (Molex) Power Cable Length
- 150 mm
- 500
- Peripheral (Molex) Power Connectors (4-pin): 7
- Number of SATA power connectors: 6
- Motherboard cable length: 60 cm
- CPU power supply connector (4+4 pin): Yes
- PCI Express power connectors (12+4 pin) cable length: 600 mm
- PCI Express power connectors (12+4 pin): 1
- SATA power cable length
- Safety warning
- Warnings
- Avoid contact of the product with water or other liquids.
- The product is not suitable for disposal with municipal waste – dispose of in accordance with local regulations.
- Do not open the housing – risk of electric shock.
