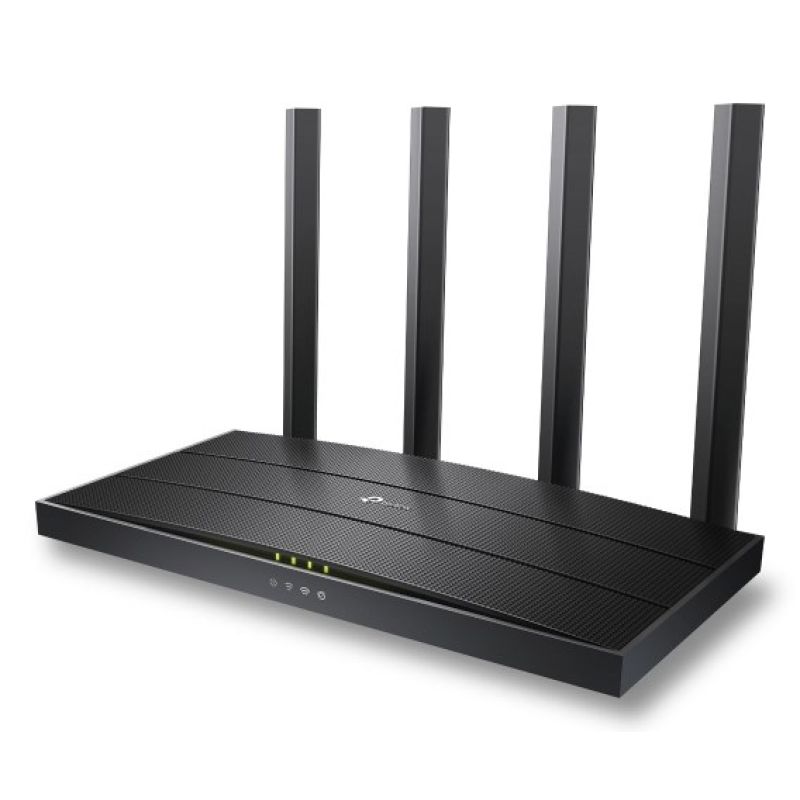

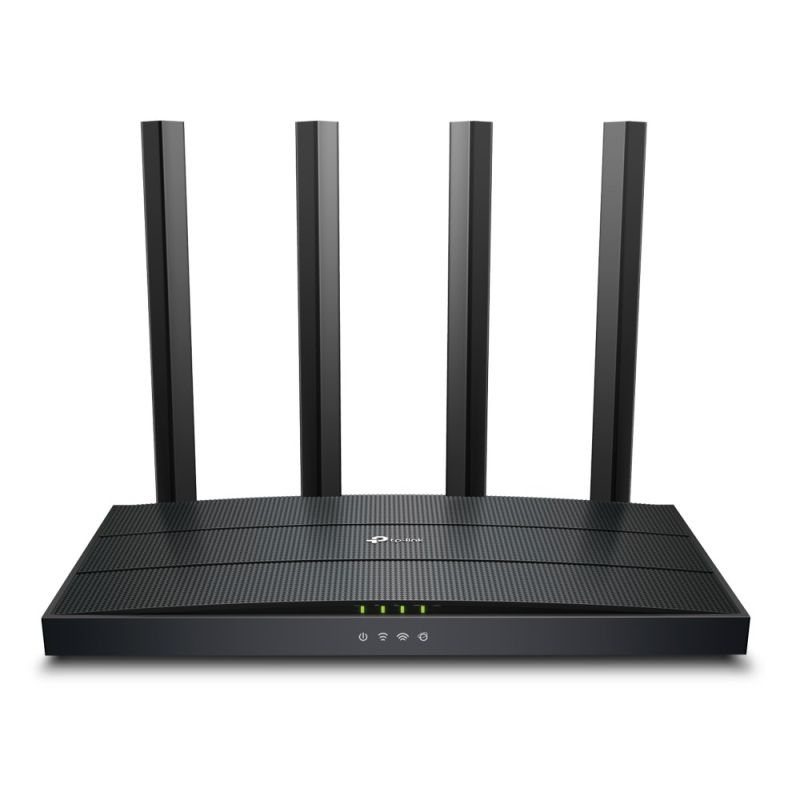

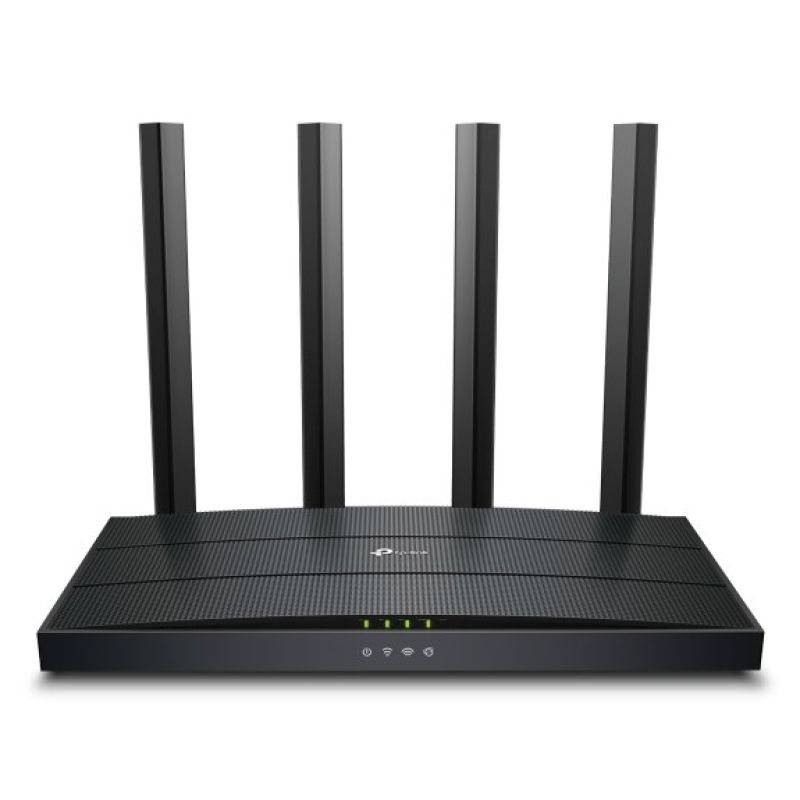

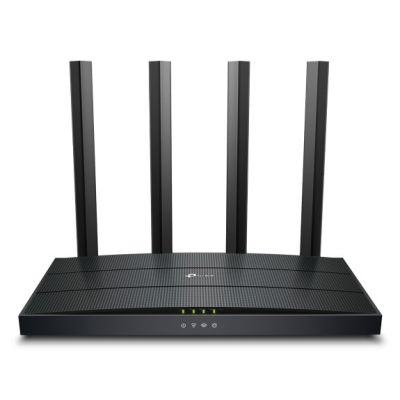

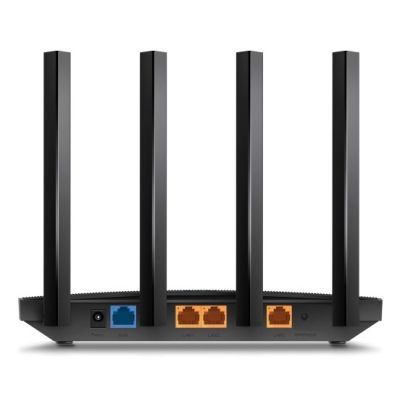

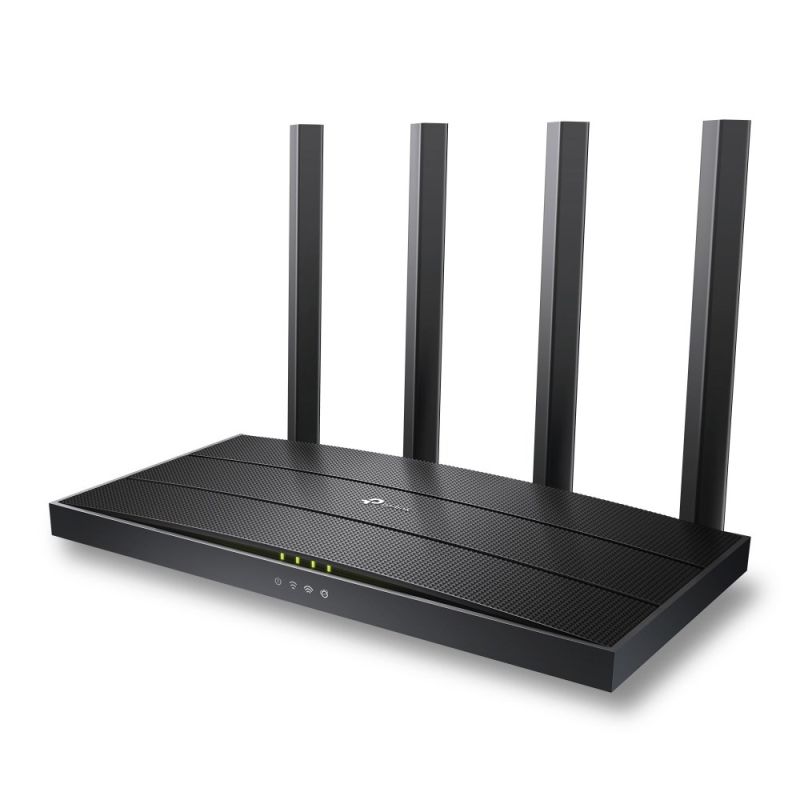

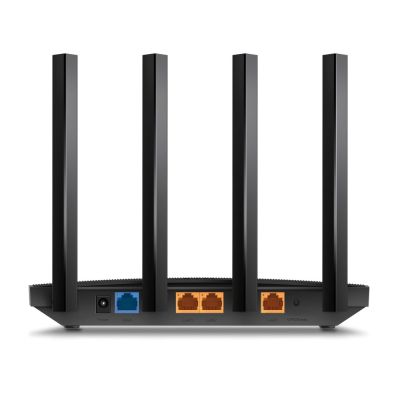

TP-Link Archer AX17 Router
TP-Link Archer AX17 Router
Sign up and unlock up to 10% off!
- Design
- LEDs: LAN, Power, WAN
- Product color: Black
- Product type: Desktop router
- Power
- Operating voltage: 12 V
- Power supply type: DC
- Output current: 1 A
- Weight and dimensions
- Product width: 215 mm
- Product depth: 117 mm
- Product height: 32 mm
- Security
- Parental Controls: Yes
- Firewall: Yes
- Firewall protection: SPI Firewall
- Encryption/Security
- WPA2-Enterprise
- WPA3
- WPA2-PSK
- URL Filtering: Yes
- Guest Access: Yes
- DMZ Support: Yes
- Management features
- WPS Button: Yes
- Quality of Service (QoS) Support: Yes
- Reset button: Yes
- Working conditions
- Temperature range (operation): 0 - 40 °C
- Permissible relative humidity: 5 - 90%
- Temperature range (storage): -40 - 60 °C
- Relative humidity range: 10 - 90%
- Network
- Port Triggering: Yes
- Port Forwarding: Yes
- Dynamic DNS (DDNS): Yes
- Wired LAN: Yes
- Ethernet LAN interface type: Gigabit Ethernet
- Data transfer speed via Ethernet LAN
- 100 Mbps
- 1000 Mbps
- 10 Mbps
- Number of guest networks (5 GHz): 1
- Number of guest networks (2.4 GHz): 1
- Packaging data
- Packaging type: Box
- Wireless LAN Features
- WLAN data transfer rate (first band): 300 Mbit/s
- Wi-Fi standards
- 802.11g
- 802.11a
- Wi-Fi 5 (802.11ac)
- Wi-Fi 4 (802.11n)
- 802.11b
- Wi-Fi 6 (802.11ax)
- WLAN data transfer rate (max): 1500 Mbit/s
- Wi-Fi frequency: Dual-band (2.4 GHz/5 GHz)
- Basic Wi-Fi standard: Wi-Fi 6 (802.11ax)
- WLAN data transfer rate (second band): 1201 Mbit/s
- Protocols
- DHCP server: Yes
- Universal Plug and Play (UPnP): Yes
- DHCP Client: Yes

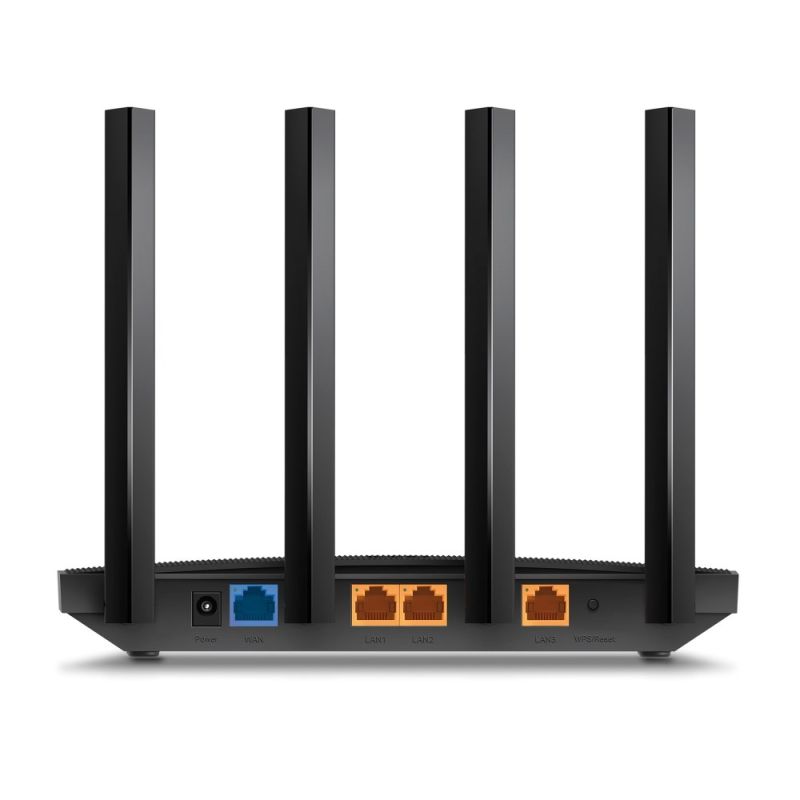

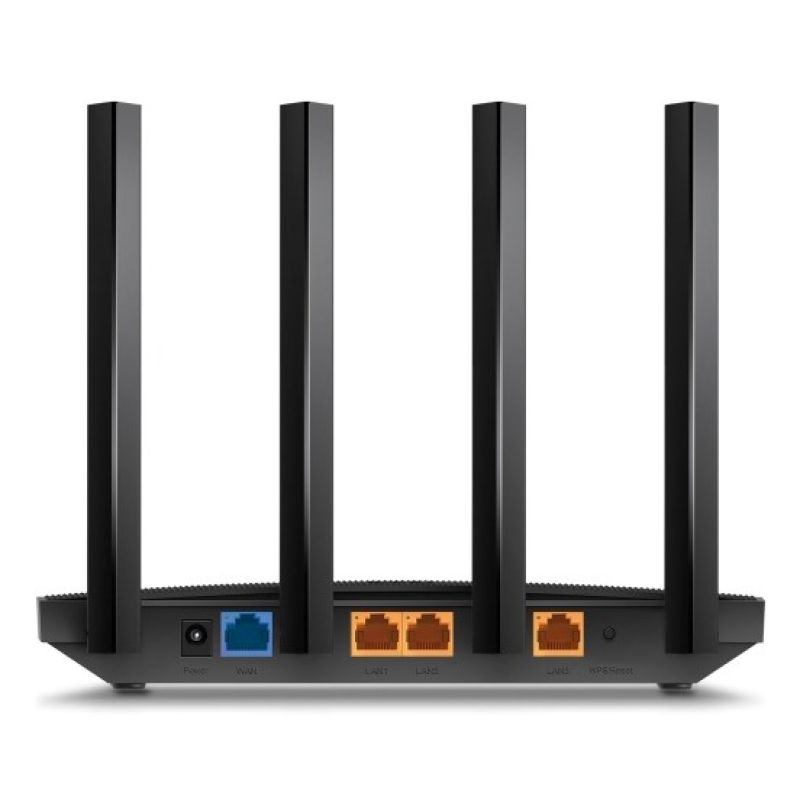

- Ports and interfaces
- Number of Ethernet LAN ports (RJ-45): 3
- USB port: No
- DC output socket: Yes
- Number of WAN ports: 1
- Antenna
- Number of antennas: 4
- Antenna Construction: External
- WAN connection
- USB 3G/4G Connection: No
- DSL WAN: No
- SIM card slot: No
- Ethernet WAN: Yes
- Safety warning
- Warnings
- Do not open the device casing - risk of electric shock.
- The product may emit radio waves that may interfere with the operation of other electronic devices.
- Avoid contact with liquids as this may cause electric shock.
- Warnings
| Name | Details |
|---|---|
| Producer | TP-LINK |
