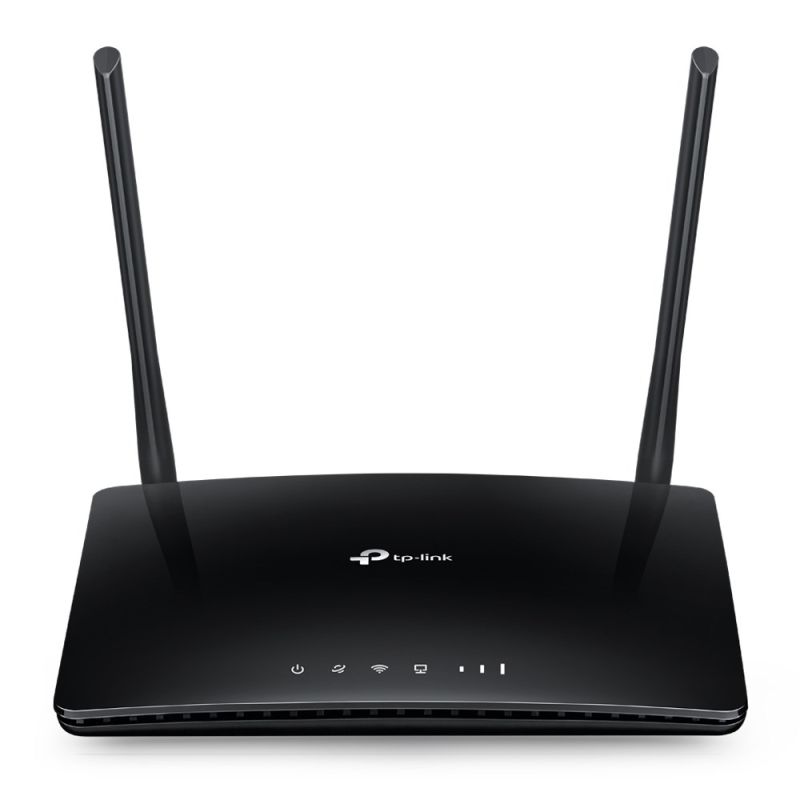

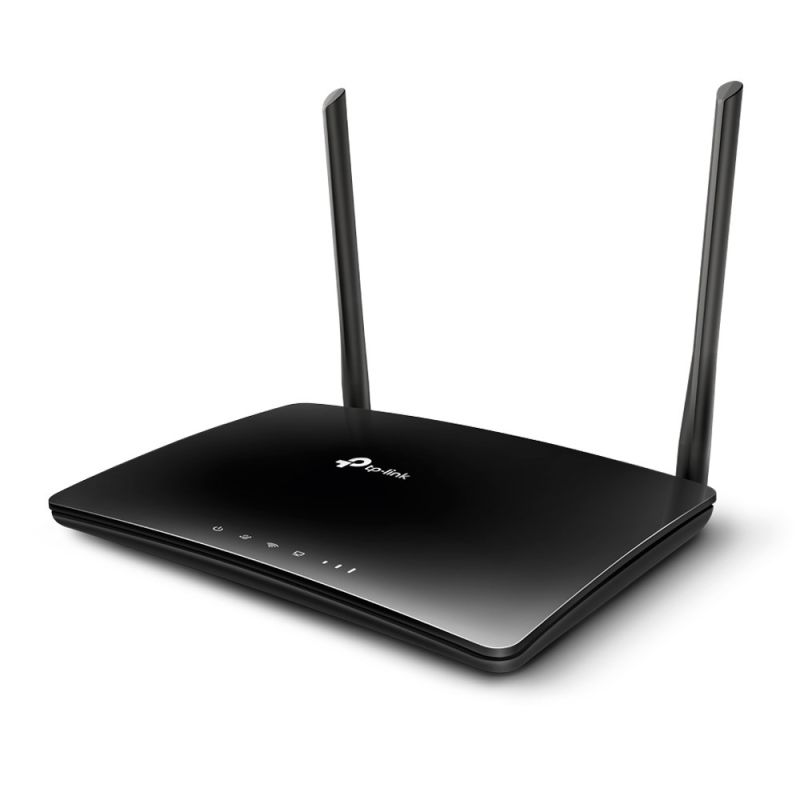

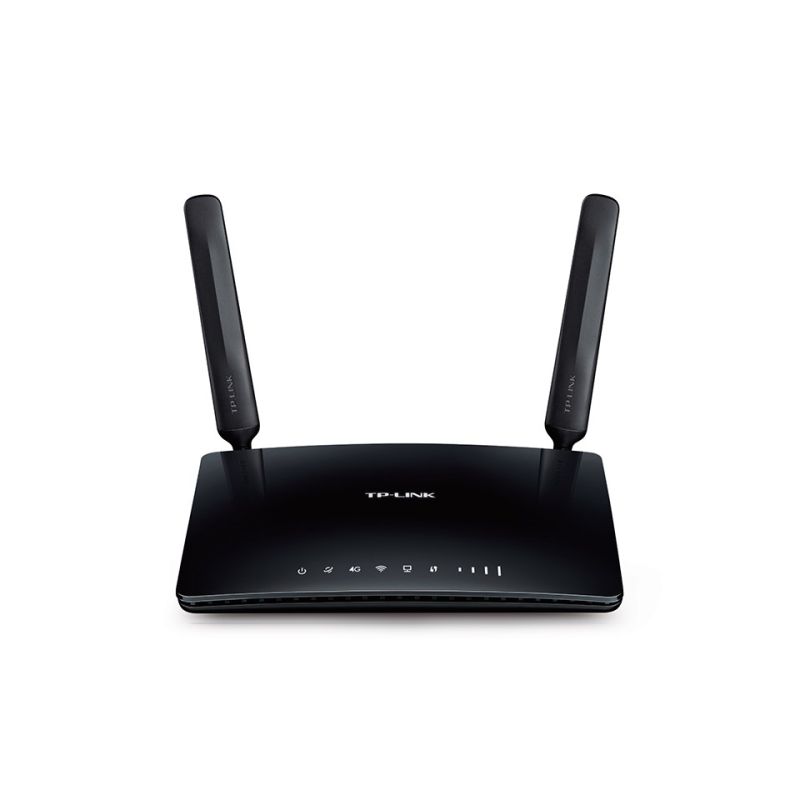

TP-LINK Archer MR200 Router (3G/4G/LTE SIM; 2.4 GHz, 5 GHz)
TP-LINK Archer MR200 Router (3G/4G/LTE SIM; 2.4 GHz, 5 GHz)
Sign up and unlock up to 10% off!
- Features
- Processor model: Qualcomm Atheros
- Plug and Play support: Yes
- Built-in processor: Yes
- Design
- LED indicators: LAN, Power, WAN network, WLAN
- Product colour: Black
- Product type: Desktop router
- Built-in on/off switch: Yes
- Power
- Power supply type: DC
- Operating voltage: 12 V
- Output current: 1 A
- Weight and dimensions
- Product depth: 145 mm
- Product width: 202 mm
- Product height: 34 mm
- Security
- Encryption/security
- 128-bit WEP
- WPA
- WPA2-PSK
- WPA-PSK
- 64-bit WEP
- WPA2
- MAC address filtering: Yes
- Stateful Packet Inspection software: Yes
- Filtering: Yes
- DMZ support: Yes
- Guest access: Yes
- DoS attack prevention: Yes
- IP address filtering: Yes
- URL filtering: Yes
- Firewall: Yes
- Encryption/security
- Management features
- Web-based management: Yes
- Quality of Service (QoS) support: Yes
- Reset button: Yes
- Operating conditions
- Operating temperature range: 0 - 40 °C
- Permissible relative humidity: 5 - 90%
- Storage temperature range: -40 - 70 °C
- Relative humidity range: 10 - 90%
- Network
- Communication standards
- IEEE 802.11a
- IEEE 802.11b
- IEEE 802.11n
- IEEE 802.11ac
- IEEE 802.11g
- Ethernet LAN data transfer rate
- 10 Mbit/s
- 100 Mbit/s
- Wired LAN: Yes
- Dynamic DNS (DDNS): Yes
- Port forwarding: Yes
- Ethernet LAN interface type: Fast Ethernet
- VPN pass-through: Yes
- Number of VPN tunnels: 10
- Cabling technology: 10/100Base-T(X)
- Communication standards
- System requirements
- Supported Windows operating systems
- Windows 8.1
- Windows XP
- Windows 2000
- Windows 98SE
- Windows 10
- Windows Vista
- Windows NT
- Windows 8
- Windows 7
- Supported Mac operating systems: Yes
- Supported browsers: Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0
- Supported Linux operating systems: Yes
- Supported Windows operating systems
- Packaging content
- Quick start guide: Yes
- AC adapter: Yes
- Cables: LAN (RJ-45)
- Quick installation guide: Yes
- Wireless LAN features
- WLAN data transfer rate (max.): 733 Mbit/s
- Wi-Fi standards
- 802.11g
- 802.11a
- Wi-Fi 5 (802.11ac)
- Wi-Fi 4 (802.11n)
- 802.11b
- Basic Wi-Fi standard: Wi-Fi 5 (802.11ac)
- WLAN data transfer rate (first band): 300 Mbit/s
- Wi-Fi frequency: Dual-band (2.4 GHz/5 GHz)
- WLAN data transfer rate (second band): 433 Mbit/s
- Protocols
- DHCP client: Yes
- DHCP server: Yes
- Supported network protocols: IPv4, IPv6
- Universal Plug and Play (UPnP): Yes

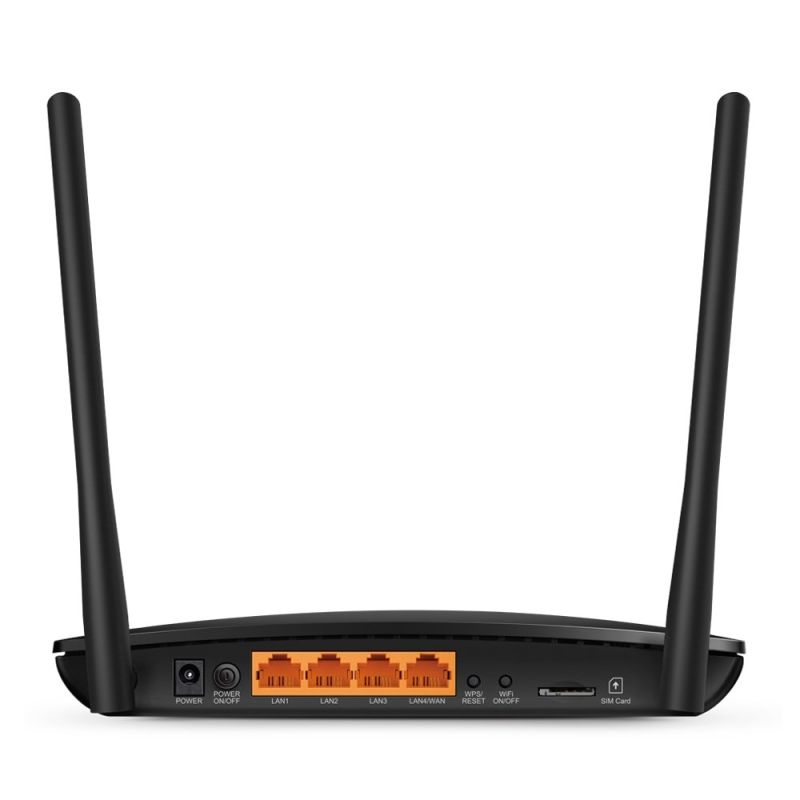

- Ports and interfaces
- Number of Ethernet LAN ports (RJ-45): 4
- DC output jack: Yes
- Memory card slot(s): No
- USB port: No
- Antenna
- Number of antennas: 2
- Transmit power: 0 dBmW
- Antenna design: External
- WAN connection
- WAN connection type: RJ-45
- DSL WAN: No
- Ethernet WAN: Yes
- USB 3G/4G connection: No
- SIM card slot: Yes
- Mobile network
- 3G: Yes
- 4G: Yes
- Supported 4G networks
- 2600 MHz
- 1900 MHz
- 2500 MHz
- 800 MHz
- 2300 MHz
- 2100 MHz
- 1800 MHz
- 900 MHz
- Supported 3G bands
- 2100 MHz
- 900 MHz
- 3G standards
- HSPA+
- DC-HSPA+
- HSPA
- UMTS
- 4G standards: LTE
- Mobile network generation: 4G
- Safety warning
- Warnings
- Do not open the device housing – risk of electric shock.
- The product may emit radio waves that can interfere with the operation of other electronic devices.
- Avoid contact with liquids, as this may result in electric shock.
- Warnings
