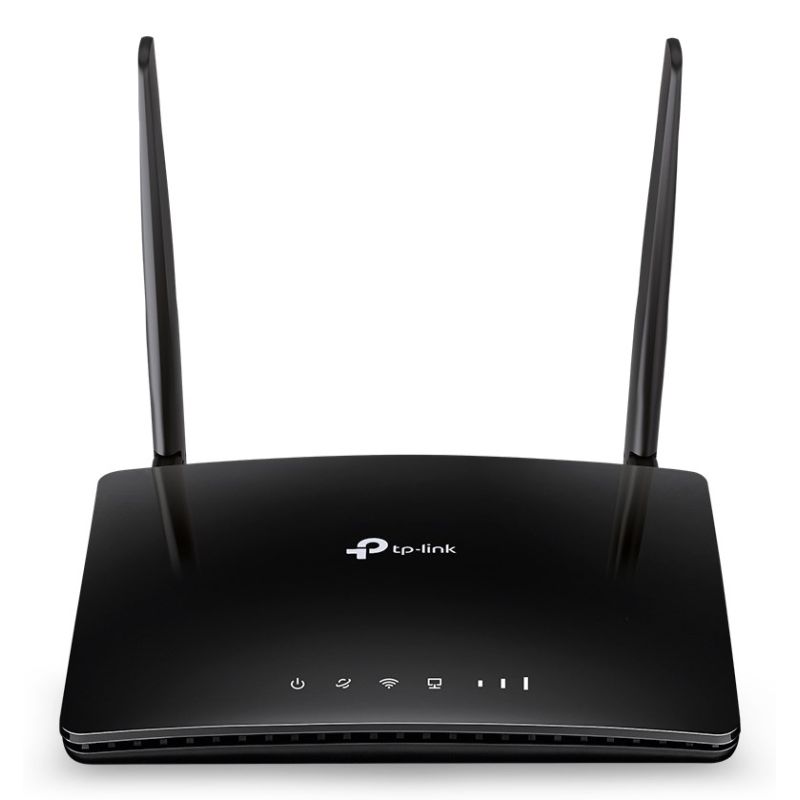

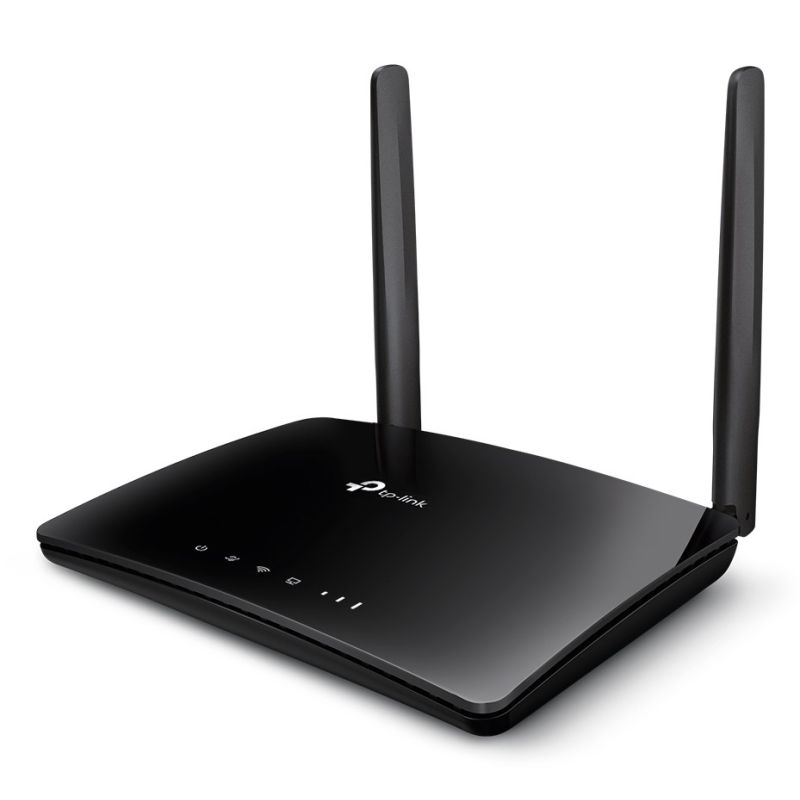

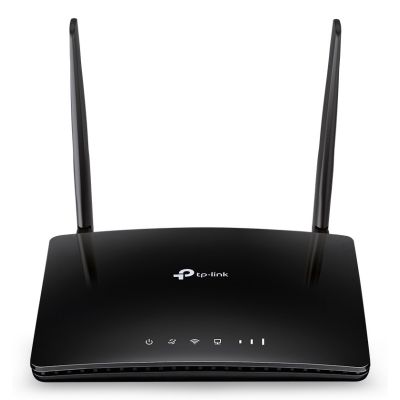

TP-LINK Archer MR402 AC1200 Wireless Dual Band 4G LTE Router
TP-LINK Archer MR402 AC1200 Wireless Dual Band 4G LTE Router
Sign up and unlock up to 10% off!
- Design
- Product type: Desktop router
- Product color: Black
- Power
- Operating voltage: 12 V
- Output current: 1 A
- Power supply type: DC
- Weight and dimensions
- Product depth: 124.5 mm
- Product height: 33.5 mm
- Product width: 174 mm
- Security
- Access Control List (ACL): Yes
- Firewall: Yes
- Parental Controls: Yes
- Firewall protection: DoS, SPI Firewall, IP Address Filter/Domain Filter, IP and MAC Address Binding
- Schedule Access: Yes
- Encryption/Security
- WPA2
- 64-bit WEP
- 128-bit WEP
- WPA
- WPA2-PSK
- WPA-PSK
- Management features
- Wi-Fi Multimedia (WMM) / (WME): Yes
- WPS Button: Yes
- Reset button: Yes
- Quality of Service (QoS) Support: Yes
- Working conditions
- Permissible relative humidity: 5 - 90%
- Temperature range (operation): 0 - 40 °C
- Temperature range (storage): -40 - 70 °C
- Relative humidity range: 10 - 90%
- Network
- Cabling technology: 10/100Base-T(X)
- Port Triggering: Yes
- Port Forwarding: Yes
- Ethernet LAN interface type: Fast Ethernet
- Dynamic DNS (DDNS): Yes
- Wired LAN: Yes
- Number of guest networks (2.4 GHz): 1
- Number of guest networks (5 GHz): 1
- Communication standards
- IEEE 802.11g
- IEEE 802.11a
- IEEE 802.11ac
- IEEE 802.11b
- IEEE 802.11n
- Data transfer speed via Ethernet LAN
- 100 Mbps
- 10 Mbps
- System requirements
- Linux operating systems supported: Yes
- Supported Windows operating systems
- Windows 7
- Windows 2000
- Windows 98SE
- Windows 8
- Windows Vista
- Windows NT
- Windows 8.1
- Windows 10
- Windows XP
- Mac operating systems supported: Yes
- Packaging data
- Number of products included: 1 pc.
- Packaging type: Box
- Package contents
- Quick Installation Guide: Yes
- AC adapter: Yes
- Cables: LAN (RJ-45)
- Wireless LAN Features
- WLAN data transfer rate (first band): 300 Mbit/s
- Wi-Fi standards
- Wi-Fi 4 (802.11n)
- 802.11g
- Wi-Fi 5 (802.11ac)
- 802.11b
- 802.11a
- WLAN data transfer rate (max): 867 Mbit/s
- Basic Wi-Fi standard: Wi-Fi 5 (802.11ac)
- Wi-Fi frequency: Dual-band (2.4 GHz/5 GHz)
- WLAN data transfer rate (second band): 867 Mbit/s
- Certificates
- Certificates of conformity
- CE
- RoHS
- Certificates of conformity
- Protocols
- Supported network protocols: IPv4, IPv6
- DHCP server: Yes
- DHCP Client: Yes

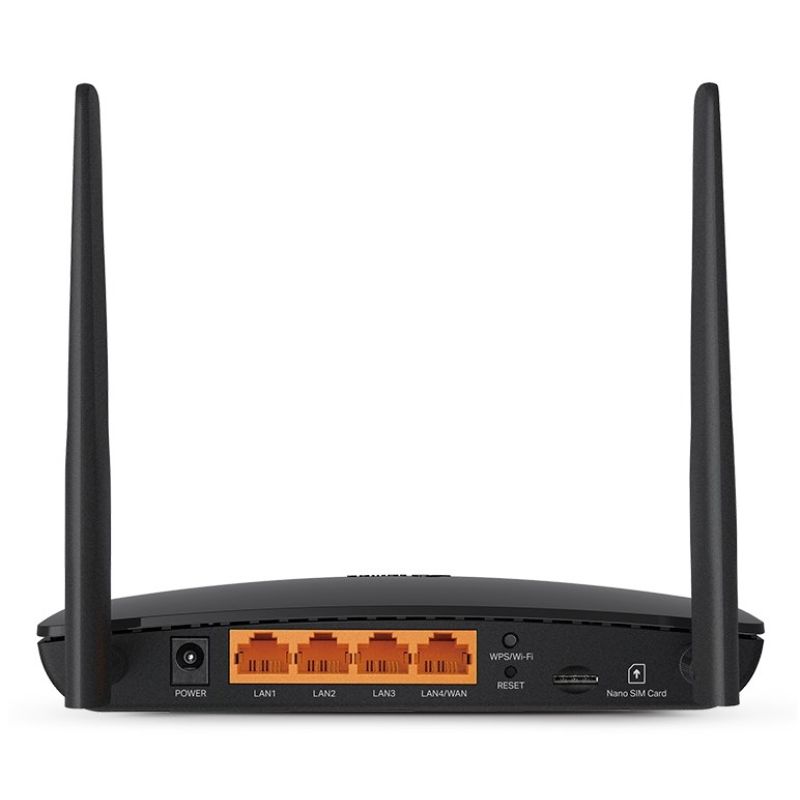

- Ports and interfaces
- USB port: No
- Number of Ethernet LAN ports (RJ-45): 4
- DC output socket: Yes
- Antenna
- Transmit power: 23 dBmW
- Number of antennas: 2
- Removable antenna(s): Yes
- Antenna Construction: External
- WAN connection
- USB 3G/4G Connection: Yes
- SIM card slot: Yes
- DSL WAN: No
- Ethernet WAN: Yes
- Mobile network
- Supported 4G networks
- 1800 MHz
- 700 MHz
- 800 MHz
- 2300 MHz
- 2600 MHz
- 2500 MHz
- 900 MHz
- 850 MHz
- 2100 MHz
- Supported 3G bands
- 850 MHz
- 900 MHz
- 2100 MHz
- Mobile network generation: 4G
- 3G standards
- UMTS
- HSPA
- 4G standards: LTE-TDD & LTE-FDD
- SIM card type: NanoSIM
- Supported 4G networks
| Name | Details |
|---|---|
| Producer | TP-LINK |
