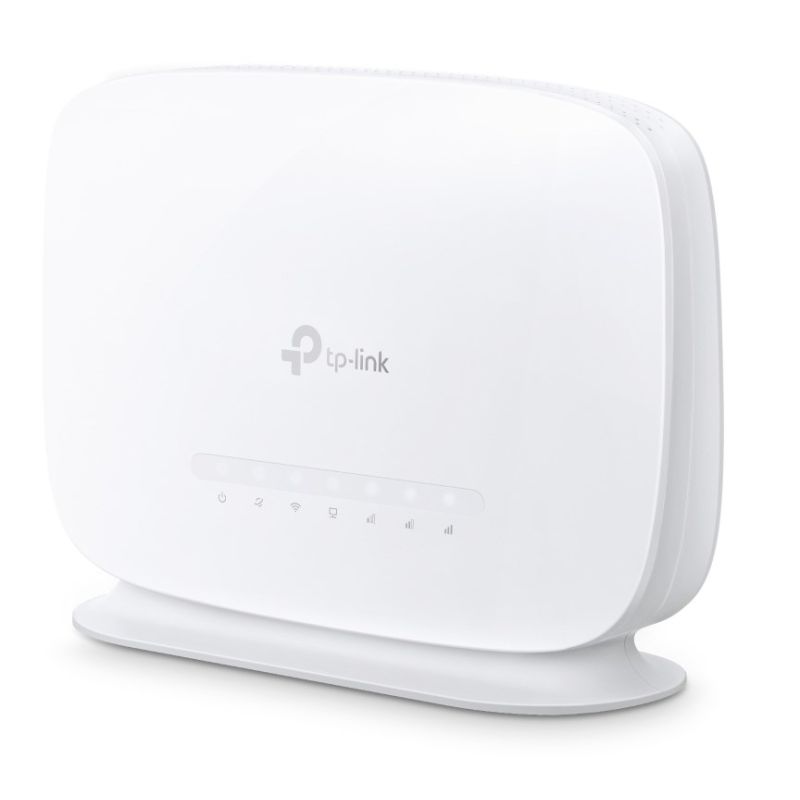

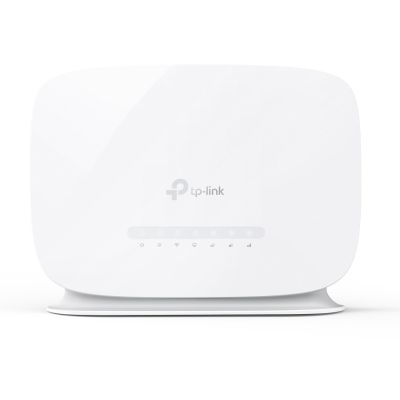

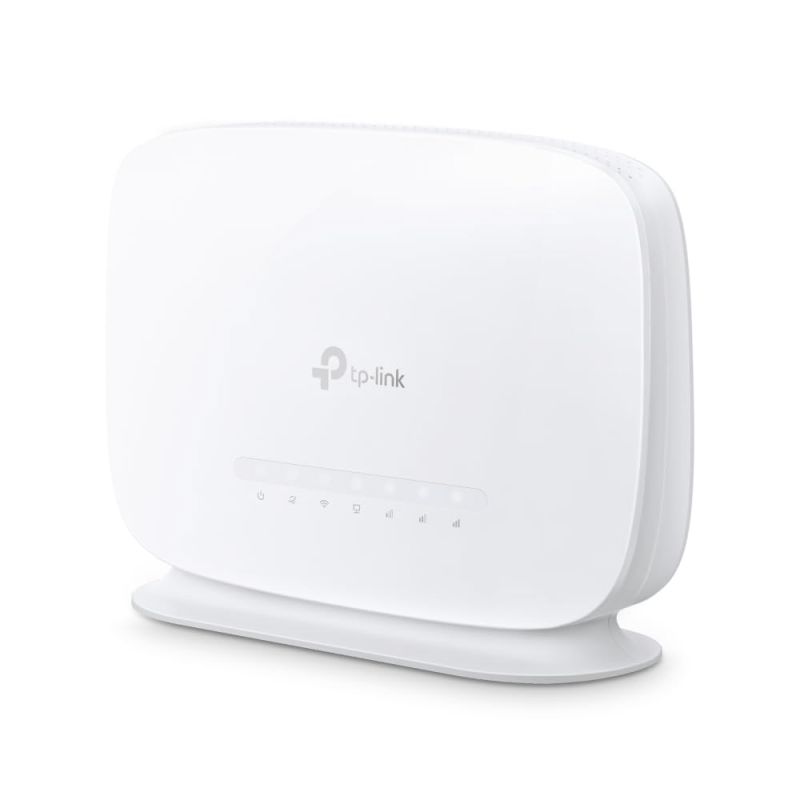

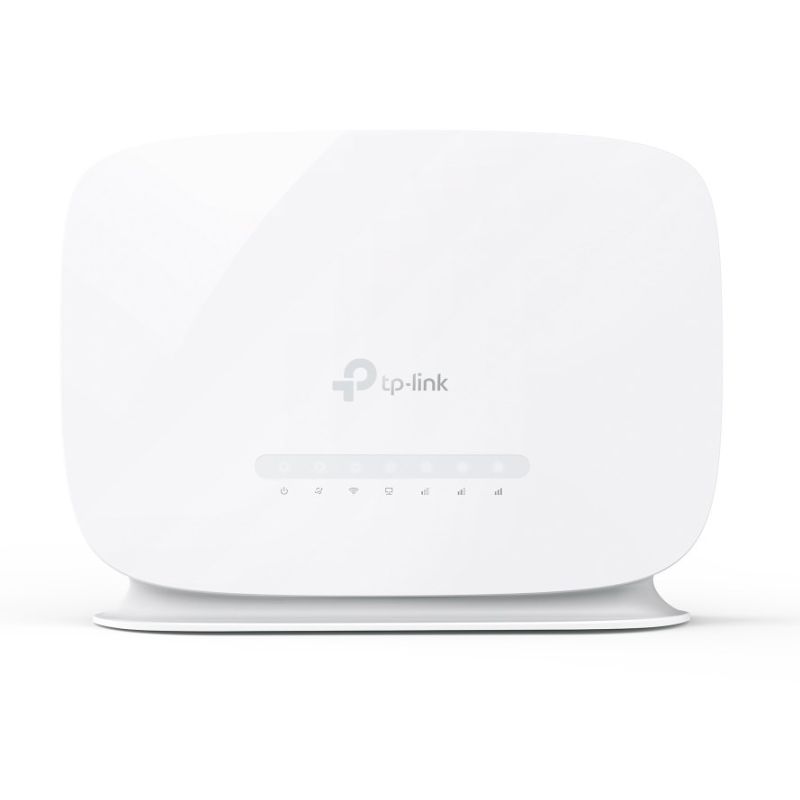

TP-Link Archer MR505 router
TP-Link Archer MR505 router
Sign up and unlock up to 10% off!
- Design
- Indicator light: Yes
- Product type: Desktop/Field Router
- Product color: White
- Power
- Output current: 1.5 A
- Operating voltage: 12 V
- Power supply type: DC
- Weight and dimensions
- Product depth: 157.5 mm
- Product height: 57 mm
- Product width: 212 mm
- Security
- Parental Controls: Yes
- Encryption/Security
- 128-bit WEP
- WPA
- WPA3
- 64-bit WEP
- Working conditions
- Permissible relative humidity: 5 - 90%
- Relative humidity range: 10 - 90%
- Temperature range (operation): 0 - 40 °C
- Network
- Number of guest networks (2.4 GHz): 1
- VPN server: Y
- Number of guest networks (5 GHz): 1
- Ethernet LAN interface type: Gigabit Ethernet
- Cabling technology: 10/100/1000Base-T(X)
- Static Route: Yes
- Dynamic DNS (DDNS): Yes
- Wired LAN: Yes
- Data transfer speed via Ethernet LAN
- 100 Mbps
- 1000 Mbps
- 10 Mbps
- Packaging data
- Packaging type: Box
- Package contents
- Quick Start Guide: Yes
- AC adapter: Yes
- Wireless LAN Features
- WLAN data transfer rate (first band): 300 Mbit/s
- Wi-Fi frequency: Dual-band (2.4 GHz/5 GHz)
- Basic Wi-Fi standard: Wi-Fi 5 (802.11ac)
- Wi-Fi standards
- 802.11g
- 802.11a
- Wi-Fi 5 (802.11ac)
- 802.11b
- Wi-Fi 4 (802.11n)
- WLAN data transfer rate (max): 1200 Mbit/s
- WLAN data transfer rate (second band): 867 Mbit/s
- Protocols
- DHCP server: Yes
- DHCP Client: Yes

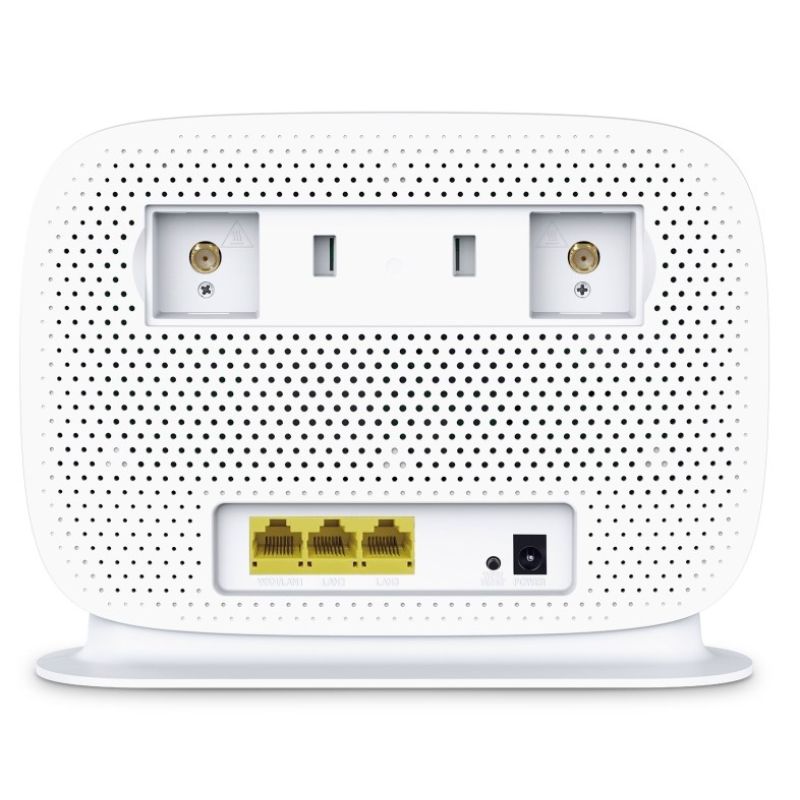

- Ports and interfaces
- USB port: No
- Number of Ethernet LAN ports (RJ-45): 3
- DC output socket: Yes
- Antenna
- Antenna Construction: Internal
- Number of antennas: 2
- Removable antenna(s): Yes
- WAN connection
- Ethernet WAN: Yes
- SIM card slot: Yes
- Mobile network
- Supported 3G bands
- 2100 MHz
- 900 MHz
- 850 MHz
- Supported 4G networks
- 850 MHz
- 800 MHz
- 2300 MHz
- 2600 MHz
- 2500 MHz
- 2100 MHz
- 1800 MHz
- 900 MHz
- 700 MHz
- 3G standards
- UMTS
- HSPA+
- DC-HSPA+
- 4G standards: LTE-TDD & LTE-FDD
- Mobile network generation: 4G
- Supported 3G bands
