TP-Link ARCHER NX600 5G AX3600 Wireless Dual router
TP-Link ARCHER NX600 5G AX3600 Wireless Dual router
Sign up and unlock up to 10% off!
- Design
- Product color: White
- Built-in switch: Yes
- Product type: Desktop router
- Power
- Operating voltage: 12 V
- Output current: 2 A
- AC input voltage: 100 - 240 V
- Power supply type: AC
- AC input frequency: 50/60 Hz
- Weight and dimensions
- Product width: 99 mm
- Product depth: 99 mm
- Product height: 190 mm
- Security
- DoS attack prevention: Yes
- Encryption/Security
- 64-bit WEP
- 128-bit WEP
- WPA
- WPA-PSK
- WPA2
- WPA2-PSK
- Access Control List (ACL): Yes
- Firewall: Yes
- DMZ Support: Yes
- Firewall security: IPv4 SPI Firewall, IPv6 Firewall
- Parental Controls: Yes
- Management features
- WPS Button: Yes
- Wi-Fi Multimedia (WMM) / (WME): Yes
- Reset button: Yes
- Quality of Service (QoS) Support: Yes
- Working conditions
- Temperature range (operation): 0 - 40 °C
- Relative humidity range: 10 - 90%
- Permissible relative humidity: 5 - 90%
- Temperature range (storage): -40 - 70 °C
- Network
- Ethernet LAN interface type: Gigabit Ethernet
- Wired LAN: Yes
- Number of guest networks (2.4 GHz): 1
- Data transfer speed via Ethernet LAN
- 10 Mbps
- 100 Mbps
- 1000 Mbps
- Number of guest networks (5 GHz): 1
- Dynamic DNS (DDNS): Yes
- Port Triggering: Yes
- System requirements
- Supported browsers: Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser
- Mac operating systems supported: Yes
- Supported Windows operating systems
- Windows 8.1
- Windows XP
- Windows 10
- Windows Vista
- Windows NT
- Windows 7
- Windows 2000
- Windows 98SE
- Windows 8
- Linux operating systems supported: Yes
- Package contents
- AC adapter: Yes
- Cables: LAN (RJ-45)
- Quick Installation Guide: Yes
- Wireless LAN Features
- Wi-Fi standards
- 802.11b
- Wi-Fi 4 (802.11n)
- Wi-Fi 6 (802.11ax)
- Wi-Fi 5 (802.11ac)
- 802.11g
- 802.11a
- Wi-Fi frequency: Dual-band (2.4 GHz/5 GHz)
- WLAN data transfer rate (second band): 2402 Mbit/s
- WLAN data transfer rate (first band): 1148 Mbit/s
- WLAN data transfer rate (max): 3600 Mbit/s
- Basic Wi-Fi standard: Wi-Fi 6 (802.11ax)
- Wi-Fi standards
- Certificates
- Certificates of conformity
- RoHS
- CE
- Certificates of conformity
- Protocols
- Supported network protocols: IPv4, IPv6
- DHCP server: Yes
- DHCP Client: Yes

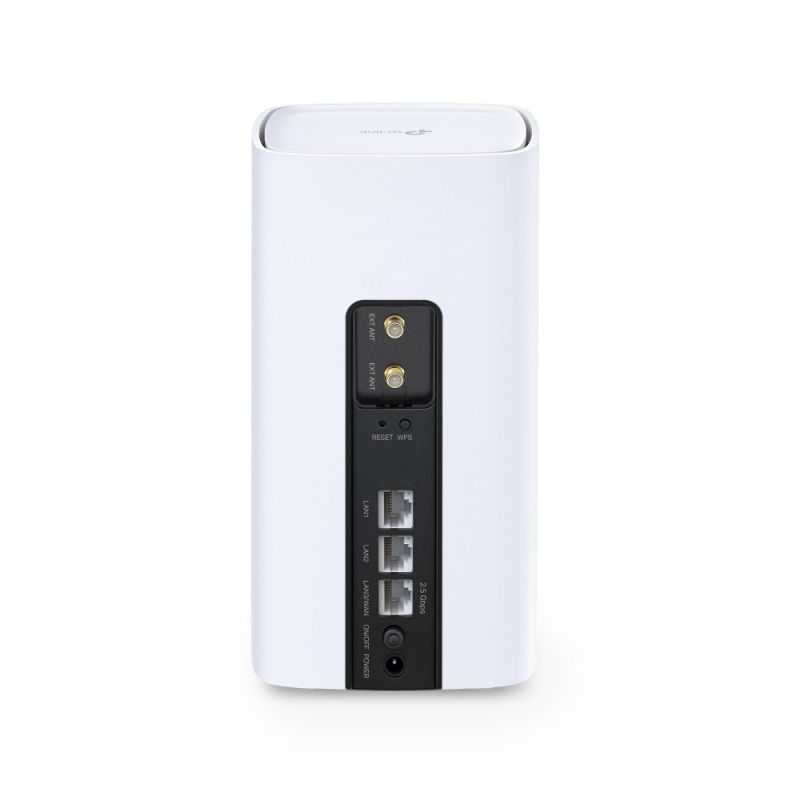

- Ports and interfaces
- USB port: No
- Number of Ethernet LAN ports (RJ-45): 2
- Number of WAN/Ethernet LAN ports: 1
- Antenna
- Number of antennas: 10
- Antenna Construction: Internal
- WAN connection
- USB 3G/4G Connection: No
- SIM card slot: Yes
- Ethernet WAN: Yes
- WAN connection type: RJ-45
- Mobile network
- Supported 4G networks
- 3500 MHz
- 700 MHz
- 850 MHz
- 2100 MHz
- 3700 MHz
- 900 MHz
- 1800 MHz
- 2600 MHz
- 2500 MHz
- 800 MHz
- 2300 MHz
- Supported 5G bands
- 2100
- 3500 MHz
- 700
- 1800
- 2600
- 800
- 850
- 2500
- 3700
- 900
- 2300
- 3G standards
- HSPA
- HSPA+
- DC-HSDPA
- UMTS
- Mobile network generation: 5G
- 4G standards: LTE-TDD & LTE-FDD
- SIM card type: NanoSIM
- Supported UMTS bands
- 900
- 850
- 2100 MHz
- Supported 4G networks
- Safety warning
- Warnings
- Do not disassemble the device yourself, it may cause electric shock.
- Do not expose the device to water or moisture.
- Do not expose the device to extreme temperatures.
- Warnings
| Name | Details |
|---|---|
| Producer | TP-LINK |
