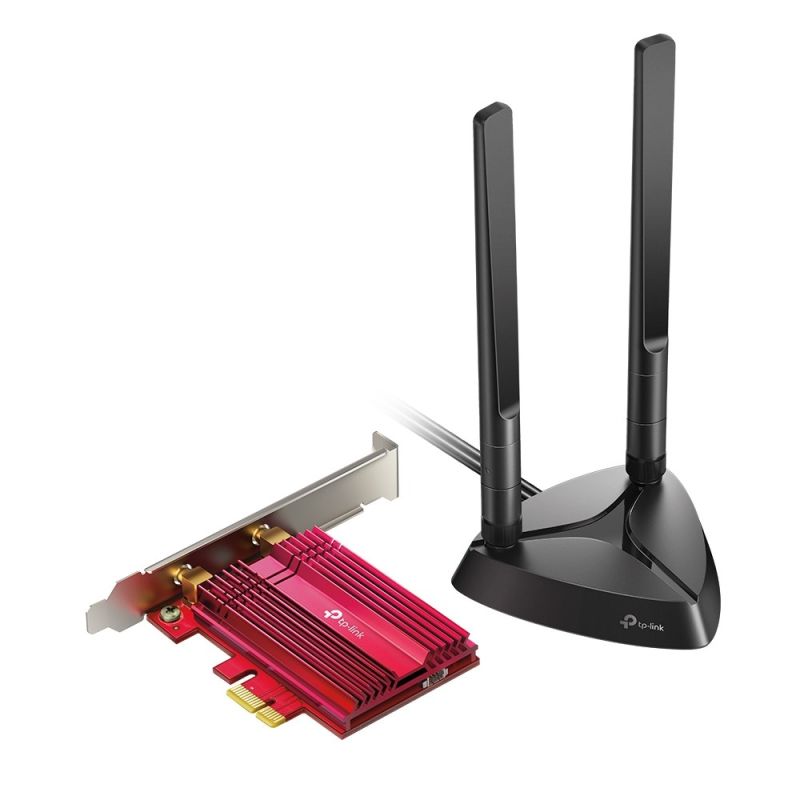

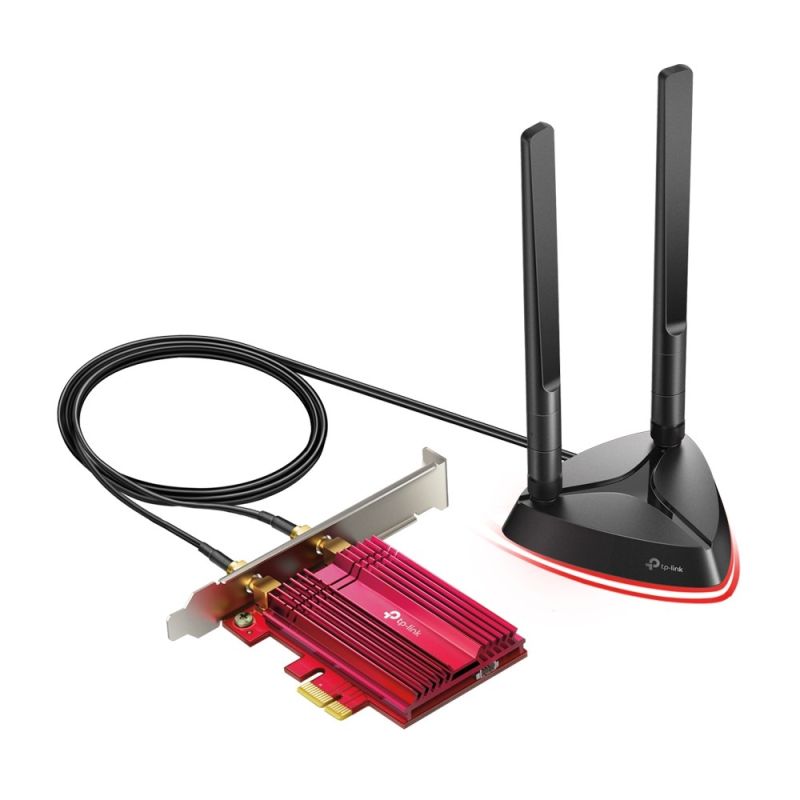

TP-LINK Archer TX3000E network card
TP-LINK Archer TX3000E network card
Sign up and unlock up to 10% off!
- Technical details
- Certificates of conformity
- CE
- Federal Communications Commission (FCC)
- RoHS
- Certificates of conformity
- Design
- Operating modes: Infrastructure mode
- Product color
- Red
- Black
- Transmit power (FCC): 27 dBm
- Antenna Construction: External
- Intended use: PC
- Antenna: Yes
- Transmitting power (CE): 23 dBm
- Internal: Yes
- Chipset: Intel Wi-Fi 6
- Weight and dimensions
- Product depth: 120.8 mm
- Product width: 95.2 mm
- Product height: 21.5 mm
- Working conditions
- Temperature range (operation): 0 - 40 °C
- Temperature range (storage): -40 - 70 °C
- Relative humidity range: 10 - 90%
- Permissible relative humidity: 5 - 90%
- Network
- Communication standards
- IEEE 802.11b
- IEEE 802.11n
- IEEE 802.11ax
- IEEE 802.11a
- IEEE 802.11ac
- IEEE 802.11g
- Bluetooth: Yes
- Frequency range: 2.4 - 5 GHz
- Modulation
- OFDM
- DQPSK
- 64-QAM
- CCK
- DBPSK
- 16-QAM
- 256-QAM
- Wi-Fi: Yes
- WLAN data transfer speed
- 2402 Mbps
- 54
- 1733
- 300
- 574
- Encryption/Security
- 802.1x RADIUS
- WPA-PSK
- 128-bit WEP
- WPA
- WPA3
- 64-bit WEP
- WPA2
- WPA2-PSK
- Basic Wi-Fi standard: Wi-Fi 6 (802.11ax)
- Wi-Fi standards
- 802.11g
- 802.11a
- 802.11b
- Wi-Fi 5 (802.11ac)
- Wi-Fi 4 (802.11n)
- Wi-Fi 6 (802.11ax)
- Bluetooth version: 5.0
- Wi-Fi frequency: Dual-band (2.4 GHz/5 GHz)
- Maximum data transfer rate: 2402 Mbit/s
- Communication standards
- System requirements
- Supported Windows operating systems
- Windows 10 Home x64
- Windows 10 x64
- Windows 10 Enterprise x64
- Windows 10 Pro x64
- Windows 10 Education x64
- Supported Windows operating systems
- Packaging data
- Package depth: 215 mm
- Package width: 270 mm
- Package height: 47 mm
- Weight with packaging: 480 g

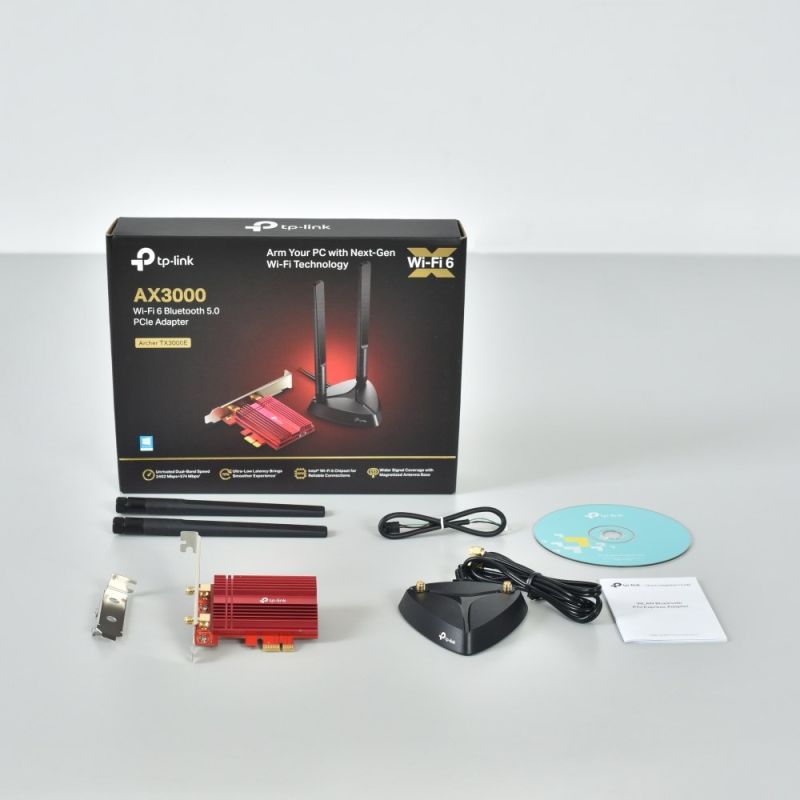

- Package contents
- Quick Installation Guide: Yes
- Mounting Brackets Included: Yes
- Driver CD: Yes
- Bluetooth Main Cable: Yes
- Ports and interfaces
- Host interface: PCI Express
- Interface: WLAN / Bluetooth
- Connection method: Wireless
- Logistics data
- Harmonized System (HS) code: 85176990
- Safety warning
- Warnings
- Must not be exposed to high temperatures.
- Keep out of reach of children.
- Avoid contact with water or moisture.
- Warnings
- Sustainable development
- Sustainability: Yes
| Name | Details |
|---|---|
| Producer | TP-LINK |
