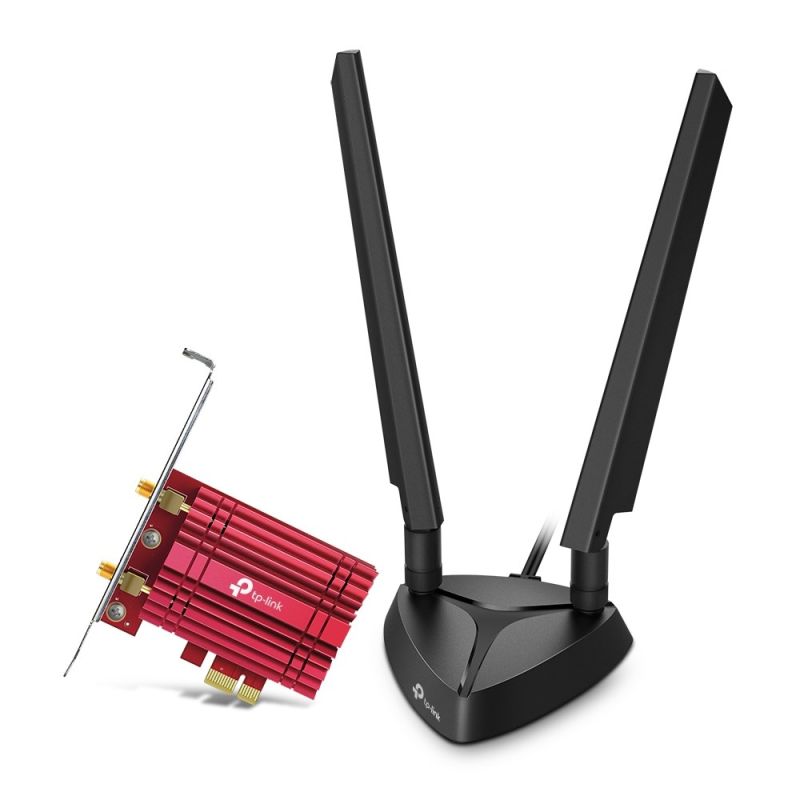

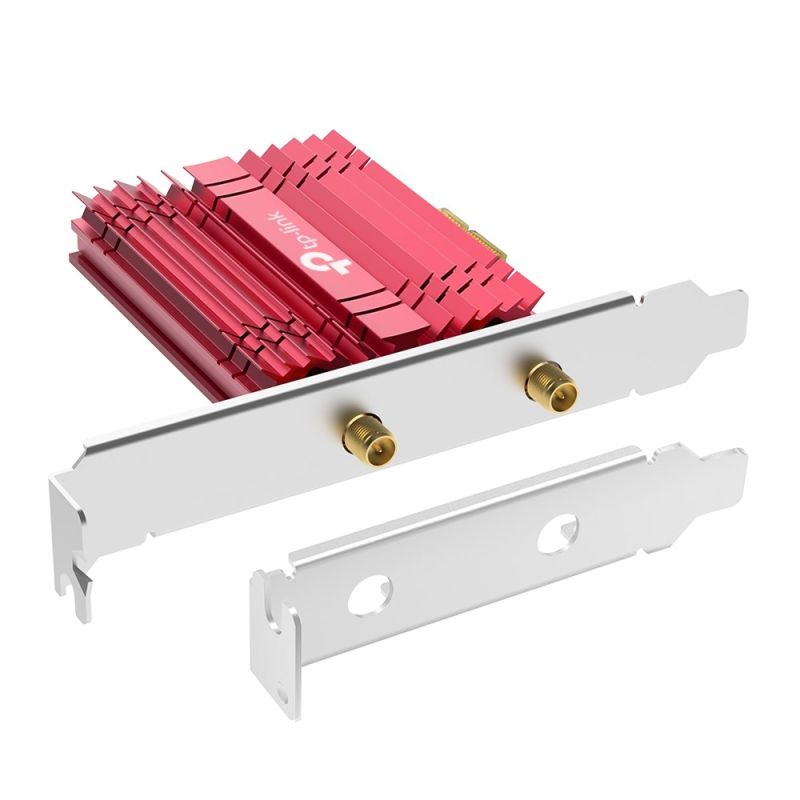

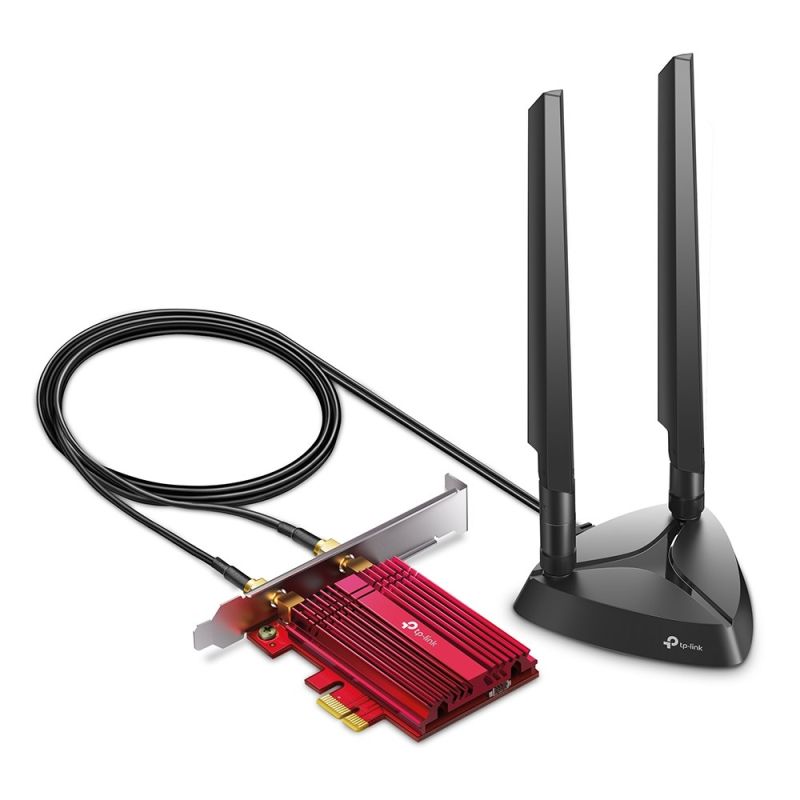

TP-LINK Archer TXE75E network card
TP-LINK Archer TXE75E network card
Sign up and unlock up to 10% off!
- Technical details
- Certificates of conformity
- Federal Communications Commission (FCC)
- CE
- RoHS
- Certificates of conformity
- Design
- Antenna: Yes
- Operating modes: Infrastructure mode
- Transmit Power (FCC): 5GHz: 20dBm, 2.4GHz: 20dBm, 6GHz: 12dBm
- Antenna Construction: External
- Product color
- Red
- Black
- Intended use: PC
- Internal: Yes
- Weight and dimensions
- Product height: 21.5 mm
- Product depth: 120.8 mm
- Product width: 95.2 mm
- Working conditions
- Permissible relative humidity: 5 - 90%
- Temperature range (operation): 0 - 40 °C
- Relative humidity range: 10 - 90%
- Network
- Bluetooth version: 5.2
- Wi-Fi frequency: Dual-band (2.4 GHz/5 GHz)
- Bluetooth: Yes
- Wi-Fi standards
- Wi-Fi 4 (802.11n)
- Wi-Fi 5 (802.11ac)
- Wi-Fi 6E (802.11ax)
- 802.11b
- Wi-Fi 6 (802.11ax)
- 802.11g
- 802.11a
- WLAN data transfer speed
- 11
- 1732
- 300
- 2402 Mbps
- 54
- Encryption/Security
- WPA
- WPA3
- WPA2-PSK
- WEP
- WPA-PSK
- WPA2
- Communication standards
- IEEE 802.11g
- IEEE 802.11b
- IEEE 802.11n
- IEEE 802.11a
- IEEE 802.11ac
- IEEE 802.11ax
- Maximum data transfer rate: 5400 Mbit/s
- Basic Wi-Fi standard: Wi-Fi 6E (802.11ax)
- Wi-Fi: Yes
- System requirements
- Supported Windows operating systems
- Windows 10 Enterprise x64
- Windows 10 Pro x64
- Windows 11 Enterprise x64
- Windows 10 x64
- Windows 10 Home x64
- Windows 11 x64
- Windows 10 Education x64
- Supported Windows operating systems
- Packaging data
- Package width: 271.5 mm
- Weight with packaging: 480 g
- Package height: 48.5 mm
- Package depth: 216.5 mm
- Package contents
- Mounting Brackets Included: Yes
- Driver CD: Yes
- Bluetooth Main Cable: Yes
- Quick Installation Guide: Yes
- Ports and interfaces
- Host interface: PCI Express
- Interface: WLAN / Bluetooth
- Connection method: Wireless
- Logistics data
- Harmonized System (HS) code: 85176990
- Sustainable development
- Sustainability: Yes
| Name | Details |
|---|---|
| Producer | TP-LINK |
