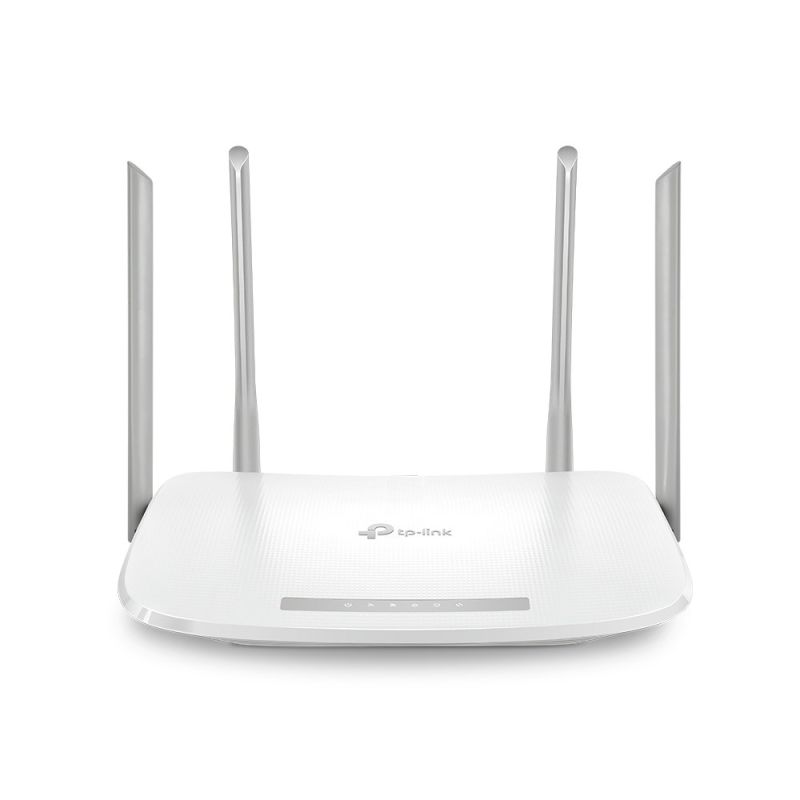

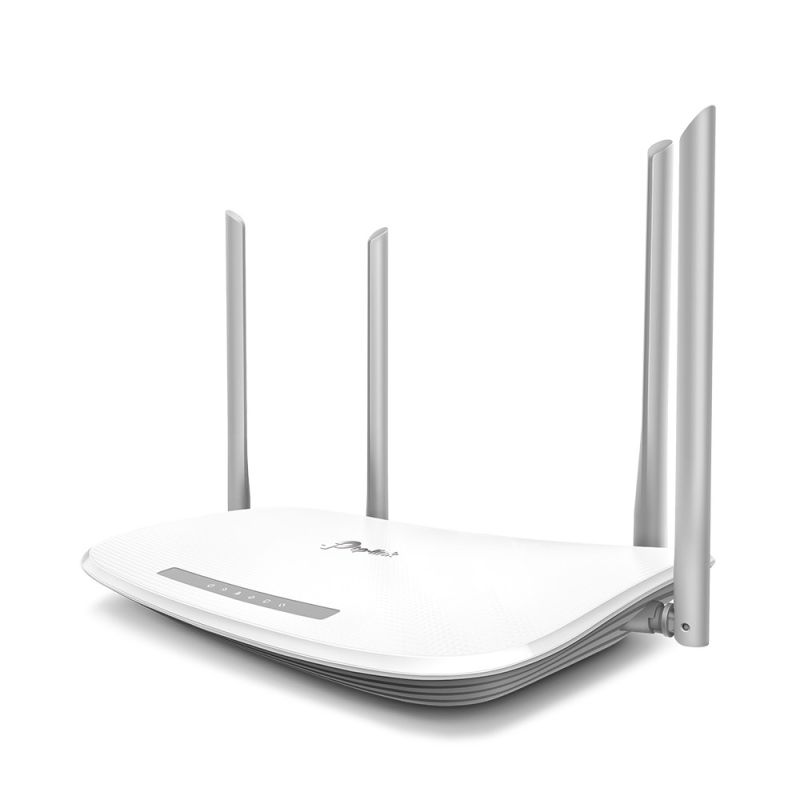

TP-LINK EC220-G5 Wireless Router
TP-LINK EC220-G5 Wireless Router
Sign up and unlock up to 10% off!
- Design
- Built-in switch: Yes
- Product type: Desktop router
- Product color: White
- Power
- Operating voltage: 12 V
- Power supply type: AC
- Output current: 1 A
- Security
- Access Control List (ACL): Yes
- Encryption/Security
- 64-bit WEP
- 128-bit WEP
- WPA
- WPA2
- WPA2-PSK
- WPA-PSK
- Schedule Access: Yes
- DMZ Support: Yes
- Firewall protection: DoS, SPI Firewall, IP Address Filter, IP and MAC Address Binding
- Parental Controls: Yes
- Management features
- Wi-Fi Multimedia (WMM) / (WME): Yes
- Wireless Statistics: Yes
- Quality of Service (QoS) Support: Yes
- Working conditions
- Permissible relative humidity: 5 - 90%
- Temperature range (storage): -40 - 70 °C
- Temperature range (operation): 0 - 40 °C
- Relative humidity range: 10 - 90%
- Network
- Data transfer speed via Ethernet LAN
- 100 Mbps
- 1000 Mbps
- 10 Mbps
- Communication standards
- IEEE 802.11ac
- IEEE 802.11h
- IEEE 802.11a
- IEEE 802.11b
- IEEE 802.11n
- IEEE 802.11g
- Port Forwarding: Yes
- Wired LAN: Yes
- VPN Passthrough: Yes
- Port Triggering: Yes
- Ethernet LAN interface type: Gigabit Ethernet
- Data transfer speed via Ethernet LAN
- System requirements
- Mac operating systems supported: Yes
- Linux operating systems supported: Yes
- Windows operating systems supported: Yes
- Package contents
- AC adapter: Yes
- Cables: LAN (RJ-45)
- Quick Installation Guide: Yes
- Wireless LAN Features
- Basic Wi-Fi standard: Wi-Fi 5 (802.11ac)
- Wi-Fi standards
- Wi-Fi 5 (802.11ac)
- 802.11b
- 802.11g
- 802.11a
- Wi-Fi 4 (802.11n)
- Wi-Fi frequency: Dual-band (2.4 GHz/5 GHz)
- Protocols
- DHCP Client: Yes
- DHCP server: Yes
- Universal Plug and Play (UPnP): Yes

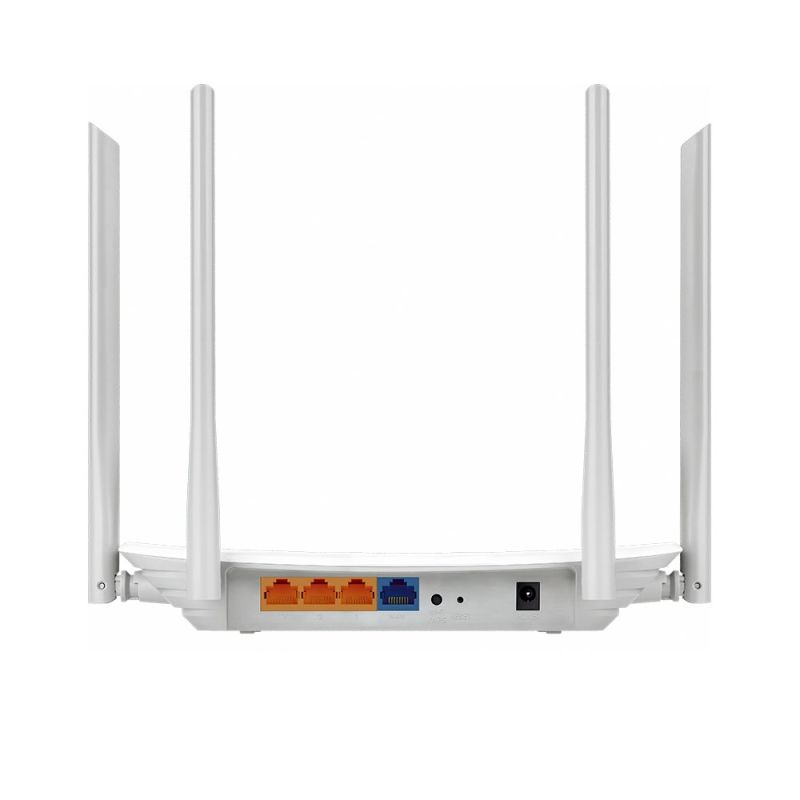

- Ports and interfaces
- Number of Ethernet LAN ports (RJ-45): 3
- Antenna
- Number of antennas: 4
- Transmitting power: 20 - 23 dBmW
- Antenna Design: Indoor and Outdoor
- WAN connection
- USB 3G/4G Connection: No
- SIM card slot: No
- Ethernet WAN: Yes
- Mobile network
- 3G: No
- 4G: No
- Safety warning
- Warnings
- The product may emit radio waves that may interfere with the operation of other electronic devices.
- Avoid contact with liquids as this may cause electric shock.
- Do not open the device casing - risk of electric shock.
