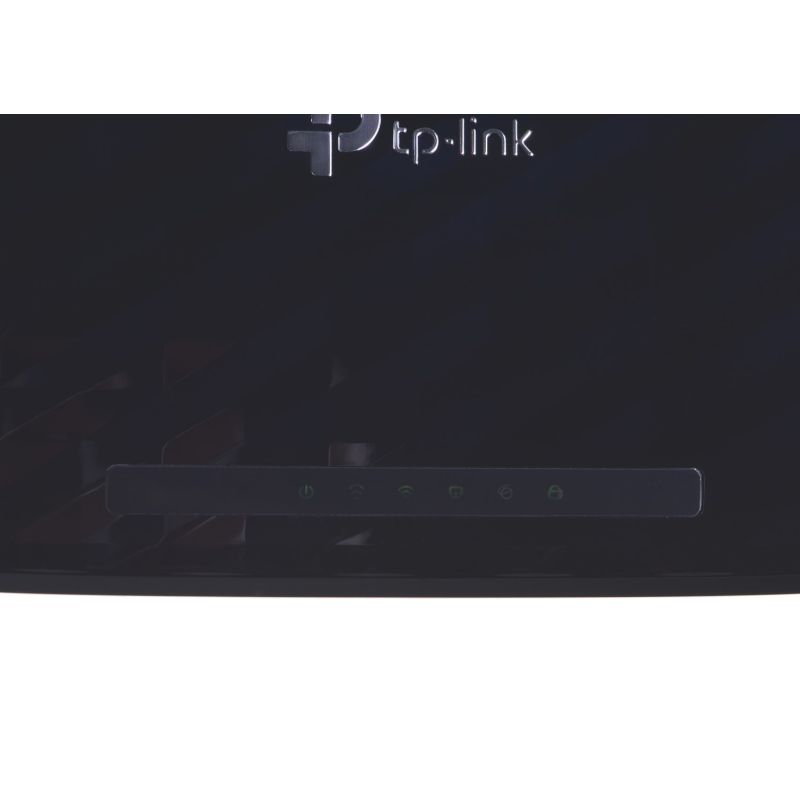

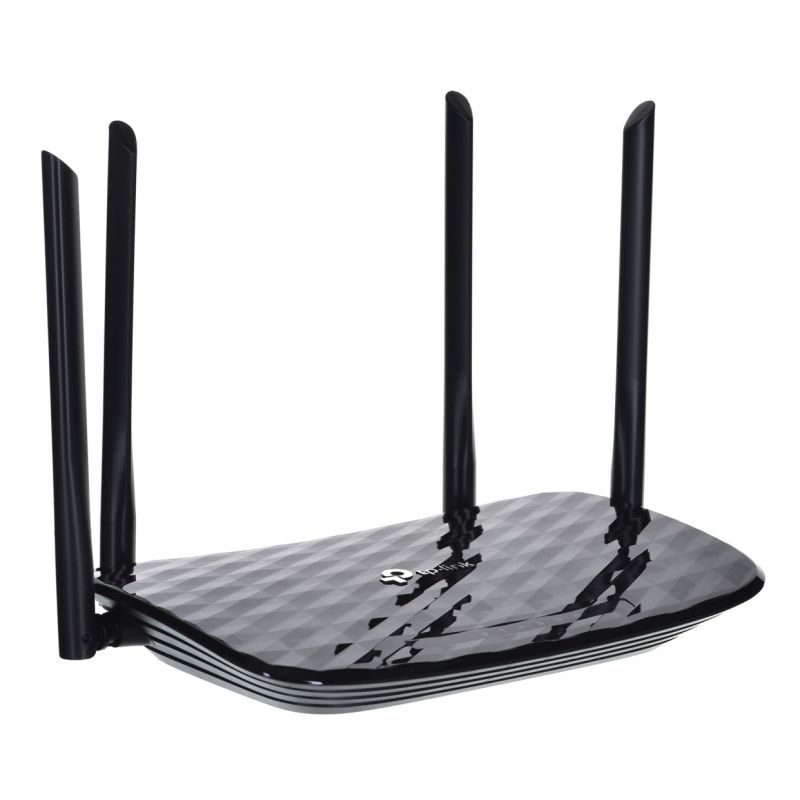

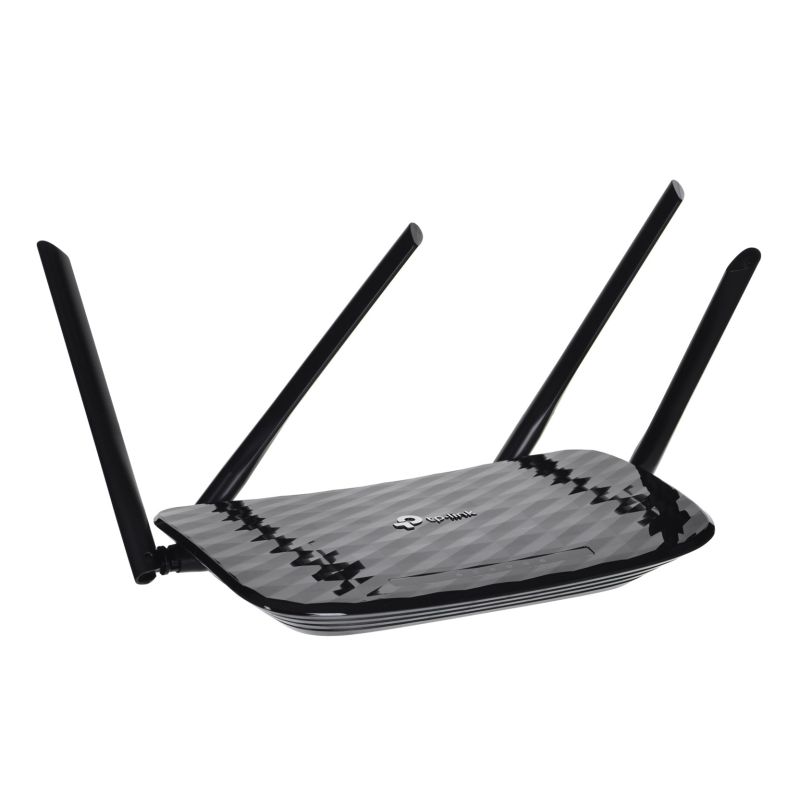

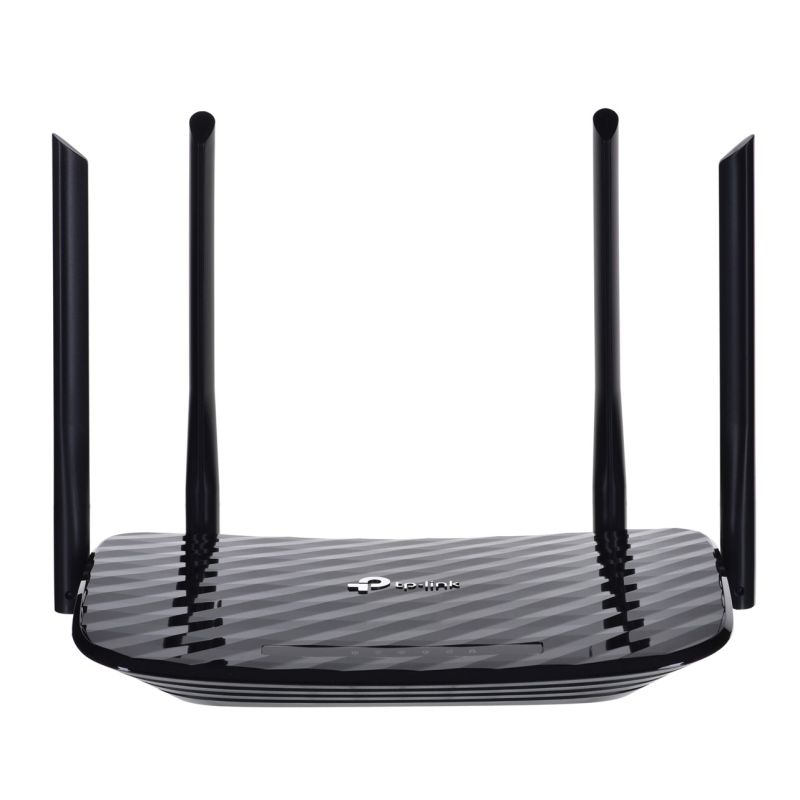

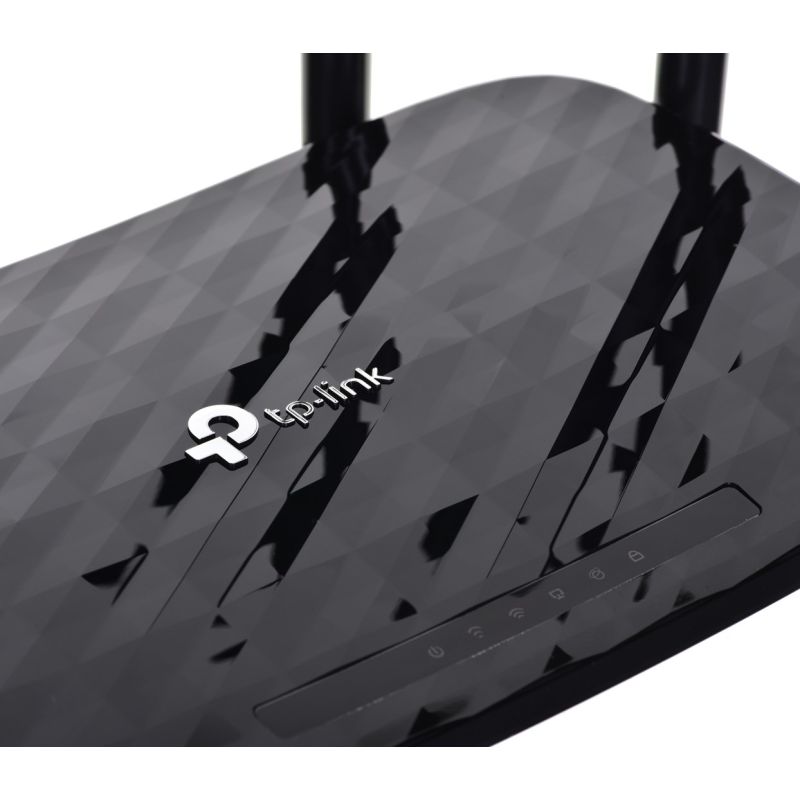

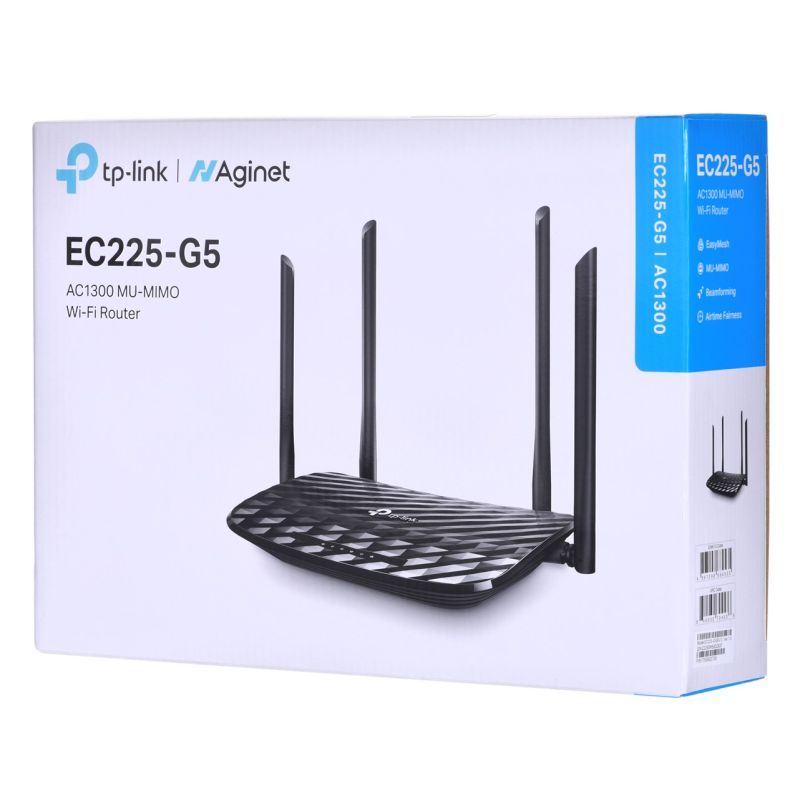

TP-LINK EC225-G5 router
TP-LINK EC225-G5 router
Sign up and unlock up to 10% off!
- Design
- Product color: Black
- Built-in switch: Yes
- Product type: Desktop router
- Power
- Output current: 1 A
- Operating voltage: 12 V
- Power supply type: AC
- Weight and dimensions
- Product height: 35 mm
- Product width: 230 mm
- Product depth: 144 mm
- Security
- Access Control List (ACL): Yes
- Encryption/Security
- WPA
- WPA3
- WPA2
- Schedule Access: Yes
- Firewall protection: DoS, SPI Firewall, IP Address Filter, IP and MAC Address Binding
- Parental Controls: Yes
- Management features
- Wi-Fi Multimedia (WMM) / (WME): Yes
- Wireless Statistics: Yes
- Quality of Service (QoS) Support: Yes
- Working conditions
- Permissible relative humidity: 5 - 90%
- Temperature range (storage): -40 - 60 °C
- Temperature range (operation): 0 - 40 °C
- Relative humidity range: 10 - 90%
- Network
- Communication standards
- IEEE 802.11ac
- IEEE 802.11a
- IEEE 802.11g
- IEEE 802.11b
- IEEE 802.11n
- IEEE 802.11h
- Port Forwarding: Yes
- Smart mesh technology: Yes
- VPN Passthrough: Yes
- Port Triggering: Yes
- Data transfer speed via Ethernet LAN
- 100 Mbps
- 1000 Mbps
- 10 Mbps
- Wired LAN: Yes
- Ethernet LAN interface type: Gigabit Ethernet
- Communication standards
- System requirements
- Mac operating systems supported: Yes
- Windows operating systems supported: Yes
- Linux operating systems supported: Yes
- Package contents

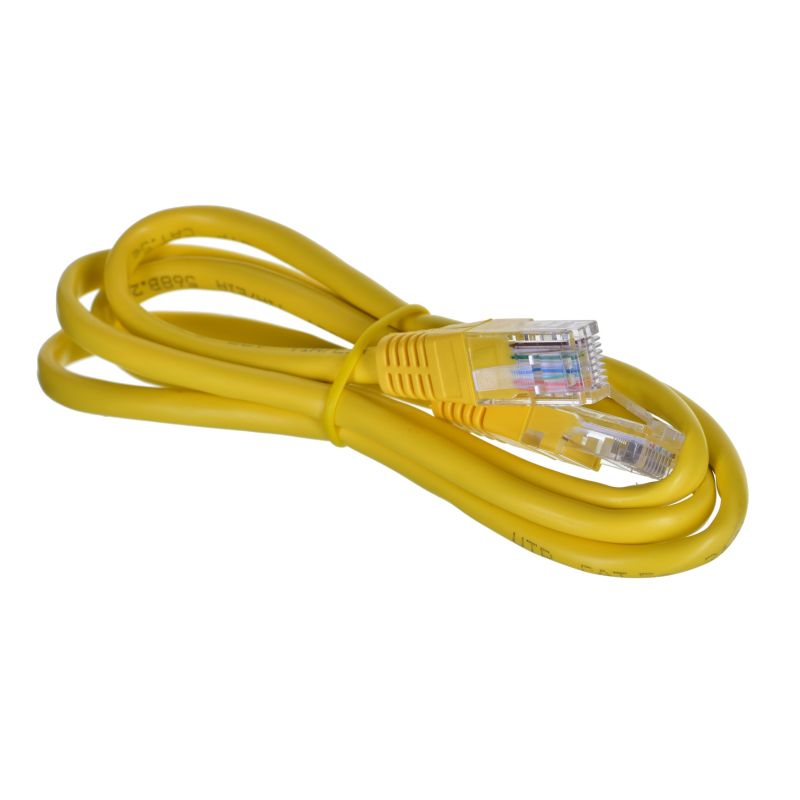

- Cables: LAN (RJ-45)
- Quick Installation Guide: Yes

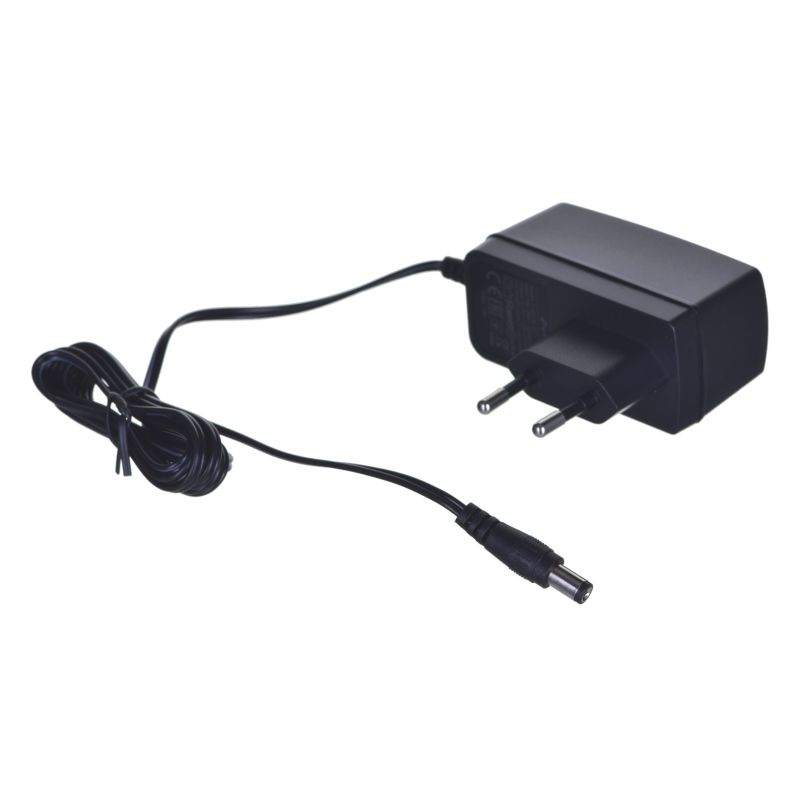

- AC adapter: Yes
- Wireless LAN Features
- WLAN data transfer rate (first band): 400 Mbit/s
- Wi-Fi frequency: Dual-band (2.4 GHz/5 GHz)
- Wi-Fi standards
- Wi-Fi 4 (802.11n)
- 802.11g
- 802.11a
- 802.11b
- Wi-Fi 5 (802.11ac)
- WLAN data transfer rate (second band): 867 Mbit/s
- Basic Wi-Fi standard: Wi-Fi 5 (802.11ac)
- Protocols
- DHCP server: Yes
- DHCP Client: Yes
- Universal Plug and Play (UPnP): Yes

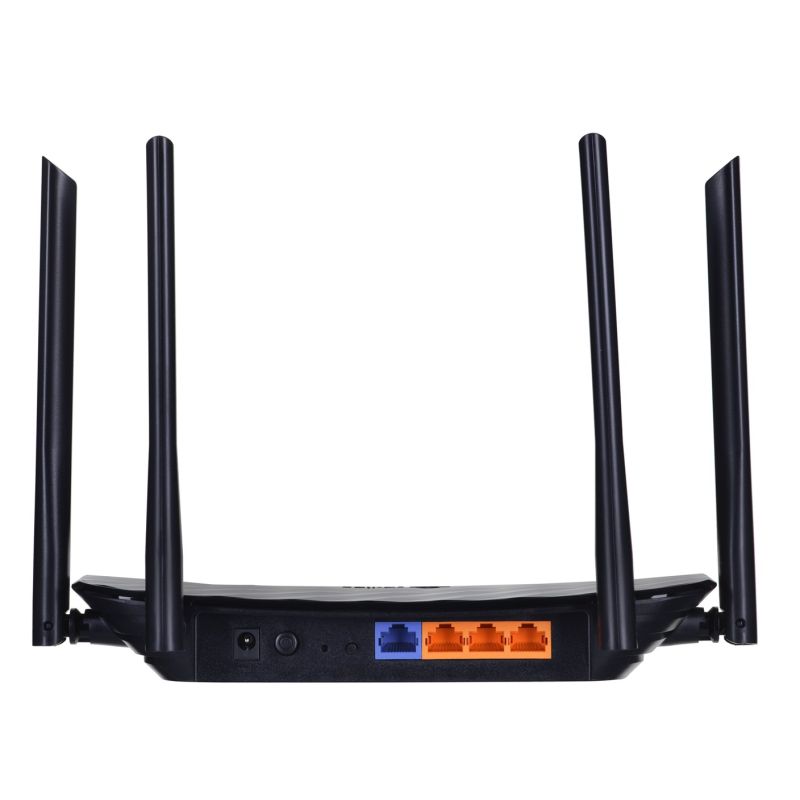

- Ports and interfaces
- Number of Ethernet LAN ports (RJ-45): 3

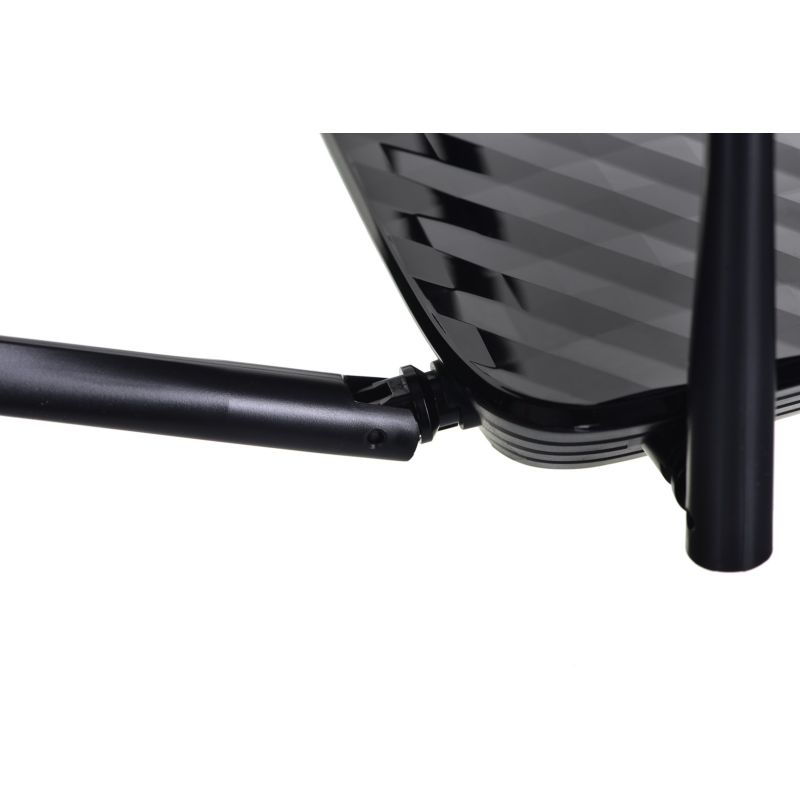

- Antenna
- Antenna Construction: External
- Number of antennas: 4
- WAN connection
- SIM card slot: No
- USB 3G/4G Connection: No
- Ethernet WAN: Yes
- Mobile network
- 3G: No
- 4G: No
| Name | Details |
|---|---|
| Producer | TP-LINK |
