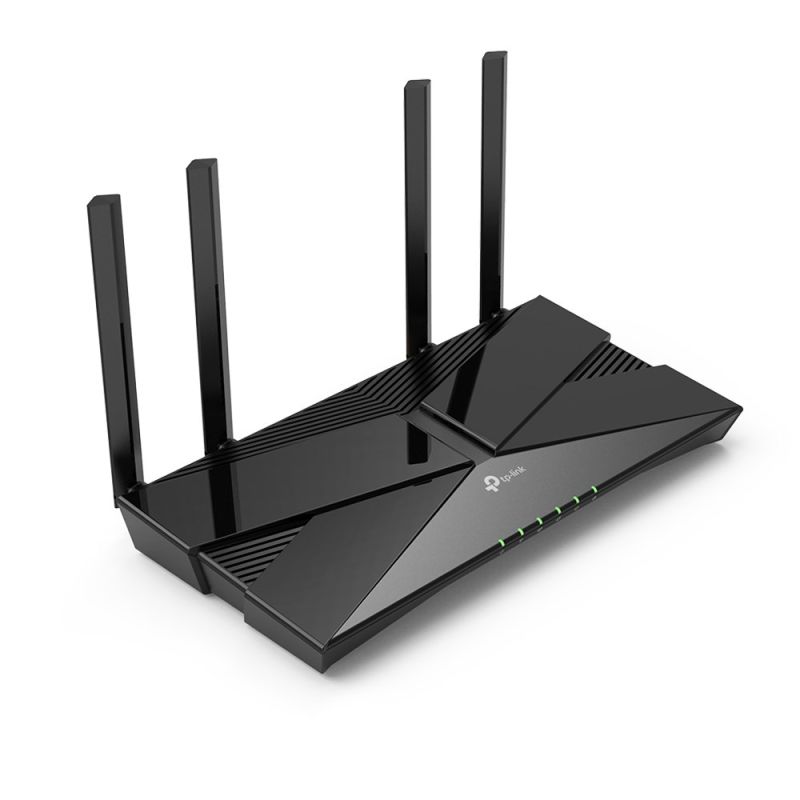

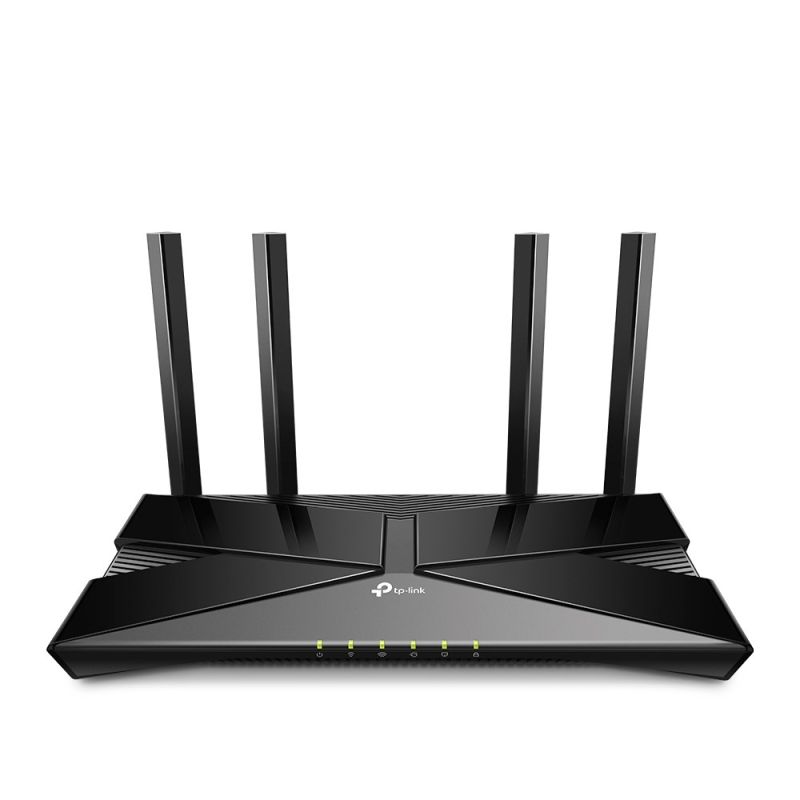

TP-Link EX220 router
TP-Link EX220 router
Sign up and unlock up to 10% off!
- Design
- Product color: Black
- Indicator light: Yes
- Built-in switch: Yes
- Product type: Desktop router
- Built-in display: No
- Power
- Power supply type: DC
- External Power Adapter: Yes
- Weight and dimensions
- Product depth: 135 mm
- Product height: 41.6 mm
- Product width: 260.2 mm
- Security
- Guest Access: Yes
- Firewall: Yes
- DMZ Support: Yes
- DoS attack prevention: Yes
- Continuous Packet Inspection Software: Yes
- Schedule Access: Yes
- Encryption/Security
- WPA
- WPA3
- SSID
- WPA2
- Firewall protection: SPI
- Access Control List (ACL): Yes
- Management features
- Wi-Fi Multimedia (WMM) / (WME): Yes
- Smart mesh technology: Yes
- ALTHOUGH: Yes
- WPS Button: Yes
- MU-MIMO technology: Yes
- Reset button: Yes
- Working conditions
- Temperature range (storage): -40 - 60 °C
- Temperature range (operation): 0 - 40 °C
- Permissible relative humidity: 5 - 90%
- Relative humidity range: 10 - 90%
- Network
- Ethernet LAN interface type: Gigabit Ethernet
- Cabling technology: 10/100/1000Base-T(X)
- Port Forwarding: Yes
- Wired LAN: Yes
- Communication standards
- IEEE 802.3u
- IEEE 802.11b
- IEEE 802.11n
- IEEE 802.11ax
- IEEE 802.3
- IEEE 802.11k
- IEEE 802.11a
- IEEE 802.3ab
- IEEE 802.11r
- IEEE 802.11ac
- IEEE 802.11v
- IEEE 802.11g
- Wireless radio: Yes
- Dynamic DNS (DDNS): Yes
- VPN Passthrough: Yes
- Port Triggering: Yes
- Data transfer speed via Ethernet LAN
- 100 Mbps
- 1000 Mbps
- 10 Mbps
- System requirements
- Supported browsers: Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0
- Windows operating systems supported: Yes
- Mac operating systems supported: Yes
- Linux operating systems supported: Yes
- Packaging data
- Number of products included: 1 pc.
- Package contents
- Cables: LAN (RJ-45)
- AC adapter: Yes
- Quick Installation Guide: Yes
- Antenna Included: Yes
- Wireless LAN Features
- Wi-Fi standards
- Wi-Fi 5 (802.11ac)
- Wi-Fi 4 (802.11n)
- 802.11b
- 802.11g
- 802.11a
- Wi-Fi 6 (802.11ax)
- WLAN data transfer rate (first band): 574 Mbit/s
- Wi-Fi frequency: Dual-band (2.4 GHz/5 GHz)
- Basic Wi-Fi standard: Wi-Fi 6 (802.11ax)
- WLAN data transfer rate (max): 1800 Mbit/s
- WLAN data transfer rate (second band): 1201 Mbit/s
- Wi-Fi standards
- Certificates
- Certificates of conformity: CE
- Protocols
- Supported network protocols: IPv4, IPv6
- DHCP server: Yes
- DHCP Client: Yes
- Universal Plug and Play (UPnP): Yes
- Ports and interfaces

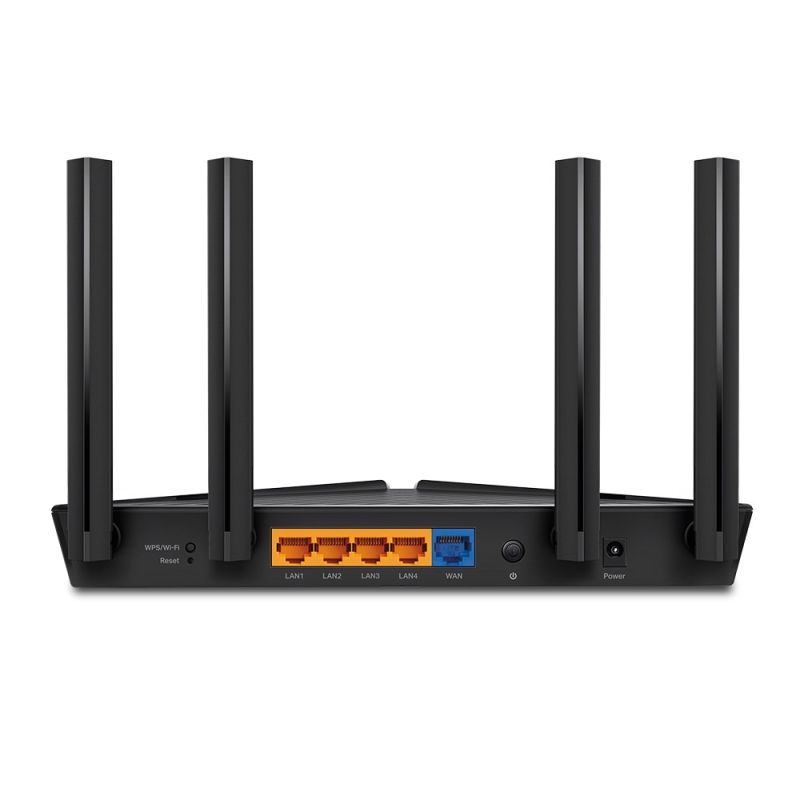

- Number of Ethernet LAN ports (RJ-45): 4
- DC output socket: Yes
- Antenna
- Antenna gain level (max): 5 dBi
- Number of antennas: 4
- Transmitting power: CE:
| Name | Details |
|---|---|
| Category | Computers and accessories |
| Producer | TP-LINK |
