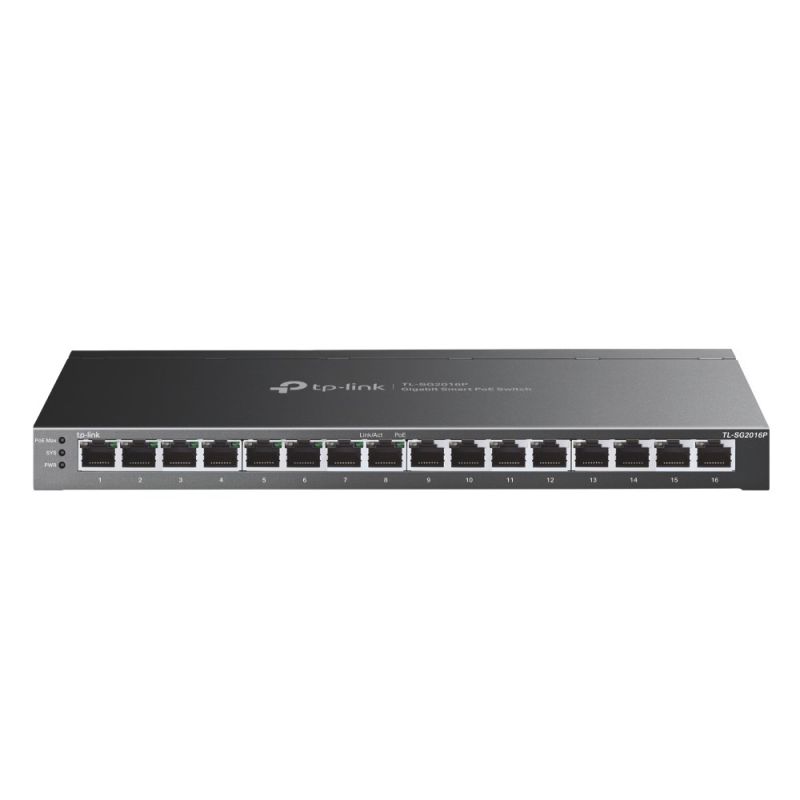

TP-Link JetStream TL-SG2016P L2/L3/L4 Gigabit Ethernet Network Switch (10/100/1000) Supports PoE Black
TP-Link JetStream TL-SG2016P L2/L3/L4 Gigabit Ethernet Network Switch (10/100/1000) Supports PoE Black
TP-Link JetStream TL-SG2016P L2/L3/L4 Gigabit Ethernet Network Switch (10/100/1000) Supports PoE Black
PRICE:
357,99
€
IN A WAREHOUSE
2 pcs
We'll ship this product in 6 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Design
- LED diodes
- System
- Power supply
- PoE
- Product color: Black
- Housing material: Metal
- LED diodes
- Power
- Power consumption (max): 146.5 W
- Power source: DC/PoE
- Input current: 1.31 A
- DC input voltage: 53.5 V
- Weight and dimensions
- Product width: 286 mm
- Product depth: 111.7 mm
- Product height: 25.4 mm
- Security
- MAC address filtering: Yes
- BPDU Filtering/Protection: Yes
- IP-MAC-Port Binding: Yes
- Authentication: Guest VLAN, MAC-based authentication, Port-based authentication
- Encryption/Security
- SSH
- EAP-MD5
- HTTPS
- SSL/TLS
- SNMPv3
- SNMPv2
- SNMP
- Supports SSH/SSL: Yes
- IGMP snooping: Yes
- DHCP functions
- DHCPv6 client
- DHCP relay
- DHCP snooping
- DHCPv6 snooping
- MAC address entries
- Dynamic MAC address entries
- Static MAC address entries
- Queue planning algorithms
- Weighted Round Robin (WRR)
- SP
- Access Control List (ACL): Yes
- Management features
- Cloud-managed: Yes
- Website management: Yes
- MIB support: RFC1213, RFC1493, RFC2674, RFC2620, RFC2618, RFC2925, RFC1757
- Switch Layer: L2/L3/L4
- System Event Report: Yes
- Quality of Service (QoS) Support: Yes
- ARP Inspection: Yes
- Configuring Location Settings (CLI): Yes
- Working conditions
- Permissible relative humidity: 5 - 90%
- Temperature range (storage): -40 - 70 °C
- Heat emission: 499.98 BTU/h
- Temperature range (operation): 0 - 40 °C
- Relative humidity range: 10 - 90%
- Network
- Port Mirroring: Yes
- Supported cable types
- Cat5e
- Cat5
- Cat3
- Cat4
- Data transfer speed via Ethernet LAN: 10,100,1000 Mbit/s
- Communication standards
- IEEE 802.1x
- IEEE 802.1p
- IEEE 802.3ad
- IEEE 802.1Q
- IEEE 802.3at
- IEEE 802.3ab
- IEEE 802.1s
- IEEE 802.3af
- IEEE 802.3x
- IEEE 802.3i
- IEEE 802.1D
- IEEE 802.11w
- Spanning Tree Protocol: Yes
- Auto MDI/MDI-X: Yes
- Frequency Limit: Yes
- Virtual LAN Features
- Tagged VLAN
- Voice VLAN
- Multicast VLAN
- Traffic Growth Control: Yes
- VLAN support: Yes
- Number of VLANs: 4000
- 10G Support: No
- Auto-Negotiation: Yes
- Flow Control Support: Yes
- Connection Aggregator: Yes
- Copper Ethernet cabling technology
- 10BASE-T
- 100BASE-TX
- 1000BASE-T
- Efficiency
- Device software updates: Yes
- No fan: Yes
- Packaging data
- Package depth: 434 mm
- Weight with packaging: 1.94 kg
- Package width: 227 mm
- Package height: 70 mm
- Package contents
- User Manual: Yes
- Protocols
- IPv4 and IPv6 features: Dual stack IPv4/IPv6
- Supported network protocols: ICMP, TCPv6, UDPv6, Ping6, Tracert6, Telnet (v6), TFTP, TCP/UDP, DSCP/IP, SSLv3, TLS 1.2
- GARP VLAN Registration Protocol (GVRP): Yes
- Ports and interfaces
- Power connector: DC-in jack
- Basic RJ-45 Switching Number of Ethernet Ports: 16
- Basic Ethernet switching RJ-45 ports type: Gigabit Ethernet (10/100/1000)
- Data transfer
- Jumbo Frames Expansion: 9000
- Packet buffer memory: 4.1 MB
- Jumbo Frame Compatible: Yes
- Address table size: 8000 entries
- Routing/switching capacity: 16 Gbit/s
- Number of rounds: 8
- Power over Ethernet (PoE)
- Total Power over Ethernet (PoE) budget: 120 W
- Power over Ethernet Plus (PoE +) ports: 8
- PoE Support: Yes
- Multicast functions
- Multicast Listener Discovery (MLD) snooping: MLD v1, MLD v2
- Multicast Support: Yes
