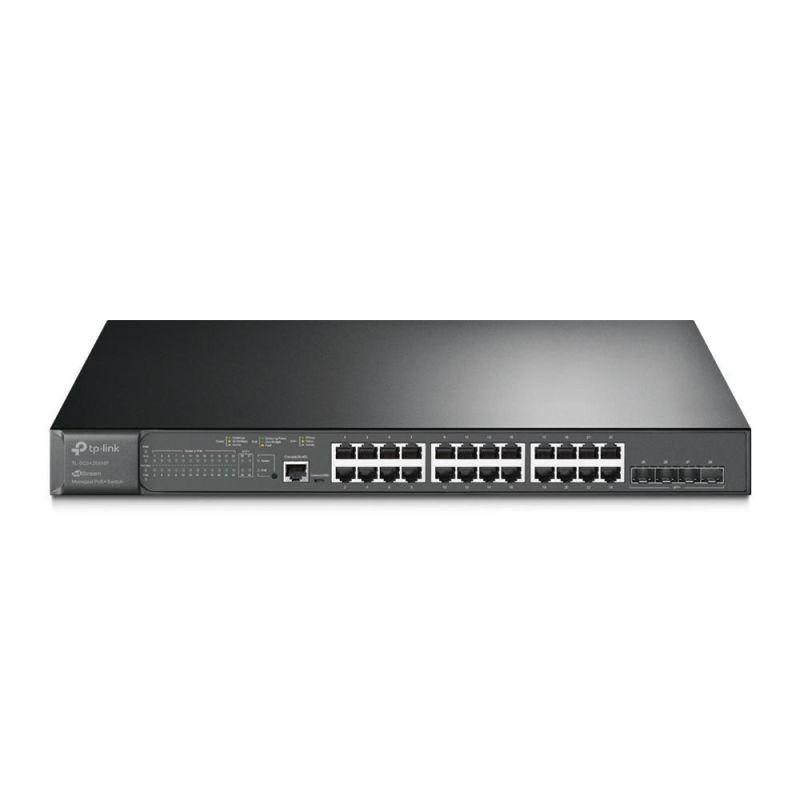

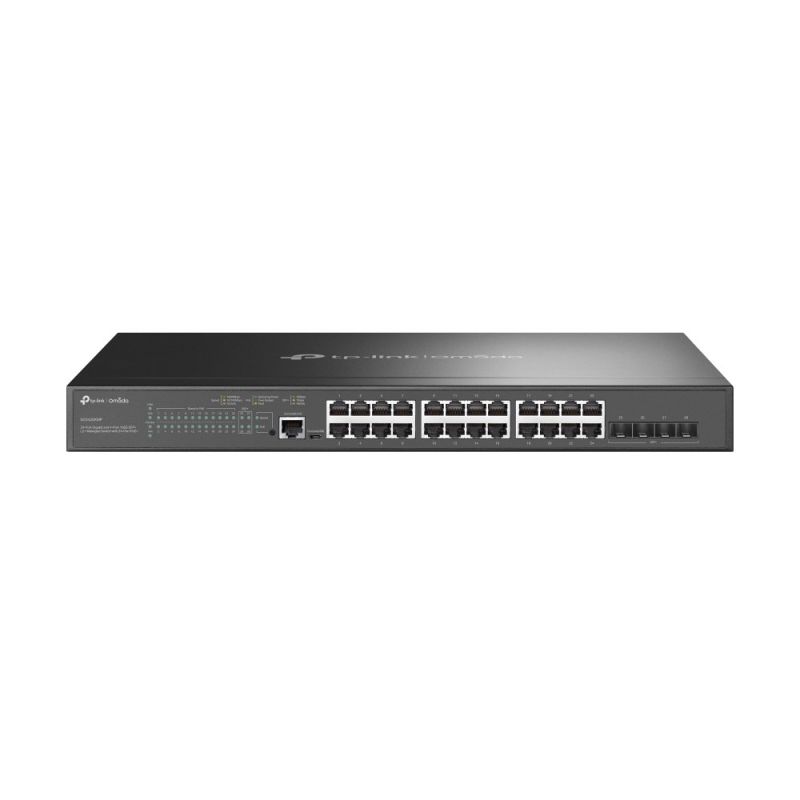

TP-Link Omada SG3428XMP Network Link Managed L2+ Gigabit Ethernet (10/100/1000) PoE Support 1U Black
TP-Link Omada SG3428XMP Network Link Managed L2+ Gigabit Ethernet (10/100/1000) PoE Support 1U Black
TP-Link Omada SG3428XMP Network Link Managed L2+ Gigabit Ethernet (10/100/1000) PoE Support 1U Black
PRICE:
723,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 6 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Design
- Rack mounting options: Yes
- Number of fans: 2 fans
- Product color: Black
- Layout: 1U
- LEDs: Yes
- Power
- Power supply included: Yes
- AC input frequency: 50/60 Hz
- AC input voltage: 100 - 240 V
- Power consumption (max): 486.2 W
- Power source: AC
- Weight and dimensions
- Product depth: 330 mm
- Product width: 440 mm
- Product height: 44 mm
- Security
- BPDU Filtering/Protection: Yes
- IP-MAC-Port Binding: Yes
- DHCP functions
- DHCPv6 client
- DHCP snooping
- DHCPv6 snooping
- DHCP relay
- DHCP client
- DHCP server
- Loop protection: Yes
- IGMP snooping: Yes
- Supports SSH/SSL: Yes
- Access Control List (ACL): Yes
- Management features
- Switch type: Managed
- Switch Layer: L2+
- Cloud-managed: Yes
- MIB Support: Yes
- System Event Report: Yes
- Website management: Yes
- Quality of Service (QoS) Support: Yes
- Working conditions
- Heat emission: 1658.78 BTU/h
- Temperature range (operation): 0 - 45 °C
- Temperature range (storage): -40 - 70 °C
- Permissible relative humidity: 5 - 90%
- Relative humidity range: 10 - 90%
- Network
- Virtual LAN Features
- Voice VLAN
- Private VLAN
- MAC address-based VLAN
- Tagged VLAN
- Protocol-based VLAN
- Port-based VLAN
- Traffic Growth Control: Yes
- Rule-Based Routing: Yes
- Connection Aggregator: Yes
- Flow Control Support: Yes
- Number of VLANs: 4000
- Head-of-line (HOL) blocking: Yes
- Spanning Tree Protocol: Yes
- Port Mirroring: Yes
- Frequency Limit: Yes
- 10G Support: Yes
- VLAN support: Yes
- Active connection search: Yes
- Data transfer speed via Ethernet LAN: 10,100,1000 Mbit/s
- Communication standards
- IEEE 802.1w
- IEEE 802.1s
- IEEE 802.11d
- Virtual LAN Features
- Package contents
- Cables: LAN (RJ-45)
- Quick Start Guide: Yes
- Protocols
- Management protocols: SNMPv1/v2c/v3, SNTP
- Ports and interfaces
- Power Connector: AC Input Socket
- Number of Gigabit Ethernet ports: 24
- Basic RJ-45 Switching Number of Ethernet Ports: 24
- Number of SFP+ Module slots: 4
- Console port: RJ-45/micro-USB
- Basic Ethernet switching RJ-45 ports type: Gigabit Ethernet (10/100/1000)
- Data transfer
- Packet buffer memory: 12 MB
- Address table size: 16000 entries
- Jumbo Frames Expansion: 9000
- Jumbo Frame Compatible: Yes
- Number of static routes: 48
- Forwarding speed: 95.23 Mpps
- Routing/switching capacity: 128 Gbit/s
- Power over Ethernet (PoE)
- Power over Ethernet Plus (PoE +) ports: 24
- PoE Support: Yes
- Total Power over Ethernet (PoE) budget: 384 W
- Multicast functions
- Multicast Support: Yes
| Name | Details |
|---|---|
| Producer | TP-LINK |
