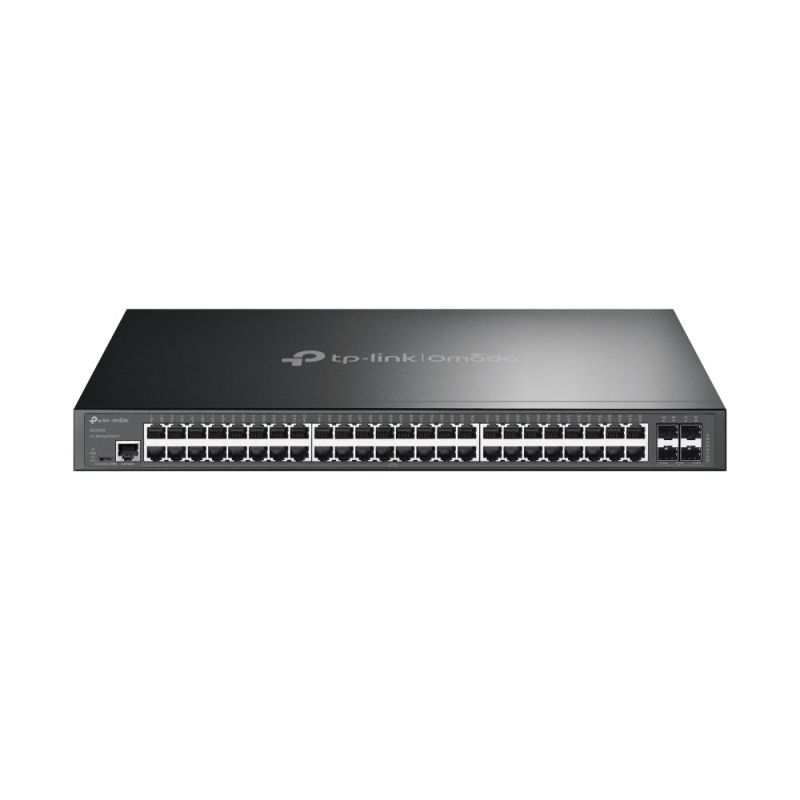

TP-Link Omada SG3452X Managed Network Switch L2+ Gigabit Ethernet (10/100/1000) 1U Black
TP-Link Omada SG3452X Managed Network Switch L2+ Gigabit Ethernet (10/100/1000) 1U Black
TP-Link Omada SG3452X Managed Network Switch L2+ Gigabit Ethernet (10/100/1000) 1U Black
PRICE:
711,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 8 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Design
- Rack mounting options: Yes
- Layout: 1U
- Number of fans: 0 fans
- LEDs: Yes
- Product color: Black
- Power
- AC input frequency: 50/60 Hz
- AC input voltage: 100 - 240 V
- Power source: AC
- Power consumption (max): 32.72 W
- Power supply included: Yes
- Weight and dimensions
- Product height: 44 mm
- Product depth: 220 mm
- Product width: 440 mm
- Security
- Queue planning algorithms
- Weighted Round Robin (WRR)
- WRR+SP
- SP
- BPDU Filtering/Protection: Yes
- DHCP functions
- DHCP server
- DHCP client
- DHCP relay
- IGMP Proxy: Yes
- MAC address filtering: Yes
- IGMP snooping: Yes
- Loop protection: Yes
- Authentication type: AAA, RADIUS, TACACS+
- IP-MAC-Port Binding: Yes
- Password protection: Yes
- Access Control List (ACL): Yes
- Authentication: Auto VLAN, Guest VLAN, MAC-based authentication, Port-based authentication
- Supports SSH/SSL: Yes
- Static Port Protection: Yes
- Queue planning algorithms
- Management features
- Switch Layer: L2+
- Cloud-managed: Yes
- MIB support: RFC1213, RFC2233, RFC1643, RFC1493, RFC2674, RFC2819, RFC2021, RFC2620, RFC2618,
- Public MIB: Y
- Configuring Location Settings (CLI): Yes
- Huawei-proprietary MIB: Y
- System Event Report: Yes
- ARP Inspection: Yes
- Website management: Yes
- Quality of Service (QoS) Support: Yes
- Switch type: Managed
- Working conditions
- Permissible relative humidity: 5 - 90%
- Temperature range (operation): 0 - 45 °C
- Temperature range (storage): -40 - 70 °C
- Heat emission: 111.65 BTU/h
- Relative humidity range: 10 - 90%
- Network
- Communication standards
- IEEE 802.1D
- IEEE 802.1s
- IEEE 802.1w
- IEEE 802.3ad
- IEEE 802.1Q
- Virtual LAN Features
- Voice VLAN
- Tagged VLAN
- Private VLAN
- VLAN mapping
- Frequency Limit: Yes
- Flow Control Support: Yes
- Traffic Growth Control: Yes
- Number of VLANs: 4000
- Connection Aggregator: Yes
- Head-of-line (HOL) blocking: Yes
- IPv6 routes: 48
- IPv4 routes: 48
- VLAN support: Yes
- Port Mirroring: Yes
- Spanning Tree Protocol: Yes
- 10G Support: Yes
- Communication standards
- Packaging data
- Railings: Yes
- Packaging type: Box
- Package contents
- Hook mounting kit: Yes
- Quick Start Guide: Yes
- Wires: Alternating Current
- Protocols
- IPv4 and IPv6 features
- IPv6 Telnet
- IPv6 ping
- IPv6 tracert
- IPv4/IPv6 access-control list (ACL)
- GARP VLAN Registration Protocol (GVRP): Yes
- Management protocols: SNMPv1/v2c/v3, SNTP
- IPv4 and IPv6 features
- Ports and interfaces
- Basic Ethernet switching RJ-45 ports type: Gigabit Ethernet (10/100/1000)
- Power Connector: AC Input Socket
- Console Port: RJ-45/Micro-USB
- Basic RJ-45 Switching Number of Ethernet Ports: 48
- Number of SFP+ Module slots: 4
- Data transfer
- Routing/switching capacity: 176 Gbps
- Packet buffer memory: 12 MB
- Address table size: 16000 entries
- Static Route: Yes
- Jumbo Frame Compatible: Yes
- Transfer speed: 130.9 Mpps
- Number of static routes: 48
- Jumbo Frames Expansion: 9000
- Power over Ethernet (PoE)
- PoE Support: No
- Multicast functions
- Multicast Listener Discovery (MLD) snooping: Y
- Multicast Support: Yes
| Name | Details |
|---|---|
| Category | Computers and accessories |
| Producer | TP-LINK |
| Colour | Black |
