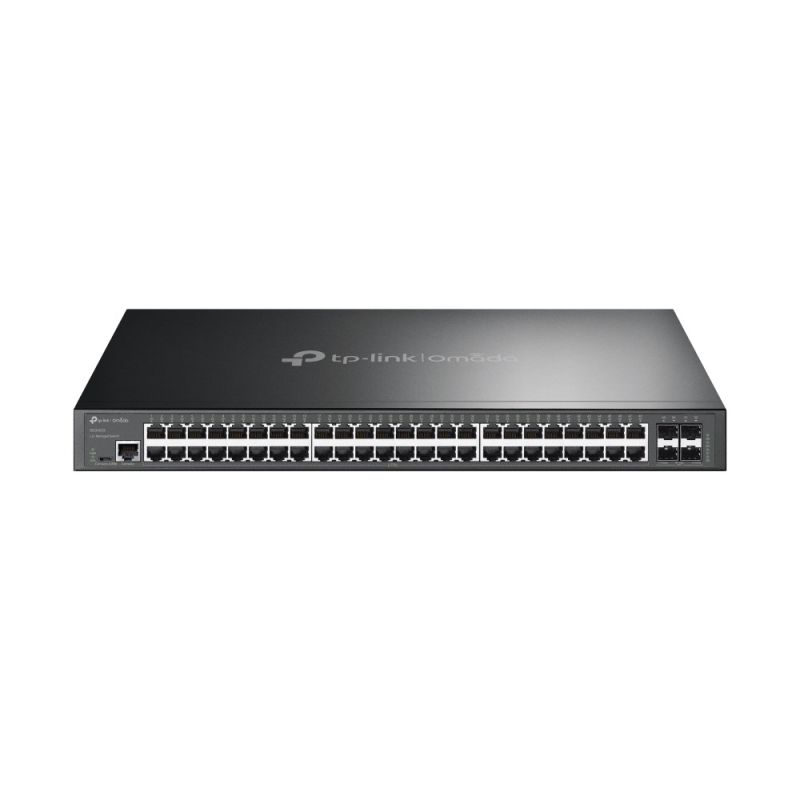

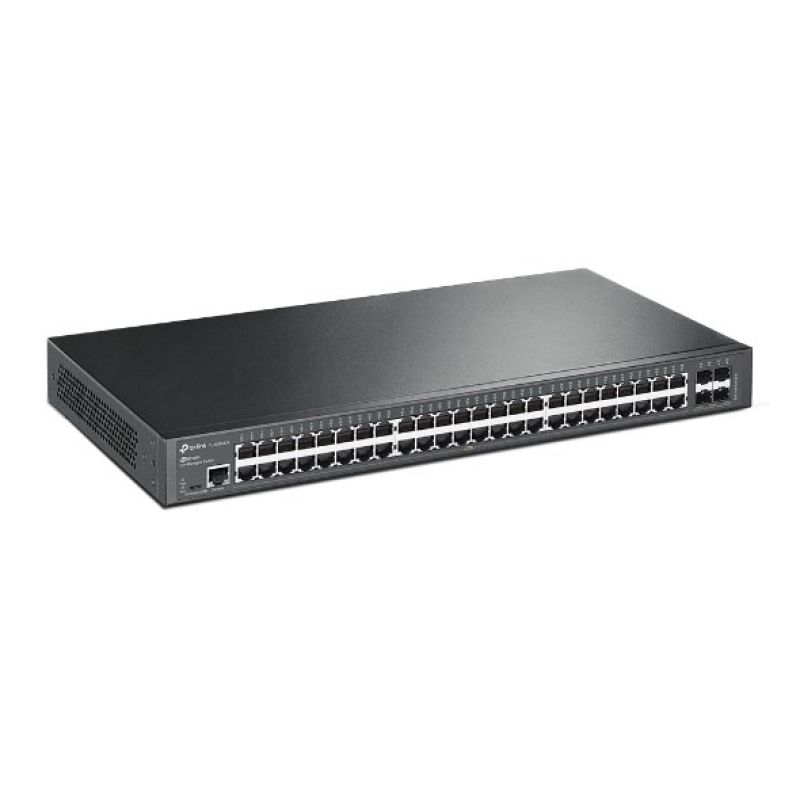

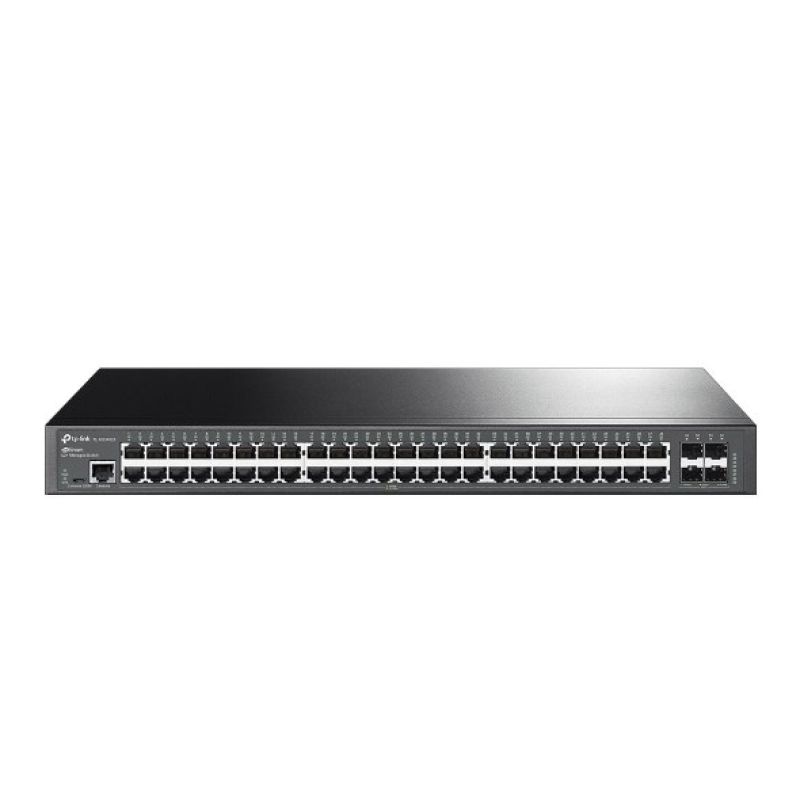

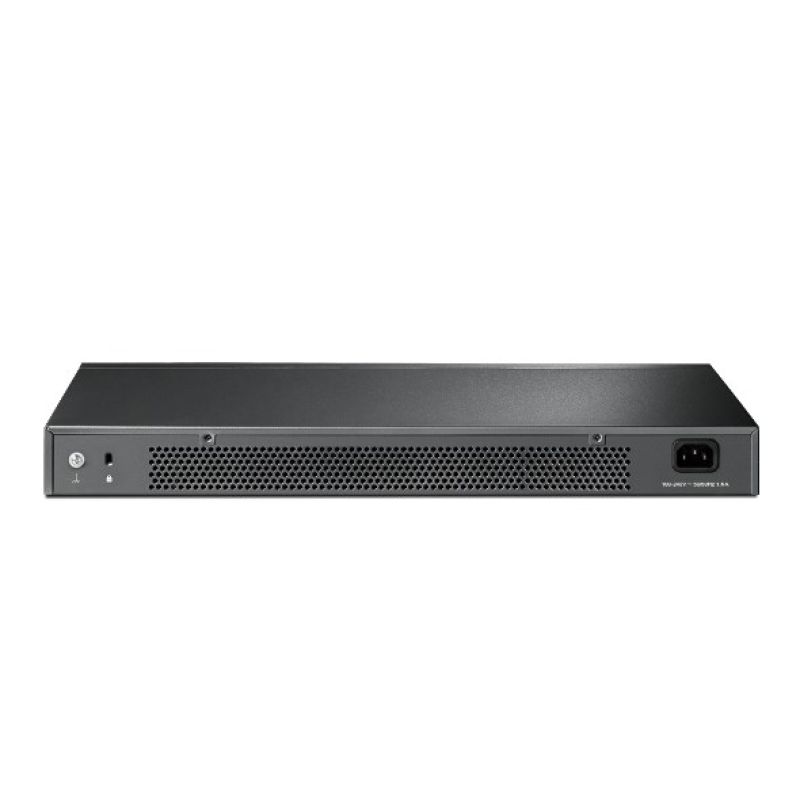

TP-LINK TL-SG3452X Switch
TP-LINK TL-SG3452X Switch
TP-LINK TL-SG3452X Switch
PRICE:
878,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 5 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Design
- Rack mounting: Yes
- Number of fans: 0 fans
- Product colour: Black
- Form factor: 1U
- LED indicators: Yes
- Power
- Power supply included: Yes
- Power source: AC
- Power consumption (max): 32.72 W
- AC input voltage: 100–240 V
- AC input frequency: 50/60 Hz
- Weight and dimensions
- Product height: 44 mm
- Product depth: 220 mm
- Product width: 440 mm
- Security
- Queue scheduling algorithms
- Weighted Round Robin (WRR)
- SP
- WRR+SP
- Authentication: Auto VLAN, Guest VLAN, MAC-based authentication, port-based authentication
- DHCP functions
- DHCP client
- DHCP relay
- DHCP server
- IGMP snooping: Yes
- Loop protection: Yes
- SSH/SSL support: Yes
- Password protection: Yes
- Access Control List (ACL): Yes
- Static port protection: Yes
- IGMP proxy: Yes
- IP-MAC-Port binding: Yes
- Authentication type: AAA, RADIUS, TACACS+
- BPDU filtering/protection: Yes
- MAC address filtering: Yes
- Queue scheduling algorithms
- Management features
- Configuring location settings (CLI): Yes
- System event report: Yes
- MIB support: RFC1213, RFC2233, RFC1643, RFC1493, RFC2674, RFC2819, RFC2021, RFC2620, RFC2618,
- Public MIB: Y
- Switching layer: L2+
- Switch type: Managed
- Cloud-managed: Yes
- ARP inspection: Yes
- Huawei-proprietary MIB: Y
- Quality of Service (QoS) support: Yes
- Web-based management: Yes
- Operating conditions
- Heat dissipation: 111.65 BTU/h
- Operating temperature range: 0–45 °C
- Storage temperature range: -40–70 °C
- Permitted relative humidity: 5–90%
- Relative humidity range: 10–90%
- Network
- VLAN support: Yes
- IPv4 routes: 48
- Spanning Tree Protocol: Yes
- Rate limiting: Yes
- Virtual LAN features
- Voice VLAN
- Tagged VLAN
- Private VLAN
- VLAN mapping
- Flow control support: Yes
- Number of VLANs: 4000
- Link aggregation: Yes
- Traffic congestion control: Yes
- 10G support: Yes
- Port mirroring: Yes
- Head-of-line (HOL) blocking: Yes
- IPv6 routes: 48
- Communication standards
- IEEE 802.1D
- IEEE 802.1w
- IEEE 802.1Q
- IEEE 802.3ad
- IEEE 802.1s
- Packaging data
- Rails: Yes
- Packaging type: Box
- Packaging content
- Hook mounting kit: Yes
- Cables: AC
- Quick start guide: Yes
- Protocols
- Management protocols: SNMPv1/v2c/v3, SNTP
- GARP VLAN Registration Protocol (GVRP): Yes
- IPv4 and IPv6 functions
- IPv6 ping
- IPv4/IPv6 access-control list (ACL)
- IPv6 tracert
- IPv6 Telnet
- Ports and interfaces
- Number of RJ-45 Ethernet ports for basic switching: 48
- Power connector: AC input socket
- Console port: RJ-45/micro-USB
- Number of SFP+ module slots: 4
- Type of RJ-45 ports for basic Ethernet switching: Gigabit Ethernet (10/100/1000)
- Data transmission
- Packet buffer memory: 12 MB
- Jumbo Frames extension: 9000
- Routing/switching capacity: 176 Gbit/s
- Address table size: 16000 entries
- Forwarding rate: 130.9 Mpps
- Jumbo Frames support: Yes
- Static route: Yes
- Number of static routes: 48
- Power over Ethernet (PoE)
- PoE support: No
- Multicast features
- Multicast Listener Discovery (MLD) snooping: Y
- Multicast support: Yes
- Safety warning
- Warnings
- Ensure that the device is adequately ventilated during operation.
- This product must not be disposed of with ordinary household waste. Take used electronic equipment to a disposal point in accordance with local regulations.
- Do not open the housing or attempt to repair the device yourself.
- Warnings
| Name | Details |
|---|---|
| Category | Computers and accessories |
| Product Type | Network switches |
| Producer | TP-LINK |
| Department | Electronics |
