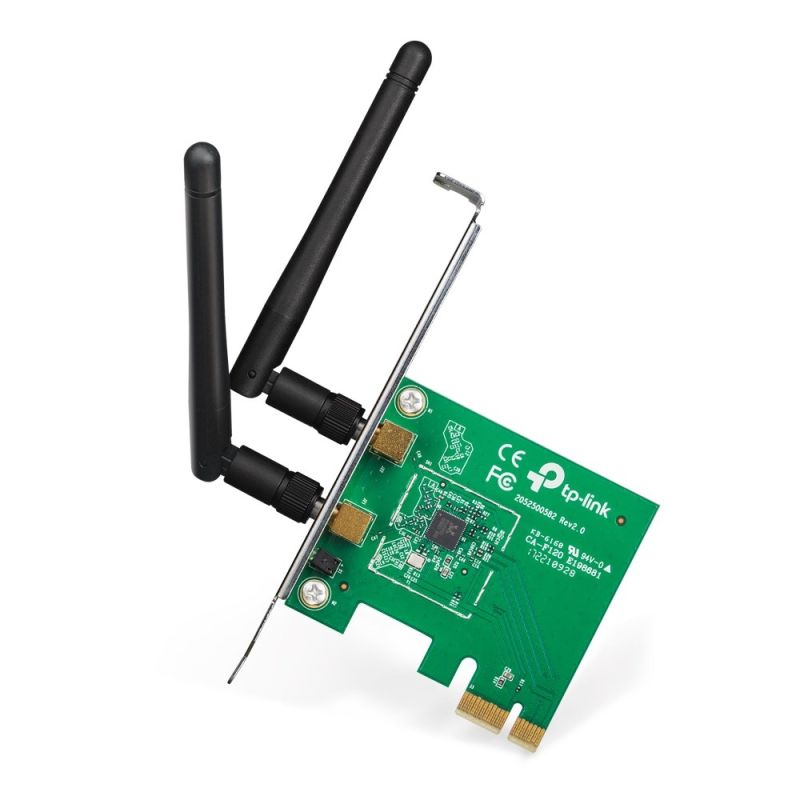

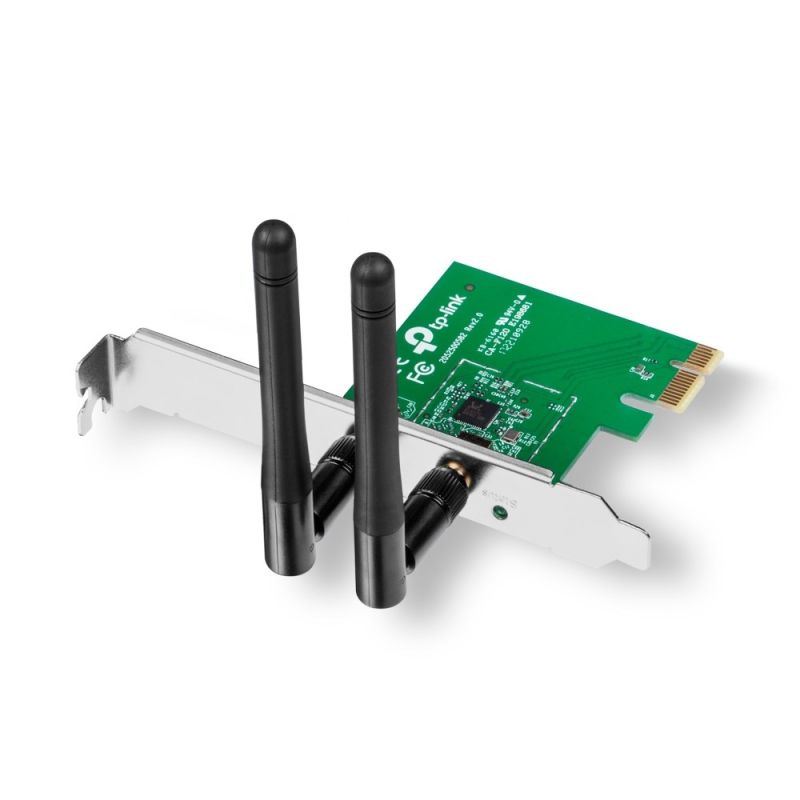

TP-LINK TL-WN881ND (PCI-E) network card
TP-LINK TL-WN881ND (PCI-E) network card
Sign up and unlock up to 10% off!
- Technical details
- Certificates of conformity
- CE
- Federal Communications Commission (FCC)
- RoHS
- Certificates of conformity
- Design

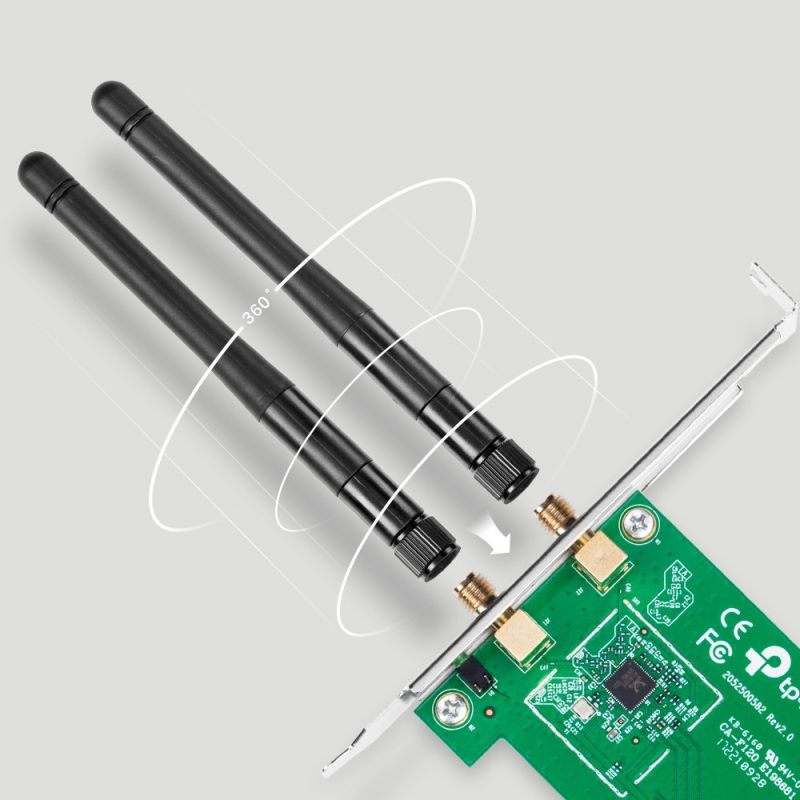

- Antenna plug type: RP-SMA
- LEDs: Yes
- Antenna Construction: External
- Antenna gain level (max): 2 dBi
- Intended use: PC
- Antenna Direction Type: Omnidirectional Antenna
- Internal: Yes
- Operating modes: Infrastructure mode
- Antenna: Yes
- Product color: Green
- Weight and dimensions
- Product height: 3.3 mm
- Product depth: 51 mm
- Product width: 59.7 mm
- Working conditions
- Permissible relative humidity: 5 - 90%
- Temperature range (storage): -40 - 70 °C
- Relative humidity range: 10 - 90%
- Temperature range (operation): 0 - 40 °C
- Network
- WLAN data transfer speed
- 11
- 150
- 300 Mbps
- 54
- Frequency range: 2.4 - 2.4835 GHz
- Modulation
- OFDM
- 64-QAM
- DBPSK
- DQPSK
- 16-QAM
- Wi-Fi Frequency: Single Frequency (2.4 GHz)
- Encryption/Security
- 64-bit WEP
- 128-bit WEP
- WPA2-PSK
- WPA-PSK
- WPS
- Wi-Fi standards
- 802.11g
- 802.11b
- Wi-Fi 4 (802.11n)
- Basic Wi-Fi standard: Wi-Fi 4 (802.11n)
- Wi-Fi: Yes
- Communication standards
- IEEE 802.11g
- IEEE 802.11b
- IEEE 802.11n
- Maximum data transfer speed: 300 Mbit/s
- WLAN data transfer speed
- System requirements
- Linux operating systems supported: Yes
- Supported Windows operating systems
- Windows 7 Home Basic
- Windows 8
- Windows 10 Pro x64
- Windows 7 Home Premium
- Windows 8.1 Enterprise x64
- Windows 10
- Windows 8 Enterprise x64
- Windows 7 Professional
- Windows 8.1 x64
- Windows 7 Home Premium x64
- Windows 8 Enterprise
- Windows 8.1 Enterprise
- Windows 8.1 Pro x64
- Windows 10 Enterprise
- Windows 8 x64
- Windows 10 IoT Core
- Windows 7 Starter x64
- Windows 10 Enterprise x64
- Windows 10 Education
- Windows 10 Pro
- Windows 8.1
- Windows 8 Pro
- Windows 7 Starter
- Windows 7 Ultimate
- Windows 8 Pro x64
- Windows 8.1 Pro
- Windows 10 Home
- Windows 7 Home Basic x64
- Windows 10 Home x64
- Windows 7 Ultimate x64
- Windows 10 Education x64
- Windows 7 Professional x64
- Windows 10 x64
- Windows 7 Enterprise
- Windows 7 x64
- Windows 7 Enterprise x64
- Windows 7
- Windows 10 IoT Enterprise
- Packaging data
- Package width: 201.5 mm
- Weight with packaging: 170 g
- Package height: 41.5 mm
- Package depth: 152.5 mm
- Package contents
- Quick Installation Guide: Yes
- Driver CD: Yes
- Ports and interfaces
- Host interface: PCI Express
- Interface: WLAN
- Connection method: Wireless
- Logistics data
- Harmonized System (HS) code: 85176990
- Safety warning
- Warnings
- Keep out of reach of children.
- Avoid contact with water or moisture.
- Must not be exposed to high temperatures.
- Warnings
- Sustainable development
- Sustainability: Yes
