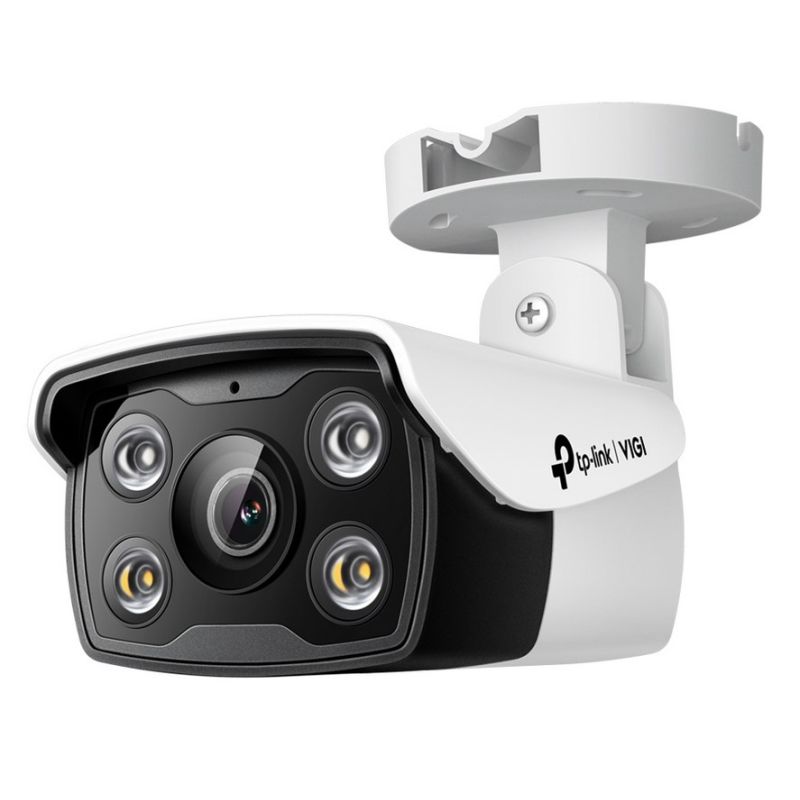

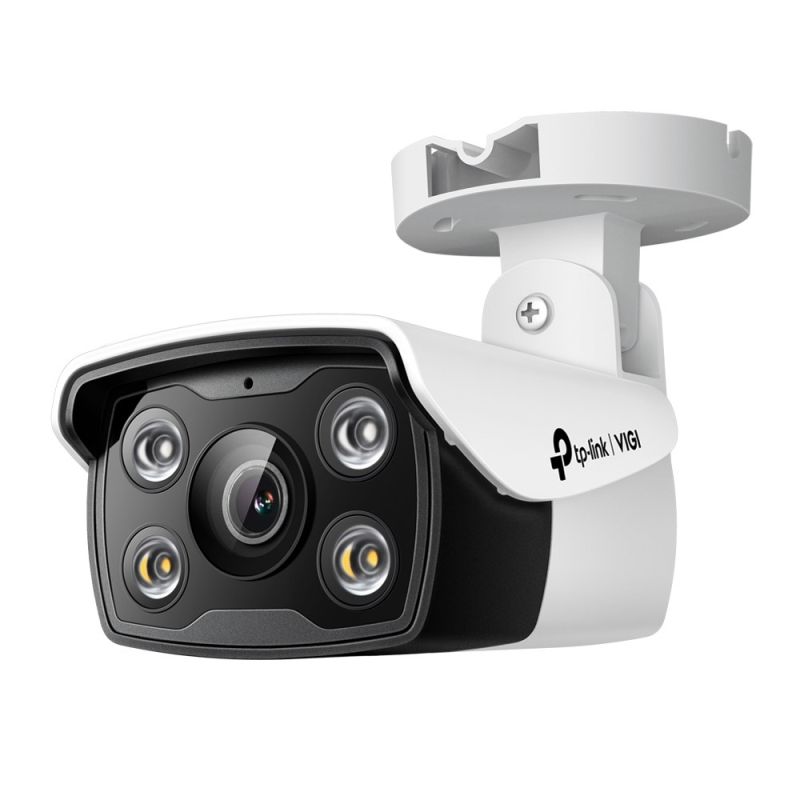

TP-LINK VIGI C330 Camera (6mm)
TP-LINK VIGI C330 Camera (6mm)
Sign up and unlock up to 10% off!
- Design
- Housing material: Plastic
- Layout: Tube
- Mounting type: Ceiling / Wall / Pole
- Product color: White
- IP protection class: IP67
- Power
- Power supply type: DC, PoE
- Power consumption (max): 5.4 W
- DC Output (Volts): 12
- Weight and dimensions
- Product depth: 70 mm
- Product height: 174 mm
- Product width: 78 mm
- Security
- Mirror: Yes
- Password reset via email: Yes
- Human and Vehicle Target Classification: Yes
- Password protection: Yes
- HTTS Inscription: Yes
- IP Filtering: Yes
- Video motion detection: Yes
- Working conditions
- Temperature range (operation): -30 - 60 °C
- Network
- Wi-Fi: No
- Ethernet interface type: Fast Ethernet
- Supported network protocols: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
- Bluetooth: No
- Wired LAN: Yes
- Efficiency
- Model: IP Security Camera
- Connection method: Wired
- Day/Night Mode: Yes
- Intended use: Outdoor
- Package contents
- Number of cameras: 1
- Audio
- Built-in microphone: Yes
- Data carrier
- Built-in HDD: No
- Camera
- Lens viewing angle, diagonal: 64°
- Lens angle of view, horizontal: 55.1°
- Min. Illumination: 0 lx
- Vertical lens viewing angle: 30.2°
- Photosensitive matrix
- Progressive Scan: Yes
- Image sensor type: CMOS
- CCD sensor size: 25.4 / 2.8 mm (1 / 2.8")
- Night mode
- LED type: Infrared
- Night mode: Yes
- Night Vision Distance: 30 m
- Video
- Supported graphics resolutions
- 640 x 480 (VGA)
- 352 x 288
- 320 x 240
- 704 x 576
- 2048 x 1280
- 1920 x 1080 (HD 1080)
- 1280 x 720 (HD 720)
- 2304 x 1296
- Noise reduction: Yes
- Highlight Compensation (HLC): Yes
- Backlight compensation: Yes
- Privacy Mask: Yes
- Total megapixels: 3 MP
- Digital Dynamic Range (DWDR): Yes
- Maximum resolution: 2304 x 1296 px
- Noise reduction technology: 3D noise reduction
- Quality regulation
- Mirror
- Contrast
- Sharpness
- Saturation
- Brightness
- Compression formats
- H.264+
- H.265+
- H.265
- H.264
- Smart IR: Yes
- Video transmission: Yes
- Supported graphics resolutions
- Lens system
- Maximum aperture: 1.6
- Fixed focal length: 4 mm
- Lens diameter: 6 mm
| Name | Details |
|---|---|
| Category | Industry |
| Producer | TP-LINK |
