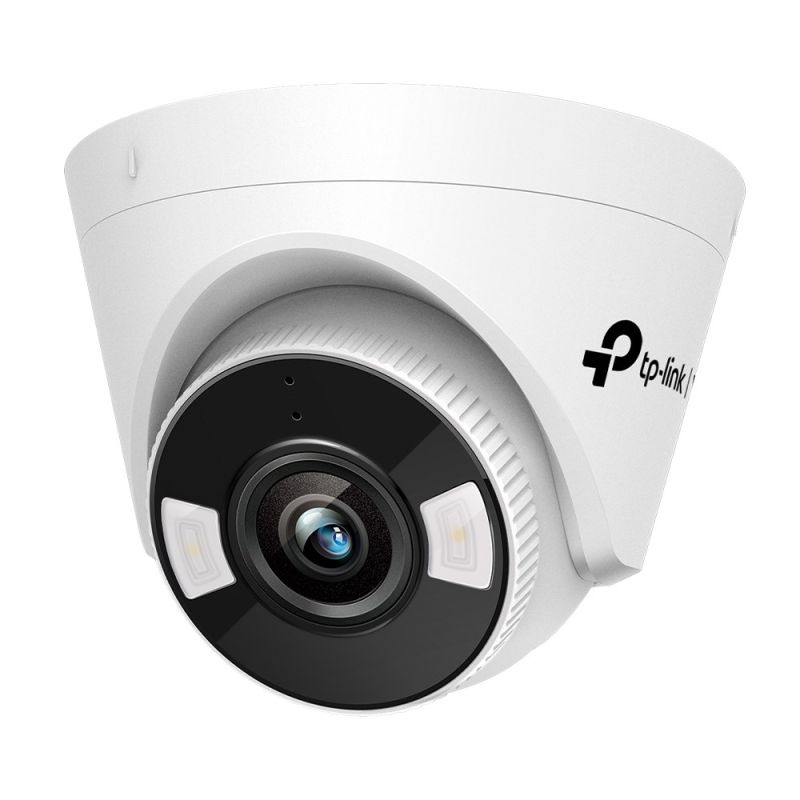

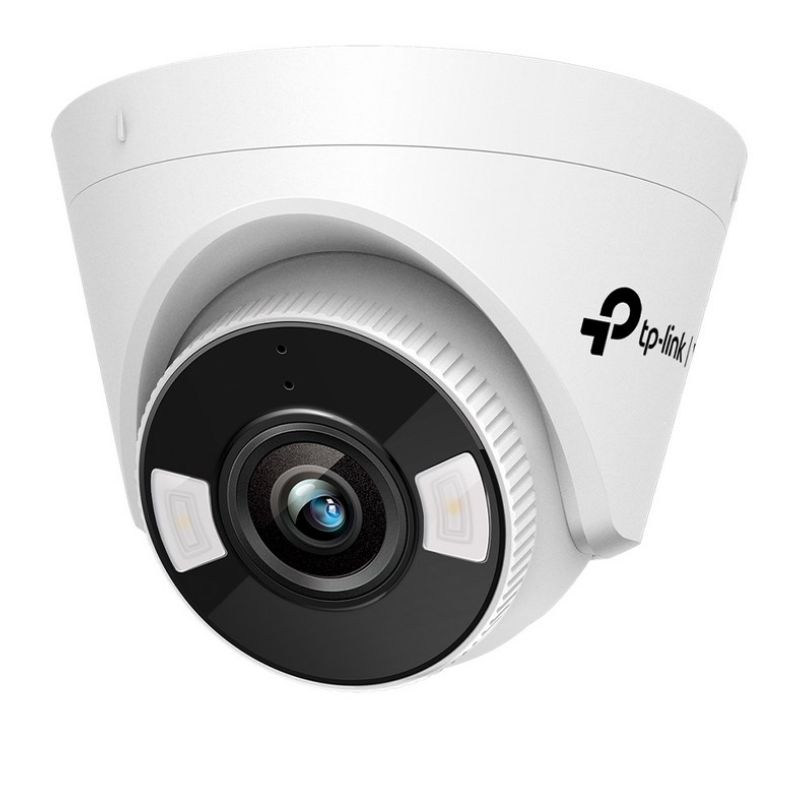

TP-Link VIGI C430 Dome IP Security Camera Indoor & Outdoor 2304 x 1296 px Ceiling
TP-Link VIGI C430 Dome IP Security Camera Indoor & Outdoor 2304 x 1296 px Ceiling
Sign up and unlock up to 10% off!
- Design
- Housing material: Plastic
- Mounting type: Ceiling
- Product color
- White
- Black
- Layout: Dome
- Power
- DC Output (Volts): 12
- Power supply type: DC, PoE
- Weight and dimensions
- Product depth: 83 mm
- Product width: 123 mm
- Product height: 123 mm
- Security
- Mirror: Yes
- Password reset via email: Yes
- IP Filtering: Yes
- HTTS Inscription: Yes
- Digest Authentication: Yes
- Password protection: Yes
- Management features
- Behavior Analysis: Intrusion Detection, Line Crossing Detection
- Web browser: Yes
- Working conditions
- Temperature range (operation): -30 - 60 °C
- Network
- Supported network protocols: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
- Communication standards
- IEEE 802.3at
- IEEE 802.3af
- Ethernet interface type: Fast Ethernet
- Wired LAN: Yes
- Efficiency
- Day/Night Mode: Yes
- Model: IP Security Camera
- Intended use: Indoor and outdoor
- Wide Dynamic Range (WDR): Yes
- Connection method: Wired
- Package contents
- Number of cameras: 1
- Mounting kit: Yes
- Data carrier
- Built-in HDD: No
- Camera
- Lens angle of view, horizontal: 89.1°
- Lens viewing angle, diagonal: 106.9°
- Min. Illumination: 0.005 lx
- Vertical lens angle of view: 45.1°
- Photosensitive matrix
- Image sensor type: CMOS
- Progressive Scan: Yes
- Number of sensors: 1
- CCD sensor size: 25.4 / 2.8 mm (1 / 2.8")
- Night mode
- Night Vision Distance: 30 m
- LED type: Infrared
- Night mode: Yes
- Video
- Quality regulation
- Contrast
- Brightness
- Sharpness
- Smart IR: Yes
- Noise reduction technology: 3D noise reduction
- Highlight Compensation (HLC): Yes
- Video transmission: Yes
- Backlight compensation: Yes
- Data transfer speed: 64 Kbps to 4 Mbps
- Noise reduction: Yes
- Privacy Mask: Yes
- Compression formats
- H.264+
- H.265
- H.264
- H.265+
- Maximum resolution: 2304 x 1296 px
- Frame rate: 30 fps
- Total megapixels: 3 MP
- Quality regulation
- Lens system
- Maximum aperture: 1.6
- Number of lenses: 1
- Lens diameter: 4 mm
- Panoramic camera
- Digital Wide Dynamic Range (DWDR) (panoramic camera): Yes
| Name | Details |
|---|---|
| Category | Industry |
| Producer | TP-LINK |
