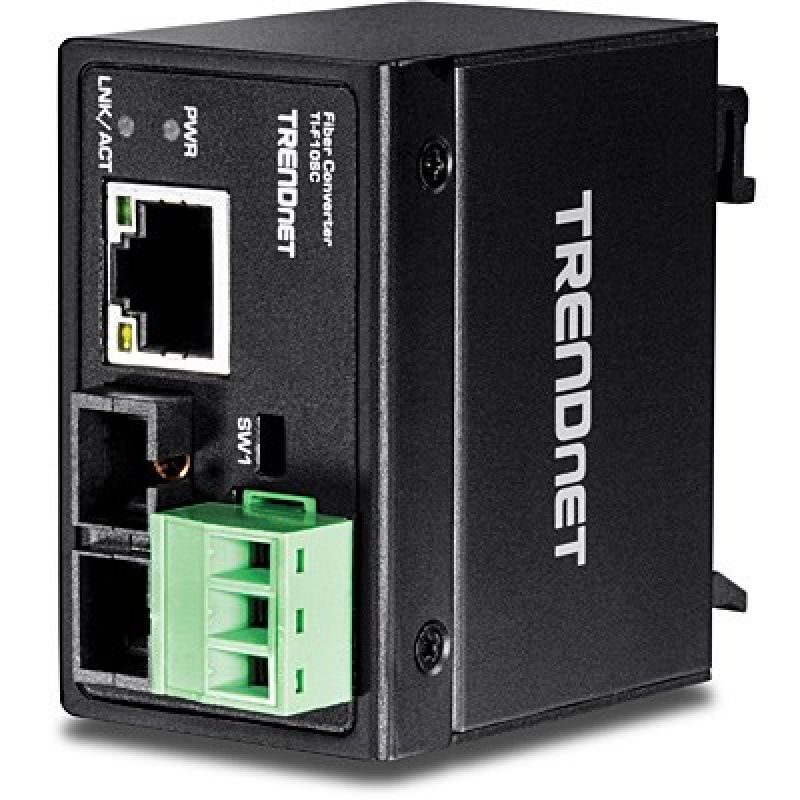

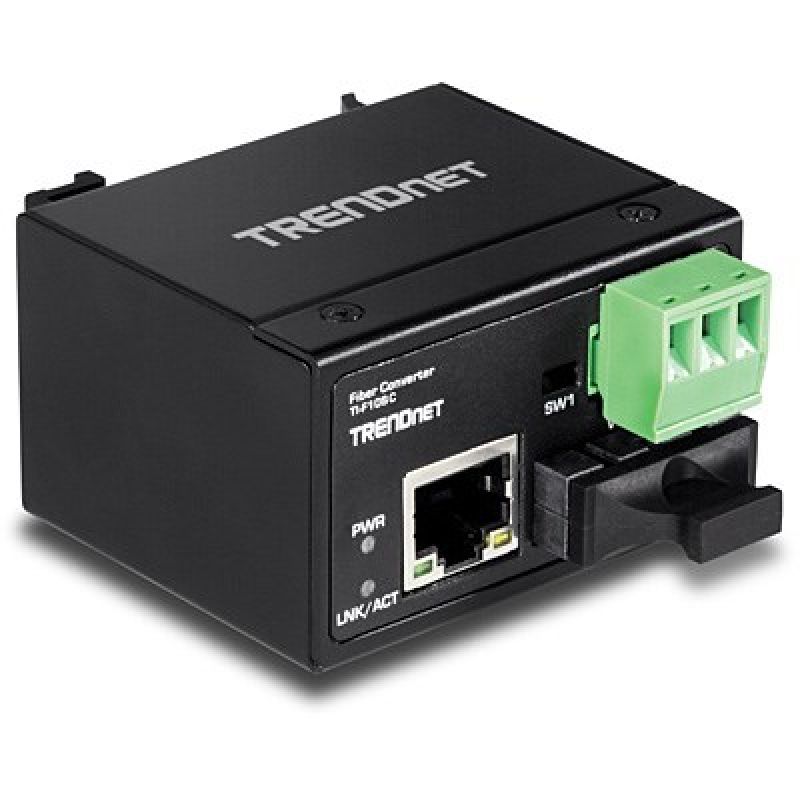

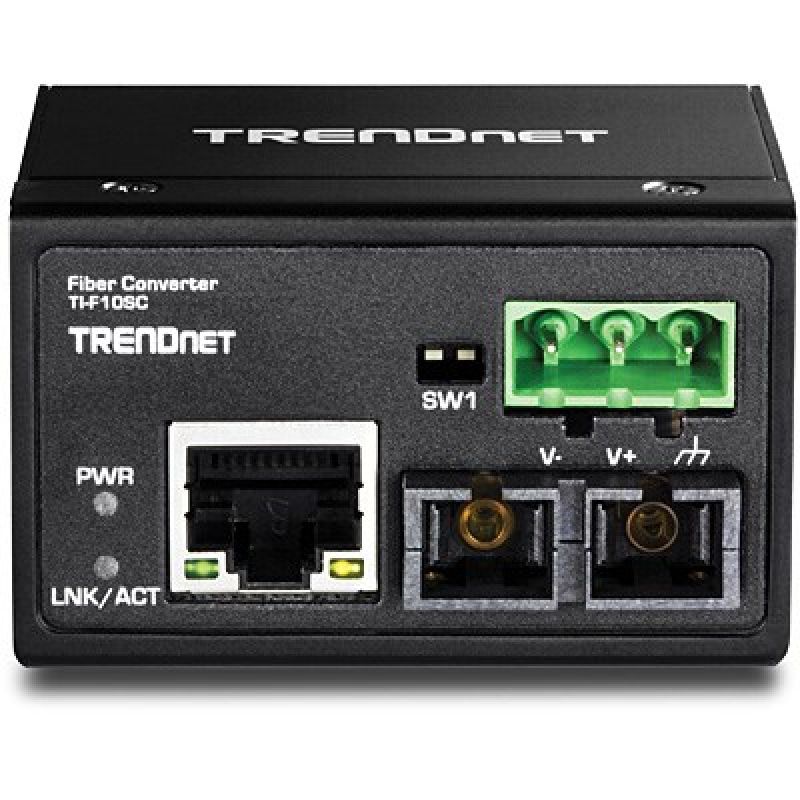

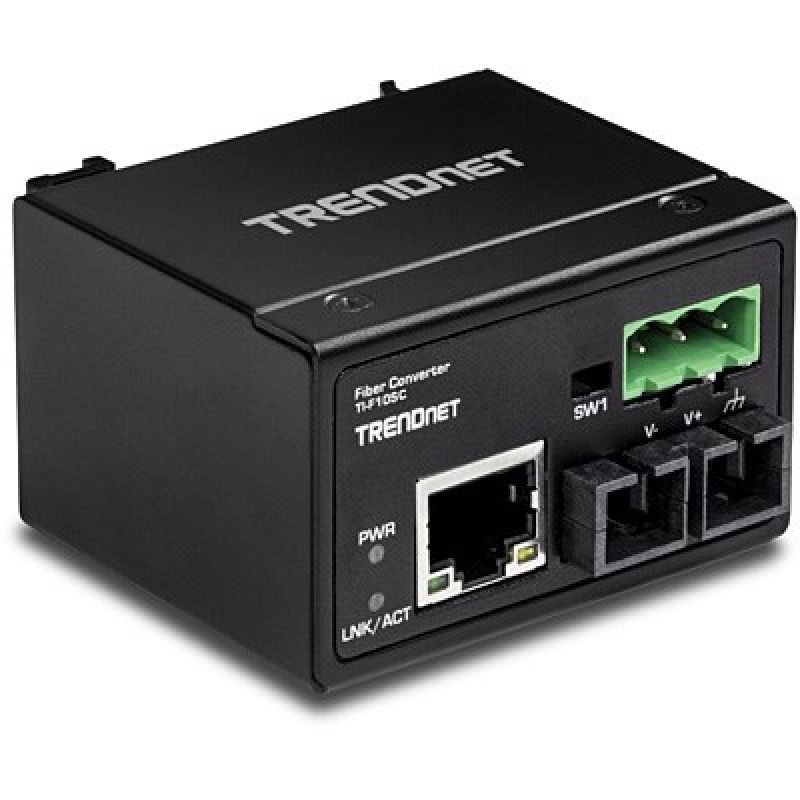

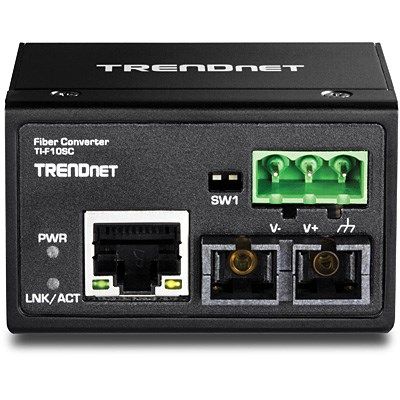

TRENDnet TI-F10SC Media Converter - Ethernet, Fast Ethernet - 10Base-T, 100Base-FX, 100Base-TX - RJ-45 / SC multimode - up to 2 km - 1310 nm
TRENDnet TI-F10SC Media Converter - Ethernet, Fast Ethernet - 10Base-T, 100Base-FX, 100Base-TX - RJ-45 / SC multimode - up to 2 km - 1310 nm
TRENDnet TI-F10SC Media Converter - Ethernet, Fast Ethernet - 10Base-T, 100Base-FX, 100Base-TX - RJ-45 / SC multimode - up to 2 km - 1310 nm
PRICE:
160,99
€
IN A WAREHOUSE
3 pcs
We'll ship this product in 8 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Characteristics

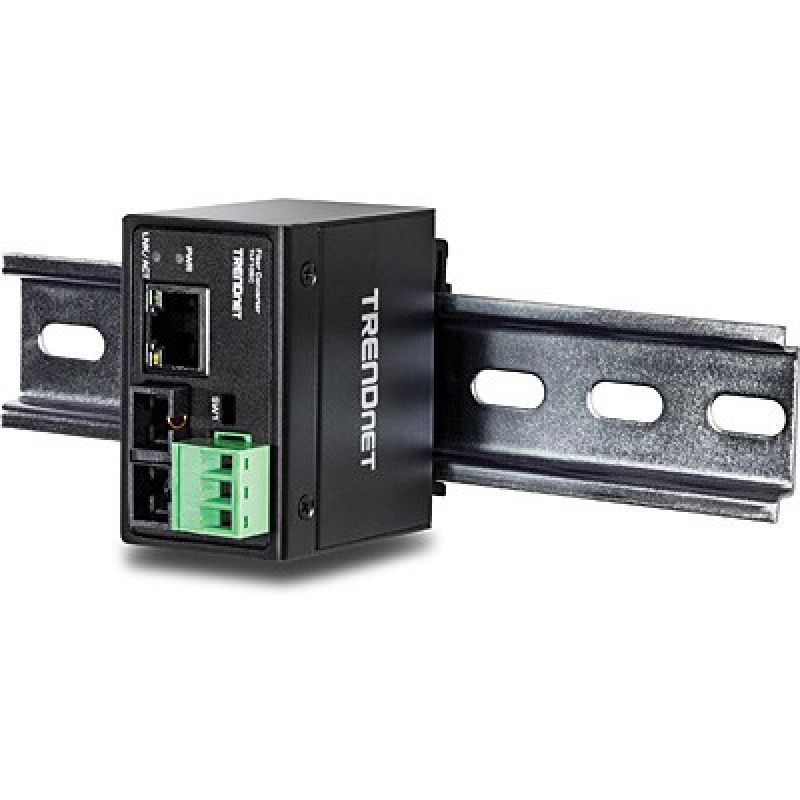

- DIN rail mounting: Yes
- IP protection class: IP40
- Housing material: Metal
- Internal: No
- Product color: Black
- LEDs: Yes
- Power
- Voltage: 12 - 60 V
- Power consumption (max): 1.92 W
- Weight and dimensions
- Product height: 35 mm
- Product depth: 50 mm
- Product width: 60 mm
- Product weight: 88 g
- Working conditions
- Temperature range (operation): -40 - 75 °C
- Network
- Copper Ethernet cabling technology
- 100BASE-TX
- 10BASE-T
- Auto-Negotiation: Yes
- Fiber Ethernet cabling technology: 100BASE-FX
- Input Interface Converter: 100Base-FX
- Ethernet interface type: Fast Ethernet
- Flow Control Support: Yes
- Two-way duplex transmission
- Half-duplex
- Full
- Output interface converter: 100Base-TX
- Data transfer speed via Ethernet LAN
- 10 Mbps
- 100 Mbps
- Maximum data transfer speed: 200 Mbit/s
- Communication standards
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.3x
- Copper Ethernet cabling technology
- Efficiency
- Supported fiber optic cable diameters
- 50/125
- 62.5/125 µm
- Link budget: 7 dB
- Wavelength: 1310 nm
- MTBF (Mean Time Between Failures): 510304 h
- Single-mode fiber structure: Multifunctional
- Maximum transfer distance: 2000 m
- Supported fiber optic cable diameters

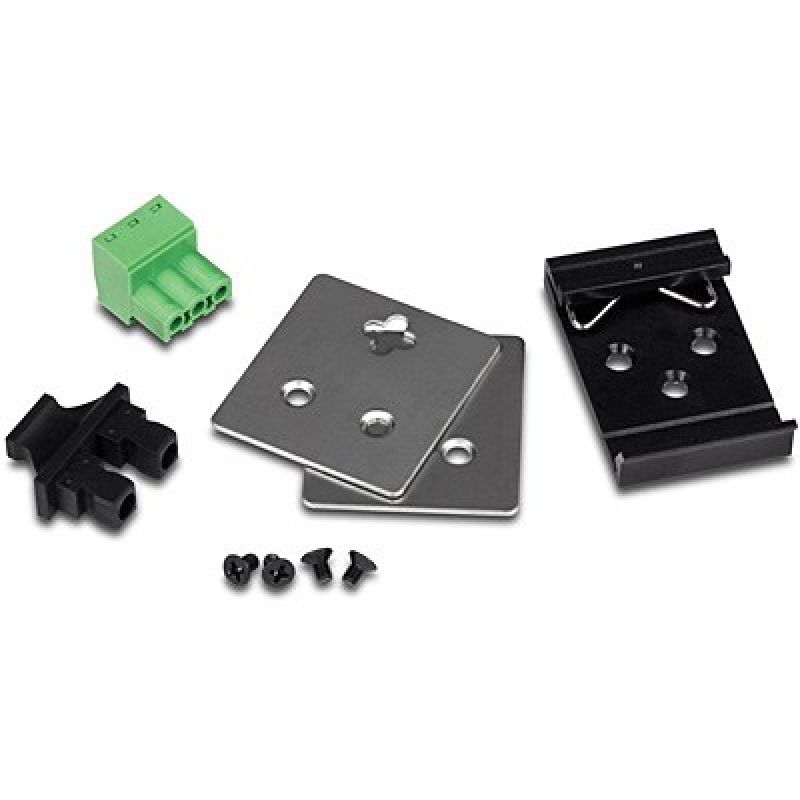

- Package contents
- Quick Installation Guide: Yes
- Ports and interfaces
- Number of ports: 1
- Fiber optic connector: SC
- Connection method: Wired
- Number of Ethernet LAN ports (RJ-45): 1
- Logistics data
- Harmonized System (HS) code: 85176990
