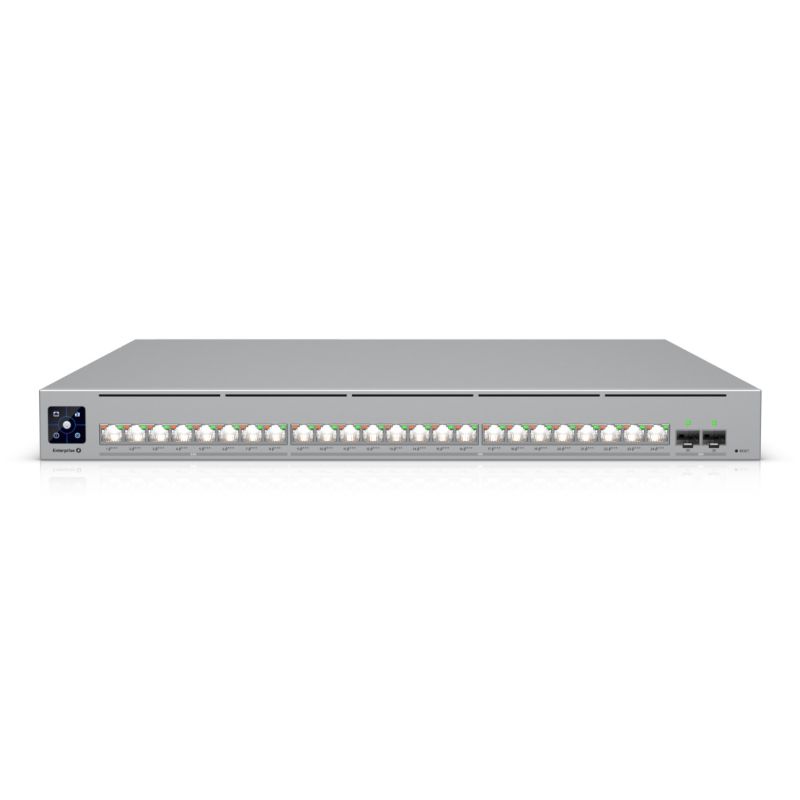

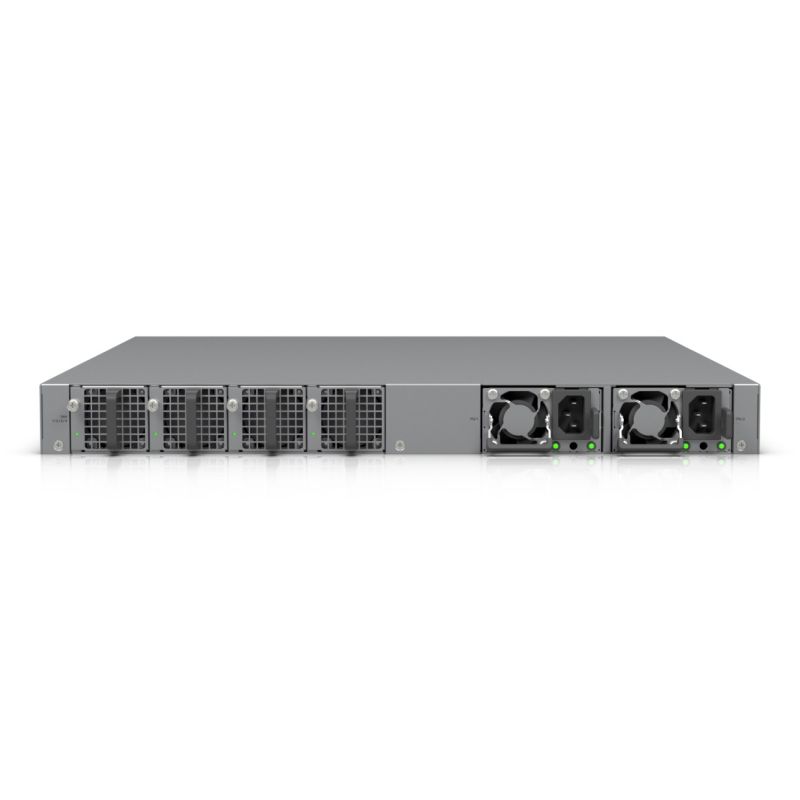

Ubiquiti UniFi ECS-24-POE Network Switch Managed L2/L3 10G Ethernet (100/1000/10000) PoE Support 1U Gray
Ubiquiti UniFi ECS-24-POE Network Switch Managed L2/L3 10G Ethernet (100/1000/10000) PoE Support 1U Gray
Ubiquiti UniFi ECS-24-POE Network Switch Managed L2/L3 10G Ethernet (100/1000/10000) PoE Support 1U Gray
PRICE:
4723,99
€
IN A WAREHOUSE
3 pcs
We'll ship this product in 4 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Design
- Housing material: SGCC (hot galvanized steel)
- Reset button: Yes
- Number of fans: 4 fans

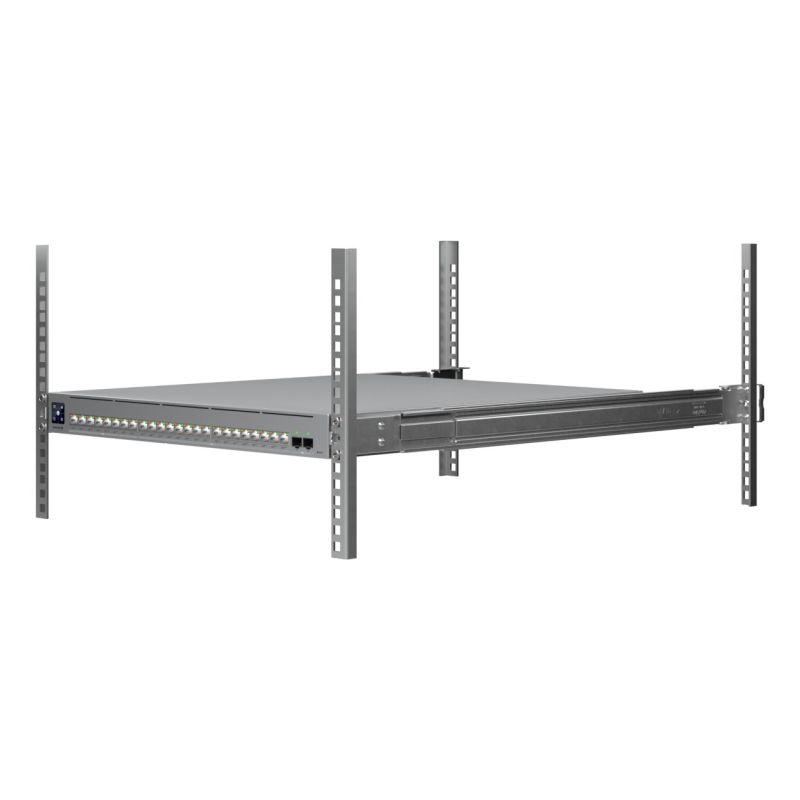

- Rack mounting options: Yes
- LED diodes
- Action
- Status
- Link
- Product color: Gray
- Display type: LCM
- Layout: 1U
- Redundant Fan Support: Yes
- Power
- Power supply included: Yes
- Power source: AC
- Power consumption (max): 2400 W
- AC input voltage: 100 - 240 V
- Backup Power Supply (RPS) Support: Yes
- AC input frequency: 50/60 Hz

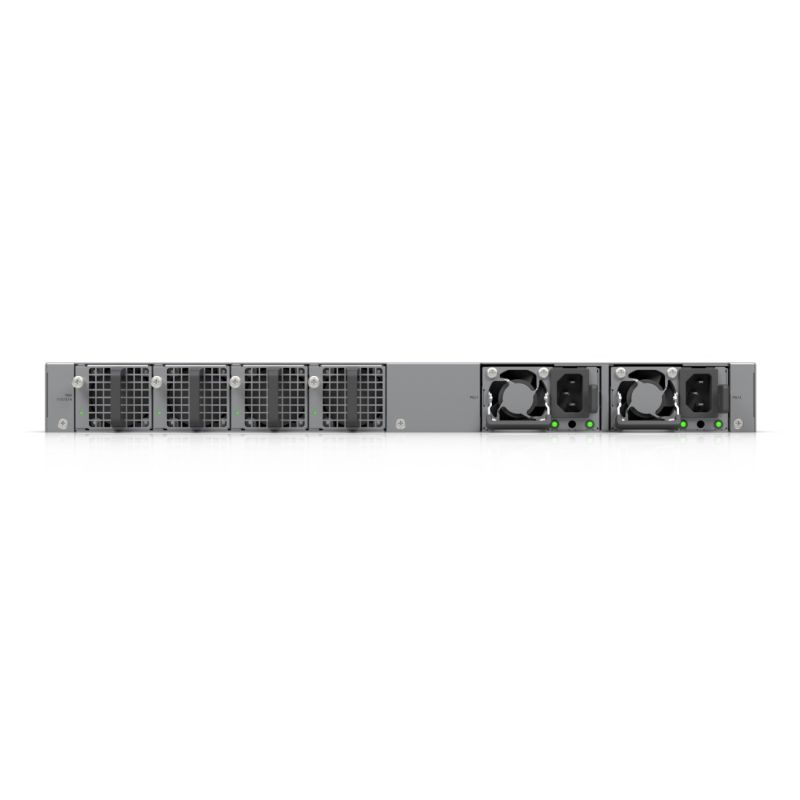

- Number of power units: 2
- Weight and dimensions
- Product height: 43.7 mm
- Product width: 442.4 mm
- Product weight: 9.46 kg
- Product depth: 496 mm
- Security
- DHCP functions
- DHCP guarding
- DHCP relay
- DHCP snooping
- IGMP snooping: Yes
- Loop protection: Yes
- DHCP functions
- Management features
- Switch type: Managed
- Switch Layer: L2/L3
- Working conditions
- Relative humidity range: 10 - 90%
- Temperature range (operation): -5 - 40 °C
- Network
- Data transfer speed via Ethernet LAN: 10,100,1000,2500,5000,10000 Mbit/s
- VLAN support: Yes
- 10G Support: Yes
- Communication standards
- IEEE 802.1x
- IEEE 802.3bt
- IPv4 routes: 256000
- Port Mirroring: Yes
- Frequency Limit: Yes
- Flow Control Support: Yes
- Virtual LAN Features: Voice VLAN
- Traffic Growth Control: Yes
- Connection Aggregator: Yes
- Packaging data
- Mounting Brackets Included: Yes
- Railings: Yes

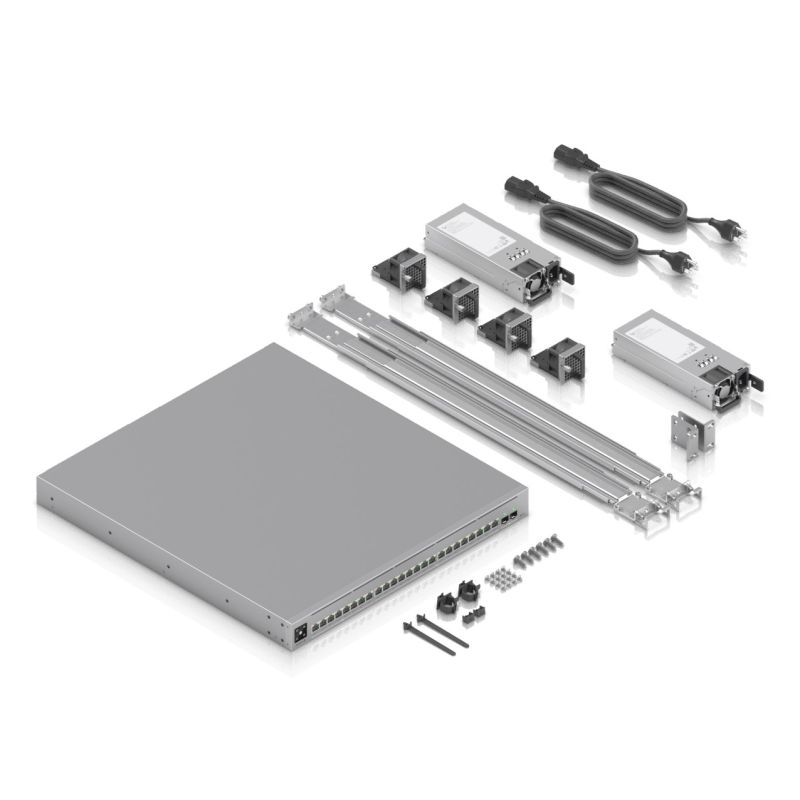

- Package contents
- Wires: Power
- Hook mounting kit: Yes
- Certificates
- Certificates of conformity
- CE
- Federal Communications Commission (FCC)
- National Defense Authorization Act (NDAA)
- Industry Canada (IC)
- Certificates of conformity

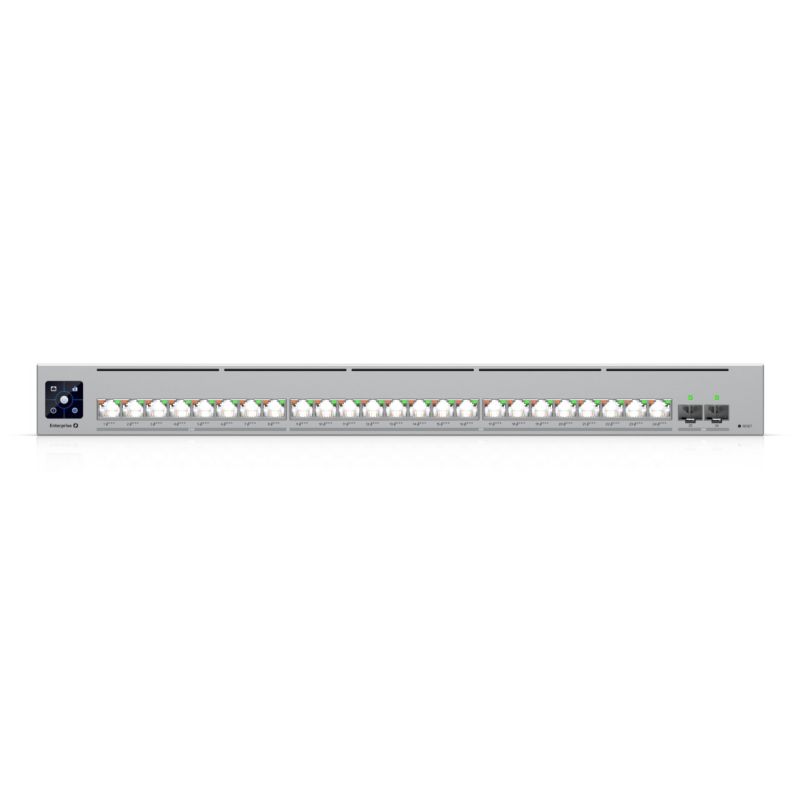

- Ports and interfaces
- Basic Ethernet Switching RJ-45 Ports Type: 10G Ethernet (100/1000/10000)
- Basic RJ-45 Switching Number of Ethernet Ports: 24
- Number of SFP Module slots: 2
- Power Connector: AC Input Socket
- Number of SFP28 ports: 2
- Number of 2.5G Ethernet ports (copper): 8
- Number of 10G Ethernet ports (copper): 16
- Data transfer
- Routing/switching capacity: 460 Gbit/s
- Address table size: 128000 entries
- Jumbo Frame Compatible: Yes
- Packet buffer memory: 8 MB
- Transfer speed: 342.24 Mpps
- Static Route: Yes
- Performance: 230 Gbps
- Power over Ethernet (PoE)
- Total Power over Ethernet (PoE) budget: 1050 W
- Power over Ethernet (PoE) power per port: 90 W
- PoE Support: Yes
- Power over Ethernet (PoE) type supported
- PoE+
- PoE++ (4PPoE)
- Multicast functions
- Multicast Support: Yes
| Name | Details |
|---|---|
| Producer | UBIQUITI |
