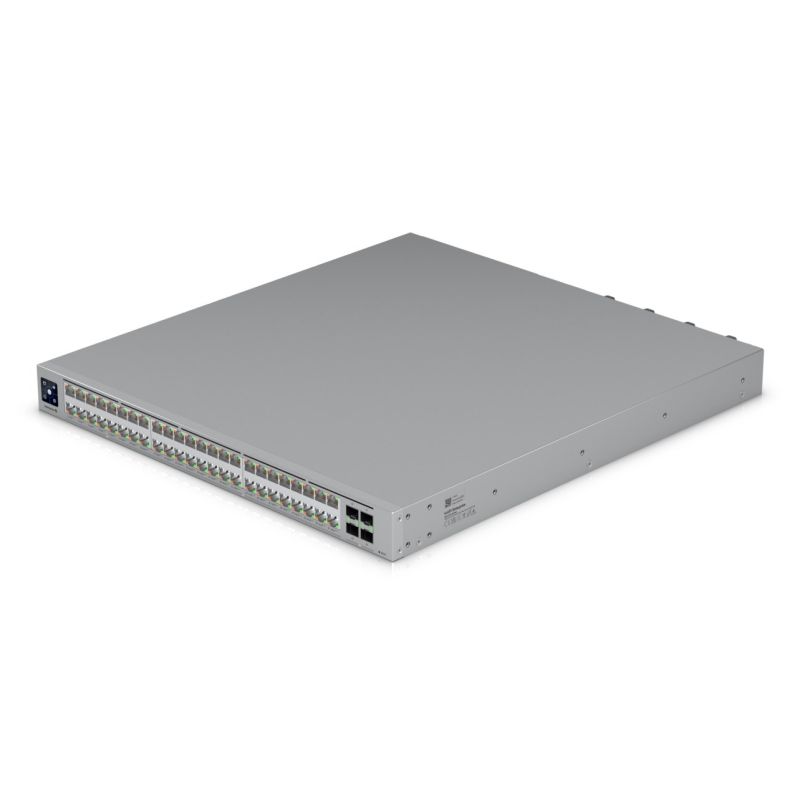

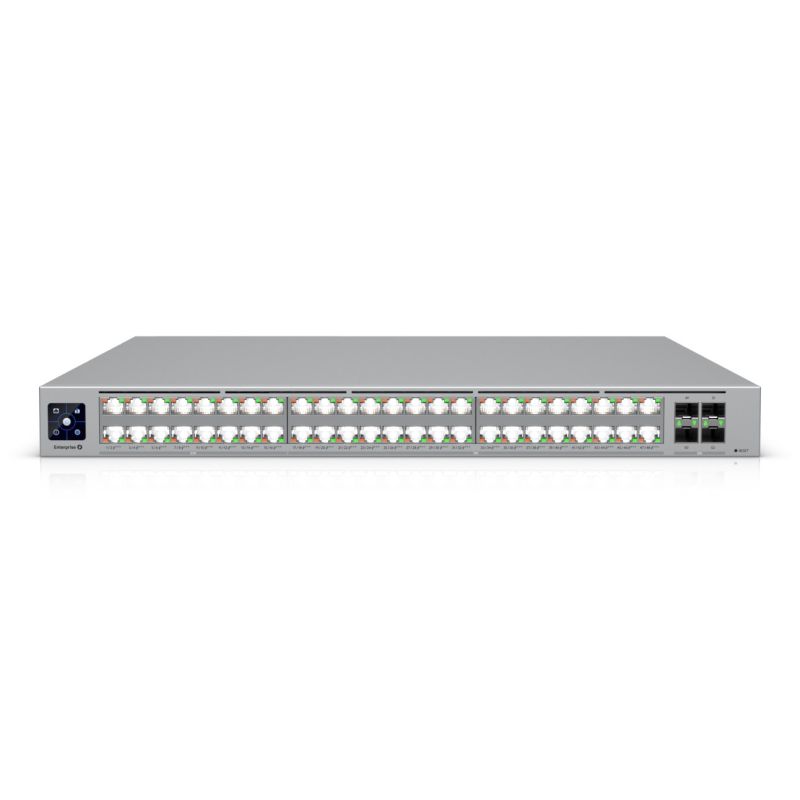

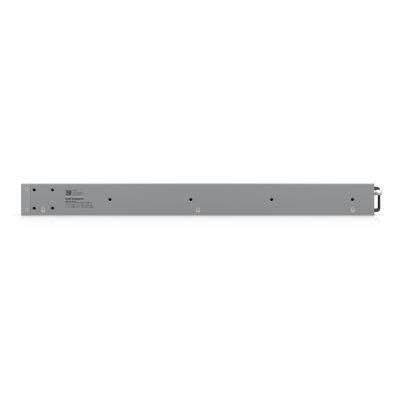

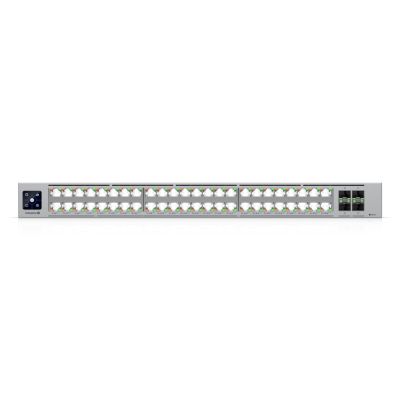

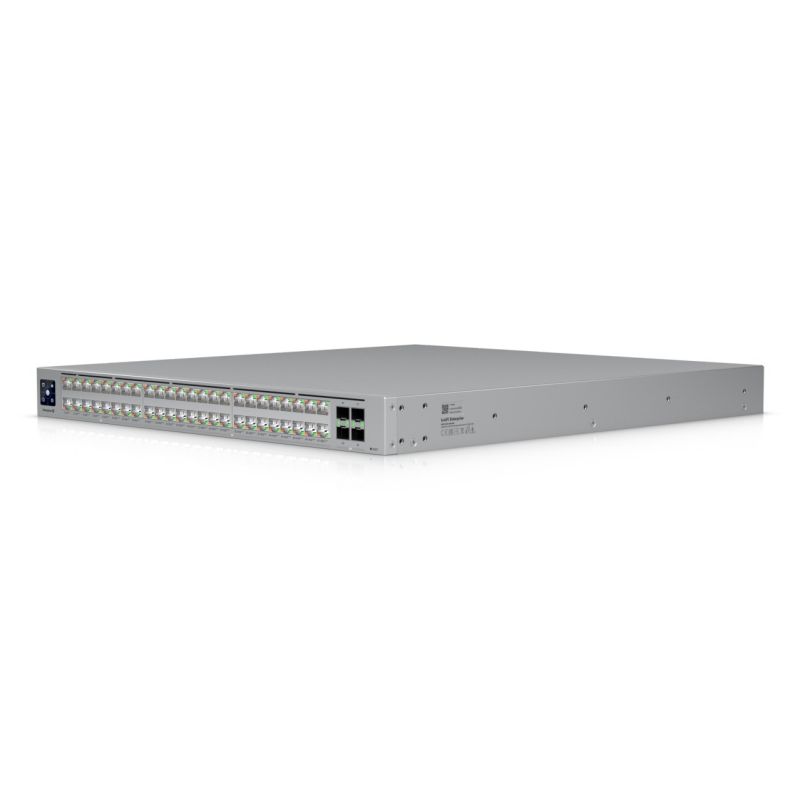

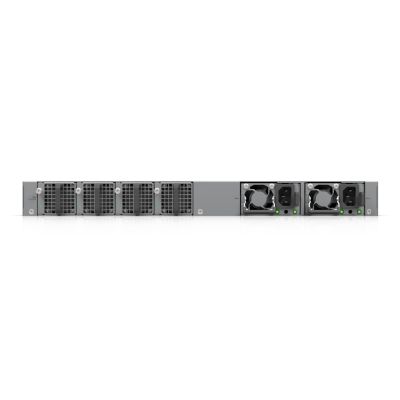

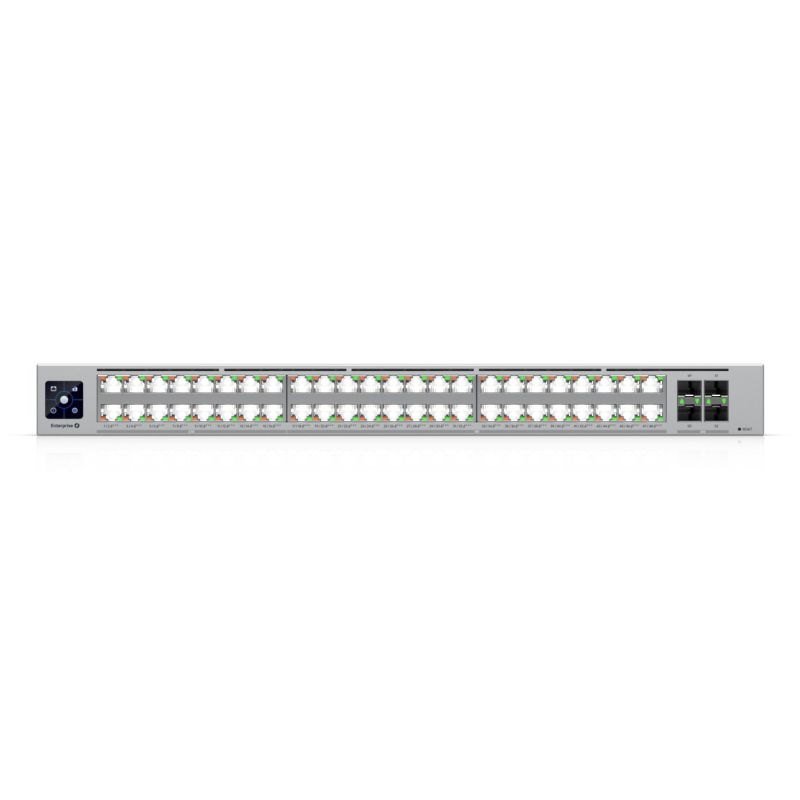

Ubiquiti UniFi ECS-48-PoE Managed L2/L3 10G Ethernet (100/1000/10000) PoE Support 1U Gray
Ubiquiti UniFi ECS-48-PoE Managed L2/L3 10G Ethernet (100/1000/10000) PoE Support 1U Gray
Ubiquiti UniFi ECS-48-PoE Managed L2/L3 10G Ethernet (100/1000/10000) PoE Support 1U Gray
PRICE:
7646,99
€
IN A WAREHOUSE
6 pcs
We'll ship this product in 5 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Design

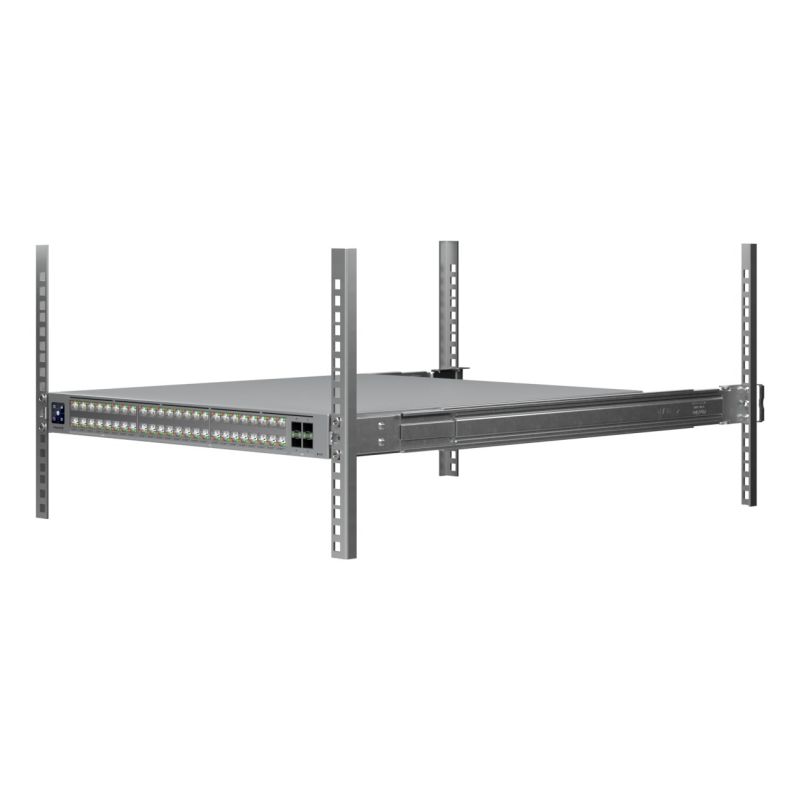

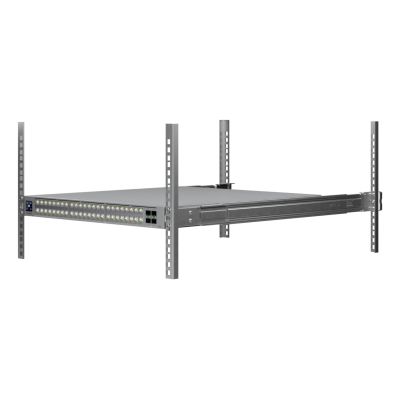

- Rack mounting: Yes
- Display type: LCM
- Redundant fan support: Yes
- LED indicators
- Operation
- Link
- Status
- Form factor: 1U
- Number of fans: 4 fans
- Product color: Gray
- Reset button: Yes
- Housing material: SGCC (hot-dip galvanized steel)
- Power

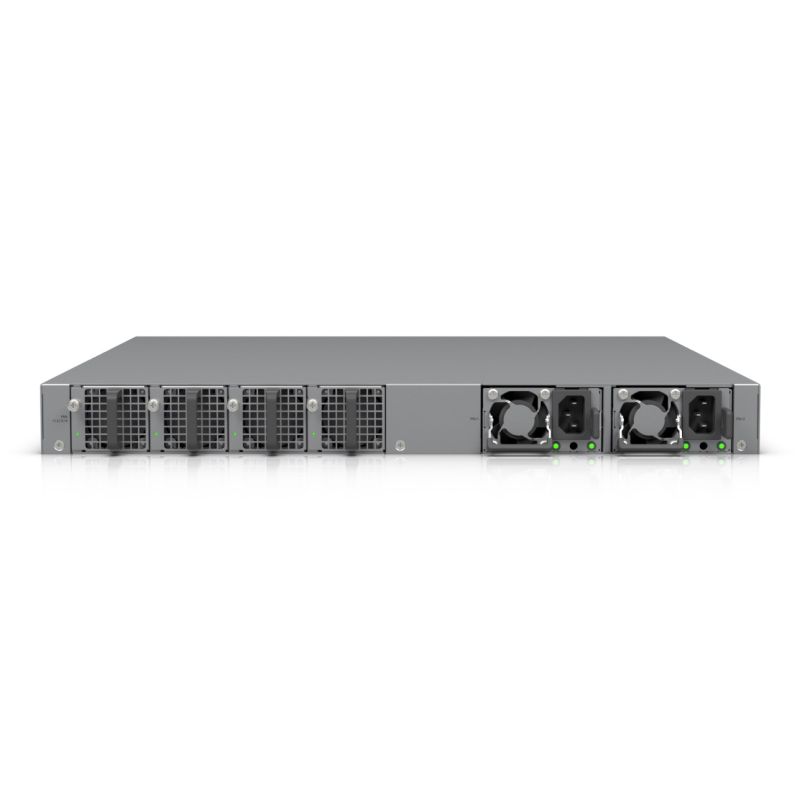

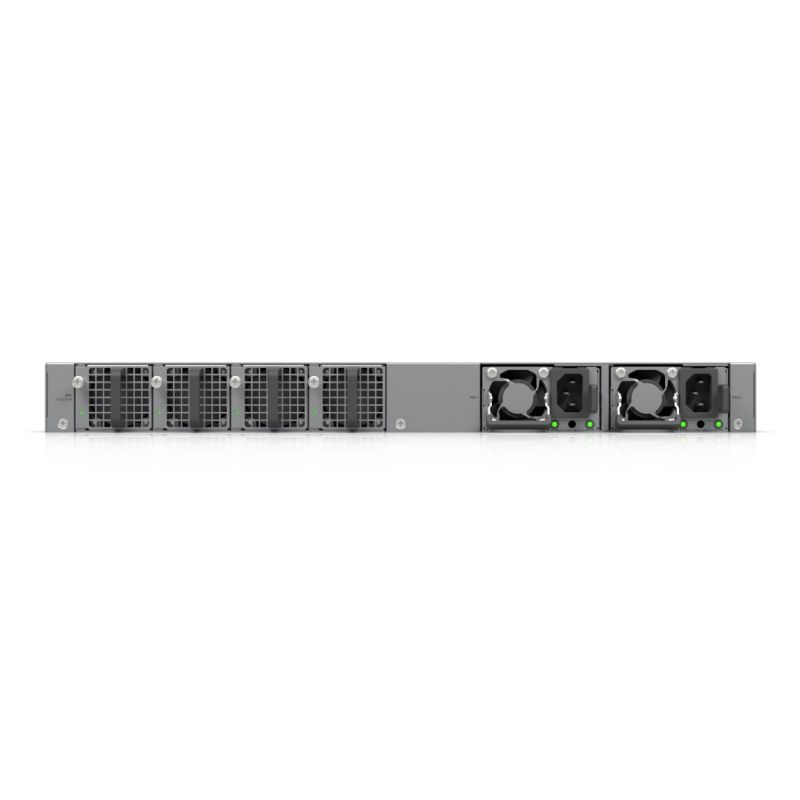

- Number of power supply units: 2
- Redundant power supply (RPS) support: Yes
- Power supply included: Yes
- AC input frequency: 50/60 Hz
- Power source: AC
- AC input voltage: 100 - 240 V
- Power consumption (max): 2400 W
- Weight and dimensions
- Product weight: 9.46 kg
- Product width: 442 mm
- Product height: 43.7 mm
- Product depth: 496 mm
- Security
- DHCP functions
- DHCP snooping
- DHCP guarding
- DHCP relay
- Loop prevention: Yes
- IGMP snooping: Yes
- DHCP functions
- Management features
- Switch layer: L2/L3
- Switch type: Managed
- Quality of Service (QoS) support: Yes
- Operating conditions
- Operating temperature range: -5 - 40 °C
- Relative humidity range: 10 - 90%
- Network
- IPv4 routes: 256000
- Link aggregation: Yes
- Broadcast storm control: Yes
- Rate limiting: Yes
- Number of VLANs: 1000
- Virtual LAN features: Voice VLAN
- Port mirroring: Yes
- Flow control support: Yes
- 10G support: Yes
- VLAN support: Yes
- Communication standards
- IEEE 802.1x
- IEEE 802.3bt
- Ethernet LAN data transfer rate: 10,100,1000,2500,5000,10000 Mbit/s
- Packaging data
- Mounting brackets included: Yes
- Mounting rails: Yes

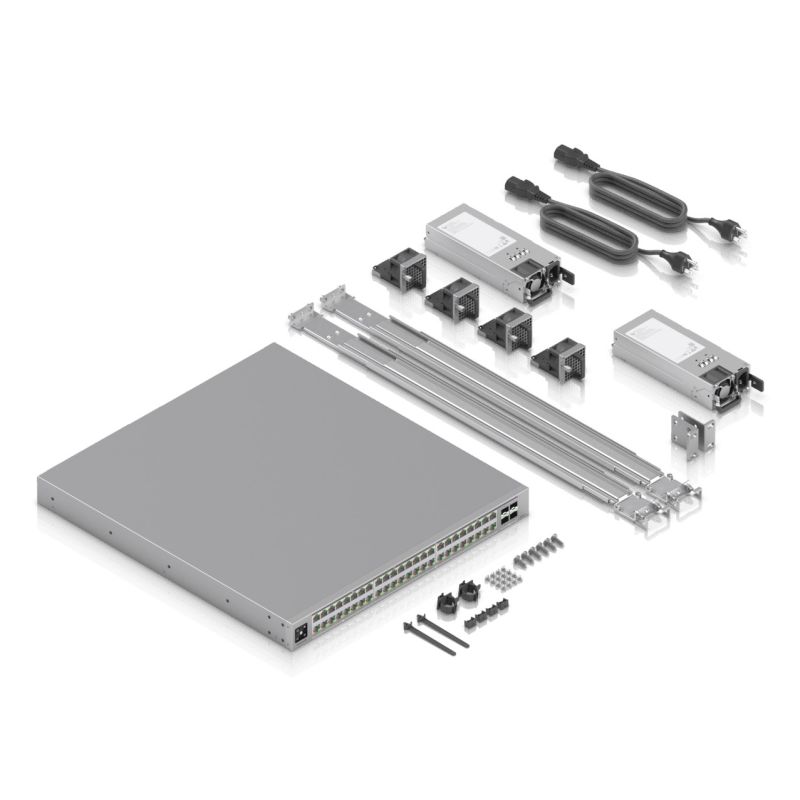

- Package contents
- Hook mounting kit: Yes
- Cables: Power
- Certificates
- Compliance certificates
- CE
- Federal Communications Commission (FCC)
- Industry Canada (IC)
- Compliance certificates
- Ports and interfaces
- Number of SFP28 ports: 4
- Number of 10G Ethernet ports (copper): 32
- Number of 2.5G Ethernet ports (copper): 16
- Basic switching RJ-45 port type: 10G Ethernet (100/1000/10000)
- Power connector: AC input socket
- Number of SFP module slots: 4
- Number of RJ-45 Ethernet ports for basic switching: 48
- Data transmission
- Address table size: 128000 entries
- Jumbo Frames support: Yes
- Packet buffer memory: 8 MB
- Routing/switching capacity: 920 Gbit/s
- Forwarding rate: 684 Mpps
- Performance: 460 Gbit/s
- Static route: Yes
- Power over Ethernet (PoE)
- Power over Ethernet (PoE) power per port: 90 W
- Total Power over Ethernet (PoE) budget: 2150 W
- PoE support: Yes
- Supported Power over Ethernet (PoE) types
- PoE+
- PoE++ (4PPoE)
- Multicast features
- Multicast support: Yes
