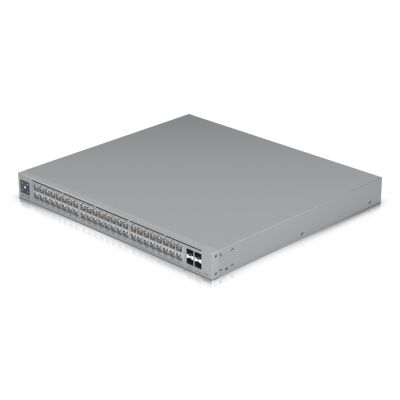

Ubiquiti UniFi Pro Max 48 PoE 52p PoE Switch (PoE+: 32; PoE++: 16;) Managed Gigabit/Multigigabit/10G
Ubiquiti UniFi Pro Max 48 PoE 52p PoE Switch (PoE+: 32; PoE++: 16;) Managed Gigabit/Multigigabit/10G
Ubiquiti UniFi Pro Max 48 PoE 52p PoE Switch (PoE+: 32; PoE++: 16;) Managed Gigabit/Multigigabit/10G
PRICE:
2197,99
€
IN A WAREHOUSE
2 pcs
Goods available on request - delivery time to 4 working days
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Design
- Backlit display: Yes
- Product colour: Grey
- Housing material: SGCC (hot-dip galvanised steel)
- Display type: LCM

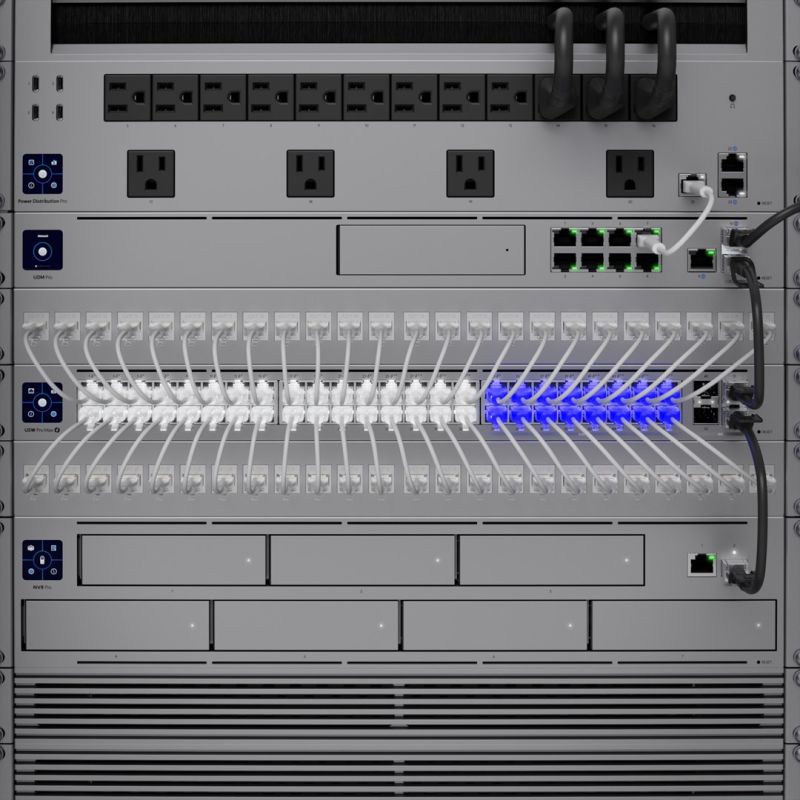

- Rack mounting: Yes
- Form factor: 1U
- Reset button: Yes
- LED indicators: System
- Power
- Power supply included: Yes
- Power consumption (max): 820 W
- Power source: AC
- AC input frequency: 50/60 Hz
- Redundant power supply (RPS) support: Yes
- AC input voltage: 100–240 V
- Weight and dimensions
- Product depth: 399.6 mm
- Product weight: 6.2 kg
- Product height: 43.7 mm
- Product width: 442.4 mm
- Protection
- IGMP snooping: Yes
- Loop prevention: Yes
- DHCP functions
- DHCPv6 snooping
- DHCP server
- DHCP guarding
- DHCP relay
- Management features
- Switching layer: L3
- Switch type: Managed
- Quality of Service (QoS) support: Yes
- Operating conditions
- Heat dissipation: 341.2 BTU/h
- Relative humidity range: 10–90%
- Operating temperature range: -5–40 °C
- Network
- VLAN support: Yes
- Traffic surge control: Yes
- Rate limiting: Yes
- 10G support: No
- Number of VLANs: 1000
- Port mirroring: Yes
- Flow control support: Yes
- Virtual LAN features: Voice VLAN
- IPv4 routes: 12000
- Communication standards: IEEE 802.1x

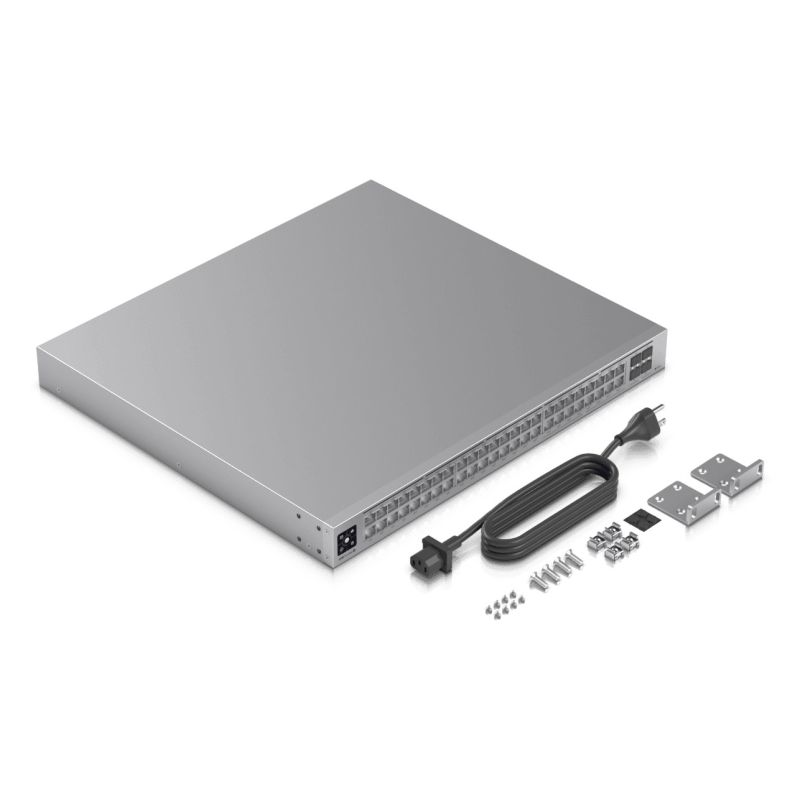

- Packaging content
- Hook mounting kit: Yes
- Cables: Power
- User manual: Yes
- Certificates
- Compliance certificates
- National Defense Authorization Act (NDAA)
- CE
- Industry Canada (IC)
- Federal Communications Commission (FCC)
- Compliance certificates
- Ports and interfaces

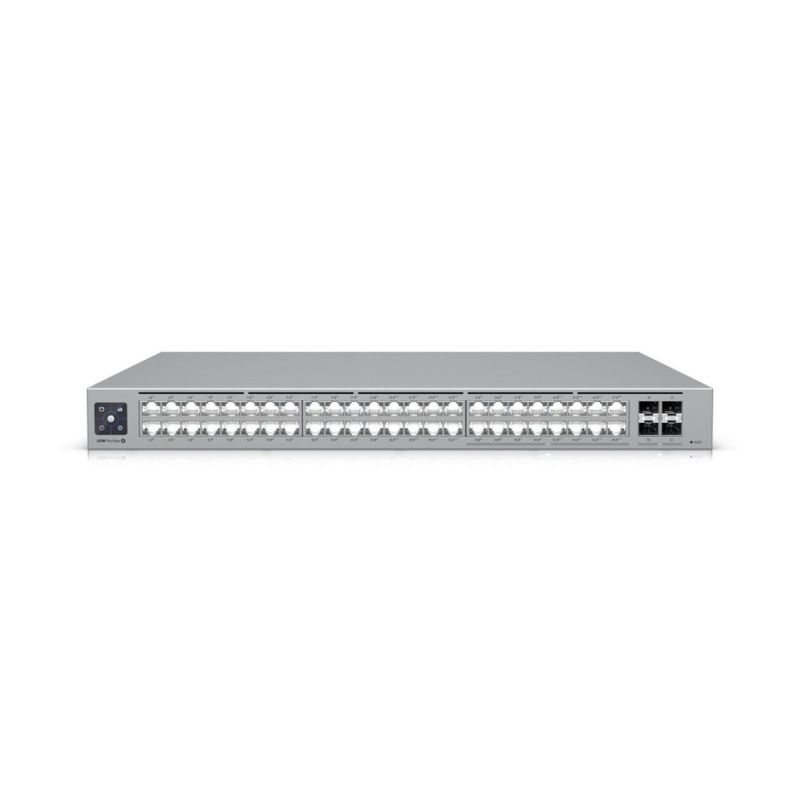

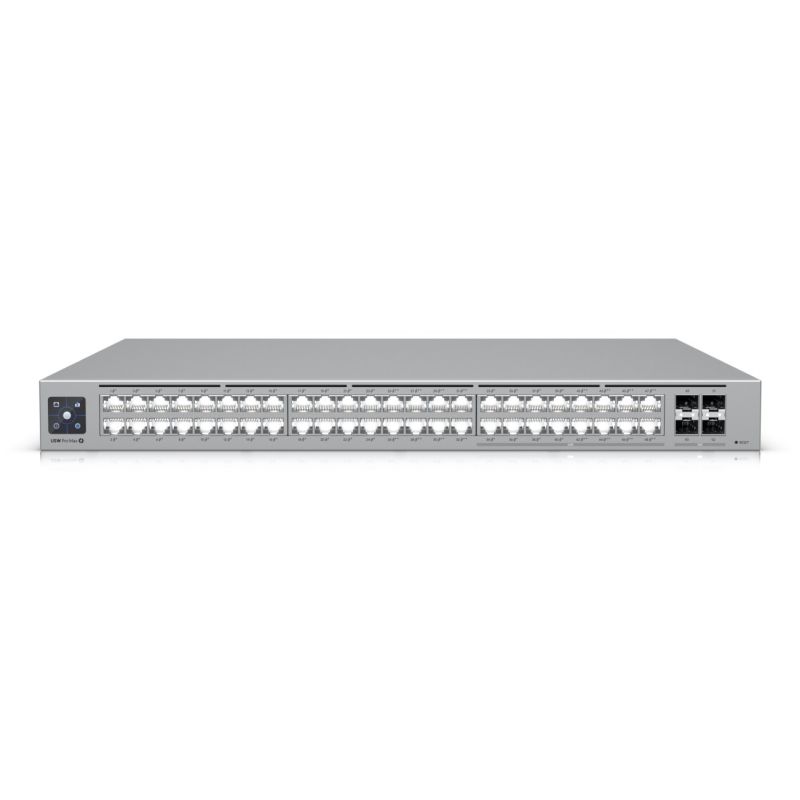

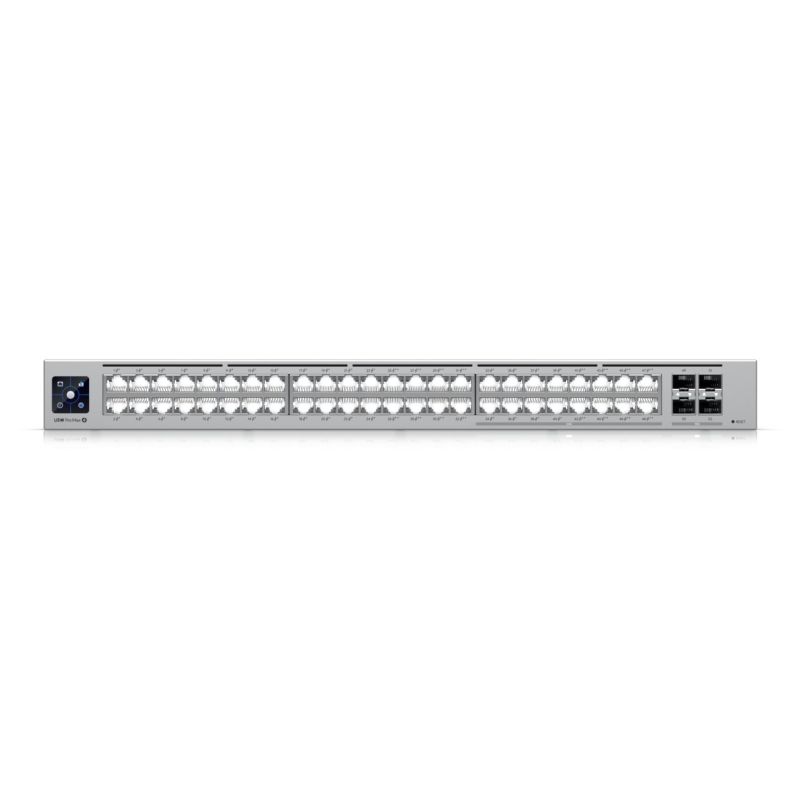

- Number of RJ-45 Ethernet ports for basic switching: 48

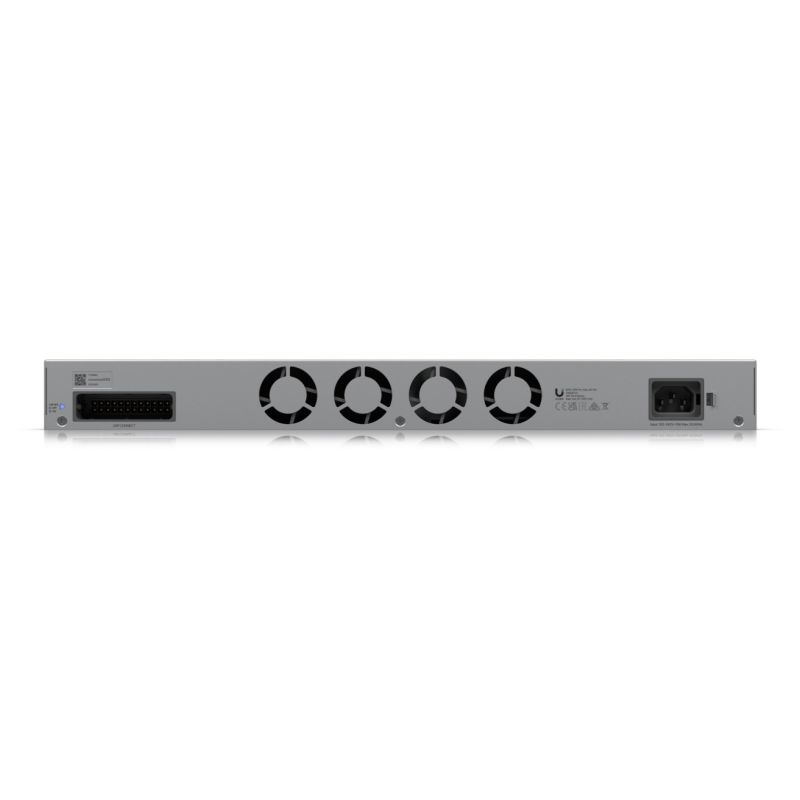

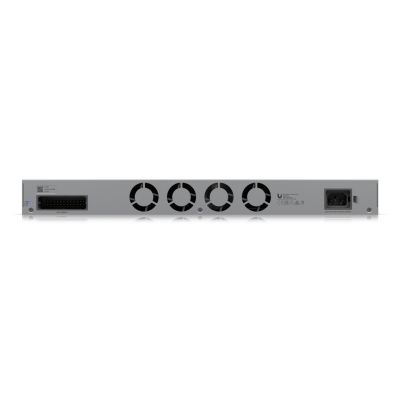

- Power connector: AC input socket
- Number of Gigabit Ethernet ports: 32
- Type of RJ-45 Ethernet ports for basic switching: Gigabit Ethernet (10/100/1000)
- Number of SFP+ module slots: 4
- Number of 2.5G Ethernet ports (copper): 16
- Data transmission
- Routing/switching capacity: 224 Gbit/s
- Forwarding rate: 167 Mpps
- Static route: Yes
- Performance: 112 Gbit/s
- Address table size: 32000 entries
- Packet buffer memory: 2 MB
- Jumbo Frames support: Yes
- Power over Ethernet (PoE)
- Power over Ethernet: 57 V
- Supported Power over Ethernet (PoE) types
- PoE++ (4PPoE)
- PoE+
- Number of Power over Ethernet Plus (PoE+) ports: 32
- Power over Ethernet (PoE) power per port: 15.4 W
- Number of Power over Ethernet 4PPoE (PoE++) ports: 16
- PoE support: Yes
- Total Power over Ethernet (PoE) budget: 720 W
- Safety warning
- Warnings
- Ensure that the device’s ventilation is not blocked.
- Avoid contact between the device and liquids.
- Follow electrical safety guidelines.
- Warnings
- Sustainability
- Compliance with sustainability principles: Yes
| Name | Details |
|---|---|
| Category | Computers and accessories |
| Product Type | Network switches |
| Producer | UBIQUITI |
| Department | Electronics |
