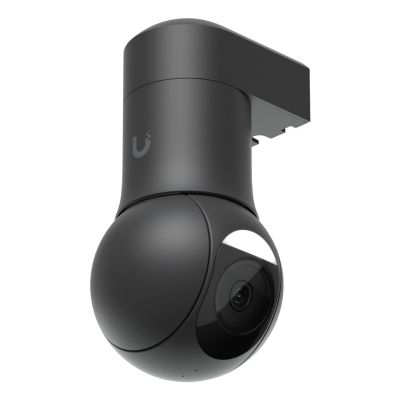

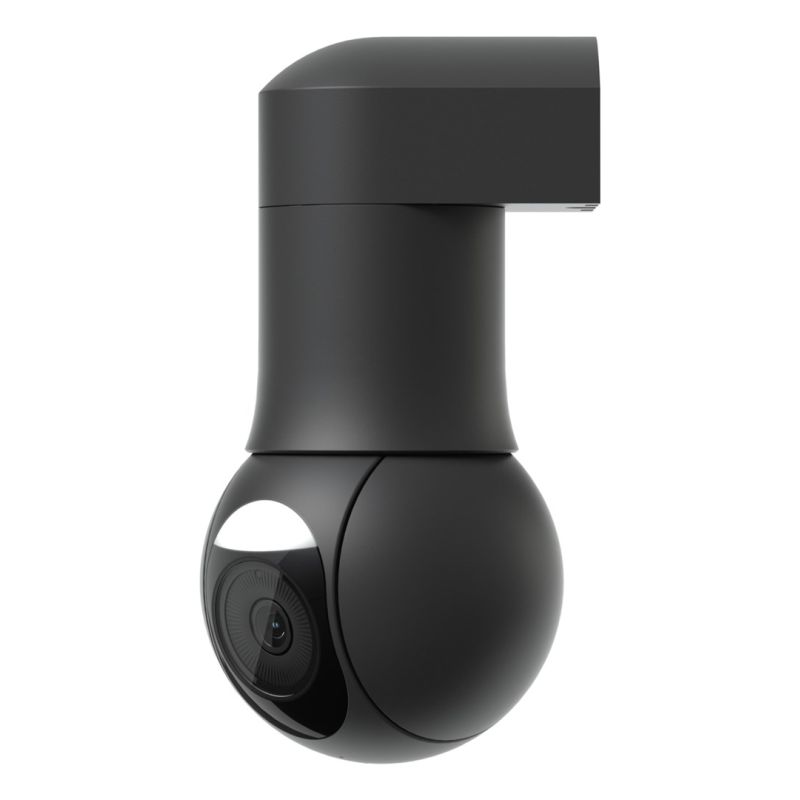

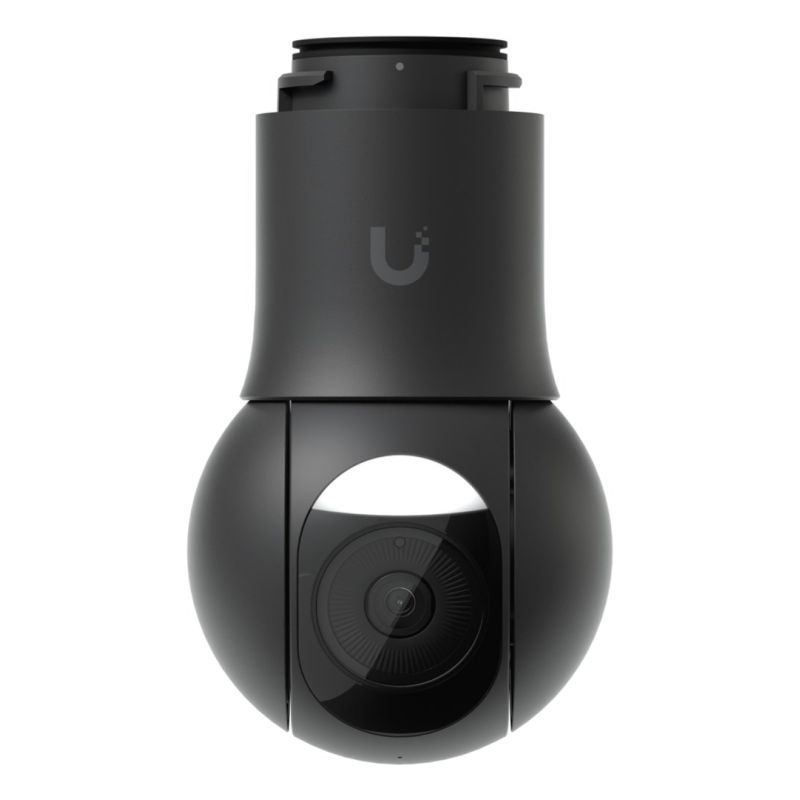

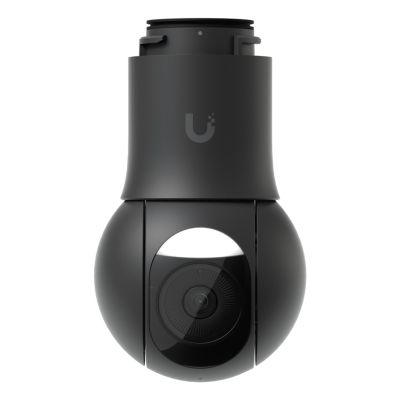

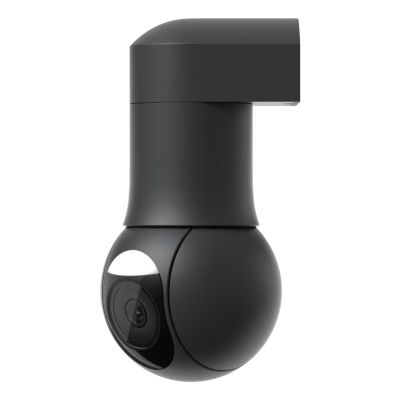

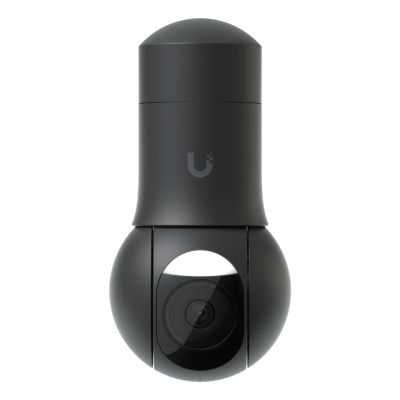

Ubiquiti's compact, weather-resistant camera
Ubiquiti's compact, weather-resistant camera
Sign up and unlock up to 10% off!
- Design
- IK code: IK04
- Product color: Black
- IP protection class: IP66
- Weather-resistant product: Yes

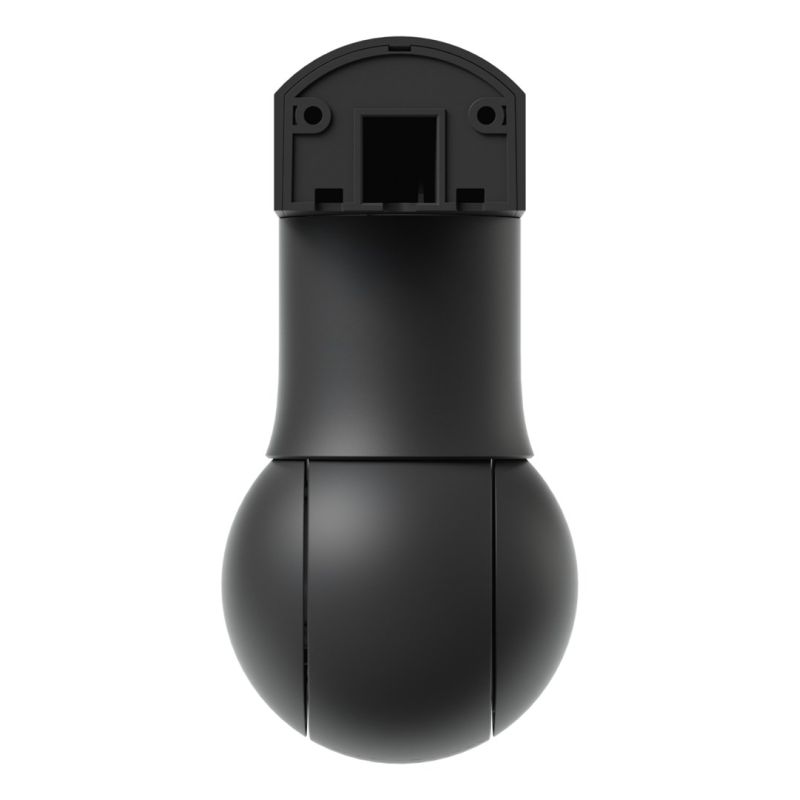

- Mounting type: Wall/Post
- Housing material
- Aluminum
- Polycarbonate (PC)
- Layout: Dome
- Security features
- Resistant to weather conditions
- Tamper-resistant
- Power
- DC Output (Volts): 37, 57
- Power consumption (max): 14 W
- Power supply type: PoE+, DC
- Weight and dimensions
- Product weight: 580 g
- Product height: 90 mm
- Diameter: 15.2 cm
- Security
- Intelligent Video Surveillance (IVS) Features
- Vehicle detection
- Pet detection
- People detection
- Intelligent Video Surveillance (IVS) Features
- Management features
- Reset button: Yes
- Working conditions
- Temperature range (operation): -30 - 45 °C
- Relative humidity range: 0 - 90%
- Network
- Wired LAN: Yes
- Wi-Fi: No
- Bluetooth: No
- Ethernet interface type: Fast Ethernet
- Efficiency
- Built-in light: Yes
- Day/Night Mode: Yes
- Connection method: Wired
- Infrared (IR) Cut-off Filter: Yes
- PTZ: Yes
- Model: IP Security Camera
- Intended use: Indoor and outdoor

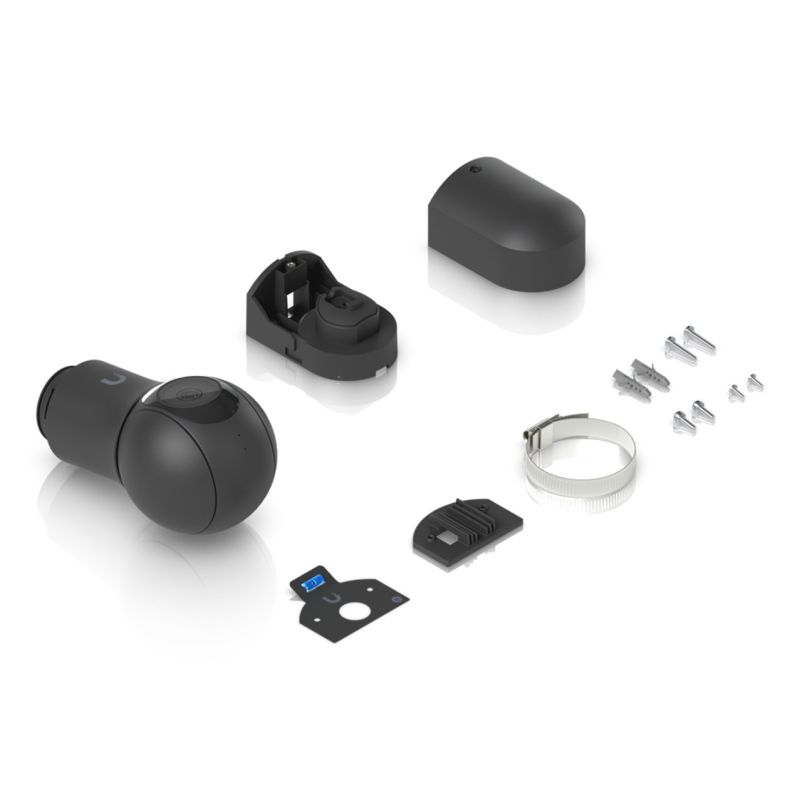

- Package contents
- Screws Included: Yes
- Mounting kit: Yes
- Number of cameras: 1
- Audio
- Built-in microphone: Yes
- Data carrier
- Built-in HDD: No
- Ports and interfaces

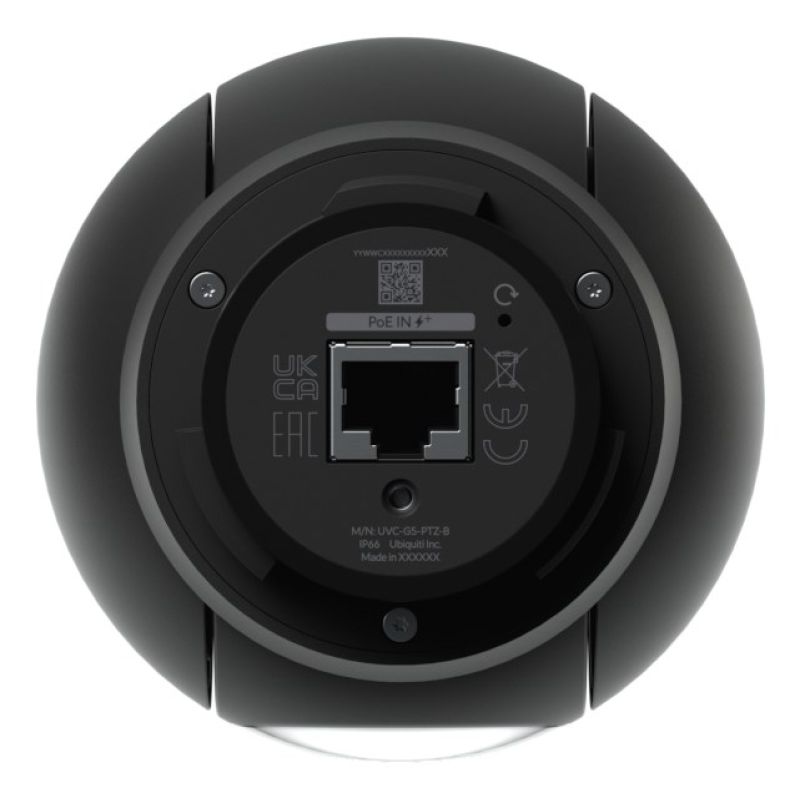

- Number of Ethernet LAN ports (RJ-45): 1
- Camera
- Camera Pan Control: Yes
- Camera Tilt Control: Yes
- Tilt angle range: 0 - 100°
- Sliding range: 0 - 350°
- Lens angle of view, horizontal: 99.7, 45.5°
- Vertical lens angle of view: 51.9, 25.4°
- Lens viewing angle, diagonal: 121, 52.4°
- Photosensitive matrix
- Number of sensors: 1
- CCD sensor size: 50.8/7 mm (2/7")
- Image sensor type: CMOS
- Night mode
- LED type: Infrared
- Night mode: Yes
- Night Vision Distance: 20 m
- Video
- Maximum resolution: 2688 x 1512 px
- Frame rate: 30 fps
- Total megapixels: 4 MP
- Lens system
- Zoom capability: Yes
- Optical zoom: 2x
- Focal length: 3.42–6.85
- Maximum aperture: 2.4
- Minimum aperture: 1.85
- Sustainable development
- Certificates of conformity
- CE
- Federal Communications Commission (FCC)
- Industry Canada (IC)
- National Defense Authorization Act (NDAA)
- Certificates of conformity
| Name | Details |
|---|---|
| Producer | UBIQUITI |
