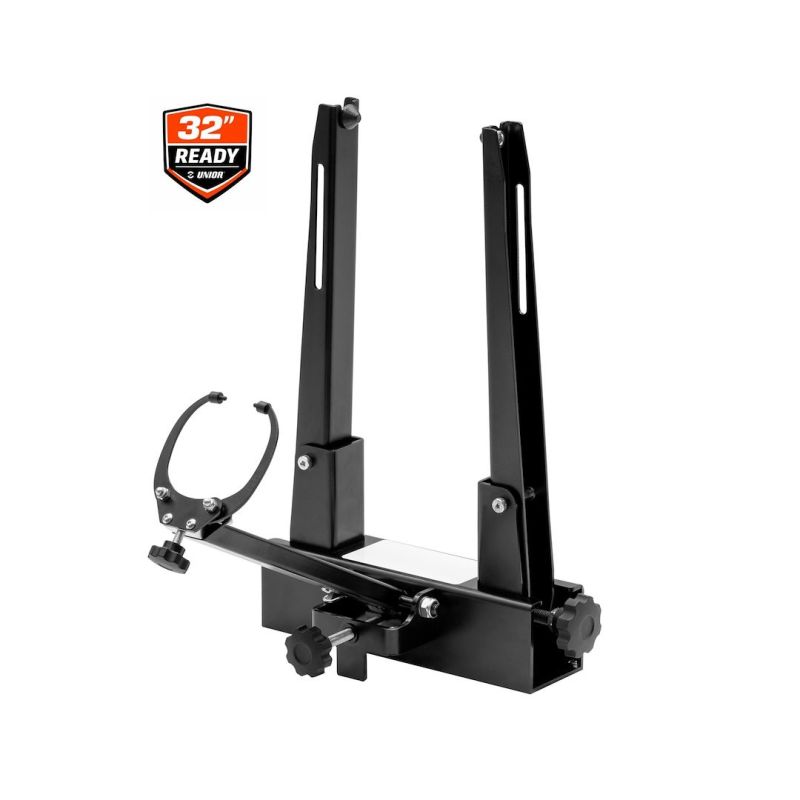

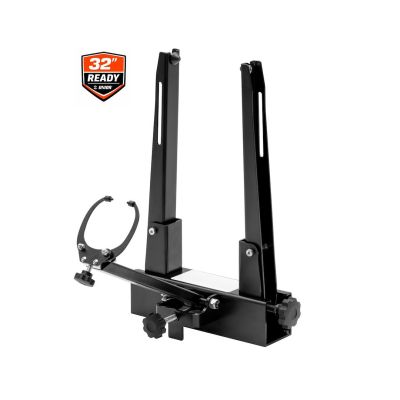

Built on the same solid base for greater precision, it includes tapered, universal magnetic thru-axle adapters that can be stored anywhere on the base. The vertical arms have been extended to accommodate 32-inch wheels, and the widened clamps provide ample clearance for wheel truing with a mounted tire. Designed to the latest wheel standards, the stand is fully compatible with the new 32-inch wheels, making it a future-proof solution for modern workshops. High-quality, precision-machined threads, springs, and bearings ensure smooth operation and reduce the need for frequent calibration. Glossy white stickers for the base and clamp arms are included to improve background contrast and simplify truing.

Product attributes

The tips on both sides of the arm allow you to check the wheel alignment from two sides at the same time.

The position of the vertical arms can be adjusted using the arm position adjustment knob to match the width of the axis.

The position of the clamp arm can be adjusted to the wheel radius, and the distance between the clamp tips to the rim width.

The spring-loaded clamp arm and clamps can be quickly retracted, automatically returning to the set position when a new wheel is inserted. This allows for faster work on multiple wheels of the same size.

A solid base for high precision. Longer and redesigned vertical arms for greater clearance and centering accuracy.

Wide clamps for greater wheel clearance.

Supports axle hubs up to 197mm wide (using adapters). Max arm opening 230mm (without adapters)

New bearings on the vertical arm adjustment axis are spring loaded, improving precision and reducing calibration

Composite caliper tips prevent rim scratching and are designed to facilitate radial centering

Precision threads and springs ensure smooth operation. Mounting holes are 8mm at the bottom, 268mm center to center

Elegant, all-black design

Conical magnetic thru-axle adapters are included, one size fits all (12, 15, and 20). The adapters can be mounted anywhere on the base and attached to the vertical arms with a screw for a more permanent setup.

Includes glossy white stickers for the base and clamp arm to enhance background contrast (stickers not pre-applied)

compatibility:

Accepts wheels up to 32 inches with tire mounted

Supports solid, quick release and thru axle hubs

The through hubs are supported by adapters (included with the truing stand)

One pair of thru-axle adapters to support all thru-axle sizes
