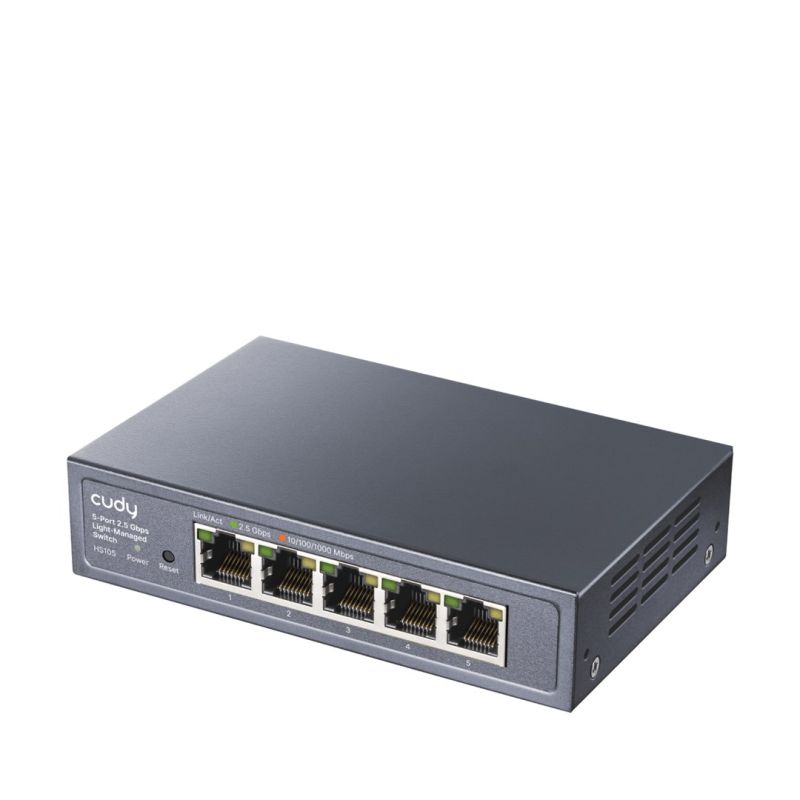

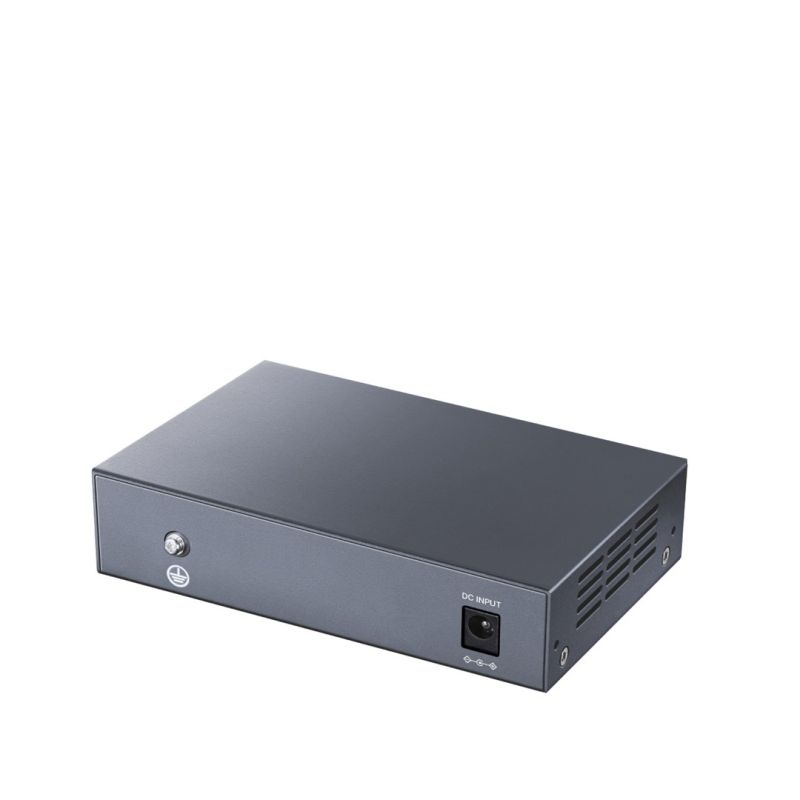

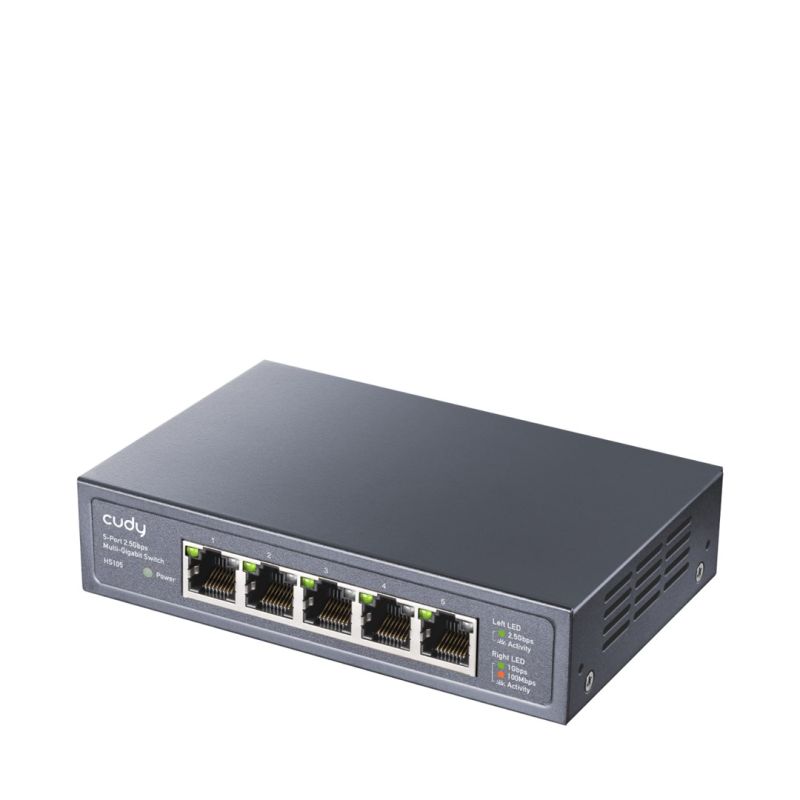

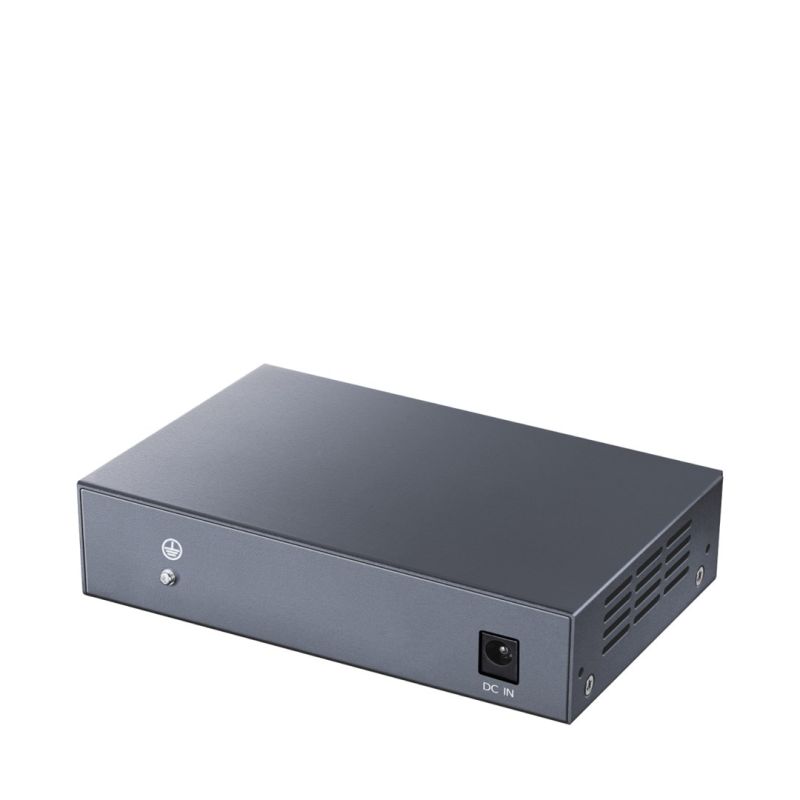

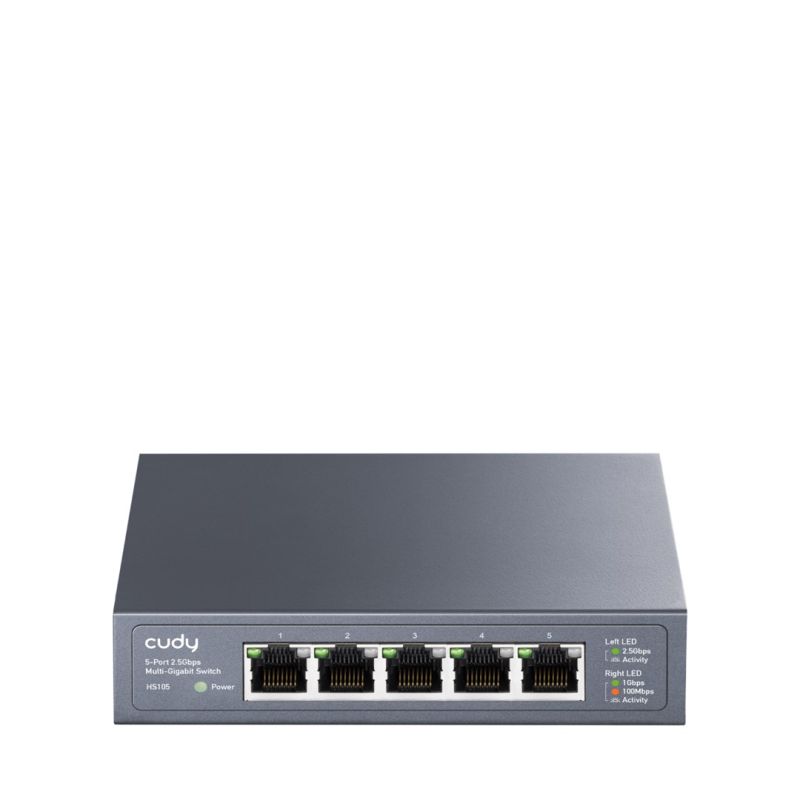

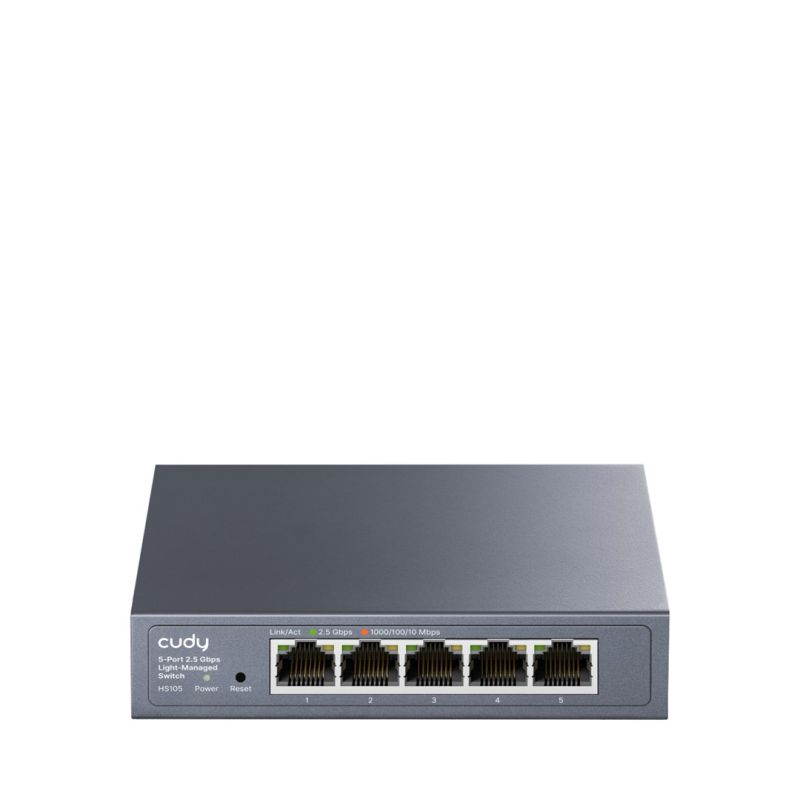

Unmanaged Switch Cudy HS105 5x10/100/1000/2500Mbps
Unmanaged Switch Cudy HS105 5x10/100/1000/2500Mbps
Unmanaged Switch Cudy HS105 5x10/100/1000/2500Mbps
PRICE:
59,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 3 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Design
- Wall-mountable: Yes
- LED indicators
- Activity
- Speed
- Link
- Power
- Stackable: No
- Reset button: Yes
- Housing material: Metal
- Product colour: Black
- Version: 3.0
- Rack mounting: No
- Power
- DC input voltage: 12 V
- AC input voltage: 100 - 240 V
- Surge protection
- 8 kV
- Yes
- Power supply included: Yes
- AC input frequency: 50/60 Hz
- Energy Efficient Ethernet (EEE) mode: Yes
- Input current: 1 A
- Power consumption (max): 6 W
- Power source: DC
- Weight and dimensions
- Product weight: 286.5 g
- Product depth: 85 mm
- Product height: 28 mm
- Product width: 119 mm
- Protection
- Loop prevention: Yes
- Management features
- Switching layer: L2
- Cloud-managed: Yes
- Web-based management: Yes
- Quality of Service (QoS) support: Yes
- Switch type: Managed
- Operating conditions
- Relative humidity range: 0 - 100%
- Temperature range (storage): -20 - 70 °C
- Permitted relative humidity: 10 - 95%
- Temperature range (operation): 0 - 40 °C
- Network
- 10G support: No
- Communication standards
- IEEE 802.3az
- IEEE 802.3bz
- IEEE 802.1Q
- IEEE 802.3x
- IEEE 802.3i
- IEEE 802.3ab
- IEEE 802.1p
- IEEE 802.3u
- VLAN support: Yes
- Copper Ethernet cabling technology
- 10BASE-T
- 2.5GBASE-T
- 1000BASE-T
- 100BASE-T
- Rate limiting: Yes
- Port mirroring: Yes
- Cable length measurement: Yes
- Traffic storm control: Yes
- Link aggregation: Yes
- Flow control support: Yes
- Supported cable types
- Cat5
- Cat3
- Cat5e
- Performance
- Flash memory size: 4 MB
- Device software updates: Yes
- Internal memory capacity: 32 MB
- Packaging data
- Package height: 60 mm
- Package width: 165 mm
- Weight including packaging: 480.8 g
- AC adapter: Yes
- Package depth: 123 mm

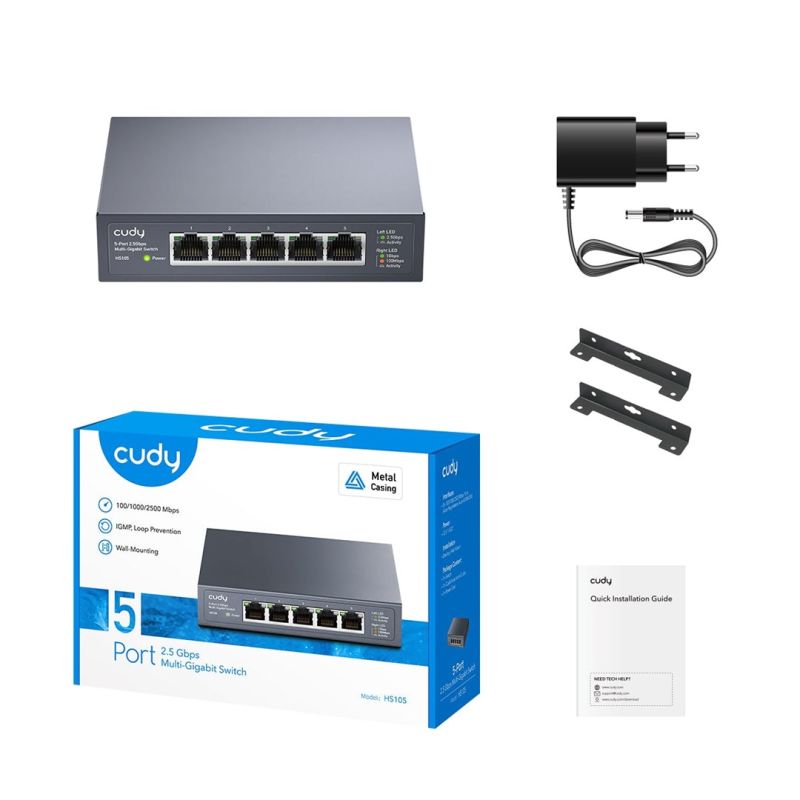

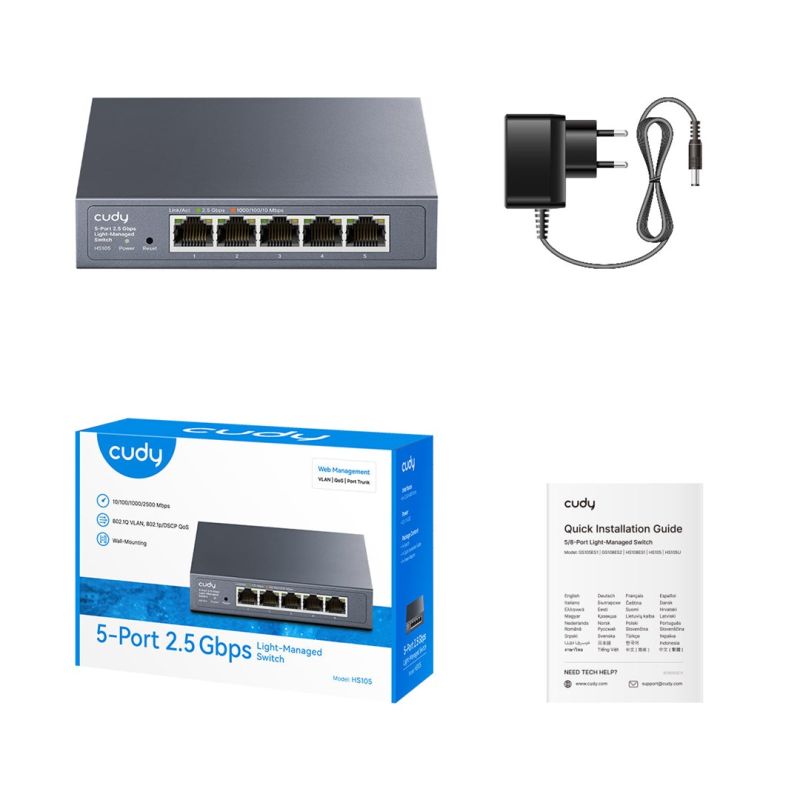

- Package contents
- User guide: Yes
- Ports and interfaces
- Number of RJ-45 Ethernet ports for basic switching: 5
- RJ-45 Ethernet port type for basic switching: 2.5G Ethernet (100/1000/2500)
- Number of 2.5G Ethernet ports (copper): 5
- Logistics data
- Master carton width (outer): 264 mm
- Master carton height (outer): 338 mm
- Products per master carton (outer): 20 pcs
- Gross weight of master carton (outer): 10.2 kg
- Master carton length (outer): 376 mm
- Net weight of the outer package: 9.6 kg
- Data transmission
- Jumbo Frames support: Yes
- Routing/switching capacity: 25 Gbit/s
- Forwarding rate: 18.6 Mpps
- Packet buffer memory: 4 MB
- Address table size: 4096 entries
- Jumbo Frames extension: 9000
- Number of lines: 2
- Power over Ethernet (PoE)
- PoE support: No
