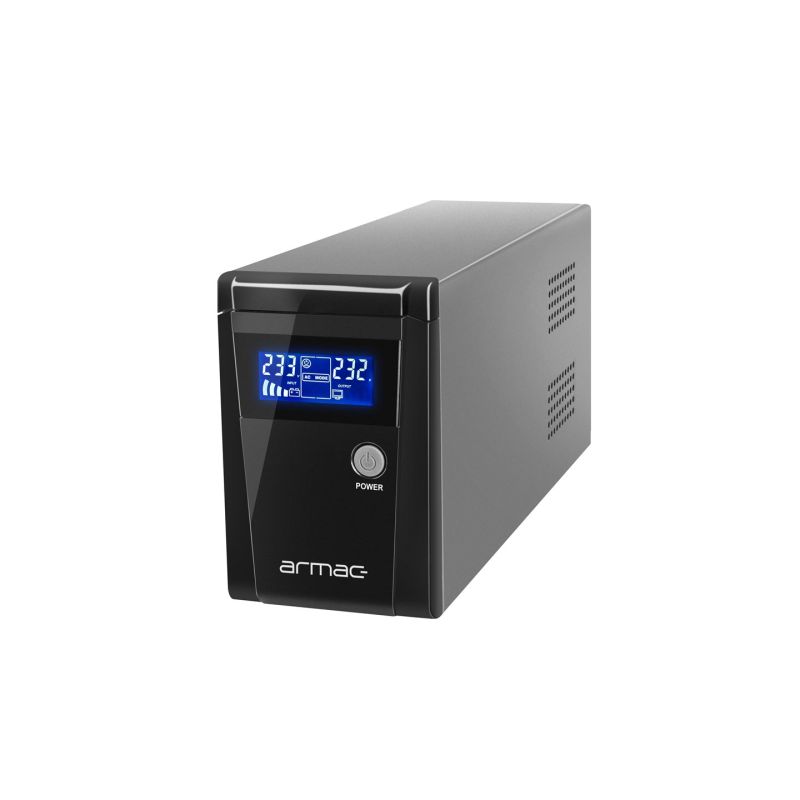

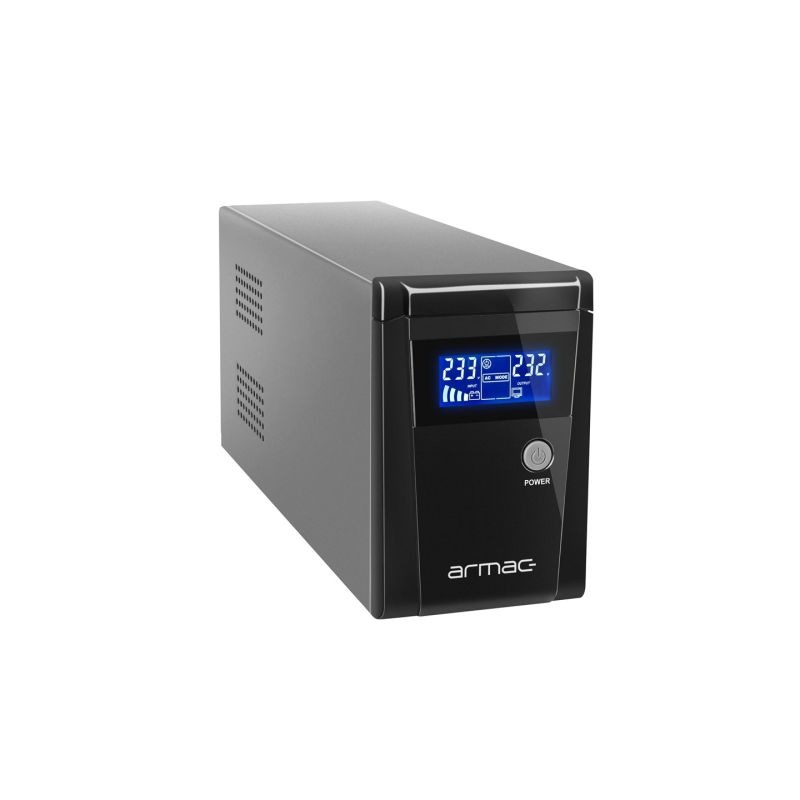

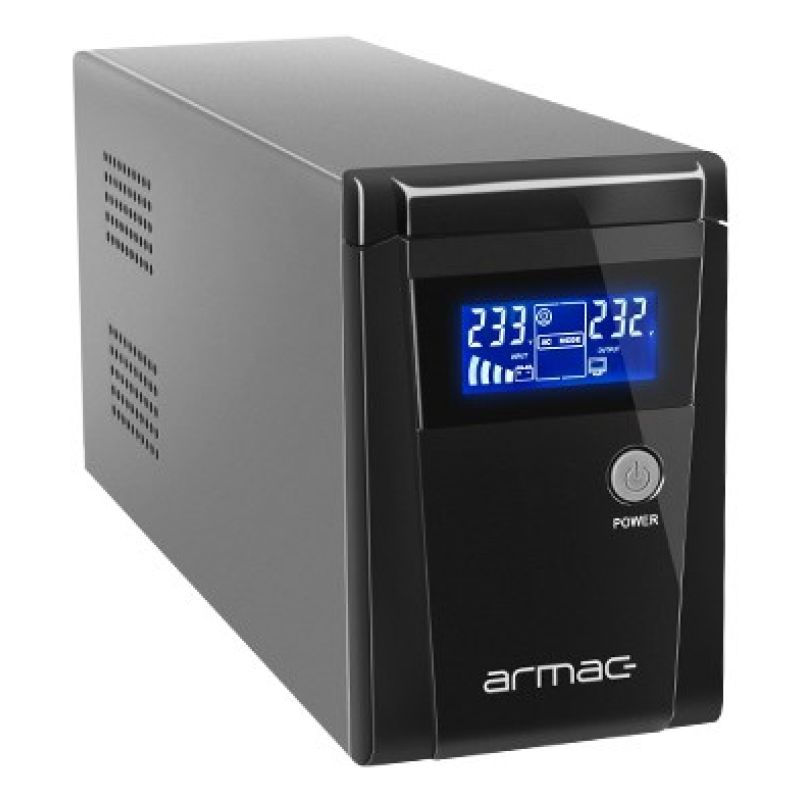

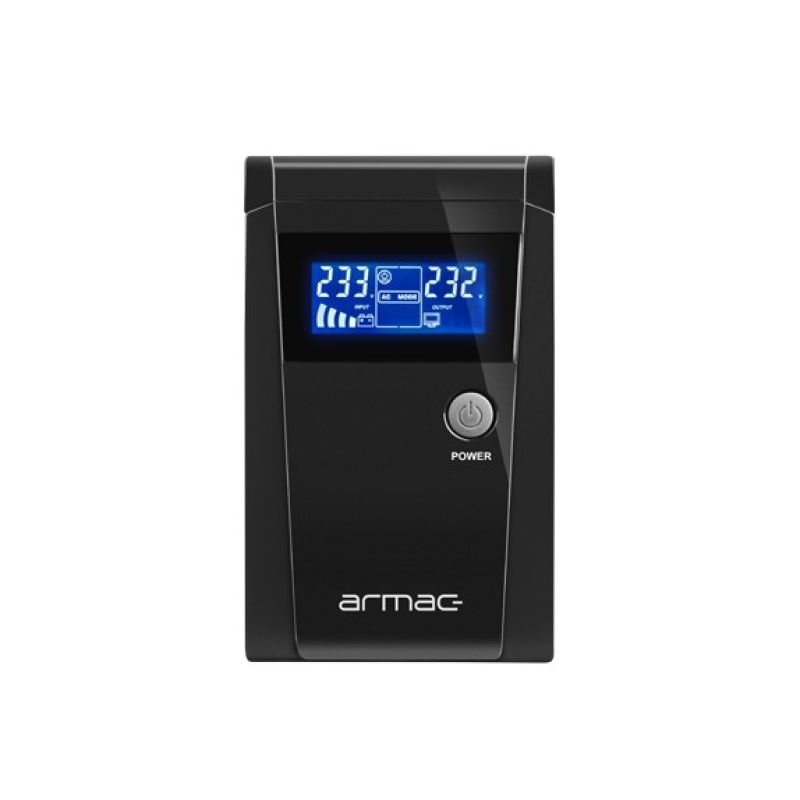

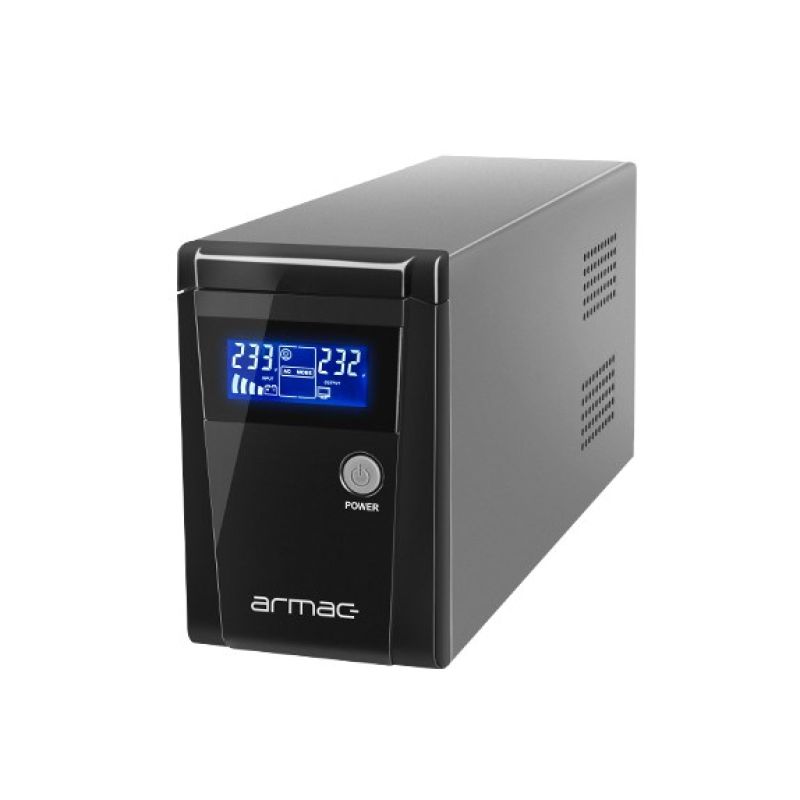

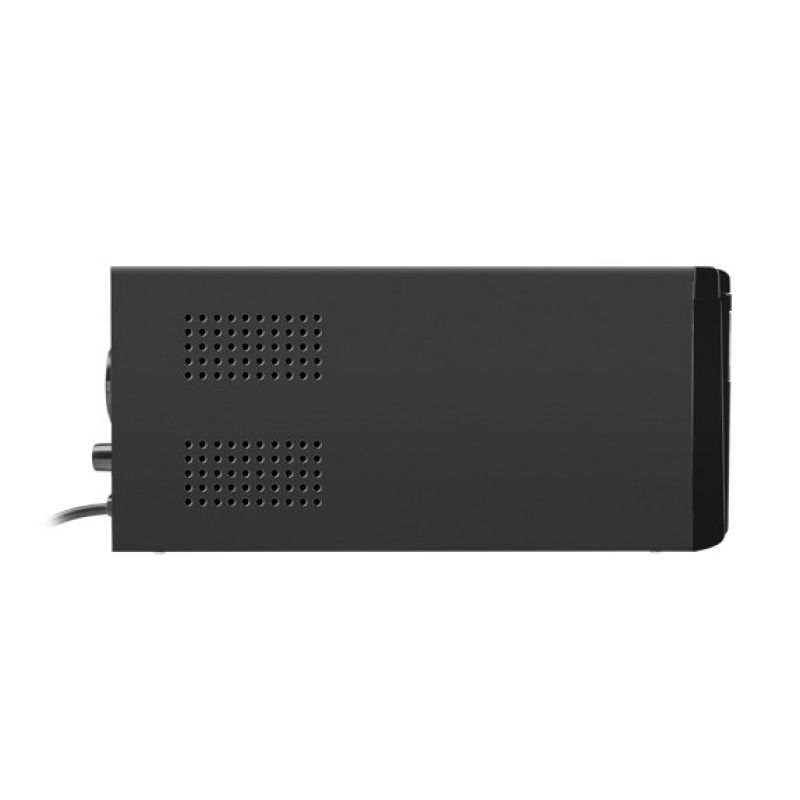

UPS ARMAC OFFICE LINE-INT 2X SCHUKO O/650F/LCD
UPS ARMAC OFFICE LINE-INT 2X SCHUKO O/650F/LCD
Sign up and unlock up to 10% off!
- Characteristics
- Input operating voltage (maximum): 290 V
- Power protection features
- Short circuit protection
- Battery discharge protection
- Short circuit
- Input fuse
- Overload protection
- Input operating voltage (minimum): 145 V
- Output operating voltage (maximum): 255 V
- Waveform: Sine
- Maximum configurable power: 650 VA
- Output frequency: 50 Hz
- Output operating voltage (minimum): 195 V
- Response time (typical): 2 - 6 ms
- Actual power: 390 W
- Automatic Voltage Regulation (AVR): Yes
- Auto-restart: Yes
- Noise level: 45 dB
- Input frequency: 45 - 65 Hz
- UPS topology: Line-interactive technology
- Output voltage: 230 V
- Design

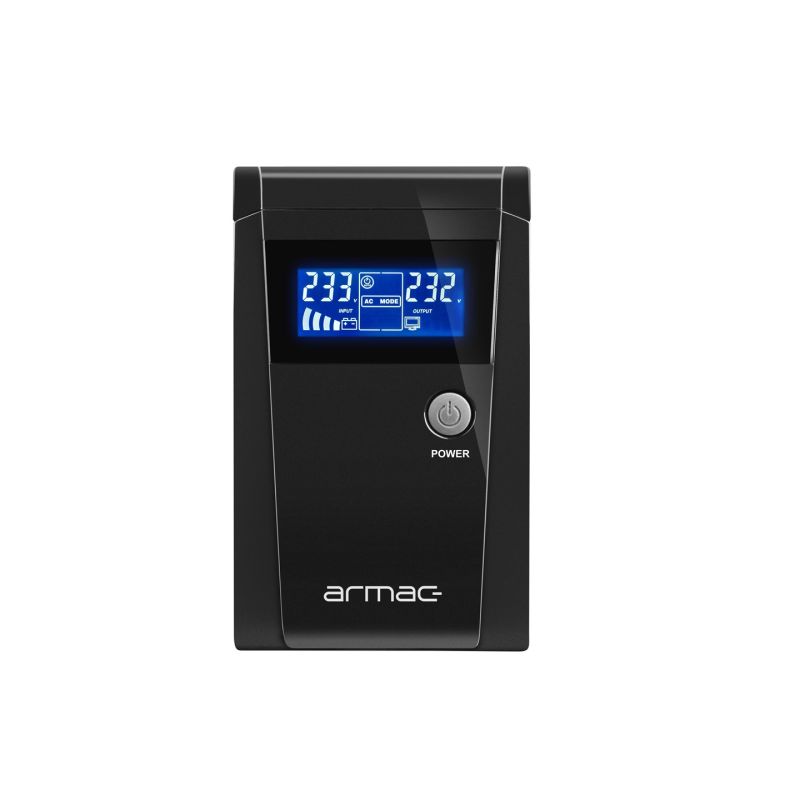

- Built-in display: LCD
- Product color: Black
- Layout: Tower
- Weight and dimensions
- Product depth: 305 mm
- Product width: 85 mm
- Product height: 141 mm
- Product weight: 4.6 g
- Working conditions
- Temperature range (operation): 0 - 45 °C
- Relative humidity range: 10 - 90%
- Package contents
- USB cable included: No

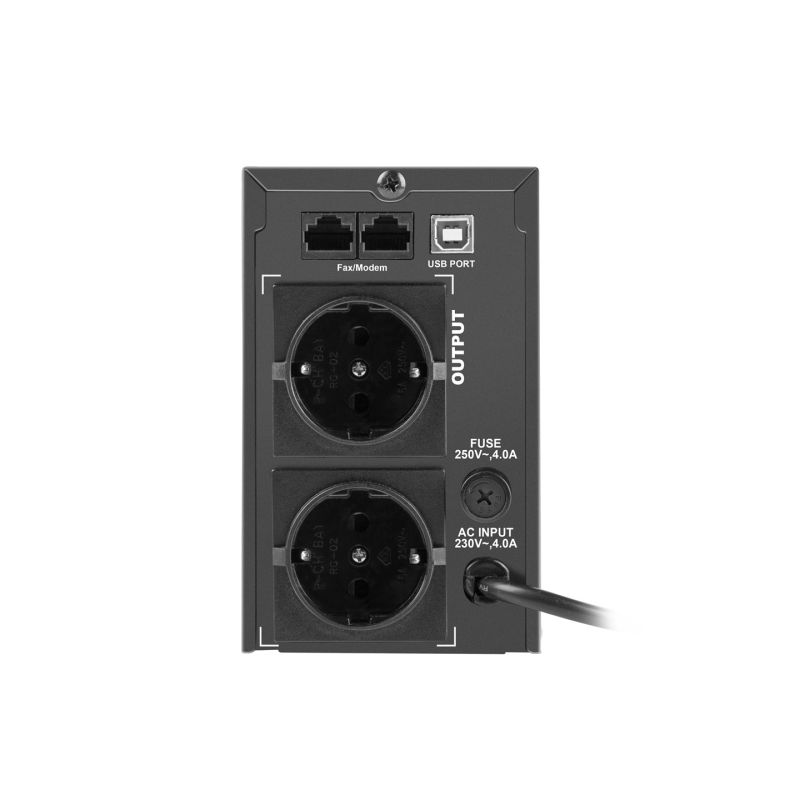

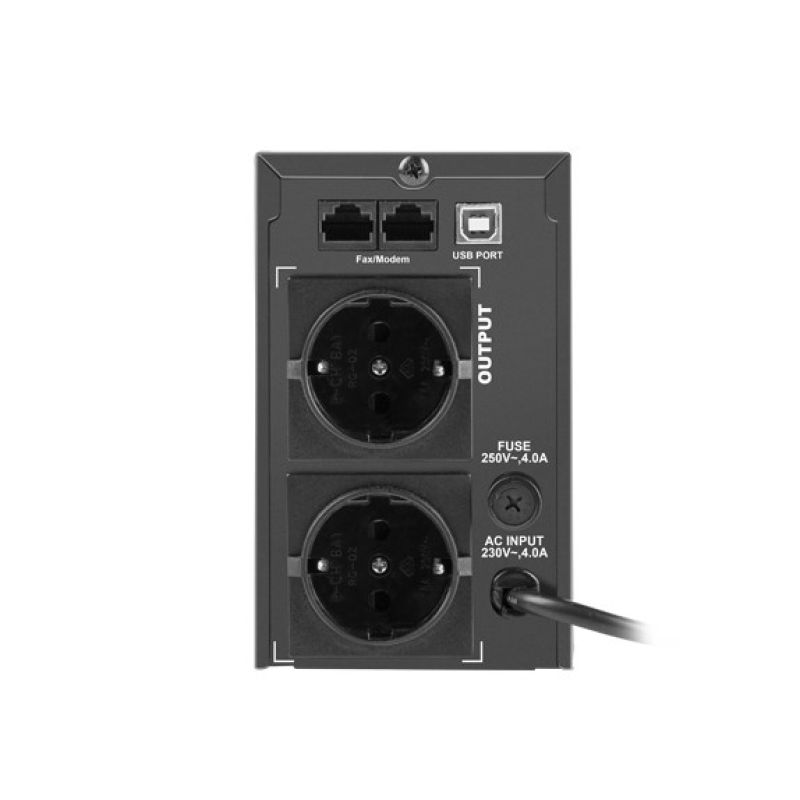

- Ports and interfaces
- Number of RJ-45 ports: 2
- USB port: Yes
- AC Output Types: Type F
- Number of network sockets: 2 x network socket
- Battery
- Number of batteries supported: 1
- Battery charging time (90%): 6 h
- Battery capacity: 7 Ah
- Battery voltage: 12 V
- Typical backup time at half load: 20 min
- Typical backup time at full load: 3 min
- Cold start: Yes
- Battery type: Maintenance-free lead-acid (AGM)
- Automatic battery test: Yes
- Safety warning
- Warnings
- The device should be used in well-ventilated areas to avoid overheating.
- Do not disassemble the device housing, as this may result in electric shock.
- Keep away from sources of fire and water.
