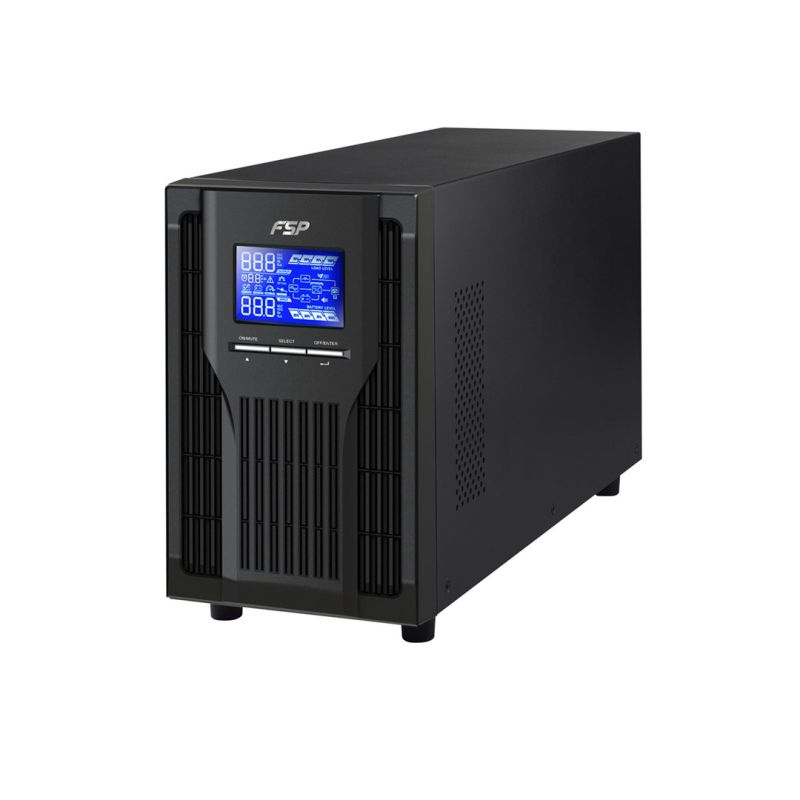

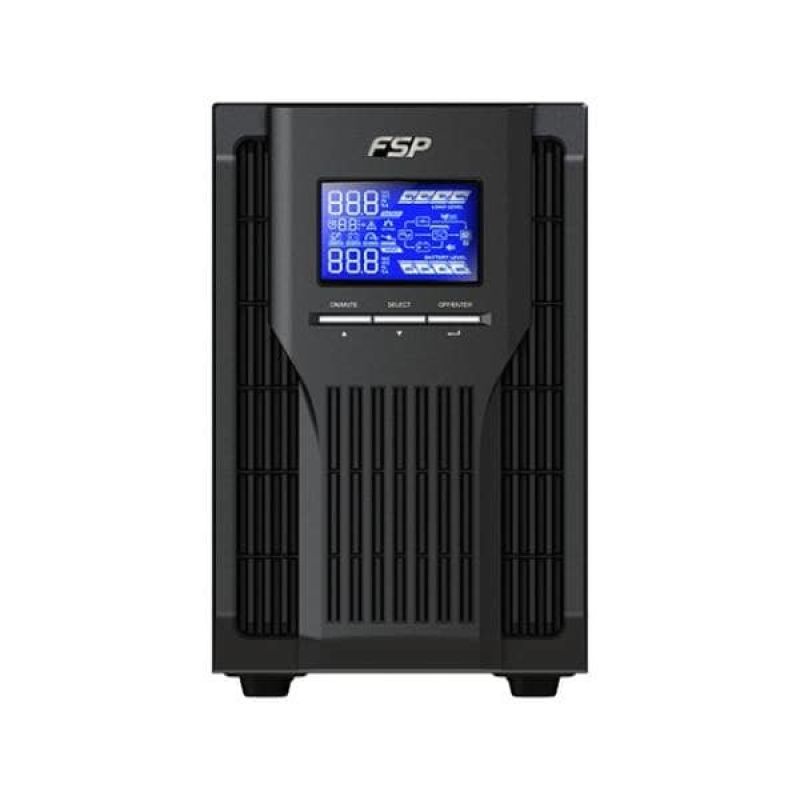

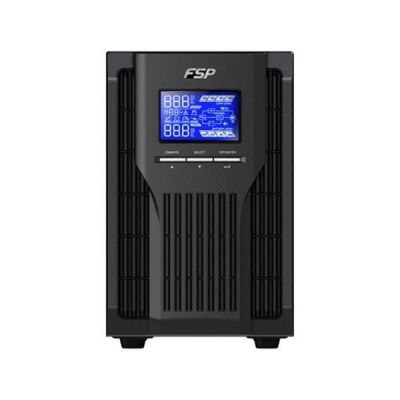

UPS FSP/Fortron CHAMP 1000 (PPF8001305)
UPS FSP/Fortron CHAMP 1000 (PPF8001305)
UPS FSP/Fortron CHAMP 1000 (PPF8001305)
PRICE:
338,99
€
IN A WAREHOUSE
3 pcs
We'll ship this product in 9 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Characteristics
- Input operating voltage (maximum): 300 V
- Power factor: 0.99
- Noise level: 50 dB
- Maximum configurable power: 1 kVA
- Crest Factor: 3:1
- Output frequency: 47/63 Hz
- Audible alarm modes: Battery alarm, Fault, Low battery alarm, Overload alarm
- Input operating voltage (minimum): 120 V
- Total Harmonic Distortion (THD) (linear load): 3%
- UPS Topology: Double Conversion (Online)
- Actual power: 900 W
- Audible alarm: Yes
- Output operating voltage (minimum): 240 V
- Total Harmonic Distortion (THD) (non-linear load): 6%
- Waveform: Sine
- Input frequency: 40 - 70 Hz
- Output operating voltage (maximum): 200 V
- Output voltage regulation: 1%
- Design
- LEDs: Yes
- Product color: Black
- Display type: LCD
- Control Type: Buttons
- Layout: Tower
- Weight and dimensions
- Product depth: 282 mm
- Product height: 220 mm
- Product width: 145 mm
- Product weight: 9.8 kg
- Working conditions
- Relative humidity range: 20 - 90%
- Temperature range (operation): 0 - 40 °C
- Packaging data
- Cables: Power input cable, USB cable
- User Manual: Yes
- Package contents
- Batteries included: Yes

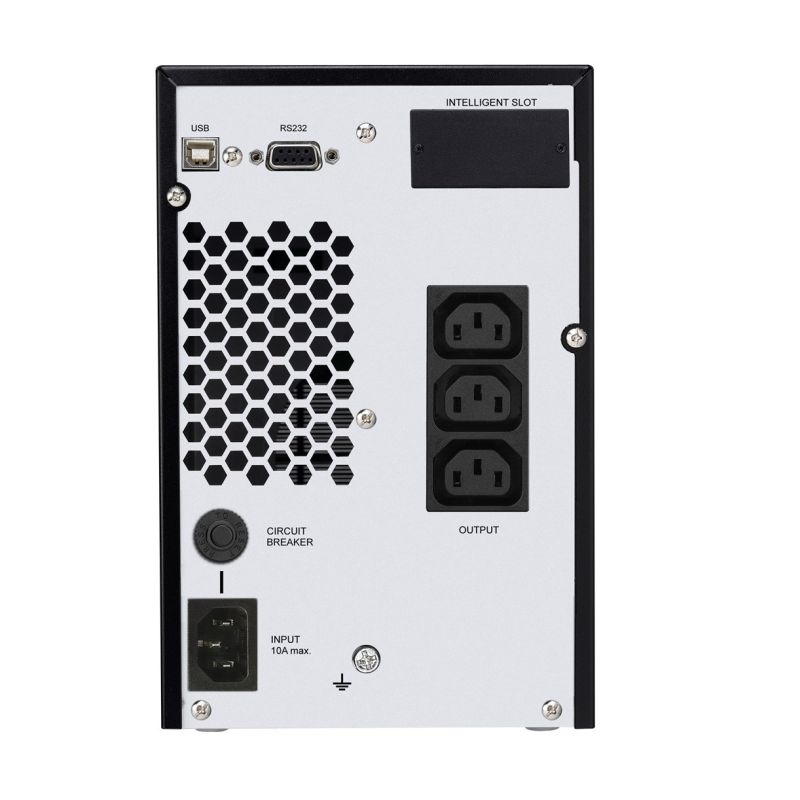

- Ports and interfaces
- Serial interface: Yes
- Number of IEC output jumpers: 3
- SCSI interface: RS-232
- Number of USB 2.0 ports: 1
- USB port type: USB Type B
- USB port: Yes
- RS-232 port: 1
- Battery
- Typical backup time at full load: 3.2 min
- Battery voltage: 12 V
- Battery capacity: 9 Ah
- Typical backup time at half load: 8.9 min
- Battery charging time (90%): 4 h
- Number of battery compartments: 2
- Other functions
- Number of phases: 1
- Logistics data
- Harmonized System (HS) code: 85078000
