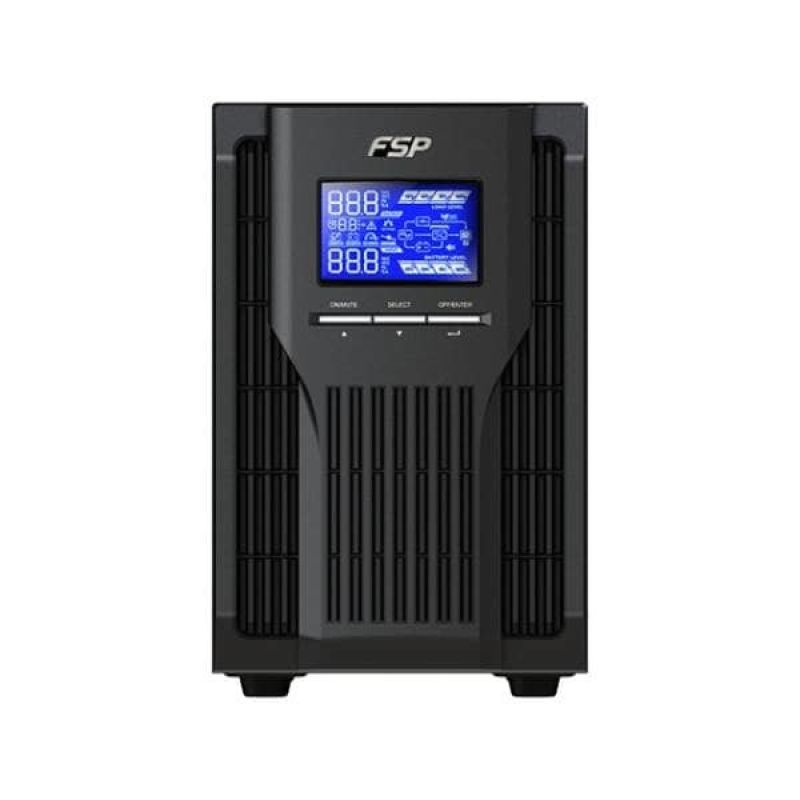

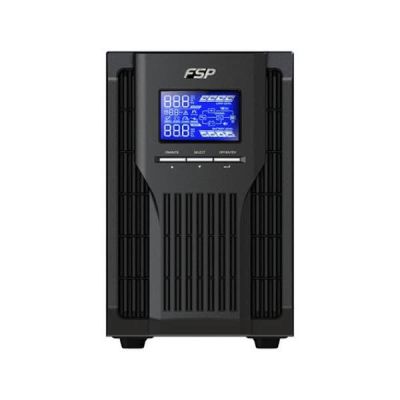

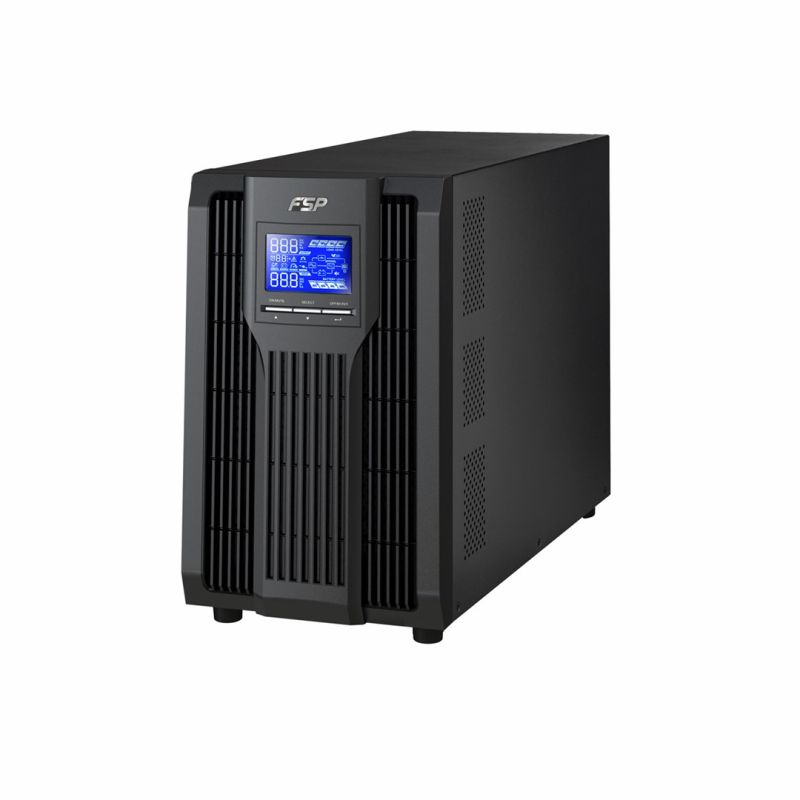

UPS FSP/Fortron Champ Tower 3K (PPF24A1807)
UPS FSP/Fortron Champ Tower 3K (PPF24A1807)
UPS FSP/Fortron Champ Tower 3K (PPF24A1807)
PRICE:
666,99
€
IN A WAREHOUSE
7 pcs
We'll ship this product in 10 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Characteristics
- Input frequency: 40 - 70 Hz
- Crest Factor: 3:1
- Output operating voltage (maximum): 200 V
- Actual power: 2700 W
- Input operating voltage (minimum): 120 V
- UPS Topology: Double Conversion (Online)
- Audible alarm: Yes
- Audible alarm modes: Battery alarm, Fault, Low battery alarm, Overload alarm
- Noise level: 50 dB
- Output operating voltage (minimum): 240 V
- Input operating voltage (maximum): 300 V
- Response time (typical): 0 ms
- Power factor: 0.99
- Maximum configurable power: 3 kVA
- Waveform: Sine
- Total Harmonic Distortion (THD) (non-linear load): 6%
- Output voltage regulation: 1%
- Output frequency: 47/63 Hz
- Total Harmonic Distortion (THD) (linear load): 3%
- Design
- Layout: Tower
- Product color: Black
- Display type: LCD
- LEDs: Yes
- Control Type: Buttons
- Weight and dimensions
- Product weight: 27.6 kg
- Product depth: 421 mm
- Product width: 190 mm
- Product height: 318 mm
- Working conditions
- Temperature range (operation): 0 - 40 °C
- Relative humidity range: 20 - 90%
- Package contents
- Batteries included: Yes
- Cables: Power input cable, USB cable
- User Manual: Yes

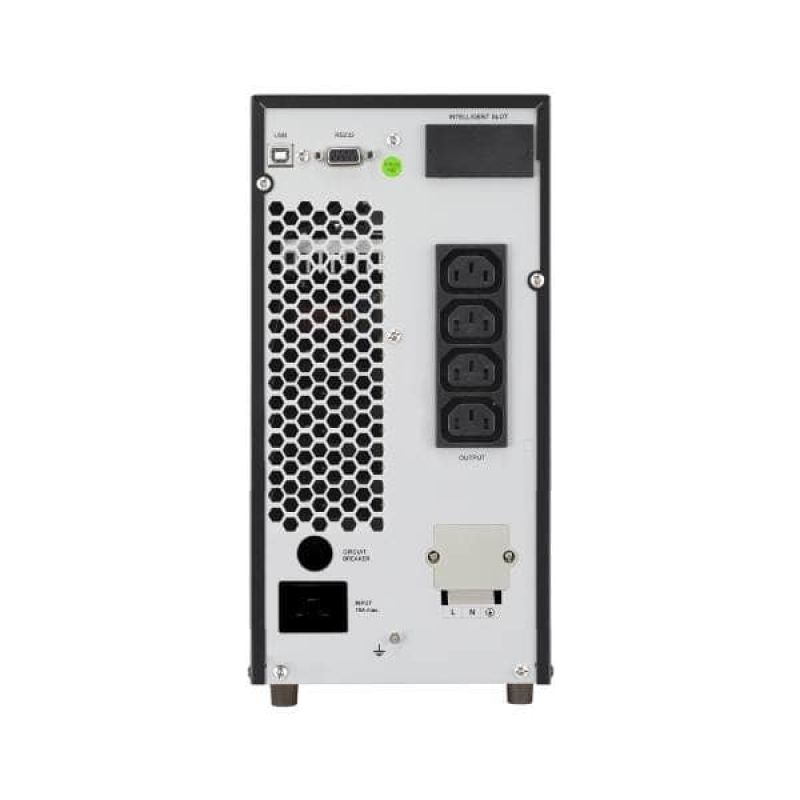

- Ports and interfaces
- SCSI interface: RS-232
- Number of USB 2.0 ports: 1
- USB port: Yes
- AC output types: C13 panel
- RS-232 port: 1
- Number of IEC output jumpers: 4
- USB port type: USB Type B
- Serial interface: Yes
- Battery
- Battery voltage: 12 V
- Typical backup time at half load: 9.8 min
- Number of battery cells: 6
- Typical backup time at full load: 3.5 min
- Battery capacity: 9 Ah
- Battery charging time (90%): 4 h
- Logistics data
- Harmonized System (HS) code: 85078000
- Safety warning
- Warnings
- Keep away from sources of fire and water.
- The device should be used in well-ventilated areas to avoid overheating.
- Do not disassemble the device housing, as this may result in electric shock.
- Warnings
| Name | Details |
|---|---|
| Producer | Fortron |
