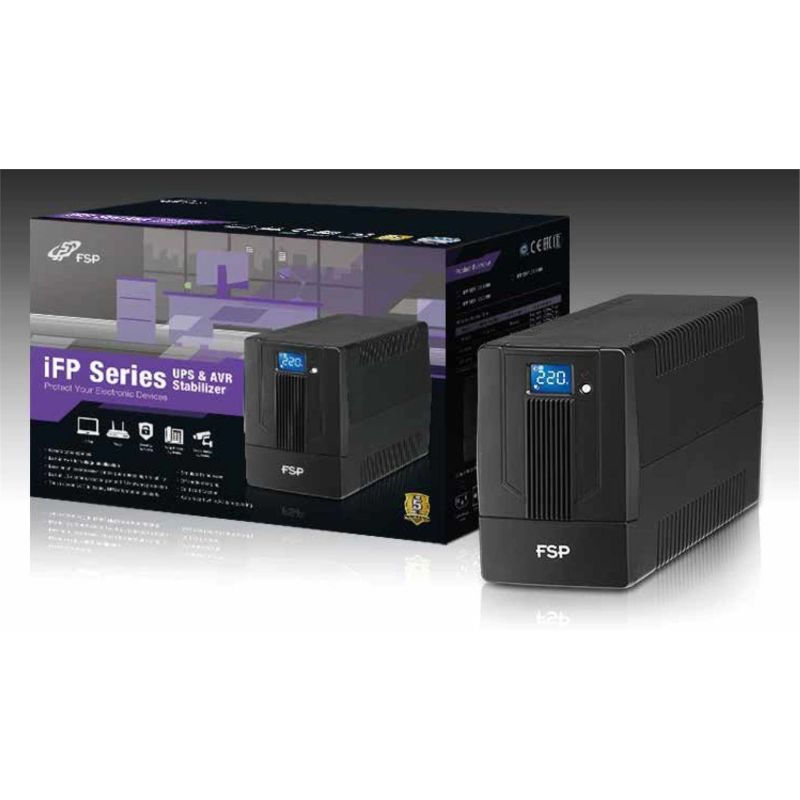

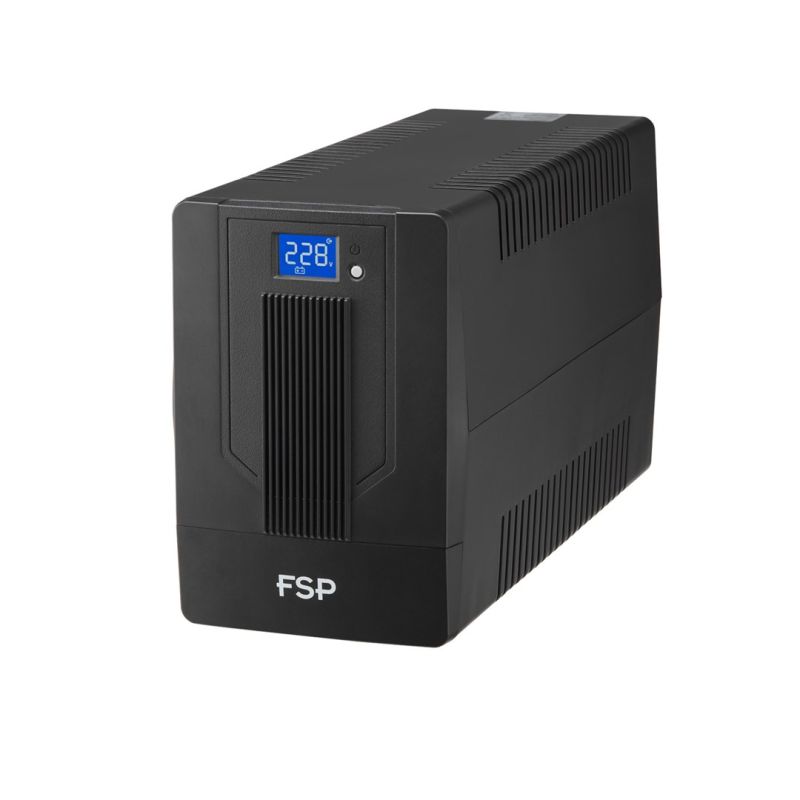

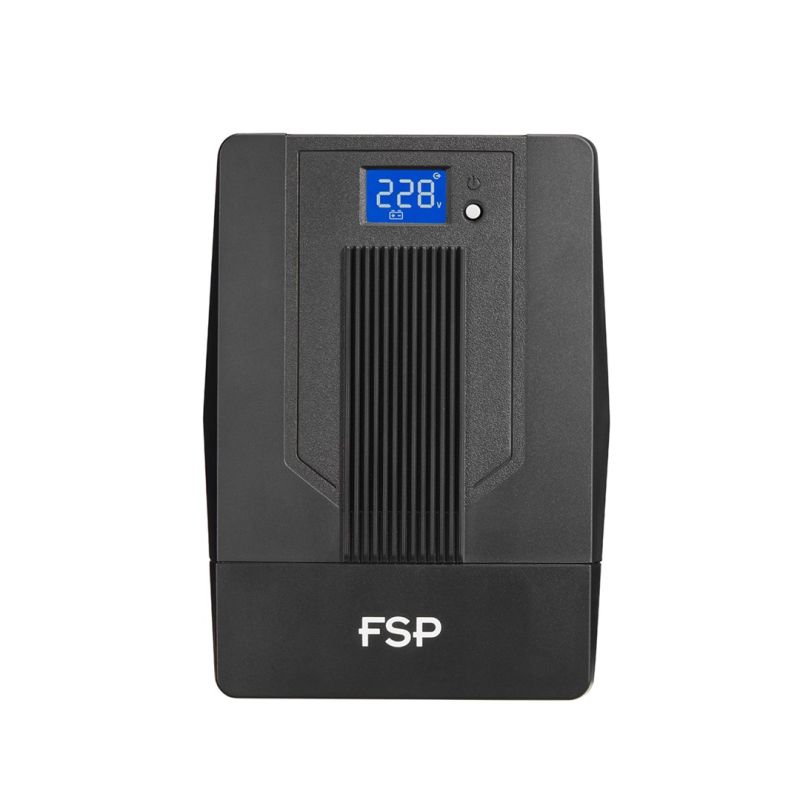

UPS FSP/Fortron iFP 2000 (PPF12A1600)
UPS FSP/Fortron iFP 2000 (PPF12A1600)
Sign up and unlock up to 10% off!
- Characteristics
- Response time (typical): 6 ms
- Maximum configurable power: 2 kVA
- Actual power: 1200 W
- Audible alarm: Yes
- Automatic Voltage Regulation (AVR): Yes
- Noise level: 40 dB
- Input operating voltage (minimum): 140 V
- Audible alarm modes: Battery alarm, Fault, Low battery alarm, Overload alarm
- Input frequency: 50/60 Hz
- Output voltage regulation: 10%
- Auto-restart: Yes
- Input operating voltage (maximum): 290 V
- Output frequency: 50/60 Hz
- UPS topology: Line-interactive technology
- Waveform: Sine
- Output operating voltage (maximum): 110 V
- Power protection features
- Battery discharge protection
- Overload
- Overcharge protection
- Output operating voltage (minimum): 240 V
- Design
- Display type: LCD
- Layout: Mini Tower
- Control Type: Buttons
- Product color: Black
- Weight and dimensions
- Product weight: 11 kg
- Product height: 182 mm
- Product width: 130 mm
- Product depth: 320 mm
- Working conditions
- Temperature range (operation): 0 - 40 °C
- Relative humidity range: 0 - 90%
- Package contents
- User Manual: Yes
- Batteries included: Yes
- Certificates
- Certificates of conformity
- CE
- cTUVus
- Certificates of conformity

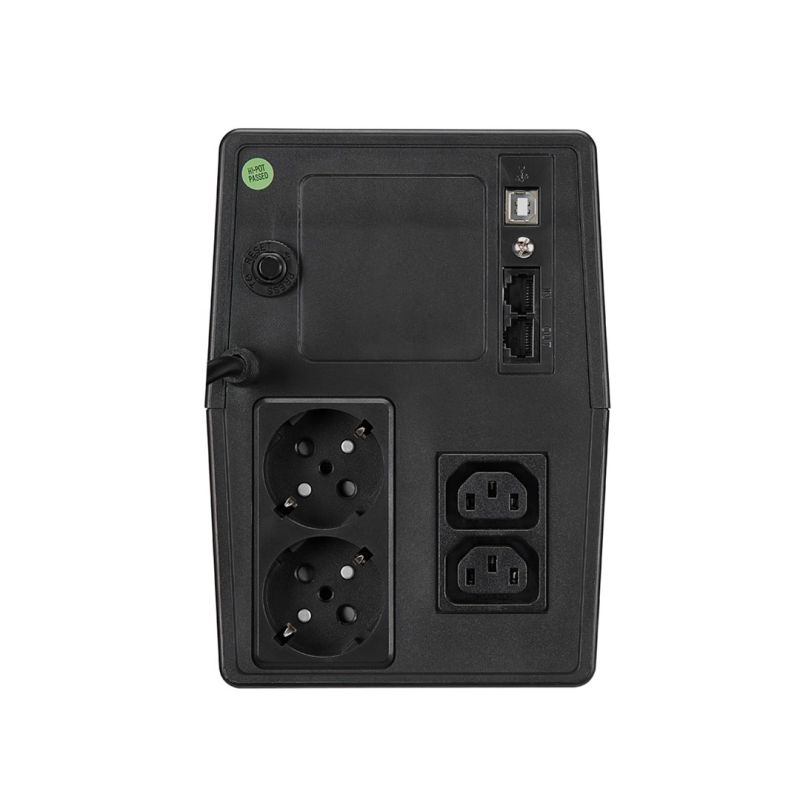

- Ports and interfaces
- Number of USB 2.0 ports: 1
- USB port type: USB Type B
- Number of Ethernet LAN ports (RJ-45): 2
- Number of IEC output jumpers: 2
- USB port: Yes
- AC Output Types: Type F
- Number of network sockets: 2 x network socket
- Battery
- Number of batteries supported: 2
- Cold start: Yes
- Battery voltage: 12 V
- Battery capacity: 9 Ah
- Logistics data
- Harmonized System (HS) code: 85078000
- Safety warning
- Warnings
- Do not disassemble the device housing, as this may result in electric shock.
- Keep away from sources of fire and water.
- The device should be used in well-ventilated areas to avoid overheating.
- Warnings
- Sustainable development
- Sustainability: Yes
| Name | Details |
|---|---|
| Producer | Fortron |
