UPS Online Rack 19" 10kVA/10kW 2U USB RS232 without battery (battery DN-170108) D.620mm
UPS Online Rack 19" 10kVA/10kW 2U USB RS232 without battery (battery DN-170108) D.620mm
UPS Online Rack 19" 10kVA/10kW 2U USB RS232 without battery (battery DN-170108) D.620mm
PRICE:
1187,99
€
IN A WAREHOUSE
3 pcs
We'll ship this product in 3 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Characteristics
- Input current THD level: 5%
- Response time (typical): 20 ms
- Input operating voltage (maximum): 276 V
- Power factor: 0.99
- Noise level: 55 dB
- Number of output phases: 1
- Output frequency: 50/60 Hz
- Waveform: Pure sine
- UPS Topology: Double Conversion (Online)
- Efficiency: 93.5%
- Output frequency adjustment: 1 Hz
- Crest Factor: 3:1
- Emergency Power Off: Yes
- Input operating voltage (minimum): 120 V
- Maximum configurable power: 6 kVA
- Output voltage regulation: 5%
- Actual power: 10000 W
- Number of input phases: 1
- Output operating voltage (maximum): 208 V
- Output operating voltage (minimum): 240 V
- ECO mode: Yes
- Input frequency: 45/66 Hz
- Output current THD level: 5%
- Design
- IP protection class: IP20
- Rack capacity: 2U

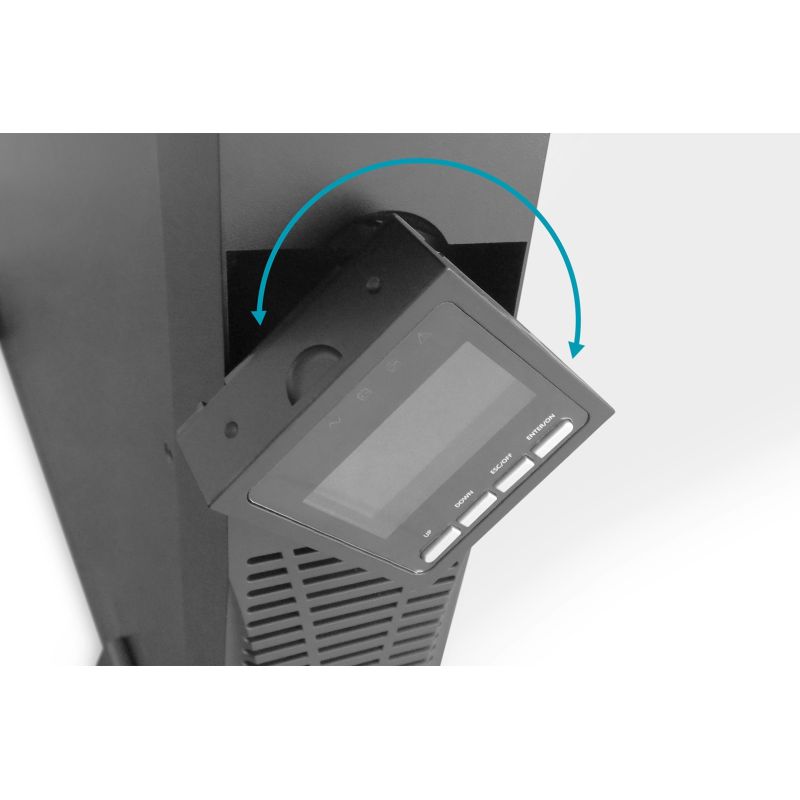

- Display type: LCD + LED

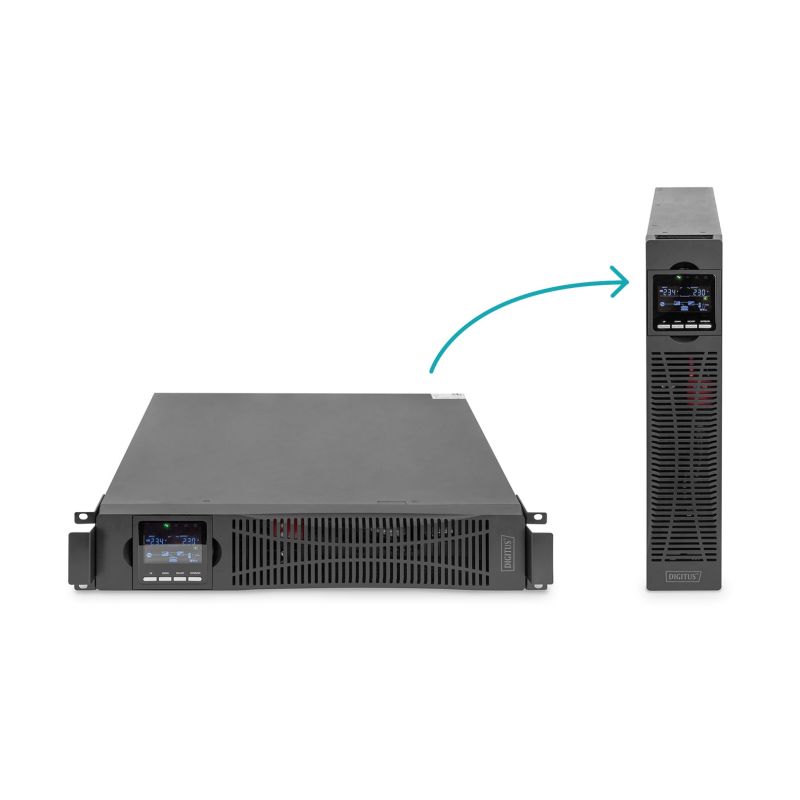

- Layout: Rackmount/Tower
- Cooling type: Active
- Housing material: Metal
- Built-in fan: Yes
- Product color: Black
- Weight and dimensions
- Product depth: 620 mm
- Product height: 86.5 mm
- Product width: 440 mm
- Product weight: 18 kg
- Working conditions
- Temperature range (operation): 0 - 40 °C
- Packaging data
- Packaging capacity: 100682 cm³
- Package width: 615 mm
- Package contents
- User Manual: Yes
- Ports and interfaces
- Emergency Power Off (EPO) Connector: Yes
- Number of USB 2.0 ports: 1
- USB port: Yes
- Plug: Hardwire
- USB port type: USB Type B
- Battery
- Hot-swappable batteries: Yes
- Number of batteries supported: 20
- Charging time: 8 h
- Cold start: Yes
- Charging current: 1 A
- Other functions
- Size: 48.3 cm (19")
- Logistics data
- Harmonized System (HS) code: 85078000
- Mask with serial number: 85044086
- Safety warning
- Warnings
- Keep away from sources of fire and water.
- Do not disassemble the device housing, as this may result in electric shock.
- The device should be used in well-ventilated areas to avoid overheating.
- Warnings
| Name | Details |
|---|---|
| Producer | DIGITUS |
