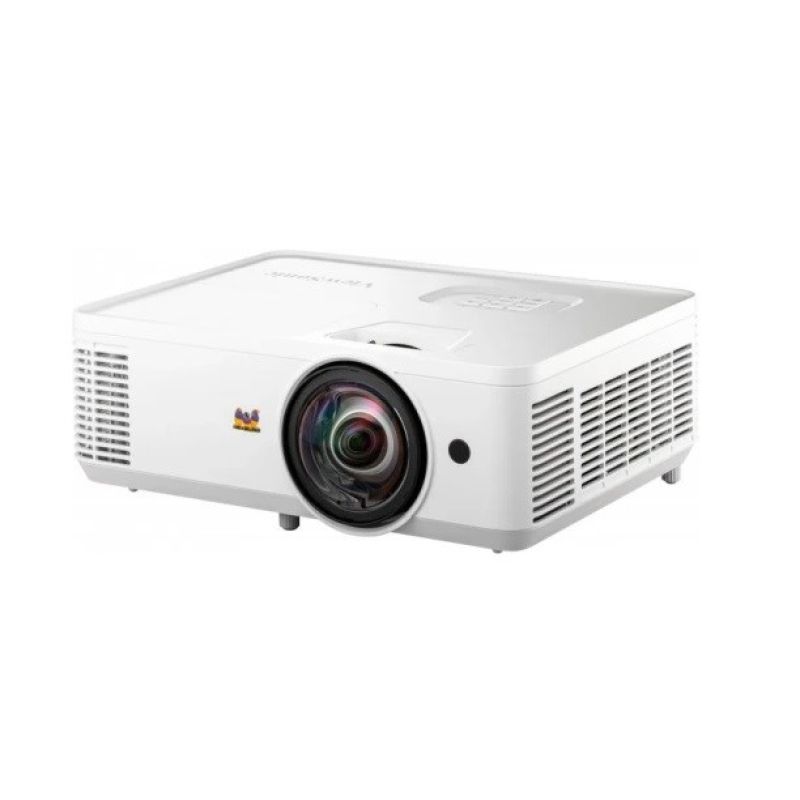

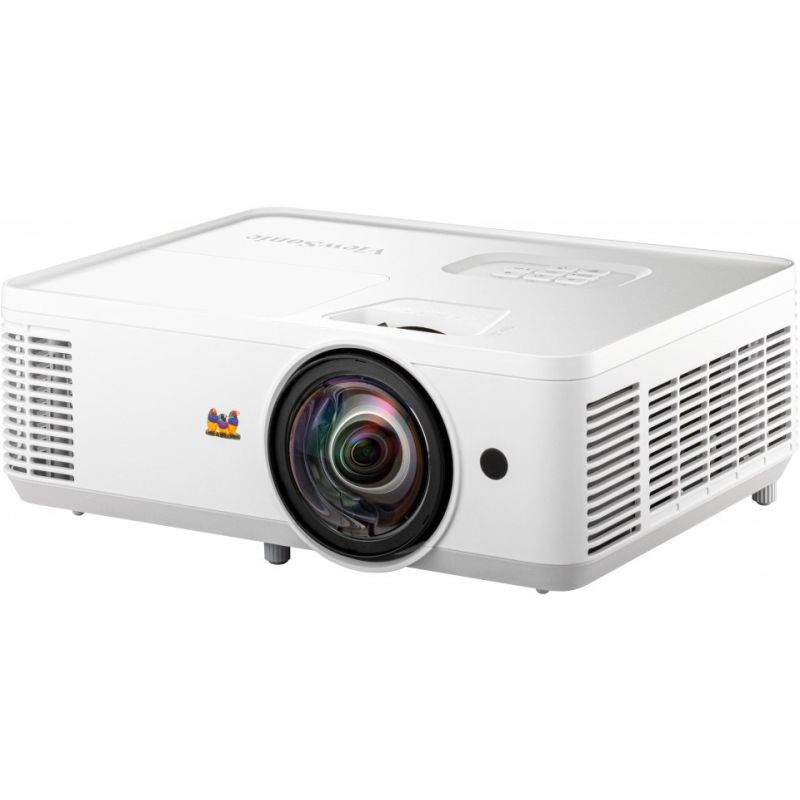

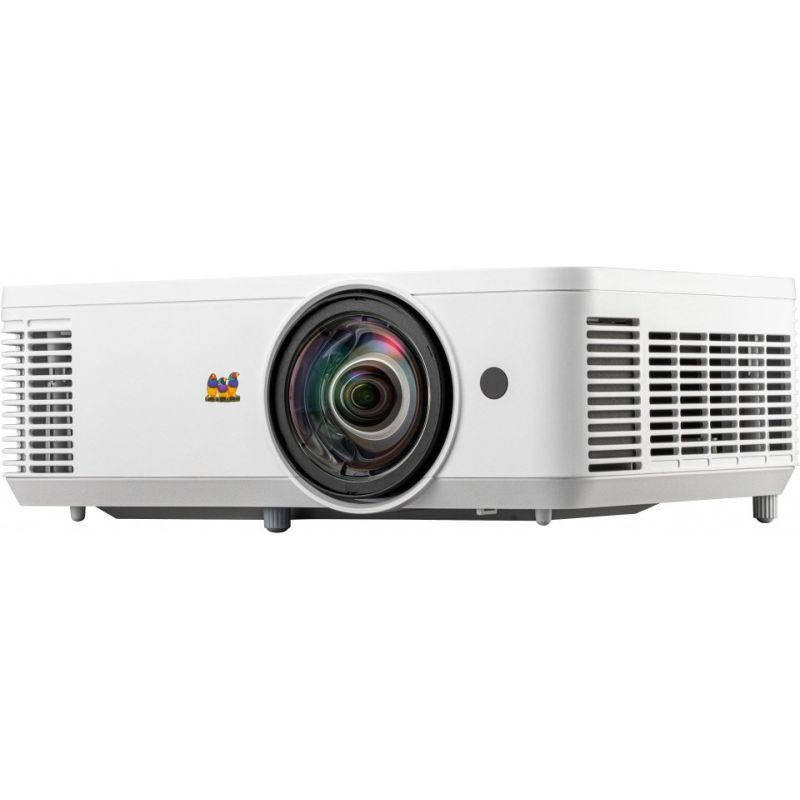

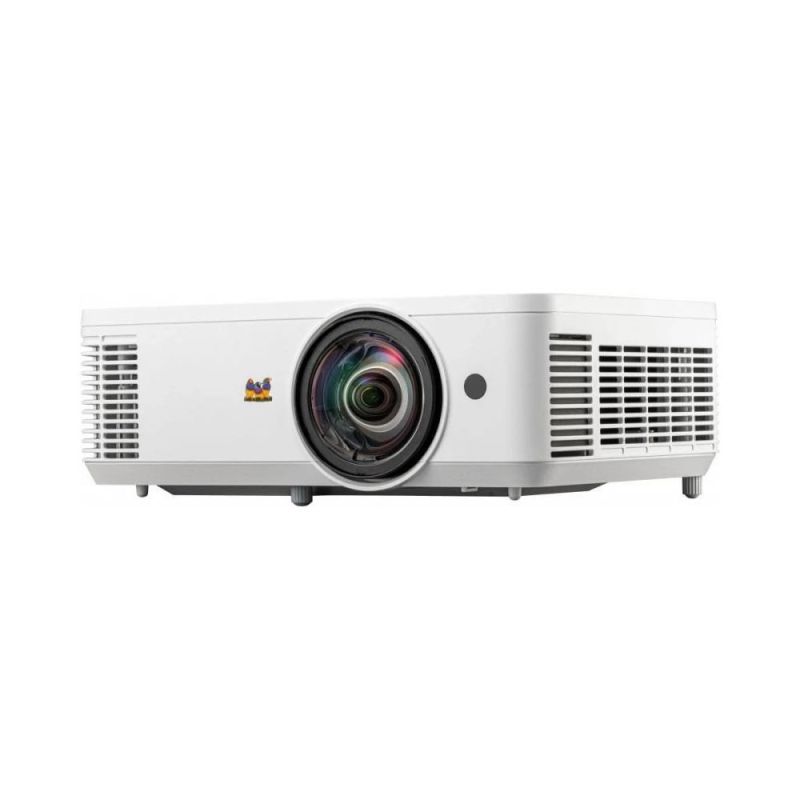

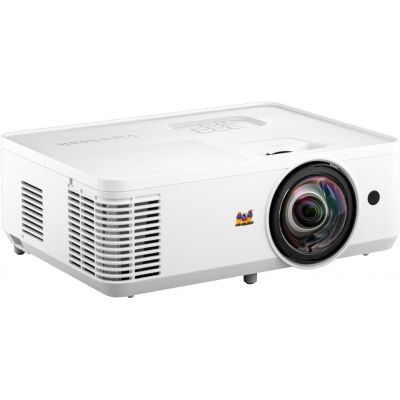

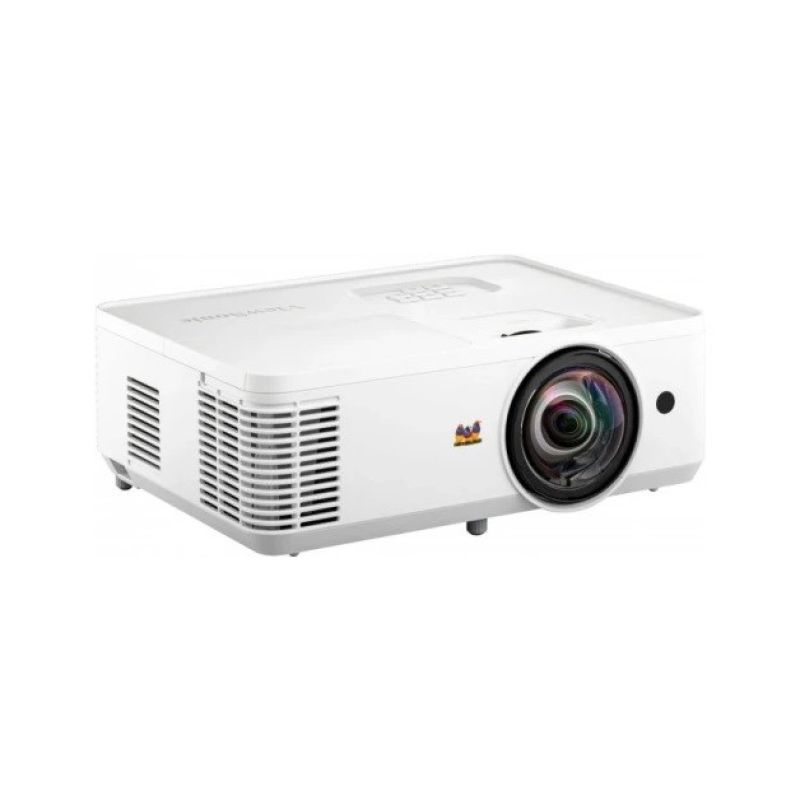

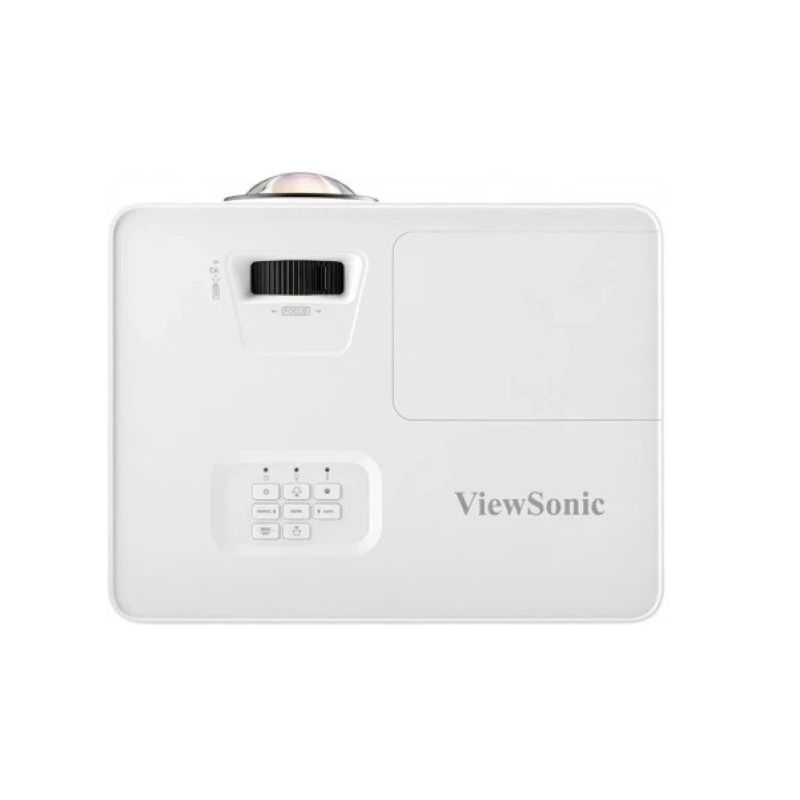

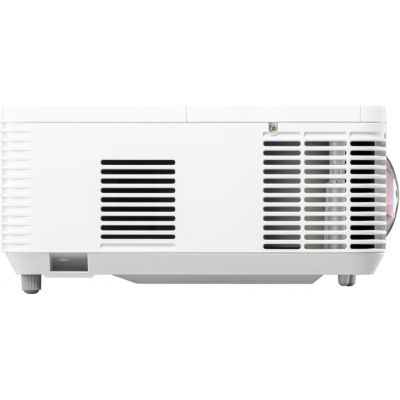

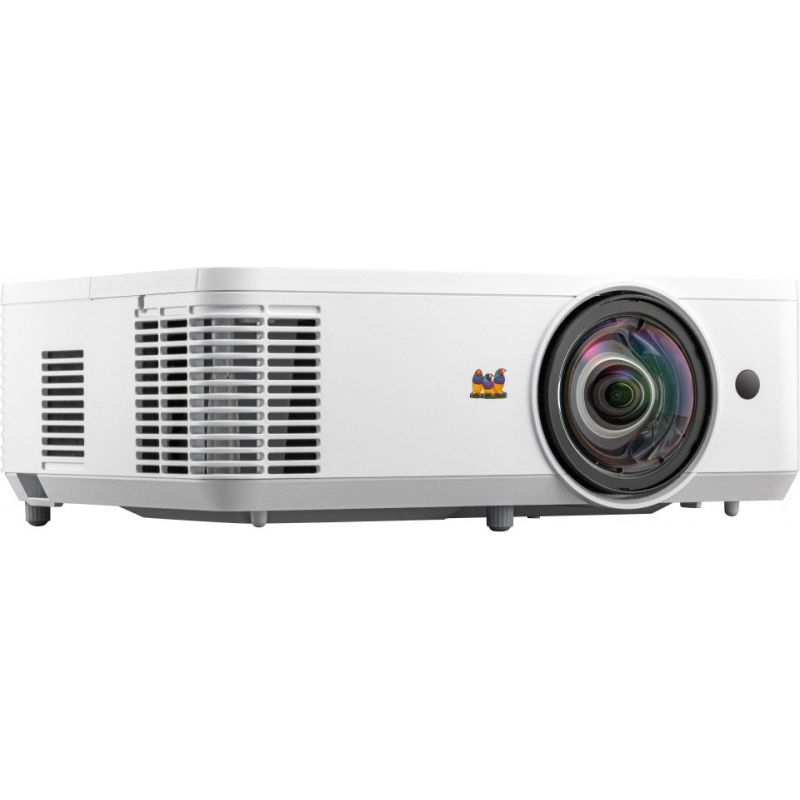

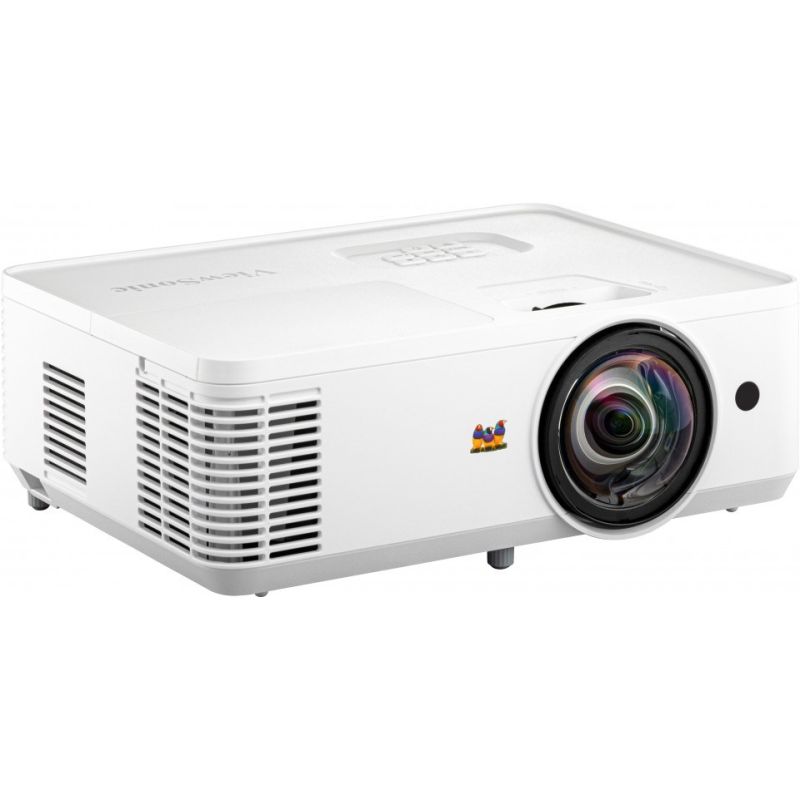

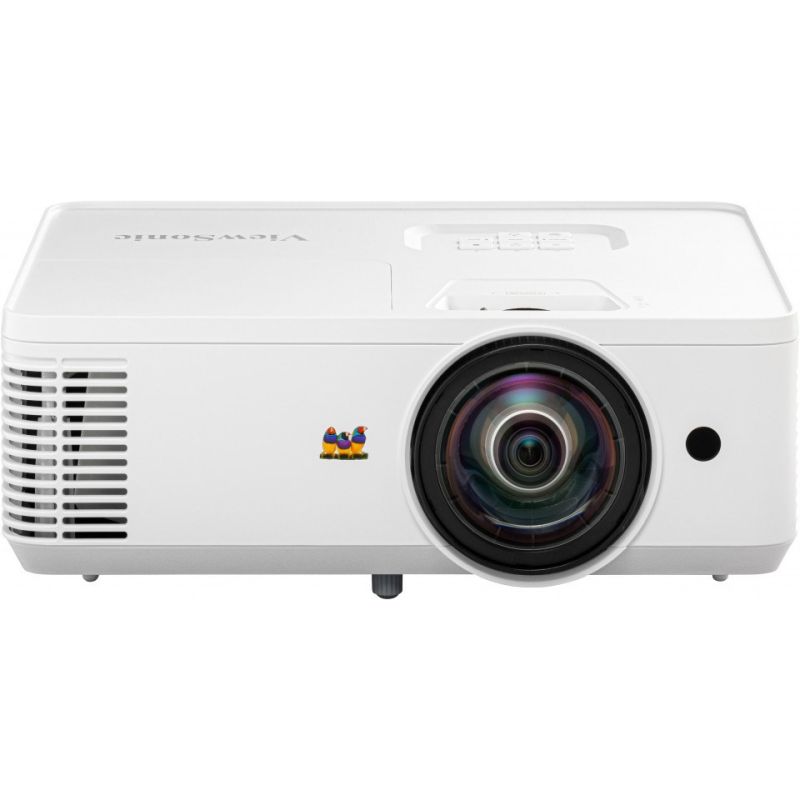

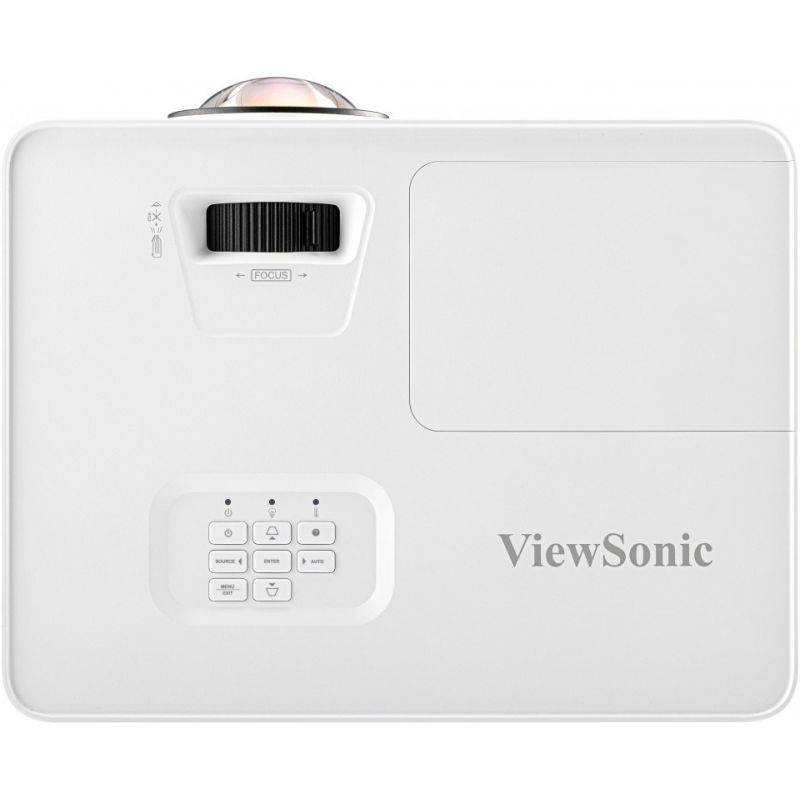

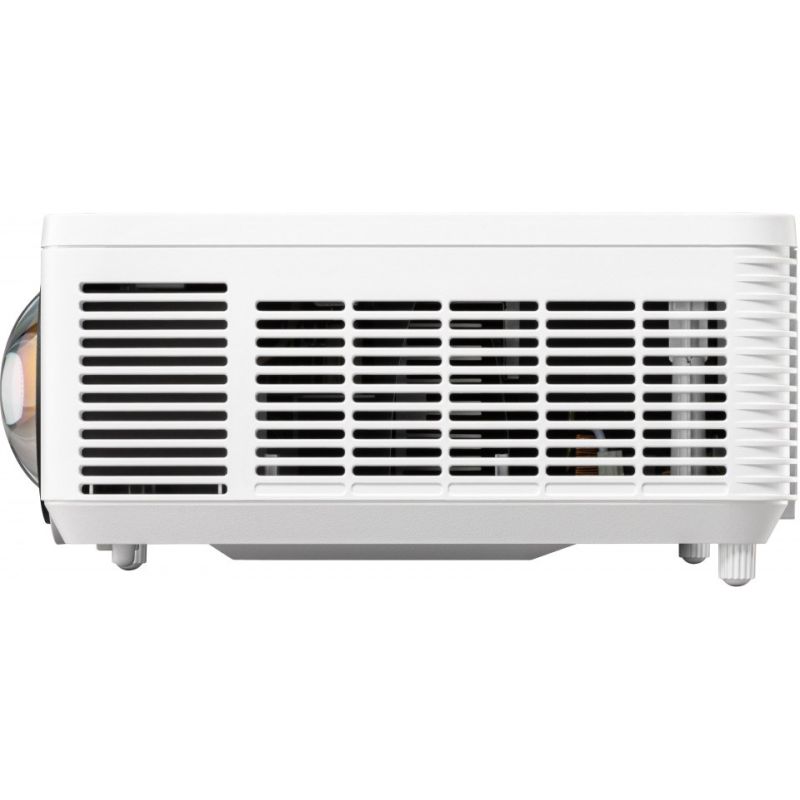

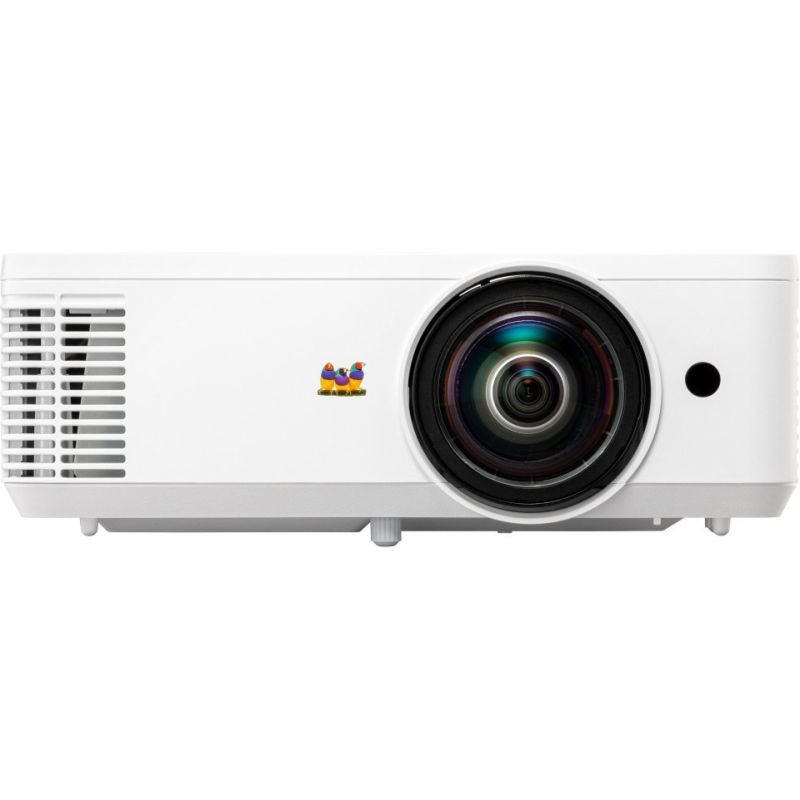

VIEWSONIC BUSINESS PROJECTOR PS502X-EDU
VIEWSONIC BUSINESS PROJECTOR PS502X-EDU
Sign up and unlock up to 10% off!
- Technical details
- Image lag time: 33.2 ms
- Characteristics
- Air filter: Yes
- On-screen menu languages
- Thai
- Vietnamese
- Turkish
- Finnish
- Chinese traditional
- Russian
- Arabic
- Simplified Chinese
- Italian
- German
- Czech
- Dutch
- Indonesian
- French
- Polish
- Greek
- Spanish
- English
- Portuguese
- Korean
- Hungarian
- HDCP: Yes
- Noise level (economy mode): 25 dB
- Interactive: No
- OSD: Yes
- Number of OSD languages: 22
- Noise level: 34 dB
- HDCP version: 1.4
- Design
- Cable lock slot type: Kensington
- Kensington Lock: Yes
- Product color: White
- Market positioning: Education
- Product Type: Short Throw Projector
- LEDs: Yes
- Power
- AC input frequency: 50 - 60 Hz
- Power source: AC
- AC input voltage: 100 - 240 V
- Power consumption in standby mode: 0.5 W
- Power consumption: 295 W
- Weight and dimensions
- Product weight: 2.87 kg
- Product depth: 234 mm
- Product height: 115 mm
- Product width: 309 mm
- Package height: 168 mm
- Weight with packaging: 4.08 kg
- Package width: 400 mm
- Package depth: 337 mm
- Working conditions
- Temperature range (operation): 0 - 40 °C
- Network
- Wi-Fi: No
- Smart TV: No
- Wired LAN: No
- Package contents
- Warranty card: Yes
- Wires
- Alternating current
- VGA

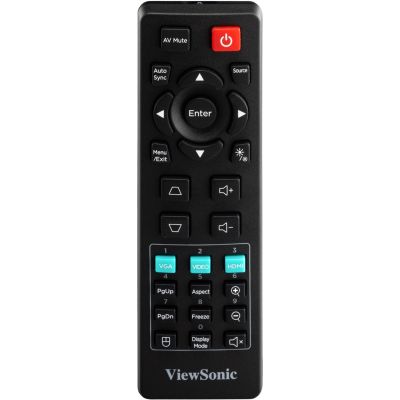

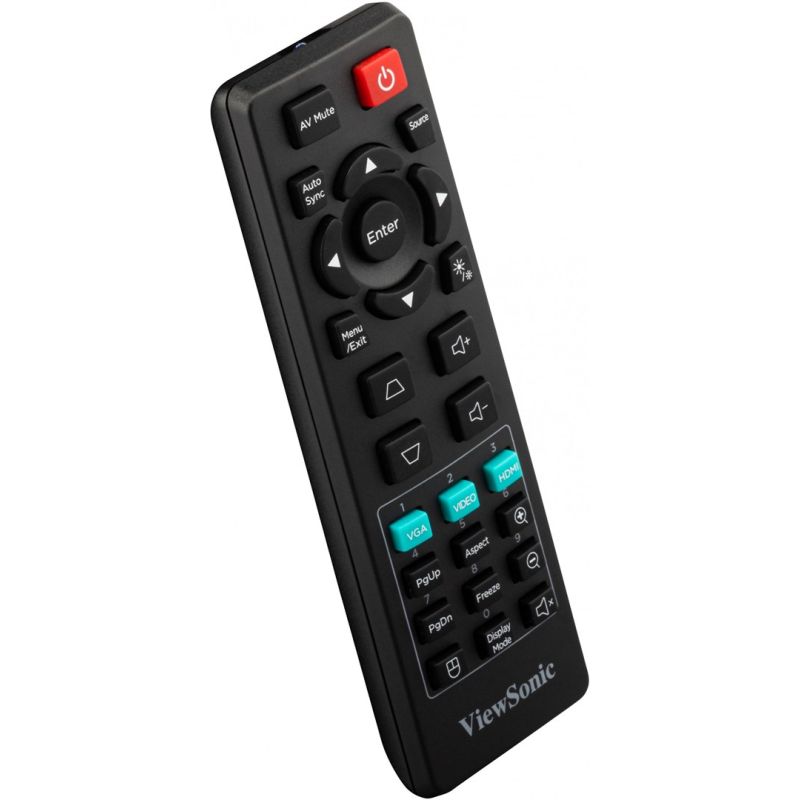

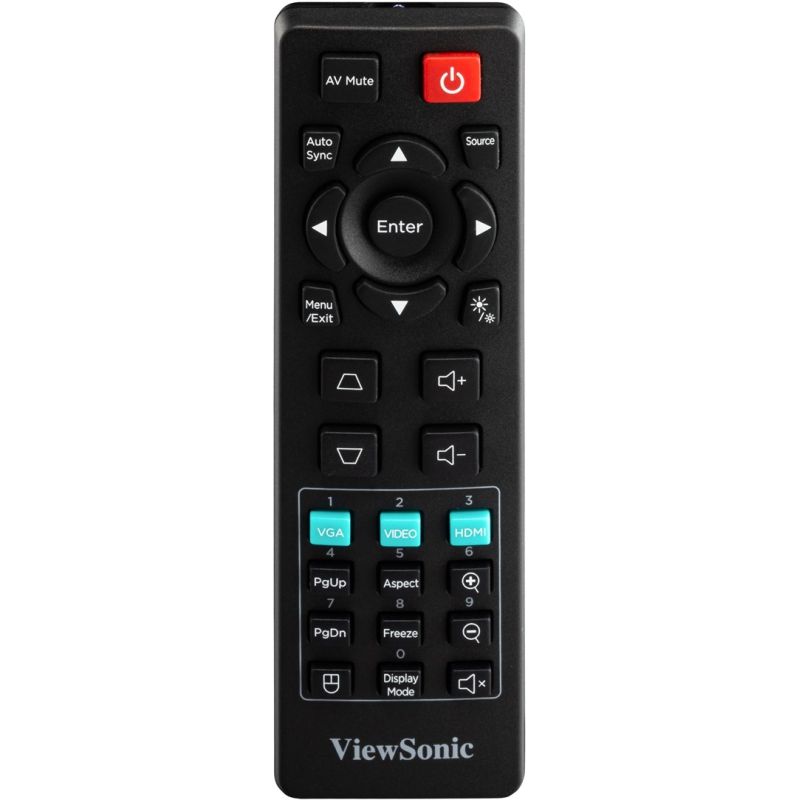

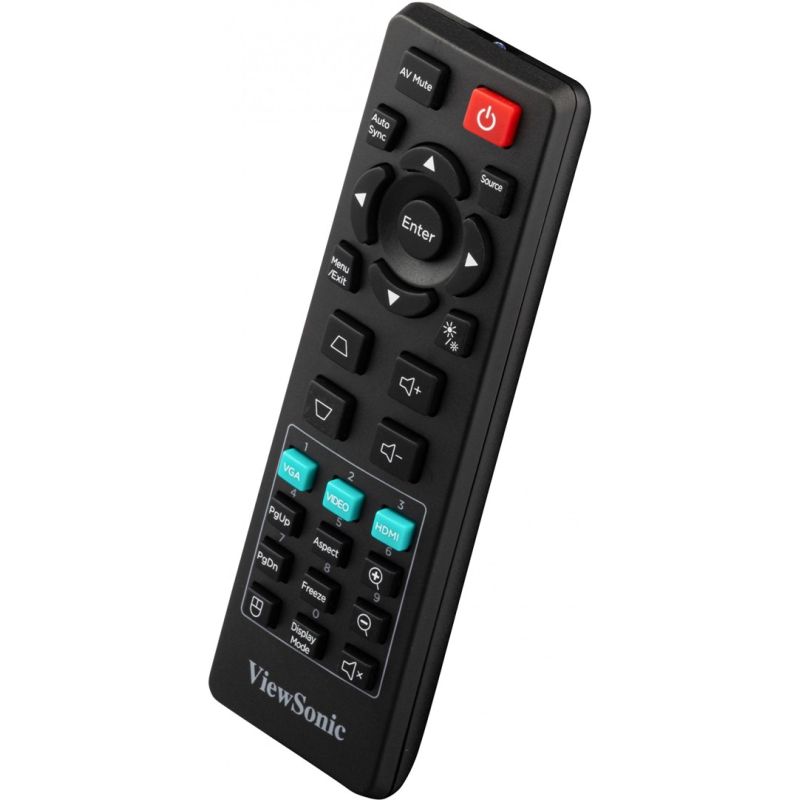

- Remote control: IR
- Remote control included: Yes
- Quick Start Guide: Yes
- Display
- Built-in display: No
- Multimedia
- Output power (RMS): 16 W
- Built-in speakers: Yes
- Data carrier
- Integrated card reader: No

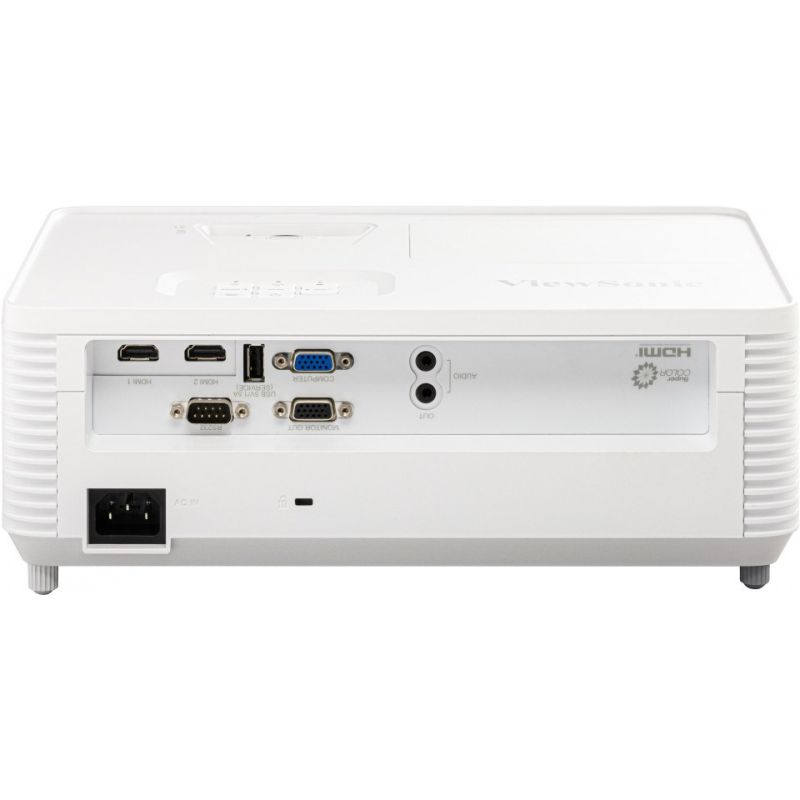

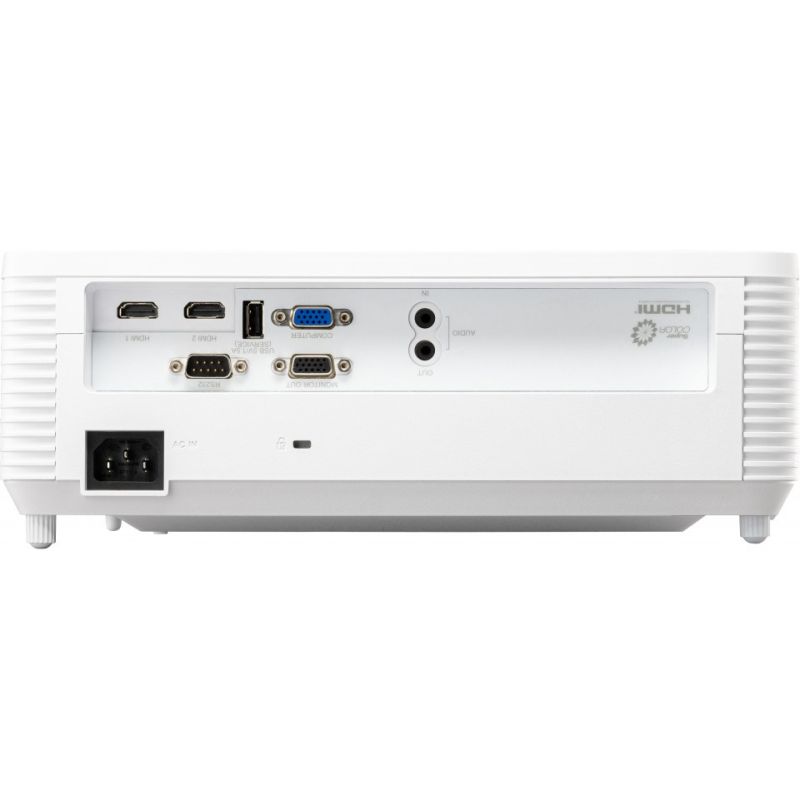

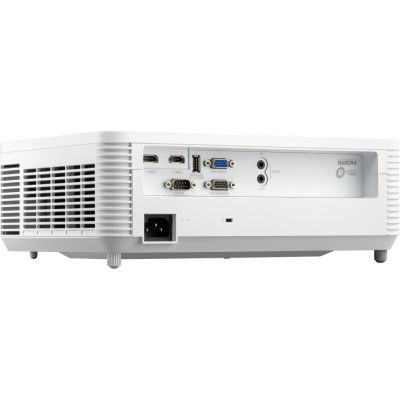

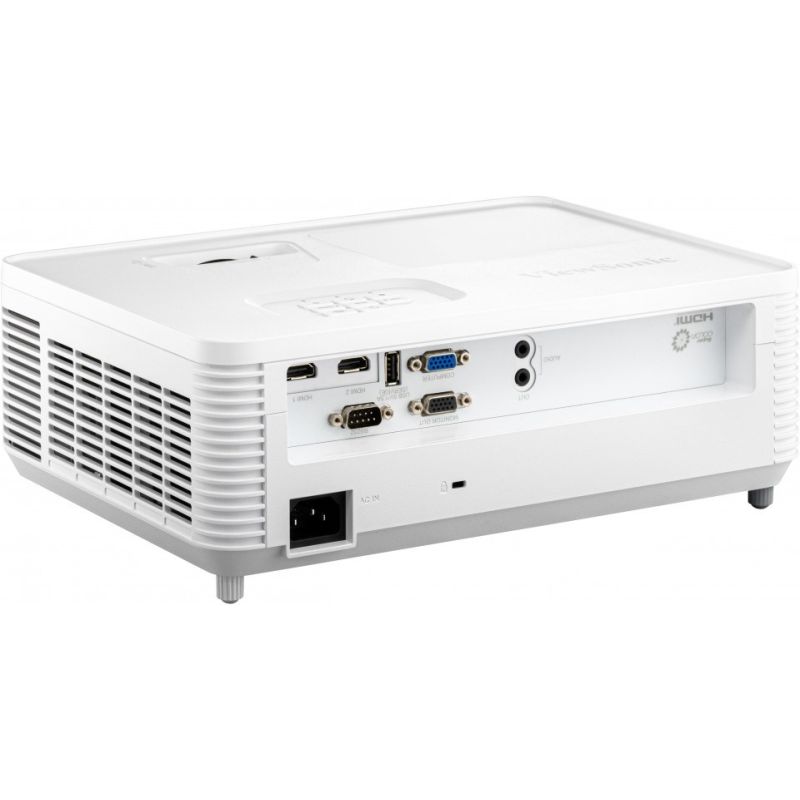

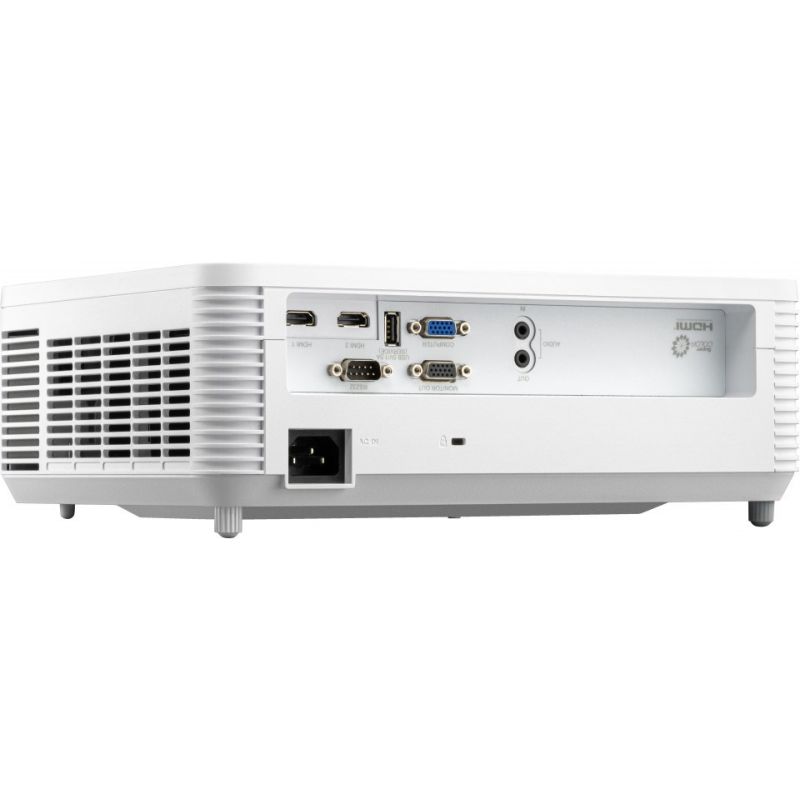

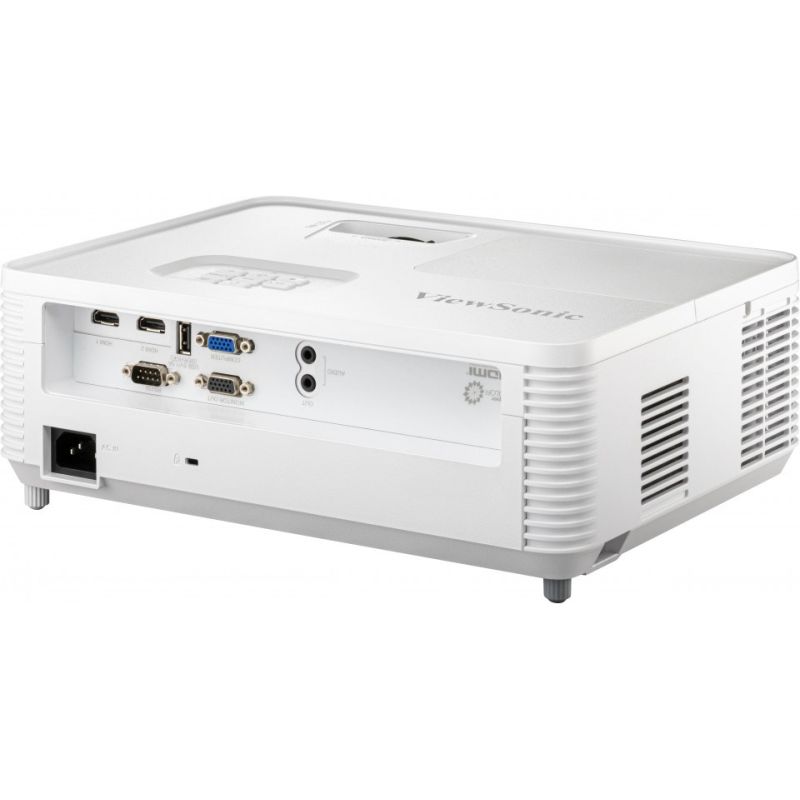

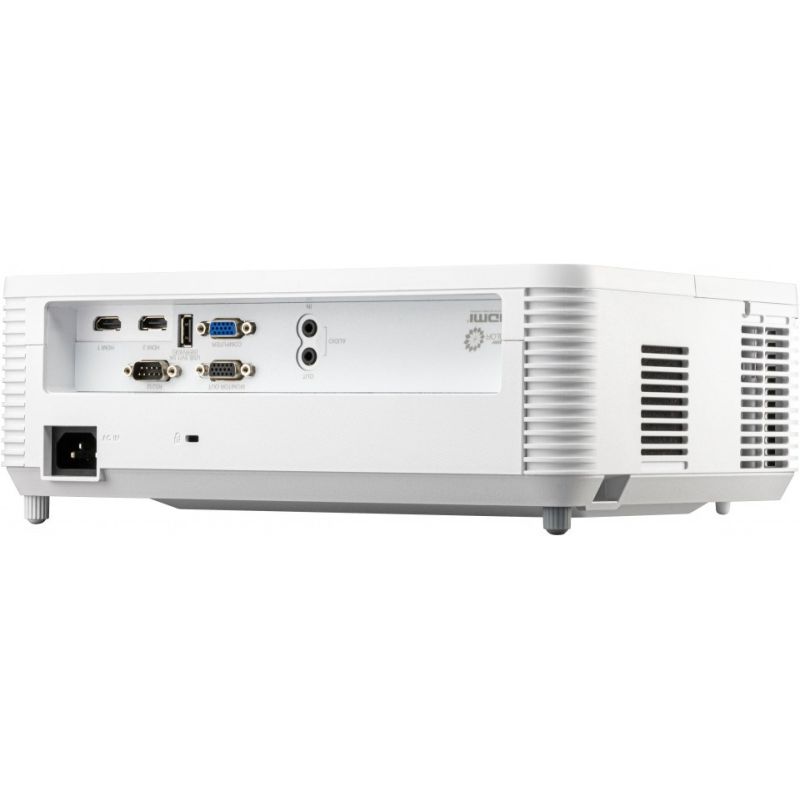

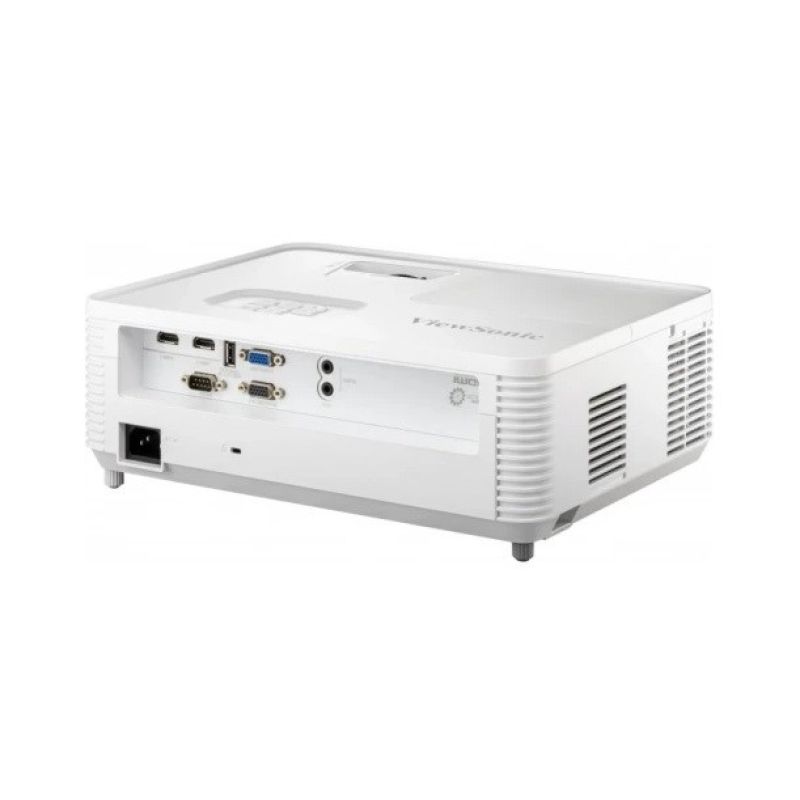

- Ports and interfaces
- PC Audio out: Yes
- SCSI interface: RS-232
- Number of USB 2.0 Type-A ports: 1
- DVI Port: No
- Number of USB 2.0 ports: 1
- HDMI version: 1.4
- Audio input for PC: Yes
- Number of VGA (D-Sub) ports: 2
- PC Input (D-Sub): Yes
- Number of HDMI ports: 2
- AC Power Output: Yes
- HDMI connector type: Full size
- Service port type: USB Type-A
- Video
- Supported graphics resolutions
- 1920 x 1080 (HD 1080)
- 640 x 480 (VGA)
- 3D Compatibility: No
- Analog signal format system
- PILE
- NTSC
- SECAM
- Supported video modes
- 1080i
- 480i
- 576i
- 576p
- 1080p
- 720p
- 480p
- Full HD: Yes
- Supported graphics resolutions
- Lens system
- Focal length ratio (relative aperture): 2.7
- Zoom capability: Yes
- Fixed focal length: 7.15 mm
- Incidence ratio: 0.616
- Focus: Manual
- Offset: 115%
- Digital zoom: 2x
- Safety warning
- Warnings
- Avoid placing the projector in high humidity areas to prevent damage to the device.
- Be careful when replacing the projector lamp as it can be very hot.
- Do not look directly into the projector lens while it is operating to avoid eye damage.
- Warnings
- Projector
- Number of colors: 1.07 trillion colors
- Projection distance: 0.75 - 3.76 m
- Projection technology: DLP
- Scanning range (length): 23 - 120 Hz
- Keystone correction, level: -19 - 19°
- Projector brightness: 4000 ANSI lumens
- Horizontal scanning range: 15 - 102 kHz
- Screen size compatibility: 1524 - 7620 mm (60 - 300")
- Projector native resolution: XGA (1024x768)
- Contrast ratio (typical): 15000:1
- Smart projector: No
- Light source
- Lamp power: 240 W
- Light source life (economy mode): 12000 h
- Light source lifetime: 4000 h
- Light source type: Lamp
- Lamp type: UHP
- Number of lamps: 1
| Name | Details |
|---|---|
| Producer | VIEWSONIC |
