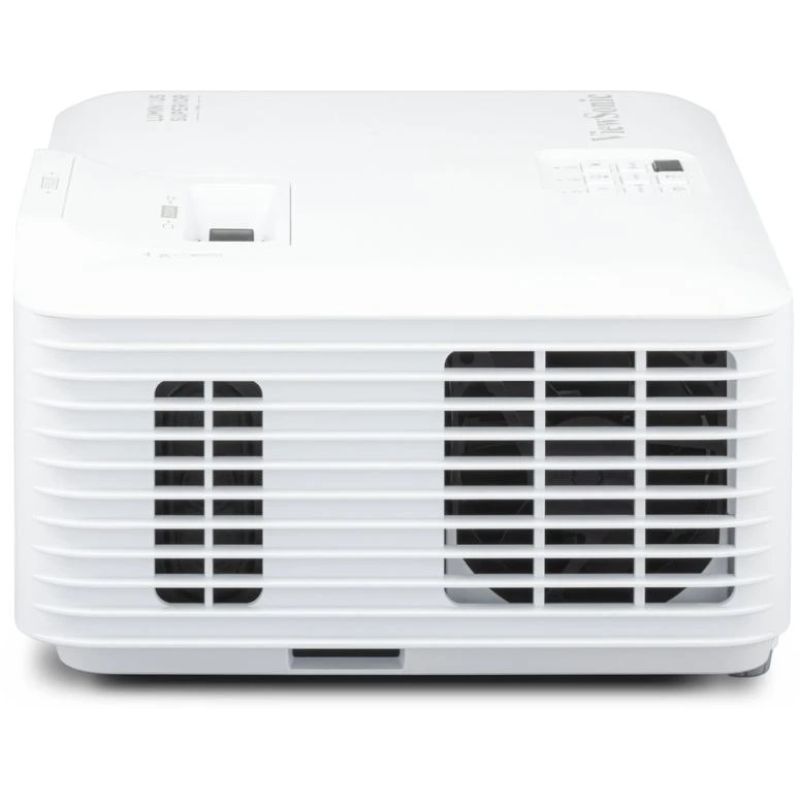

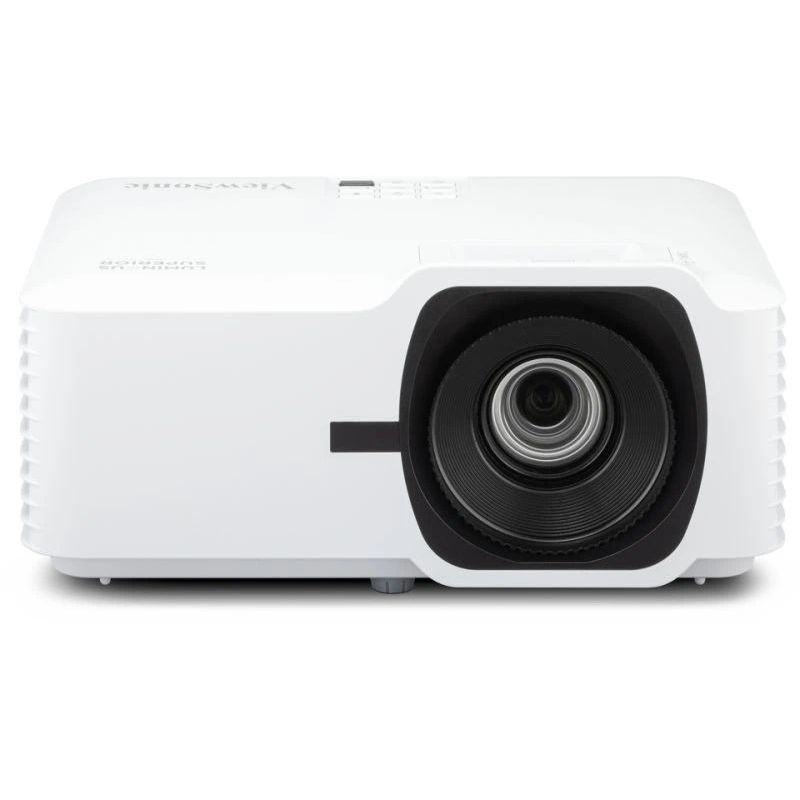

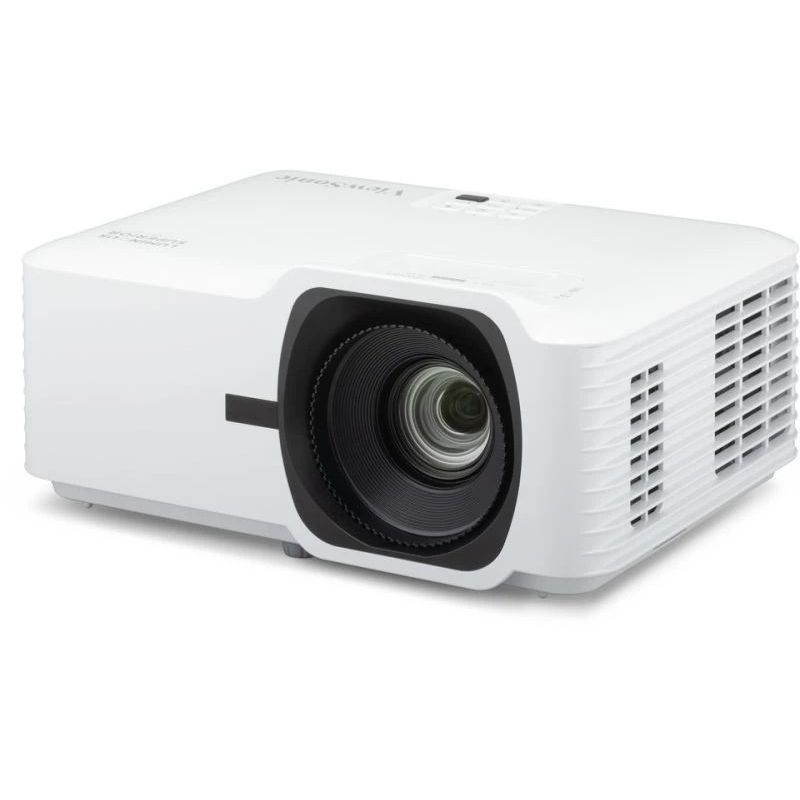

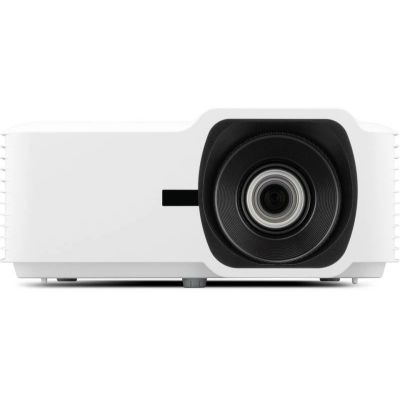

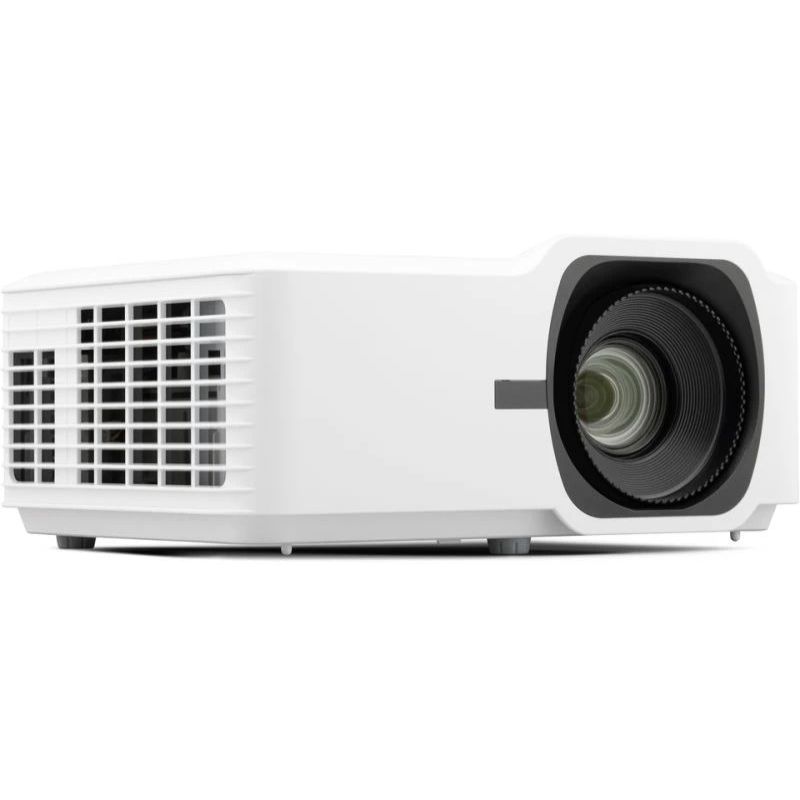

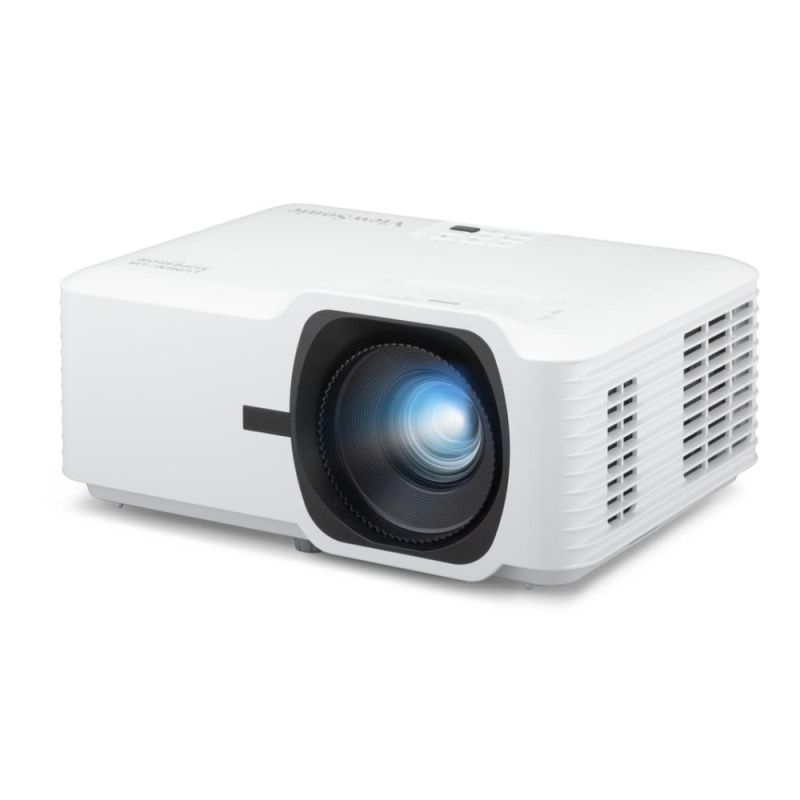

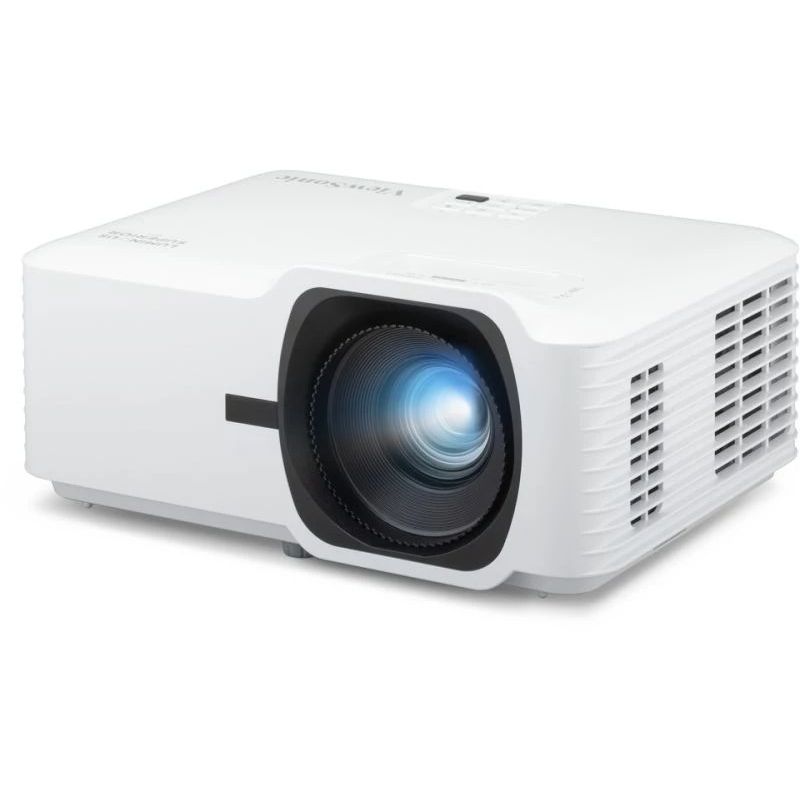

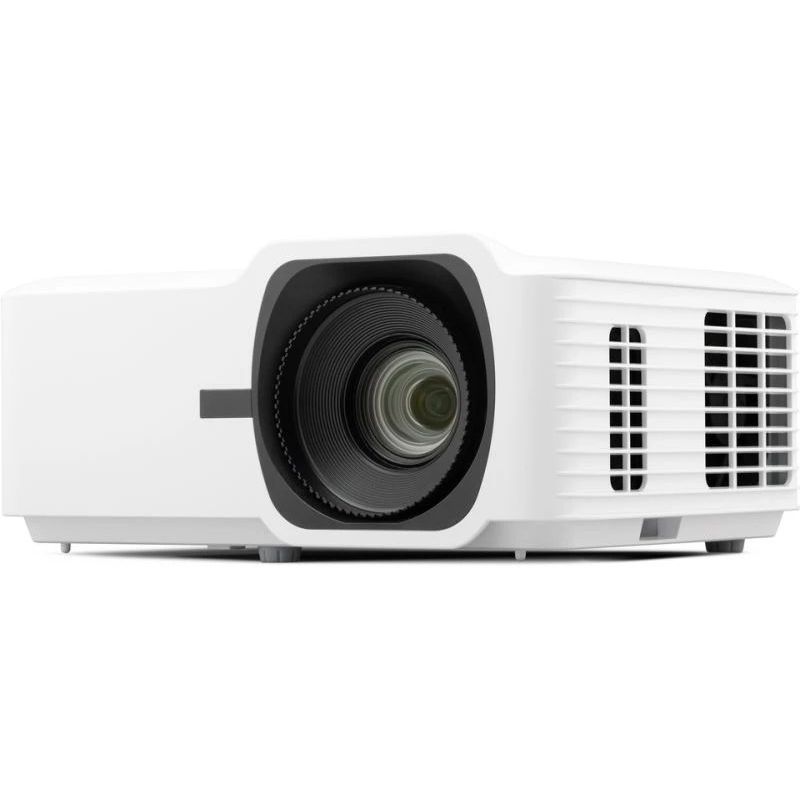

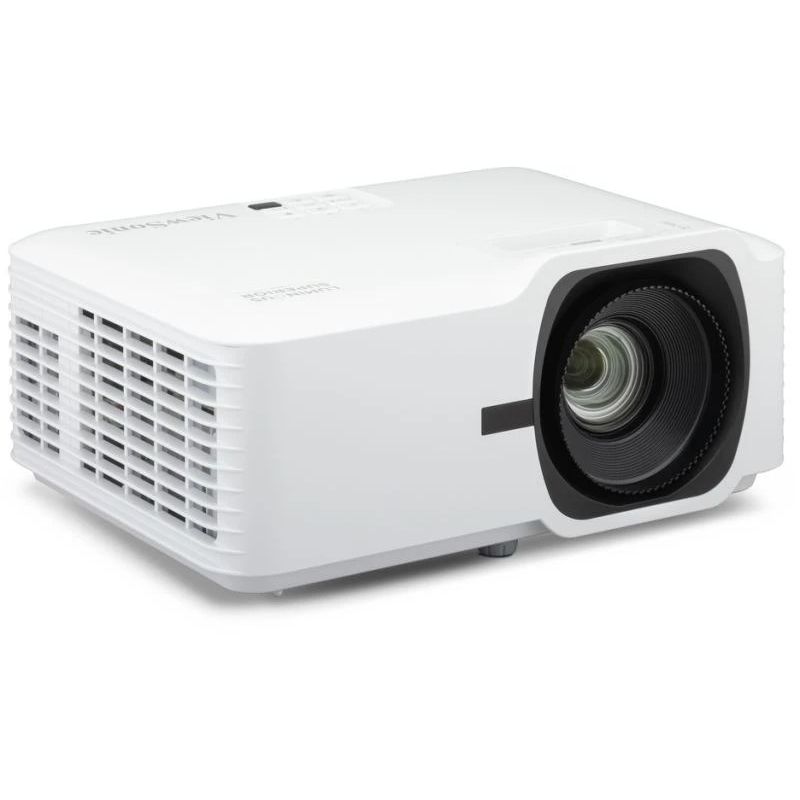

ViewSonic LS630HD FHD 4000ANSI projector 2xHDMI USB RS232 RJ45
ViewSonic LS630HD FHD 4000ANSI projector 2xHDMI USB RS232 RJ45
Sign up and unlock up to 10% off!
- Characteristics
- HDCP: Yes
- OSD: Yes
- Noise level: 32 dB
- Noise level (economy mode): 27 dB
- Design
- Product Type: Standard Throw Projector
- Market positioning: Education
- Product color: White
- Power
- Power consumption in standby mode: 0.5 W
- AC adapter output voltage: 100 - 240 V
- Power consumption: 175 W
- Power source: AC
- Weight and dimensions
- Product depth: 216 mm
- Product width: 286 mm
- Product height: 129 mm
- Product weight: 3.1 kg
- Package depth: 185 mm
- Weight with packaging: 4.6 kg
- Package height: 340 mm
- Package width: 440 mm
- Working conditions
- Temperature range (operation): 0 - 40 °C
- Network
- Number of Ethernet LAN ports (RJ-45): 1
- Wired LAN: Yes
- Package contents
- Wires: Alternating Current

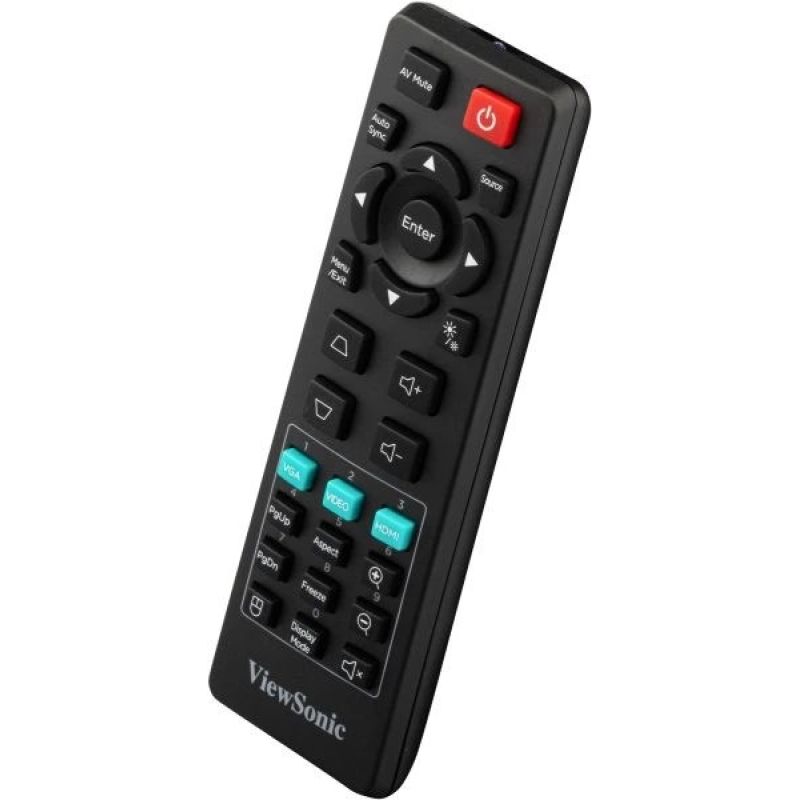

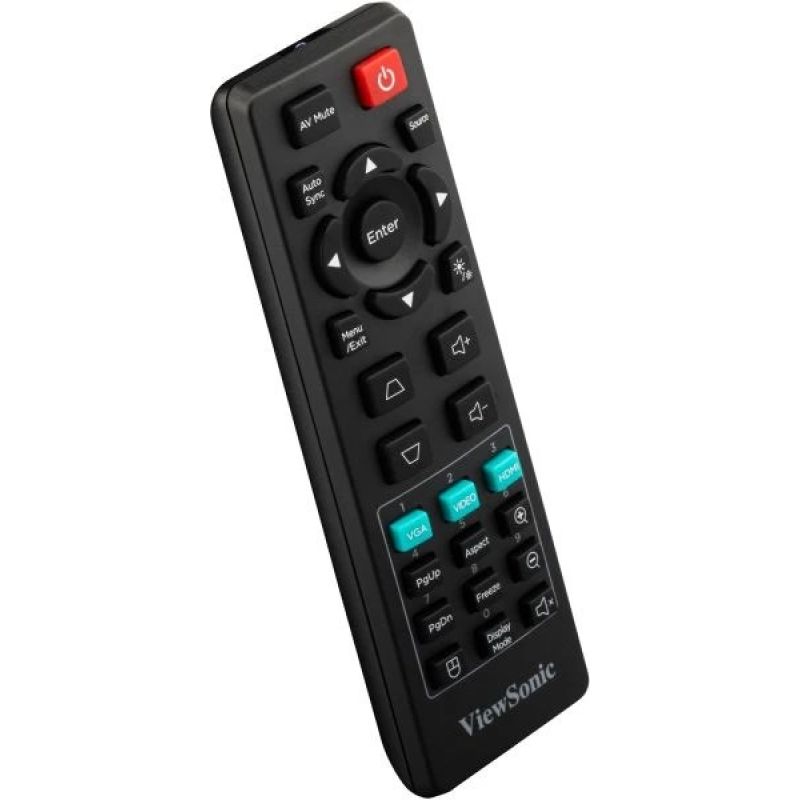

- Remote control included: Yes
- Display
- Built-in display: No
- Multimedia
- Output power (RMS): 15 W
- Built-in speakers: Yes

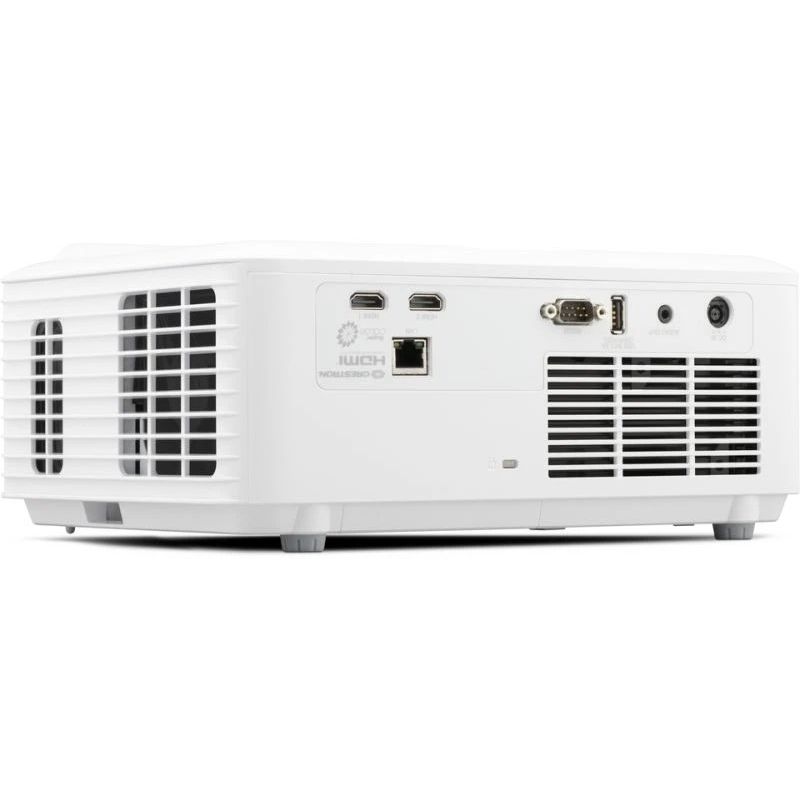

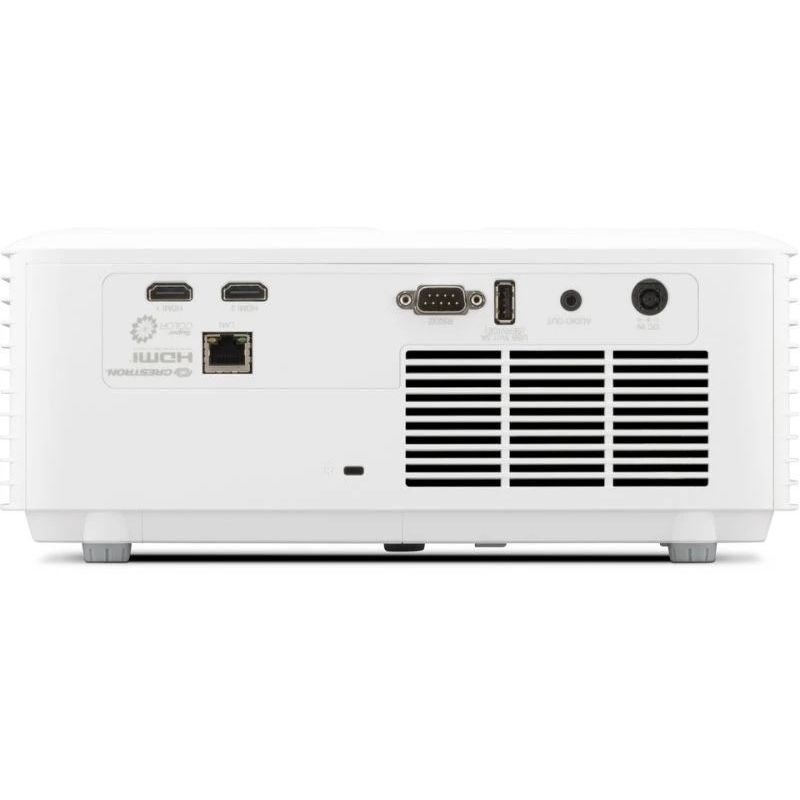

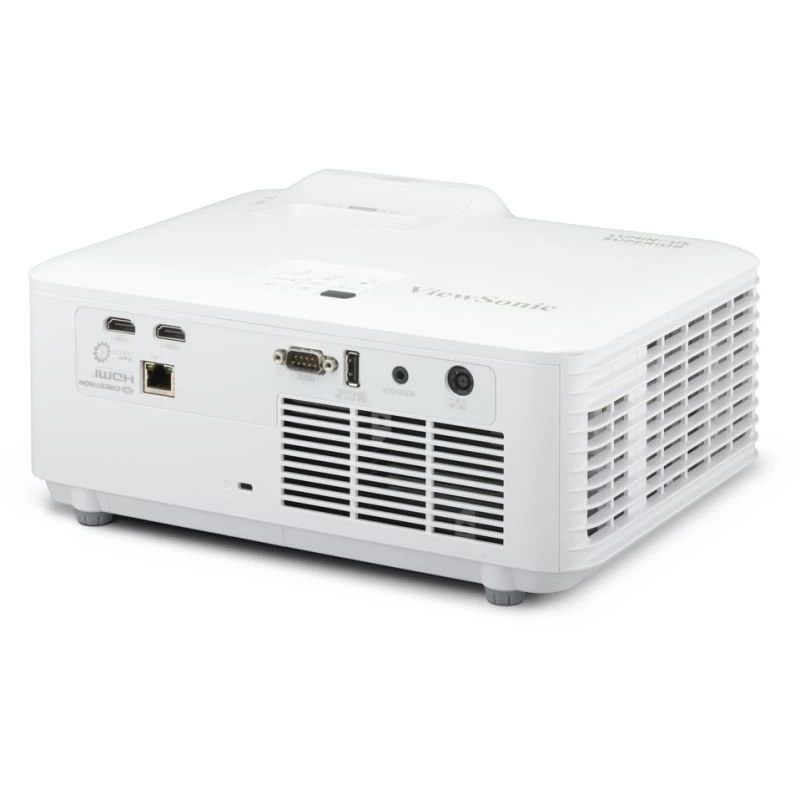

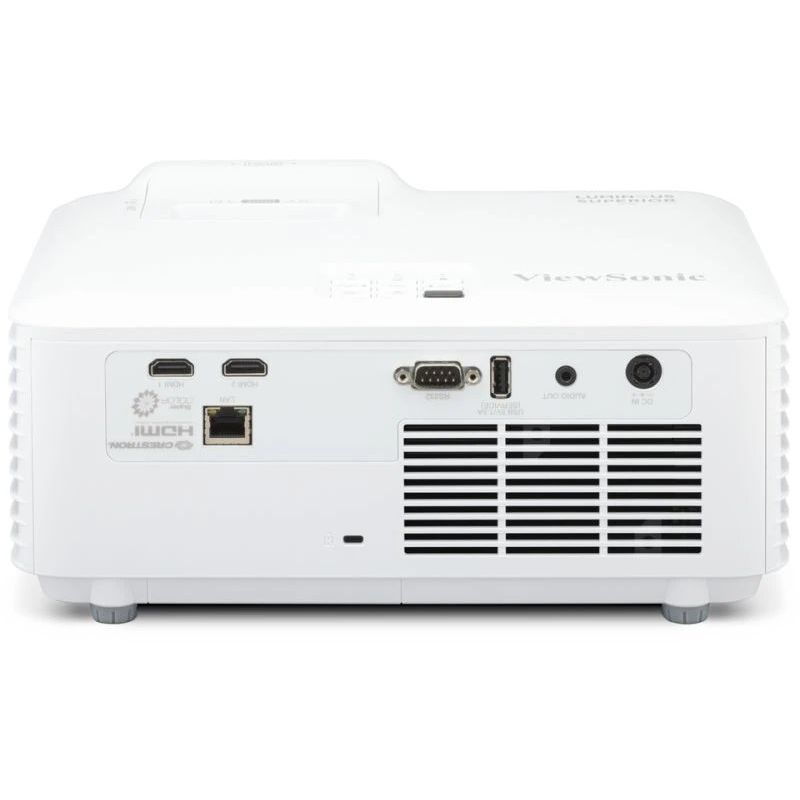

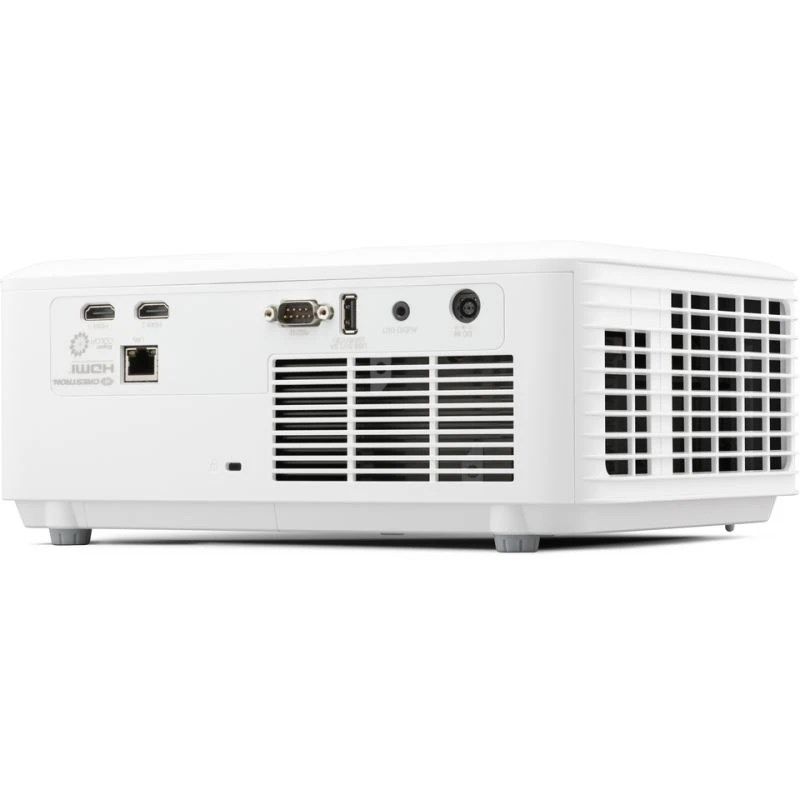

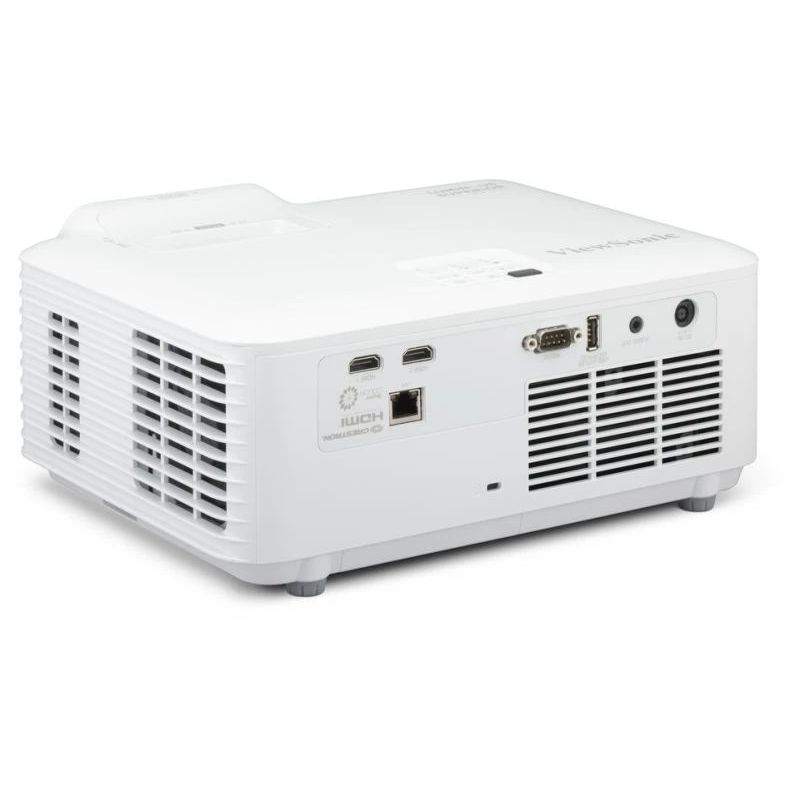

- Ports and interfaces
- HDMI version: 1.4
- Number of HDMI ports: 2
- Audio output (right/left): 1
- SCSI interface: RS-232
- Number of USB 2.0 Type-A ports: 1
- Logistics data
- Products in the main (outer) box: 1 pc.
- Gross pallet length: 102 cm
- Gross pallet height: 2.16 m
- Gross pallet width: 122 cm
- Harmonized System (HS) code: 8528620000
- Video
- Supported video modes
- 720p
- 480p
- 480i
- 576i
- 1080p
- 1080i
- 576p
- Supported graphics resolutions
- 1920 x 1200 (WUXGA)
- 1920 x 1080 (HD 1080)
- 640 x 480 (VGA)
- Full HD: Yes
- 3D Compatibility: No
- Digital signal format system: HDTV
- Supported video modes

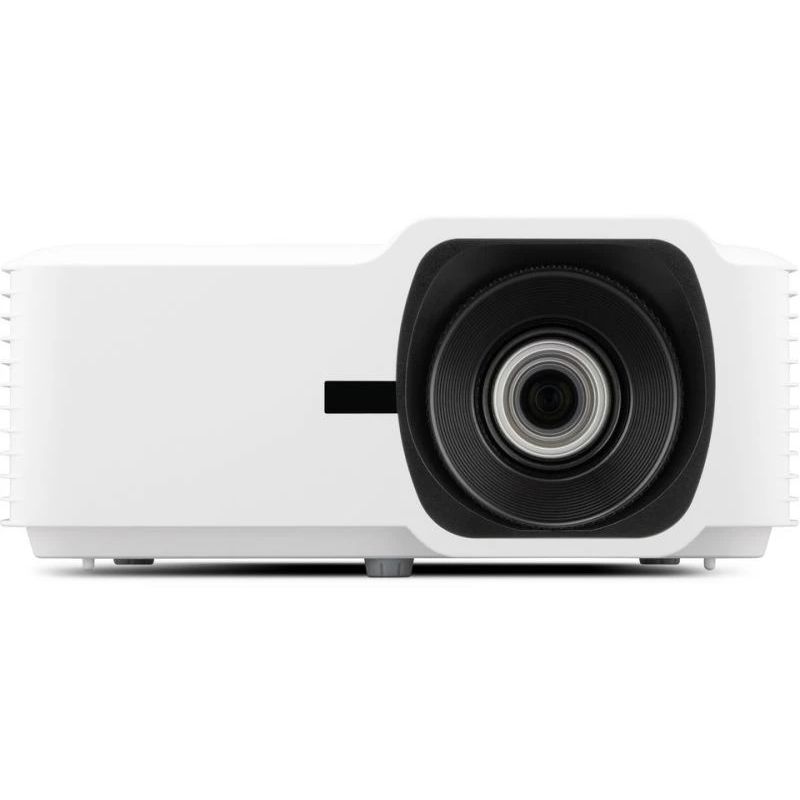

- Lens system
- Zoom capability: Yes
- Focal length: 16.90 - 21.61 mm
- Zoom ratio: 0.8 - 2.0:1
- Offset: 132%
- Lens range: 2.43 - 2.78
- Incidence ratio: 1.13-1.47
- Projector
- Contrast ratio (typical): 3,000,000:1
- Horizontal Sync (max): 102 kHz
- Keystone correction, level: +-30°
- Projection distance: 0.75 - 9.76 m
- Projector brightness: 4000 ANSI lumens
- Number of colors: 1.07 trillion colors
- Vertical Sync (min): 0.024 kHz
- Horizontal Sync (min): 15 kHz
- Screen size compatibility: 762 - 7620 mm (30 - 300")
- Vertical Sync (max): 0.12 kHz
- Projector native resolution: 1080p (1920x1080)
- Keystone correction, vertical: +-30°
- Light source
- Light source life (economy mode): 30,000 h
- Light source lifetime: 20,000 h
- Light source type: Laser
