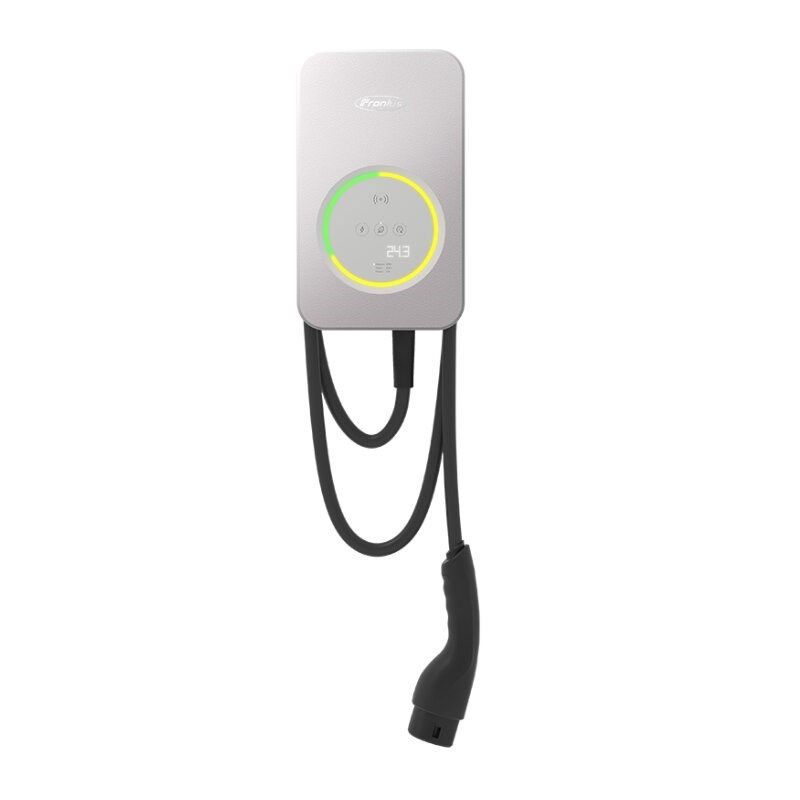

Wattpilot Flex Home 22 C6 Charging Station
Wattpilot Flex Home 22 C6 Charging Station
Wattpilot Flex Home 22 C6 Charging Station
PRICE:
1528,99
€
IN A WAREHOUSE
3 pcs
We'll ship this product in 2 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Characteristics
- AC input voltage: 230/400 V
- Mains connection: 5-pole screw terminal
- IP protection class: IP66
- Network connection: LAN & WLAN
- Application: Indoor/outdoor
- Mounting type: Vertical
- IK code: IK08
- Product color
- Black
- Gray
- Maximum charging power: 22000 W
- Color name: Telegrey 4
- Rated current
- 6 - 32 A
- 1-phase or 3-phase
- Calibration Compliance: No
- Authentication: RFID / Solar.wattpilot app
- Cable entry: Cable entry from top (inside only allowed), bottom, rear
- Charging cable: 6 m type 2 plug cable
- MID Meter: Non-integrated
- Network layouts: TT / TN / IT
- Weight and dimensions
- Product weight: 5.4 kg
- Product depth: 105 mm
- Product height: 325 mm
- Product width: 195 mm
- Working conditions
- Permissible operating altitude (above sea level): 0 - 2000 m
- Temperature range (operation): -25 - 45 °C
- Relative humidity range: 5 - 95%
- Ergonomics
- Cable length: 6 m
- Safety warning
- Warnings
- Avoid contact with the internal liquid of the device.
- Keep the charger away from sources of high temperature and fire.
- The charger should be disposed of at special electronic waste collection points.
- Warnings
| Name | Details |
|---|---|
| Category | Accessories |
| Producer | Fronius |
| Department | Automotive |
