LOOKING FOR SOLID BRACKETS TO MOUNT A WOODEN BENCHK WALL BAR TO A TIMBER-FRAME WALL?

The WH1+S4 mounting brackets for BenchK wall bars, Series 1, are a set of steel components designed for attaching the wall bar to the load-bearing wooden studs of a timber-frame wall structure.

KEY BENEFITS:

• Compatible with BenchK wooden wall bars, Series 1


• Solid steel construction with a thickness of 4 mm


• Elongated holes for easier adjustment during installation


• Designed for wooden timber-frame walls


• Set of 2 mounting brackets


• Aesthetic black finish


• Made in Poland with precise workmanship

WHY CHOOSE BENCHK WH1+S4 MOUNTING BRACKETS? ???? ???? ✨

BenchK WH1+S4 brackets are a dedicated solution for mounting Series 1 wooden gymnastic wall bars on timber-frame walls. The 4 mm thick steel supports stand out for their solid workmanship, while the specially designed mounting holes allow the brackets to be adapted to the spacing of the load-bearing wooden studs. This practical solution enables the wall bar to be installed correctly in accordance with the manufacturer's instructions.

COMPATIBILITY WITH BENCHK WALL BARS, SERIES 1

The brackets have been specially designed for BenchK Series 1 wooden gymnastic wall bars. Their construction is adapted to the mounting system of this series. Before installation, check whether the specific wall bar model is compatible with the current manufacturer's instructions.

SOLID 4 MM THICK STEEL CONSTRUCTION

Each bracket is made of 4 mm thick steel, ensuring a durable mounting component. The material is laser-cut and suitably formed to achieve the required support shape. The steel construction allows a solid connection to the load-bearing structure while following the principles of proper installation.

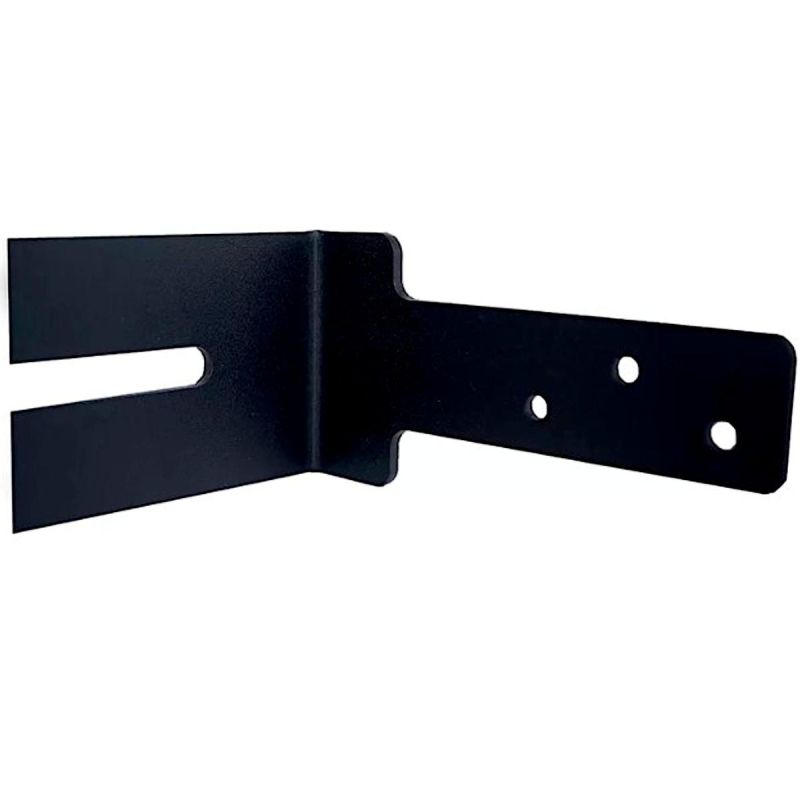

ELONGATED MOUNTING HOLES

Specially shaped oval holes allow the mounting points to be adjusted to different spacing between the wooden studs. This solution provides greater flexibility when planning the wall bar installation. Proper installation requires two suitably positioned load-bearing wooden studs.

MOUNTING TO A WOODEN TIMBER-FRAME STRUCTURE

The brackets are designed for direct attachment to the load-bearing elements of a wooden wall structure. They must not be mounted exclusively to plasterboard, as it is not a suitable load-bearing substrate for this application. Before installation, check the condition of the structure and select the appropriate fastening elements.

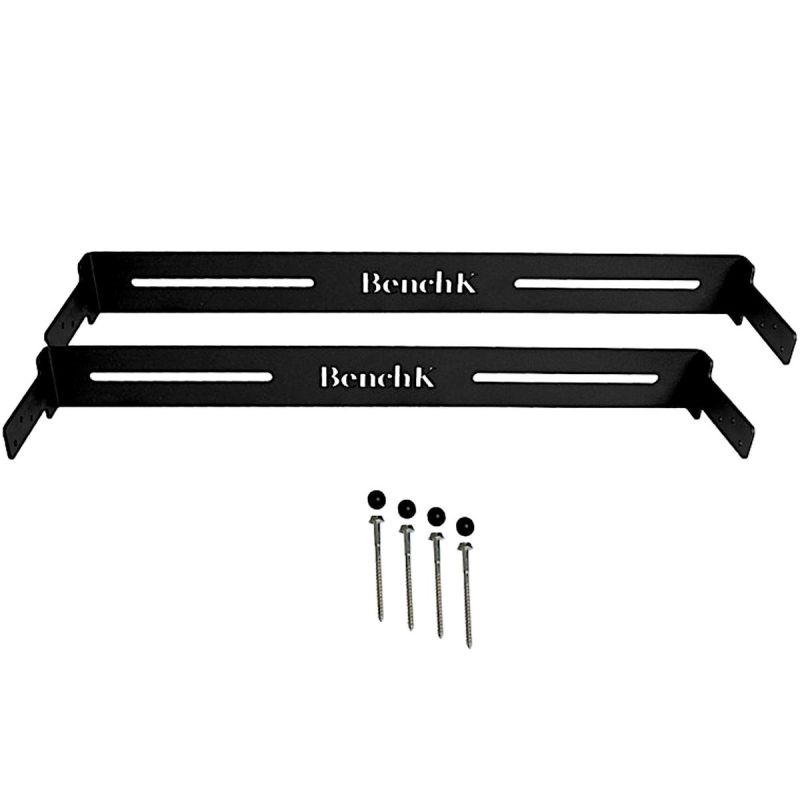

SET OF TWO MOUNTING BRACKETS

The set includes two steel brackets designed to secure a BenchK Series 1 wall bar. Each element is approximately 58.6 cm long, 6 cm high and 12 cm deep. Installation requires four suitably selected wood screws, which must be purchased separately.

AESTHETIC BLACK FINISH

The black colour gives the brackets a modern, versatile appearance. The steel components complement wooden gymnastic wall bars and various home workout space designs. The simple form helps preserve the aesthetic appeal of the entire structure.

MADE IN POLAND WITH PRECISE WORKMANSHIP

BenchK WH1+S4 brackets are manufactured in Poland using laser cutting and steel forming technology. This method enables the precise production of components with specified dimensions. The dedicated support design was developed for use with BenchK Series 1 wooden wall bars.

TECHNICAL SPECIFICATIONS:

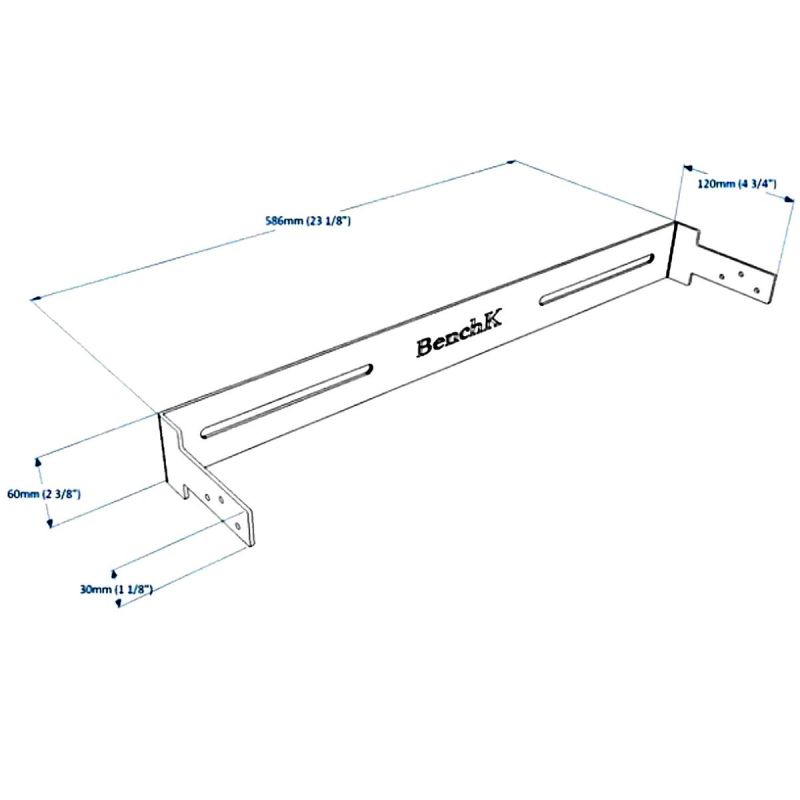

• Dimensions of one bracket: approx. 58.6 x 6 x 12 cm (L x H x D)


• Type: mounting brackets for gymnastic wall bars


• Compatibility: BenchK Series 1 wooden wall bars


• Material: steel


• Steel thickness: 4 mm


• Colour: black


• Number of brackets in the set: 2 pcs.


• Type of mounting holes: elongated, oval


• Intended use: wooden timber-frame wall structure


• Required substrate: 2 load-bearing wooden studs


• Required fastening elements: 4 suitably selected wood screws (purchased separately)


• Manufacturing technology: laser cutting and steel forming


• Country of manufacture: Poland


• Model: WH1+S4


• Brand: BenchK


• Package dimensions: approx. 63 x 8 x 14 cm


• Net weight of the set: approx. 2 kg

ABOUT THE BENCHK BRAND

BenchK is a Polish brand specialising in the design and manufacture of gymnastic wall bars and exercise accessories. The brand's products combine the functionality of training equipment with modern design, making them suitable for home sports spaces. The BenchK range includes both gymnastic wall bars and dedicated mounting components for installation on suitable wall structures.
