LOOKING FOR STURDY BRACKETS TO MOUNT BENCHK WALL BARS TO A TIMBER STUD WALL?

The white BenchK WHW S8 mounting brackets are a steel set designed for mounting compatible BenchK wall bars from series 2, 5 and 7 to the load-bearing studs of a timber stud wall.

KEY BENEFITS:

• Compatible with BenchK wall bars from series 2, 5 and 7


• Designed for timber stud walls


• Sturdy steel construction


• Set of 2 brackets – upper and lower


• Dimensions of one bracket: approx. 66.2 x 10 x 10 cm


• White finish matching BenchK wall bars


• Stable mounting to load-bearing timber studs

WHY CHOOSE BENCHK WHW S8 MOUNTING BRACKETS? ???? ???? ✨

BenchK WHW S8 brackets enable the correct installation of compatible wall bars on a timber stud wall. The steel elements create a sturdy connection between the wall bars and the load-bearing studs of the structure. This dedicated solution is intended for selected BenchK wall bars and allows installation in accordance with the manufacturer's recommendations.

COMPATIBILITY WITH BENCHK WALL BARS

WHW S8 wall brackets are designed for compatible BenchK wall bars from series 2, 5 and 7. Their dedicated construction allows them to be used when mounting the wall bars to a suitably prepared timber wall structure. Before installation, check that the specific wall bar model is compatible with the current manufacturer's instructions.

FOR TIMBER STUD WALL CONSTRUCTIONS

The set is designed for mounting to the load-bearing studs of a timber stud wall. The brackets must not be attached solely to the plasterboard. The installation location must allow the elements to be correctly secured directly to the appropriate load-bearing structure.

STURDY STEEL CONSTRUCTION

The brackets are made of steel, making them a durable element of the wall bar mounting system. The construction is adapted for use with the appropriate BenchK models. Correct installation in accordance with the instructions is essential for the safe use of the entire set.

TWO MOUNTING BRACKETS INCLUDED

The set includes a pair of steel brackets – an upper and a lower element. They allow the wall bars to be secured at the appropriate points of the timber wall structure. The exact mounting positions should be determined based on the current BenchK WHB/WHW instructions.

DIMENSIONS ADAPTED TO THE SYSTEM

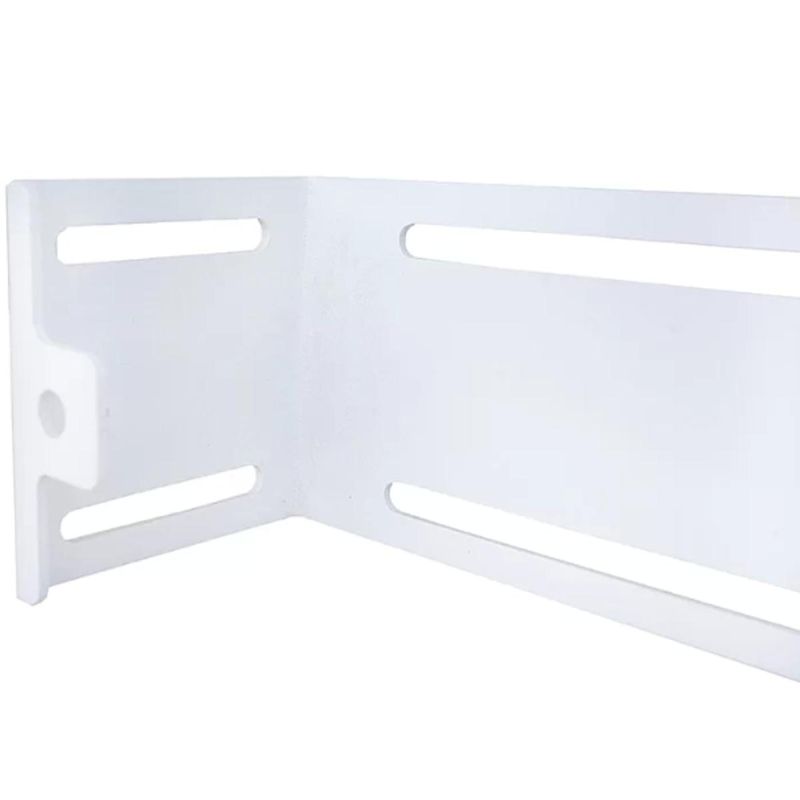

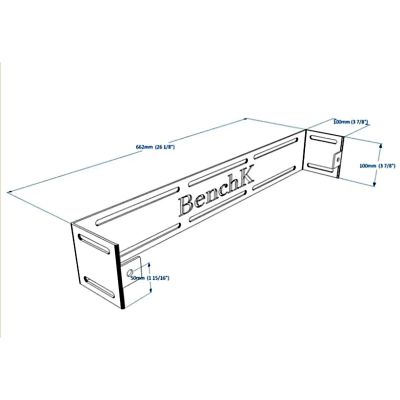

One bracket is approximately 66.2 cm long and 10 cm high and deep. The construction features elongated mounting holes distributed across the surface of the steel elements. The brackets are designed for their intended purpose and for compatibility with BenchK wall bars.

AESTHETIC WHITE FINISH

The white colour allows the mounting elements to match the appropriate BenchK wall bar variants and bright interior arrangements. The simple construction maintains a consistent, modern appearance across the entire set. Once installed, the brackets form an integral part of the wall bar mounting system.

CORRECT INSTALLATION TO LOAD-BEARING ELEMENTS

The brackets must be attached directly to the load-bearing timber studs, not to the plasterboard itself. The type and length of the fasteners should be selected according to the actual wall construction. Before using the wall bars, carefully check that all connections are correctly installed and stable.

TECHNICAL SPECIFICATIONS:

• Type: mounting brackets for wall bars


• Compatibility: BenchK wall bars from series 2, 5 and 7


• Intended use: timber stud wall construction


• Dimensions of one bracket: approx. 66.2 x 10 x 10 cm


• Material: steel


• Colour: white


• Number of elements: 2 pcs.


• Set components: upper and lower bracket


• Packaging dimensions: approx. 77 x 14 x 12 cm


• Mounting method: to load-bearing timber studs


• Net weight of the set: approx. 4 kg


• Gross weight: approx. 4.6 kg

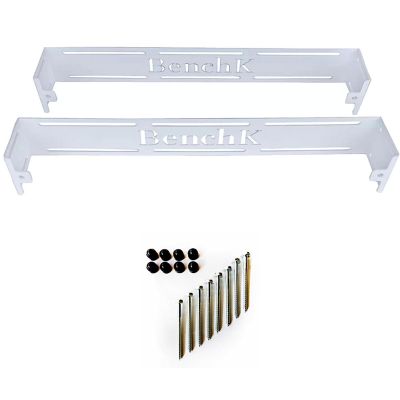

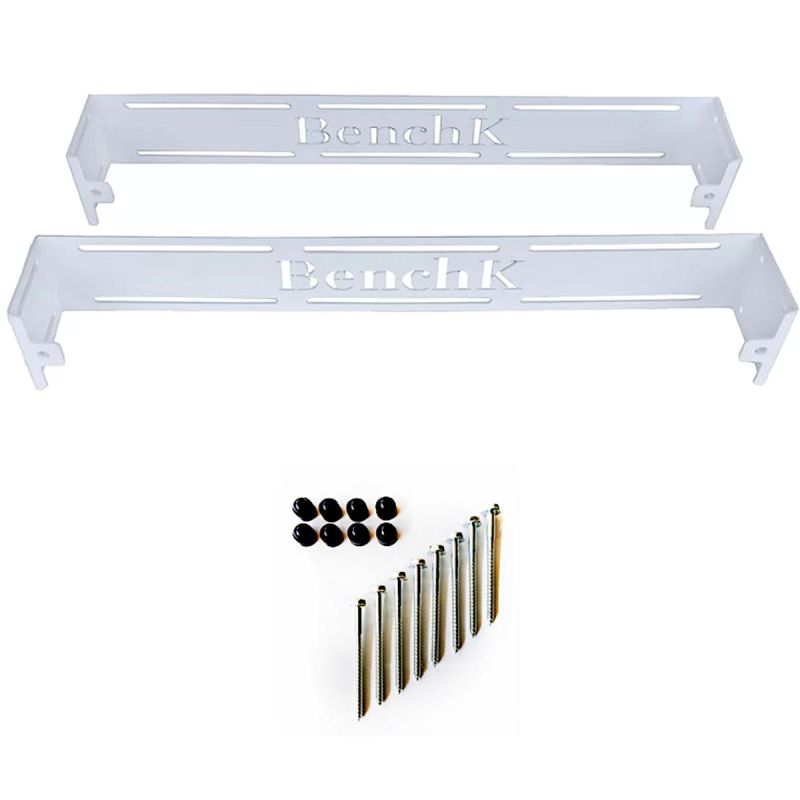

• Included in the set: 2 wall brackets, 8 duopower expansion plugs with screws and cover caps


• Model: WHW S8


• Brand: BenchK

ABOUT THE BENCHK BRAND

BenchK is a brand specialising in the design of wall bars and compatible accessories and mounting elements. The brand's products combine the functionality of training equipment with modern design, making them suitable for use both in home training spaces and in other appropriately prepared rooms.

IMPORTANT INFORMATION:

The product colours shown in the images may vary slightly from the actual colours depending on monitor, screen and lighting settings. Some lifestyle images may be generated or modified using artificial intelligence (AI) and are for illustrative purposes only.
