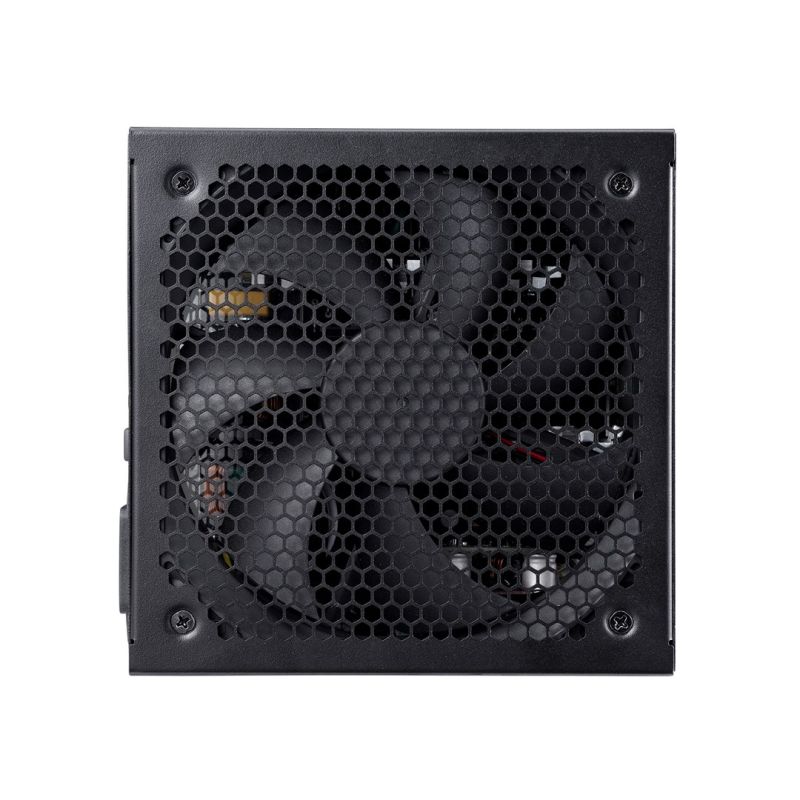

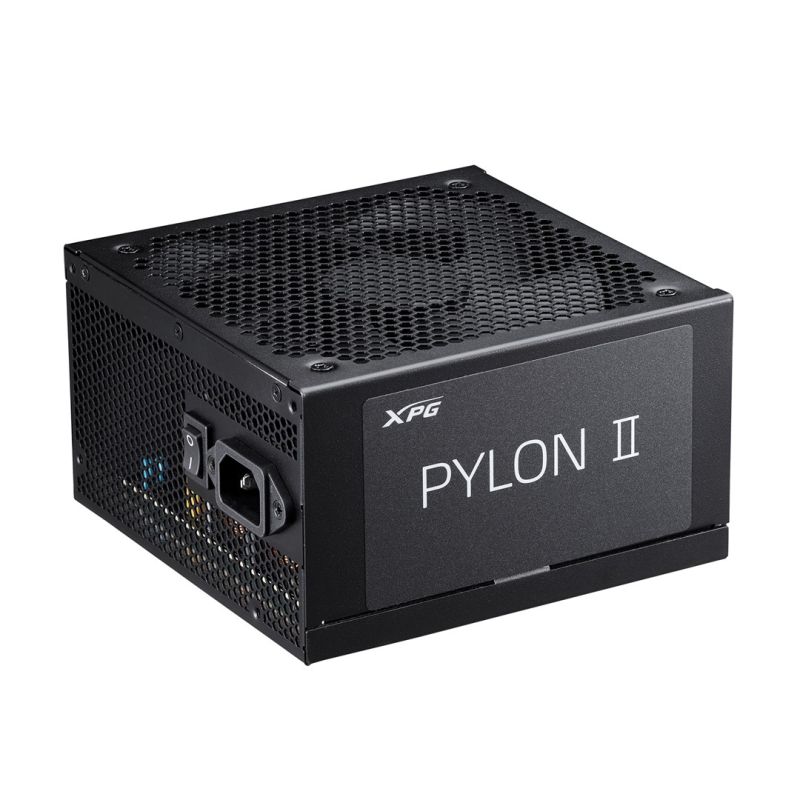

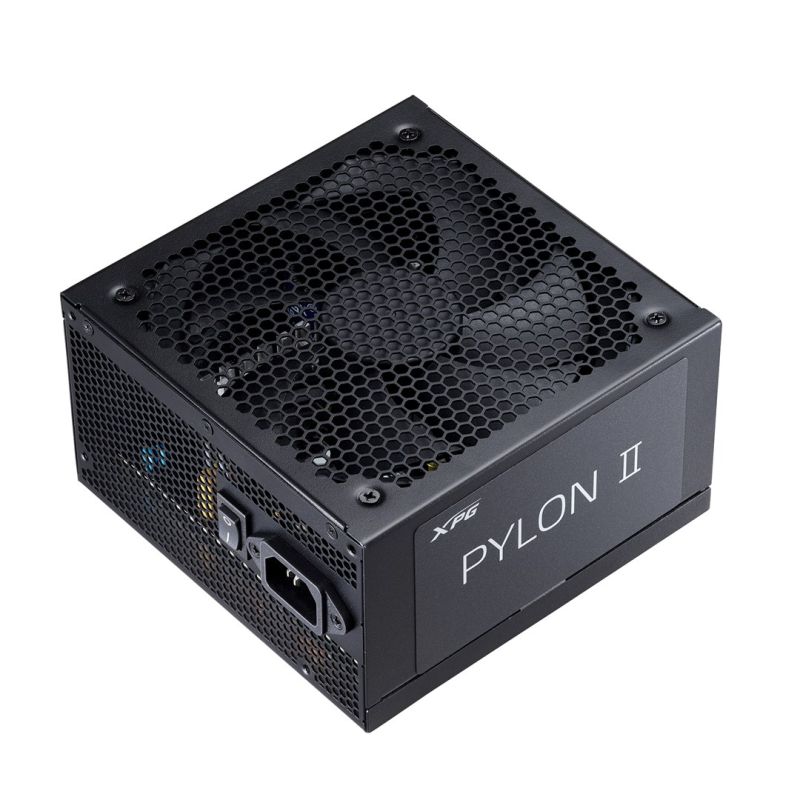

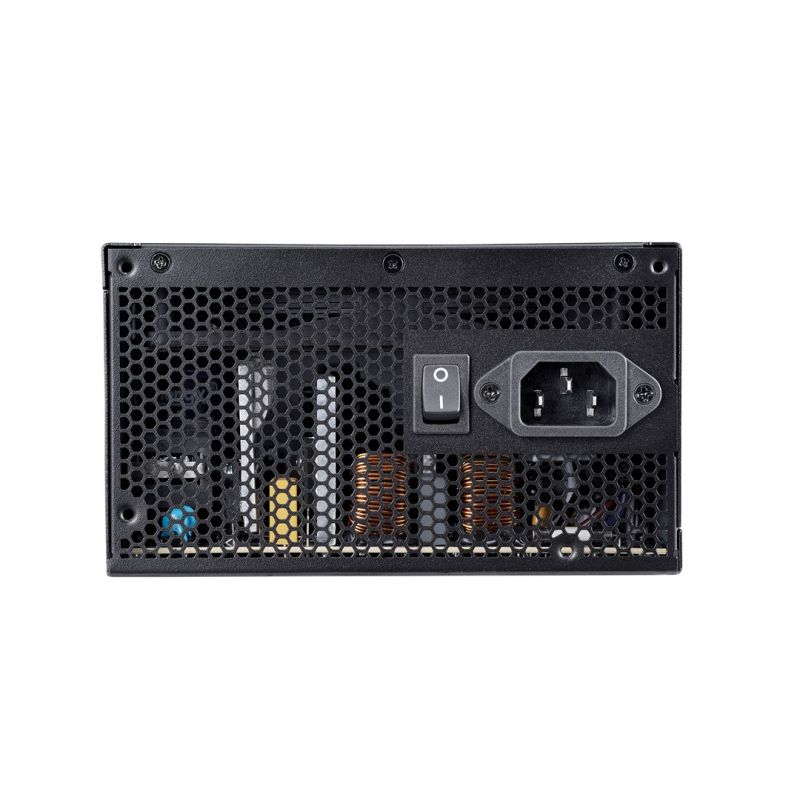

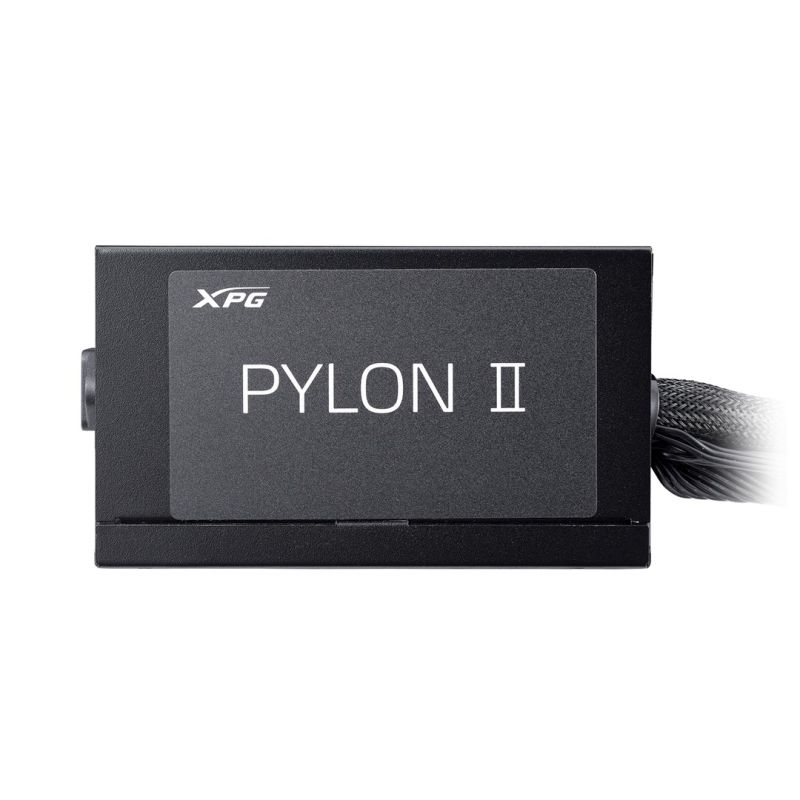

XPG PYLON II 650w 24-pin ATX Power Supply Module Black
XPG PYLON II 650w 24-pin ATX Power Supply Module Black
XPG PYLON II 650w 24-pin ATX Power Supply Module Black
PRICE:
98,99
€
IN A WAREHOUSE
above 10 pcs
We'll ship this product in 8 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Design
- Number of fans: 1 fan
- Product color: Black
- Cooling type: Active
- Fan bowl diameter: 13.5 cm
- Fan speed: 0 - 2300 RPM
- Built-in switch: Yes
- Power
- Total power: 650 W
- Maximum output current (+5 Vsb): 3 A
- Maximum output current (-12V): 0.3A
- AC input frequency: 50/60 Hz
- Maximum output current (+5V): 20A
- Input current: 10 A
- PFC (Power Factor Correction) Type: Active
- Maximum output current (+12V): 54 A
- AC input voltage: 100 - 240 V
- Power factor: 0.99
- Power protection features
- Overload protection
- Protection against overvoltage
- Overcurrent
- No load operation
- Surge & Inrush
- Short circuit
- Overheating protection
- Low voltage protection
- Maximum output current (+3.3V): 20 A
- Weight and dimensions
- Product depth: 150 mm
- Product weight: 1.8 kg
- Product width: 150 mm
- Product height: 86 mm
- Efficiency
- Bearing Technology: FDB
- ATX version: 3.1
- Power supply type (PSU): ATX
- 80 PLUS Certificate: 80 PLUS Bronze
- Intended use: PC
- MTBF (Mean Time Between Failures): 100000 h
- Ports and interfaces
- Motherboard power connector: 24-pin ATX
- EPS power supply connector (8-pin): Yes
- PCI Express power connectors (6+2 pin): 1
- Number of SATA power connectors: 6
- Peripheral (Molex) Power Connectors (4-pin): 2
| Name | Details |
|---|---|
| Producer | XPG |
