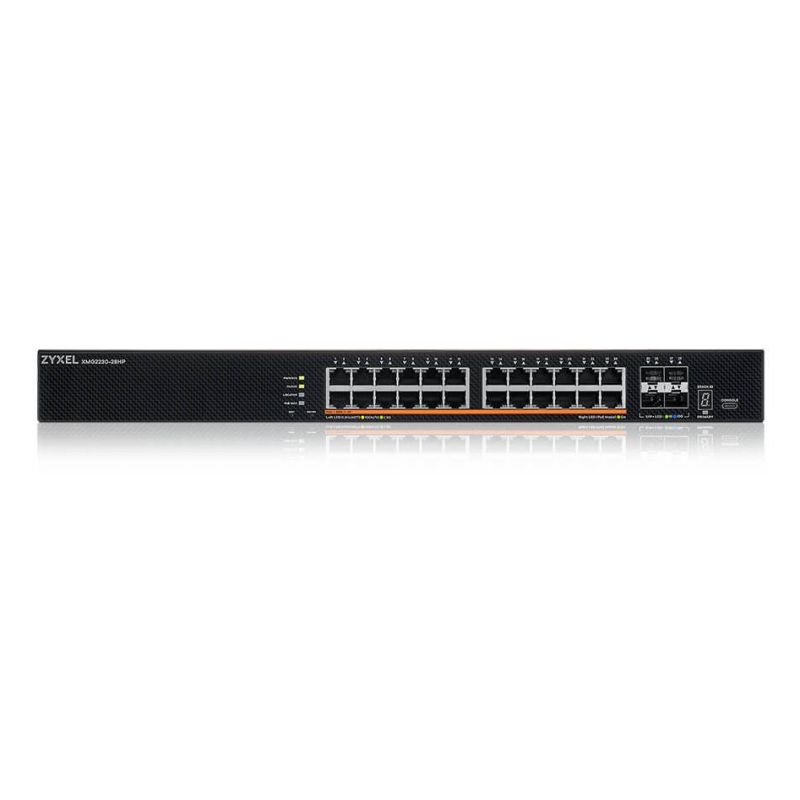

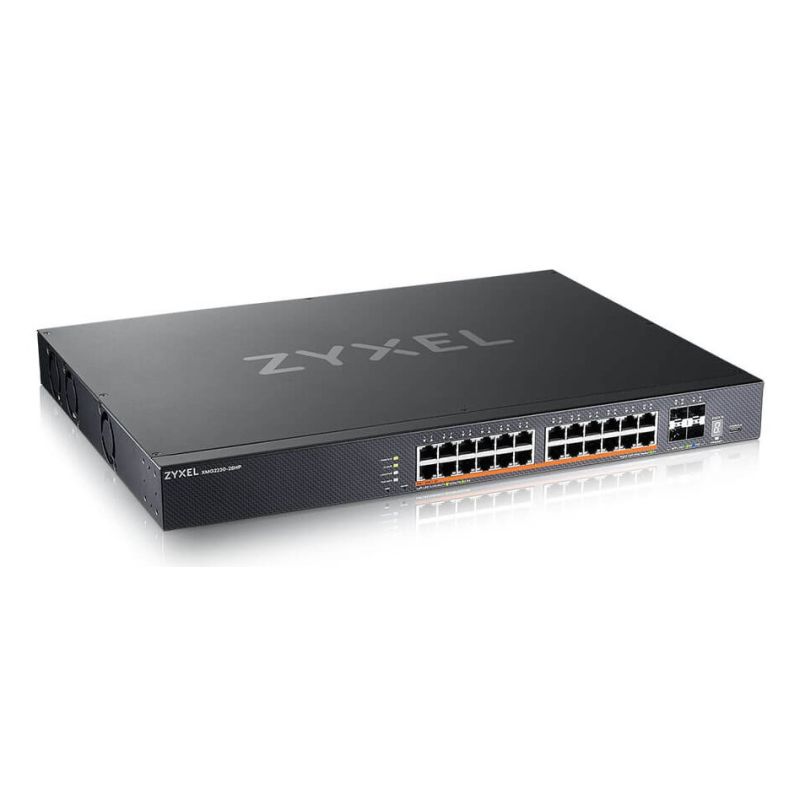

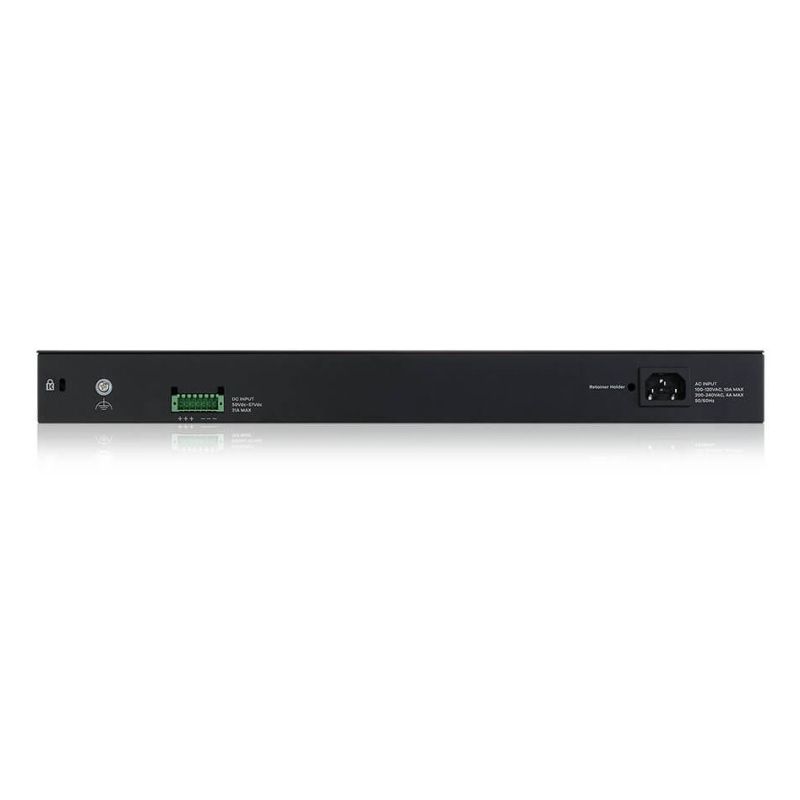

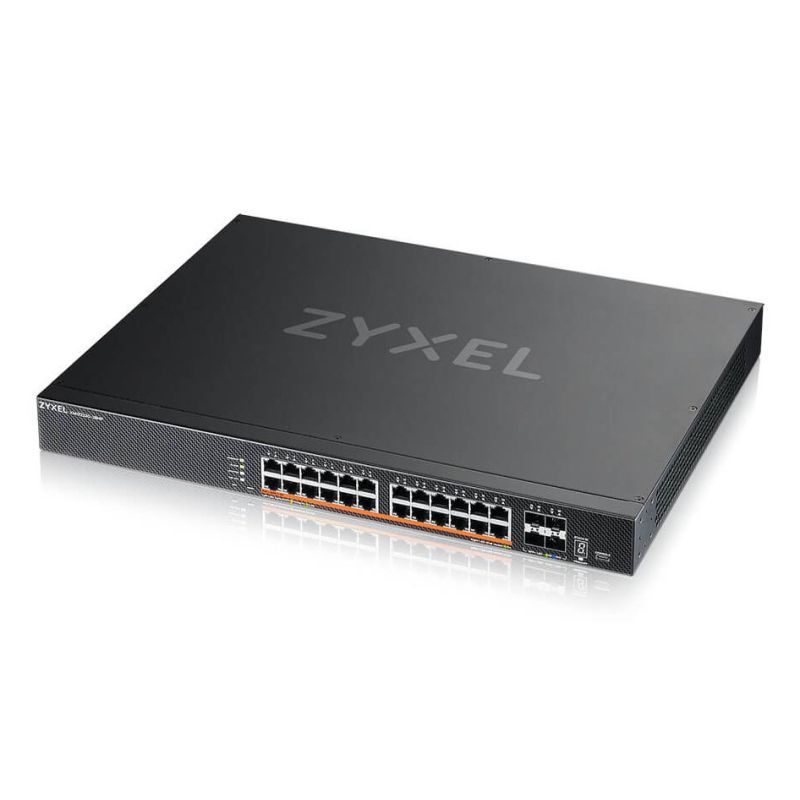

Zyxel XMG2230-28HP Switch, 28-Port, PoE (PoE++: 24), 700 W, Managed Multigigabit/10G
Zyxel XMG2230-28HP Switch, 28-Port, PoE (PoE++: 24), 700 W, Managed Multigigabit/10G
Zyxel XMG2230-28HP Switch, 28-Port, PoE (PoE++: 24), 700 W, Managed Multigigabit/10G
PRICE:
1476,99
€
IN A WAREHOUSE
LAST ITEM!
Goods available on request - delivery time to 4 working days
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Design
- Stackable: Yes
- Product colour: Black
- LED indicators: Yes
- Form factor: 1U
- Rack mounting: Yes
- Power
- DC input voltage: 50–57 V
- Power supply included: Yes
- AC input voltage: 100–240 V
- Power source: AC/PoE
- Power consumption (max): 1519.1 W
- AC input frequency: 50/60 Hz
- Weight and dimensions
- Product weight: 4.53 kg
- Product height: 44 mm
- Product width: 441 mm
- Product depth: 330 mm
- Security
- Authentication type: IEEE 802.1x, NAC SSH V2.0, RADIUS, TACACS+
- SSH/SSL support: Yes
- Authentication: Guest VLAN, MAC-based authentication
- Static port protection: Yes
- IGMP proxy: Yes
- BPDU filtering/protection: Yes
- IP-MAC-port binding: Yes
- Encryption/security
- SNMP
- SNMPv2
- SNMPv3
- DHCP functions
- DHCPv6 relay
- DHCP relay
- DHCPv6 snooping
- DHCP client
- DHCP snooping
- DHCP server
- DHCP Option 82
- DHCP Option 60
- IGMP snooping: Yes
- Management features
- Cloud-managed: Yes
- ARP inspection: Yes
- Switching layer: L2/L3
- Switch type: Managed
- Configuration of location settings (CLI): Yes
- Quality of Service (QoS) support: Yes
- Operating conditions
- Relative humidity range: 5–95%
- Operating temperature range: -20–50 °C
- Heat dissipation: 2856 BTU/h
- Permissible relative humidity: 5–95%
- Storage temperature range: -40–70 °C
- Network
- Virtual LAN features
- Policy-based VLAN
- Port-based VLAN
- Protocol-based VLAN
- Voice VLAN
- IP subnet–based VLAN
- Private VLAN
- Rate limiting: Yes
- Routing entries: 64
- Traffic storm control: Yes
- Rule-based routing: Yes
- 10G support: Yes
- Communication standards
- IEEE 802.1Q
- IEEE 802.1p
- IEEE 802.3ae
- IEEE 802.1w
- IEEE 802.3z
- IEEE 802.3ad
- IEEE 802.1s
- IEEE 802.3ab
- IEEE 802.3an
- IEEE 802.1D
- IEEE 802.1ab
- IEEE 802.1x
- IEEE 802.3bt
- IEEE 802.3az
- IEEE 802.3at
- IEEE 802.3af
- IEEE 802.3x
- IEEE 802.3bz
- IEEE 802.1ad
- Port mirroring: Yes
- Copper Ethernet cabling technology
- 1000BASE-T
- 100BASE-T
- 2.5GBASE-T
- Virtual LAN features
- Performance
- Flash memory size: 64 MB
- MTBF (Mean Time Between Failures): 554612.62 h
- Internal memory capacity: 1 GB
- Noise level: 48.85 dB
- Packaging data
- Package depth: 503 mm
- Package width: 580 mm
- Package height: 95 mm
- Weight including packaging: 6.81 kg
- Certificates
- Compliance certificates
- RoHS
- BSMI
- Low Voltage Directive (LVD)
- Compliance certificates
- Protocols
- IPv4 and IPv6 features
- ICMPv6
- Dual stack IPv4/IPv6
- IPv6 Path MTU Discovery
- IPv6 Telnet
- GARP VLAN Registration Protocol (GVRP): Yes
- IPv4 and IPv6 features
- Ports and interfaces
- Console port: RJ-45/USB Type-C
- Number of SFP+ module slots: 4
- Number of RJ-45 Ethernet ports for basic switching: 24
- Type of RJ-45 Ethernet ports for basic switching: 2.5G Ethernet (100/1000/2500)
- Data transmission
- Jumbo Frames extension: 12
- Forwarding rate: 148.8 Mpps
- Static routing: Yes
- Number of IP interfaces: 32
- Number of static routes: 4000
- Routing/switching capacity: 200 Gbit/s
- Address table size: 32000 entries
- Jumbo Frames support: Yes
- Packet buffer memory: 2 MB
- Power over Ethernet (PoE)
- Supported Power over Ethernet (PoE) type: PoE++ (4PPoE)
- Total Power over Ethernet (PoE) budget: 1440 W
- PoE support: Yes
- Multicast features
- Multicast support: Yes
