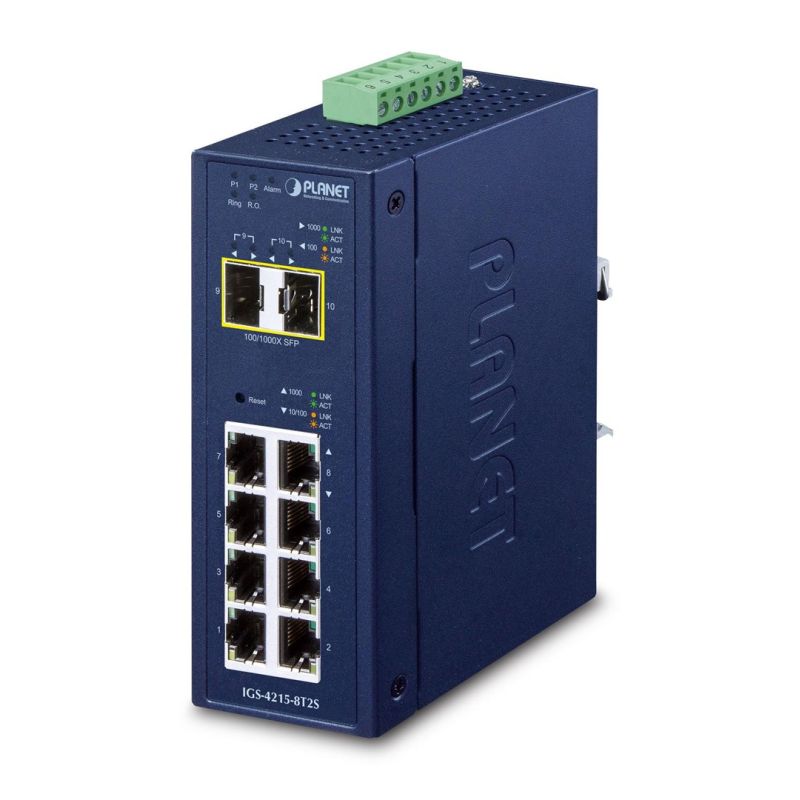

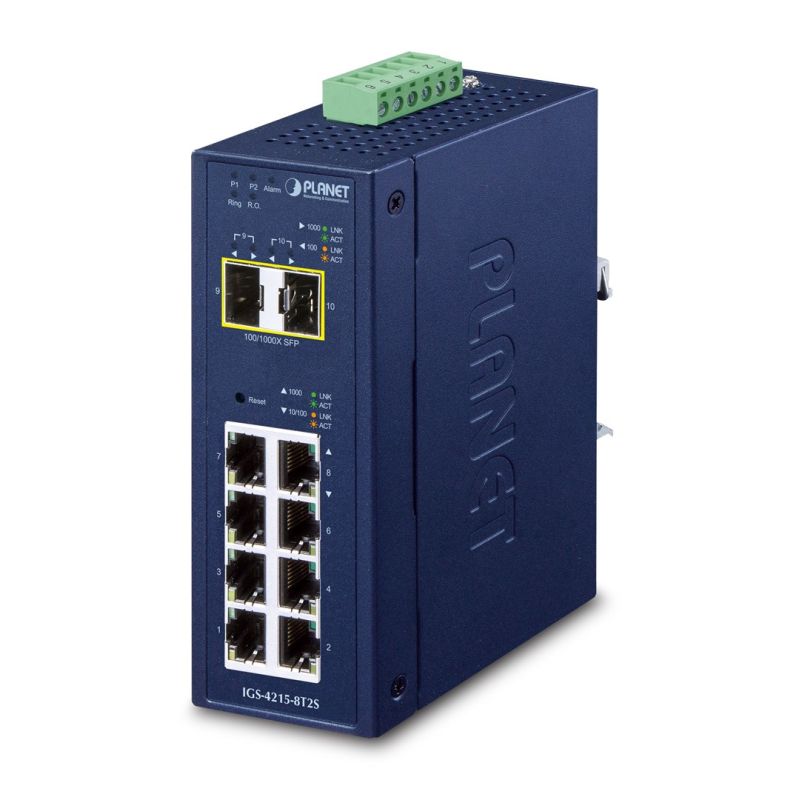

PLANET IP30 Industrial L2/L4 8-Port Managed Switch L2/L4 Gigabit Ethernet (10/100/1000) Blue
PLANET IP30 Industrial L2/L4 8-Port Managed Switch L2/L4 Gigabit Ethernet (10/100/1000) Blue
PLANET IP30 Industrial L2/L4 8-Port Managed Switch L2/L4 Gigabit Ethernet (10/100/1000) Blue
PRICE:
437,99
€
IN A WAREHOUSE
8 pcs
We'll ship this product in 5 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Design
- DIN rail mounting: Yes
- Wall mountable: Yes
- Reset button: Yes
- LEDs: Yes
- IP protection class: IP30
- Product color: Blue
- Rack mounting options: No
- Housing material: Metal
- Power
- DC input voltage: 9 - 48 V
- Weight and dimensions
- Product height: 135 mm
- Product depth: 87.8 mm
- Product width: 50 mm
- Product weight: 510 g
- Management features
- Switch Layer: L2/L4
- Switch type: Managed
- Website management: Yes
- Quality of Service (QoS) Support: Yes
- Working conditions
- Relative humidity range: 5 - 95%
- Temperature range (operation): -40 - 75 °C
- Permissible relative humidity: 5 - 95%
- Temperature range (storage): -40 - 85 °C
- Network
- MAC address auto-aging supported: Yes
- Number of VLANs: 4094
- Communication standards
- IEEE 802.3
- IEEE 802.1ad
- IEEE 802.3x
- IEEE 802.3ab
- IEEE 802.1Q
- IEEE 802.1x
- IEEE 802.1D
- IEEE 802.3z
- IEEE 802.3u
- IEEE 802.1w
- IEEE 802.1p
- IEEE 802.3az
- IEEE 802.1s
- IEEE 802.3ad
- 10G Support: No
- MAC address auto-learning supported: Yes
- Auto MDI/MDI-X: Yes
- Half-duplex: Yes
- Spanning Tree Protocol: Yes
- VLAN support: Yes
- Full duplex: Yes
- Ports and interfaces
- Basic RJ-45 Switching Number of Ethernet Ports: 8
- Basic Ethernet switching RJ-45 ports type: Gigabit Ethernet (10/100/1000)
- Number of SFP modules installed: 2
- Data transfer
- Throughput: 14.8 Mpps
- Address table size: 8000 entries
- Jumbo Frame Compatible: Yes
- Jumbo Frames Expansion: 9000
- Store-and-forward: Yes
- Routing/switching capacity: 20 Gbit/s
- Power over Ethernet (PoE)
- PoE Support: No
