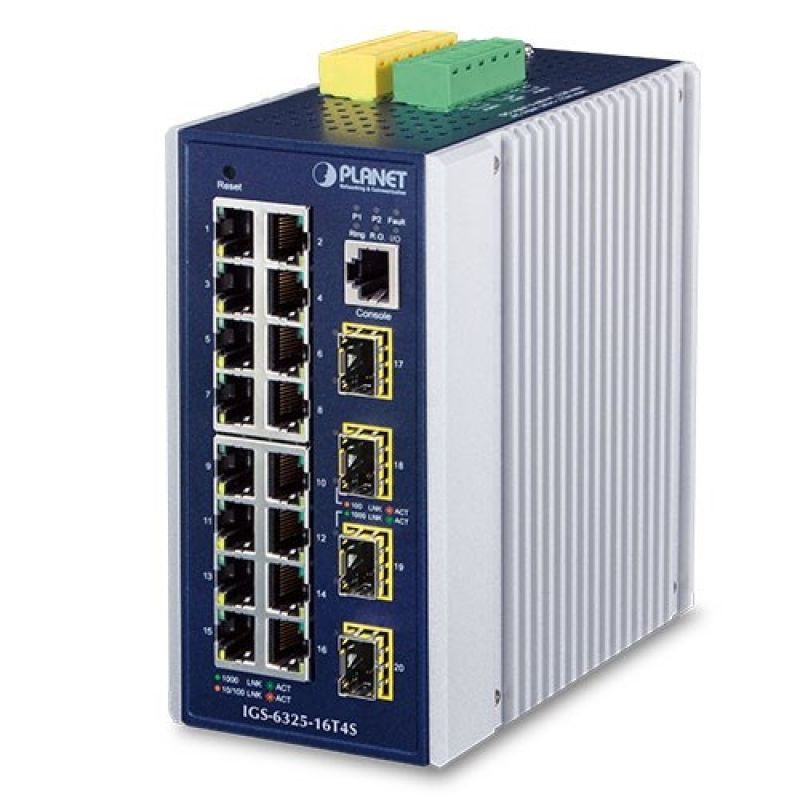

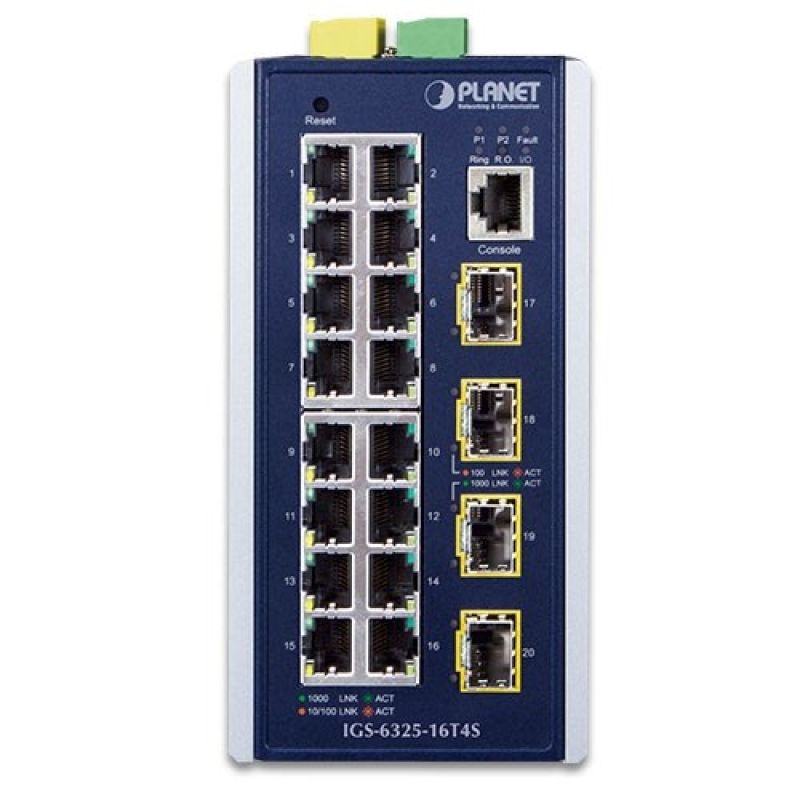

PLANET IGS-6325-16T4S Managed Network Switch L3 Gigabit Ethernet (10/100/1000) Blue, Gray
PLANET IGS-6325-16T4S Managed Network Switch L3 Gigabit Ethernet (10/100/1000) Blue, Gray
PLANET IGS-6325-16T4S Managed Network Switch L3 Gigabit Ethernet (10/100/1000) Blue, Gray
PRICE:
1199,99
€
IN A WAREHOUSE
2 pcs
We'll ship this product in 8 days.
FREE EUROPE SHIPPING FROM 149 €!
30 DAYS FOR A RETURN!
Sign up and unlock up to 10% off!
- Design
- DIN rail mounting: Yes
- Wall mountable: Yes
- IP protection class: IP30
- Housing material: Aluminum
- Product color
- Blue
- Gray
- Reset button: Yes
- LED diodes
- System
- LAN
- Power

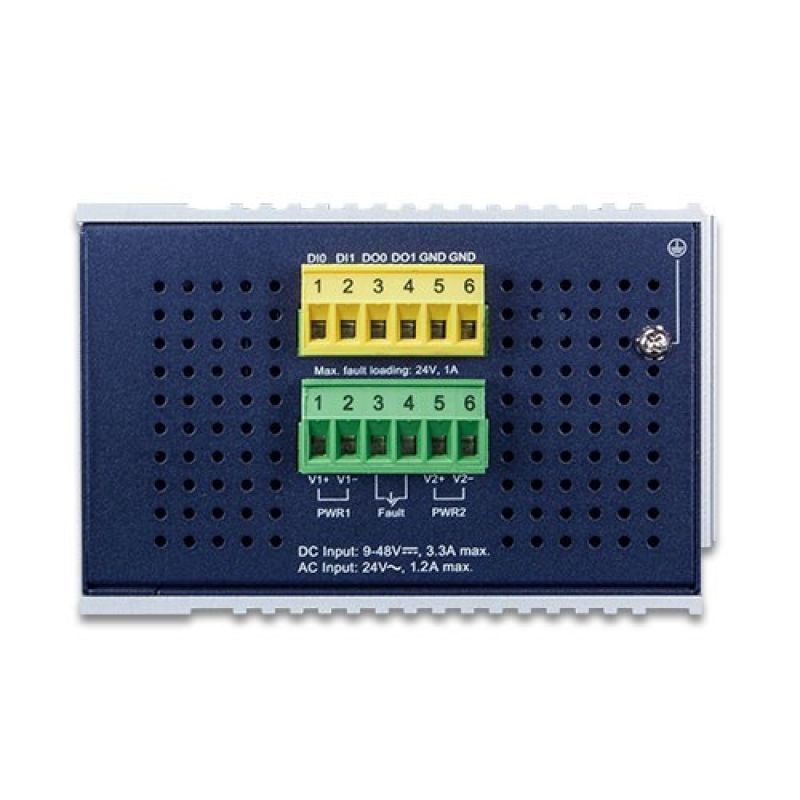

- DC input voltage: 9 - 48 V
- Input current: 3.3 A
- Weight and dimensions
- Product width: 76.8 mm
- Product height: 152 mm
- Product depth: 107.3 mm
- Product weight: 1.17 kg
- Security
- Queue Planning Algorithms: Weighted Round Robin (WRR)
- Access Control List (ACL): Yes
- IGMP snooping: Yes
- Encryption/Security
- TLS
- SNMPv2
- SSH-2
- SNMP
- SNMPv3
- Management features
- Switch Layer: L3
- Switch type: Managed
- System Event Report: Yes
- Quality of Service (QoS) Support: Yes
- Working conditions
- Temperature range (storage): -40 - 85 °C
- Relative humidity range: 5 - 95%
- Temperature range (operation): -40 - 75 °C
- Network
- Virtual LAN Features
- Protocol-based VLAN
- IP subnet–based VLAN
- Voice VLAN
- Auto MDI/MDI-X: Yes
- Full duplex: Yes
- 10G Support: No
- Auto-Negotiation: Yes
- Flow Control Support: Yes
- Number of VLANs: 256
- VLAN support: Yes
- Connection Aggregator: Yes
- Spanning Tree Protocol: Yes
- Port Mirroring: Yes
- Communication standards
- IEEE 802.3x
- IEEE 802.3u
- IEEE 802.1w
- IEEE 802.1Q
- IEEE 802.3ab
- IEEE 802.1ag
- IEEE 802.1x
- IEEE 802.3
- IEEE 802.1D
- IEEE 802.3z
- IEEE 802.3ad
- IEEE 802.1p
- IEEE 802.1s
- Virtual LAN Features
- Efficiency
- Memory type: SDRAM
- Internal memory capacity: 512 MB
- Flash memory size: 64 MB
- Device software updates: Yes
- Protocols
- Path Selection Protocol: OSPF
- GARP VLAN Registration Protocol (GVRP): Yes
- Ports and interfaces
- Number of ports: 4
- Console port: RJ-45
- Fiber optic connector: SFP
- Basic RJ-45 Switching Number of Ethernet Ports: 16
- Basic Ethernet switching RJ-45 ports type: Gigabit Ethernet (10/100/1000)
- Logistics data
- Harmonized System (HS) code: 85176990
- Data transfer
- Jumbo Frames Expansion: 10000
- Packet buffer memory: 32 MB
- Routing/switching capacity: 40 Gbit/s
- Address table size: 16000 entries
- Jumbo Frame Compatible: Yes
- Store-and-forward: Yes
- Throughput: 29.76 Mpps
- Power over Ethernet (PoE)
- PoE Support: No
- Multicast functions
- Multicast Support: Yes
